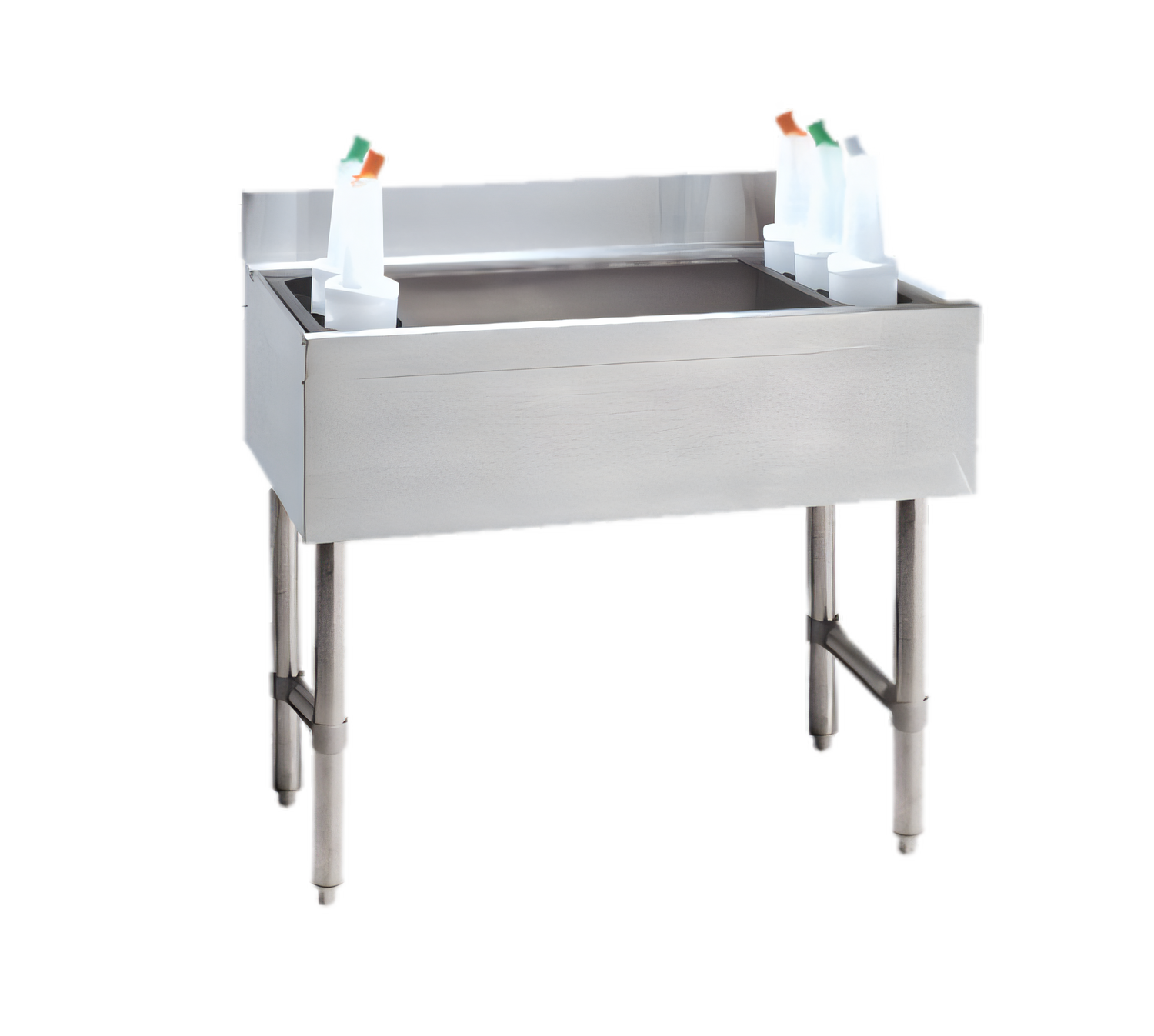

Advance Tabco Underbar Basics 36-Inch Stainless Steel Cocktail Unit with 12-Inch Deep Ice Bin and 7-Circuit Cold Plate

4-Inch Backsplash, 119 lb. Ice Capacity, Galvanized Legs

Built for busy bars, this 36-inch cocktail unit combines a deep insulated ice bin, built-in cold plate, and organized bottle storage in a durable underbar design.

  • 36-inch-wide cocktail unit with a 12-inch deep insulated ice bin and approximately 119 lb. ice capacity.
  • Built-in 7-circuit cold plate is sealed into the bin bottom for chilled beverage service.
  • 4-inch backsplash and rear deck help contain spills and provide extra working/storage space.
  • Includes two removable injection-molded 3-pack plastic bottle racks for organized bottle storage.
  • Stainless steel construction with galvanized legs, adjustable bullet feet, and side cross-bracing for stability.

Overall Dimensions:

36.0"W x 21.0"D x 33.0"H

Product Weight:

102.0 lb

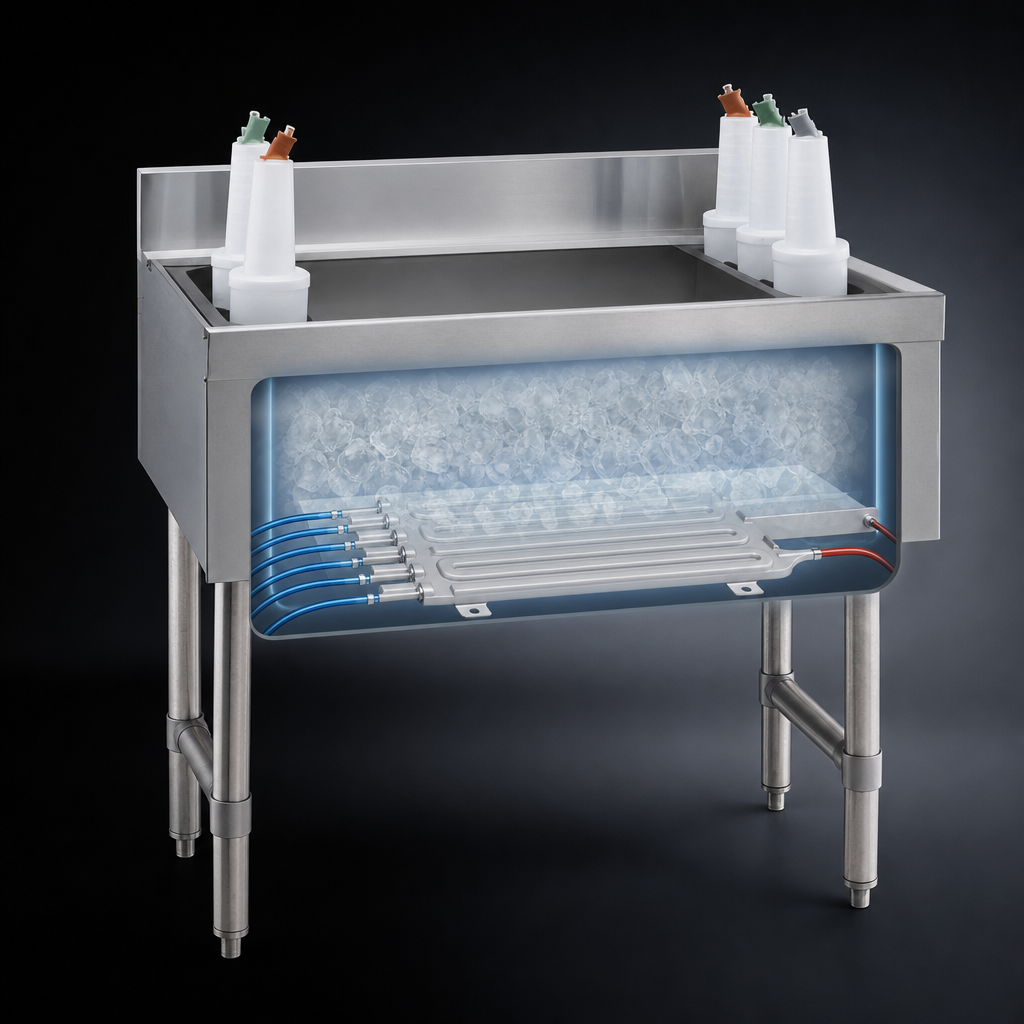

7-Circuit Cold Plate

Cast aluminum cold plate is sealed into the bottom of the bin and includes 5 syrup lines and 2 water lines.

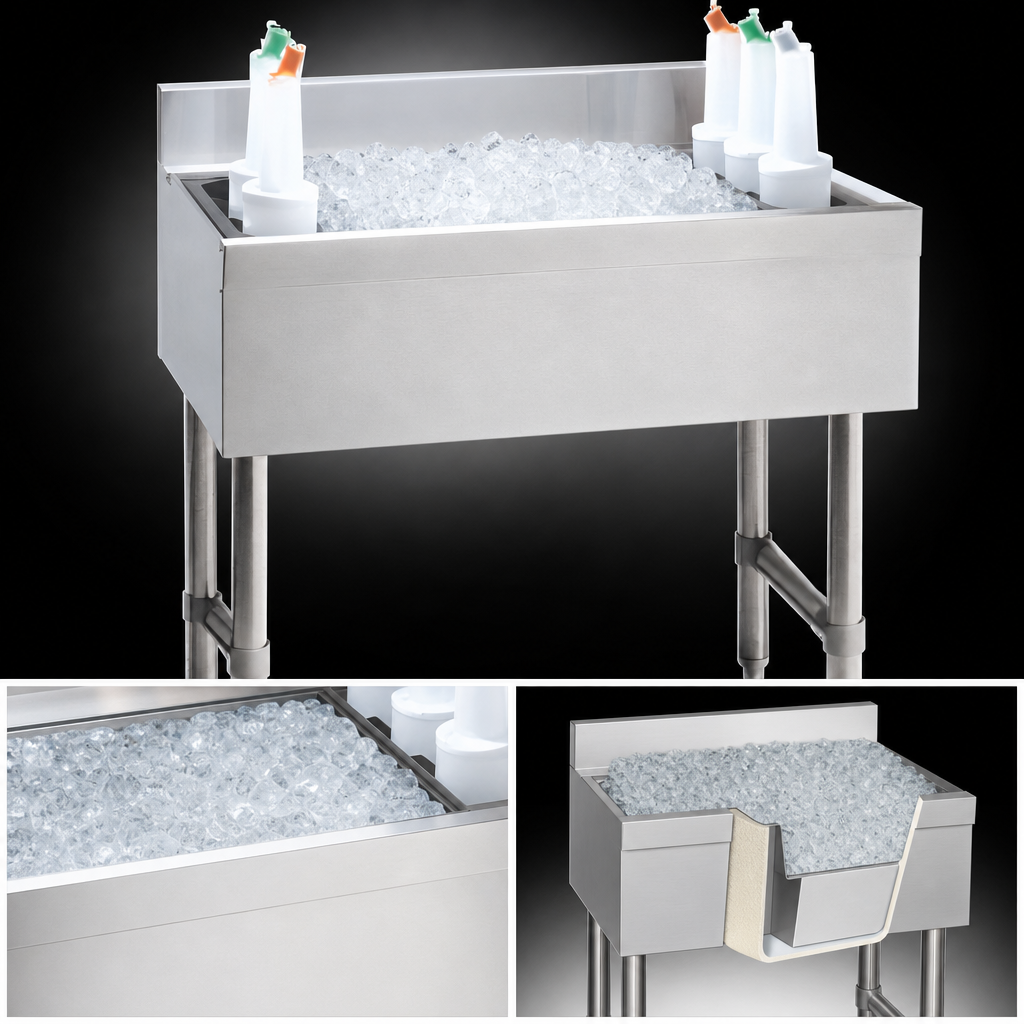

12-Inch Deep Insulated Ice Bin

Deep insulated bin provides capacity for approximately 119 lb. of ice.

4-Inch Backsplash

Helps protect the wall behind the unit and contain splashes during service.

Removable Bottle Racks

Includes two removable injection-molded 3-pack plastic bottle racks for convenient bottle organization.

Stainless Steel Construction

Ice bin, front apron, and backsplash are stainless steel for durability in bar service.

Galvanized Understructure

Galvanized legs, side cross-bracing, and adjustable plastic bullet feet provide support and leveling.

Rear Deck Storage

CRI series design includes a rear deck for additional storage space.

1/2-Inch IPS Drain

Cold plate bin includes a 1/2-inch IPS drain connection.

Type Cocktail Unit
Style 7-Circuit Cold Plate
Installation Type Floor Model
Material Stainless Steel
Capacity 119 Pounds
Shipping Width 36 Inches
Shipping Depth 21 Inches
Shipping Height 33 Inches
Shipping Weight 102 Pounds
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Documents

PDF Cutsheet PDF Download

Frequently Asked Questions

It has an approximate ice capacity of 119 pounds.
It uses a 7-circuit cold plate sealed into the bottom of the bin, with 5 syrup lines and 2 water lines.
Yes. It includes two removable injection-molded 3-pack plastic bottle racks.
Yes. The listed optional accessory for the 36-inch bin is the SSC-36 sliding stainless steel cover.
The cold plate bin includes a 1/2-inch IPS drain.
