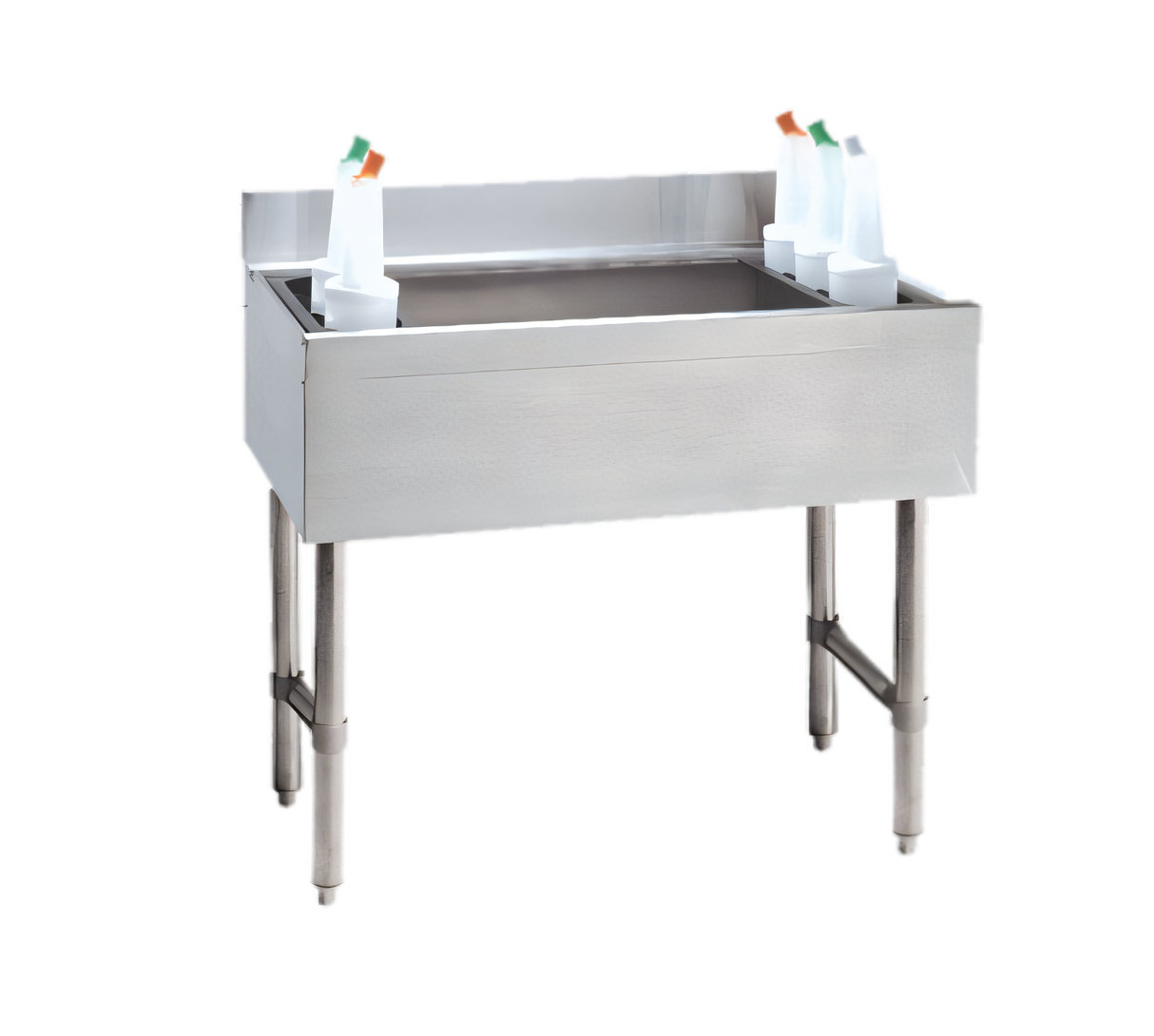

Advance Tabco Special Value 24-Inch Wide Stainless Steel Cocktail Unit Bar Ice Bin with 7-Circuit Cold Plate

SKU: CRI-12-24-7-X
GTIN: 747545181336
$2,042.04
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Advance Tabco Bar Equipment Bar Ice Bins Best Sellers Beverage Equipment Beverage Equipment Ice Machines & Beverage Equipment New Arrivals Restaurant Equipment Underbar Equipment

Advance Tabco Special Value 24-Inch Wide Stainless Steel Cocktail Unit Bar Ice Bin with 7-Circuit Cold Plate

12-Inch Deep Ice Bin, 4-Inch Splash

A durable 24-inch underbar ice bin with built-in 7-circuit cold plate chilling, removable bottle racks, and a compact stainless steel build for fast cocktail service.

  • 12-inch deep insulated ice bin holds approximately 77 lb. of ice.
  • 7-circuit cold plate is sealed into the bottom for chilled drink service.
  • Includes two removable injection-molded plastic bottle racks and a 4-inch backsplash.
  • Stainless steel construction with galvanized legs, side cross-bracing, and adjustable bullet feet.
  • 1/2-inch IPS drain simplifies installation.
  • Optional SSC-24 sliding stainless steel cover is available separately.

Overall Dimensions:

24.0"W x 21.0"D x 33.0"H

Product Weight:

93.0 lb

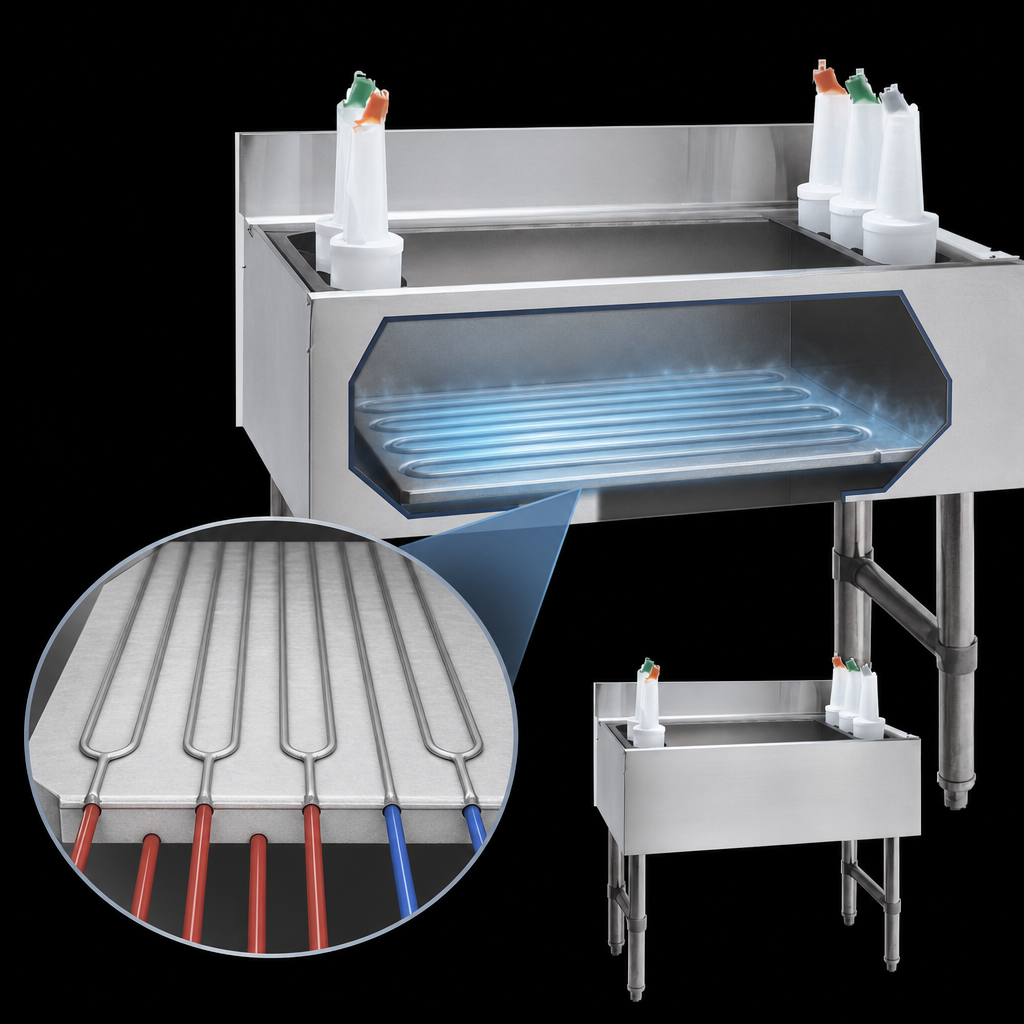

7-Circuit Cold Plate

Cast aluminum cold plate is sealed into the bin bottom and uses 5 syrup lines and 2 water lines for beverage chilling.

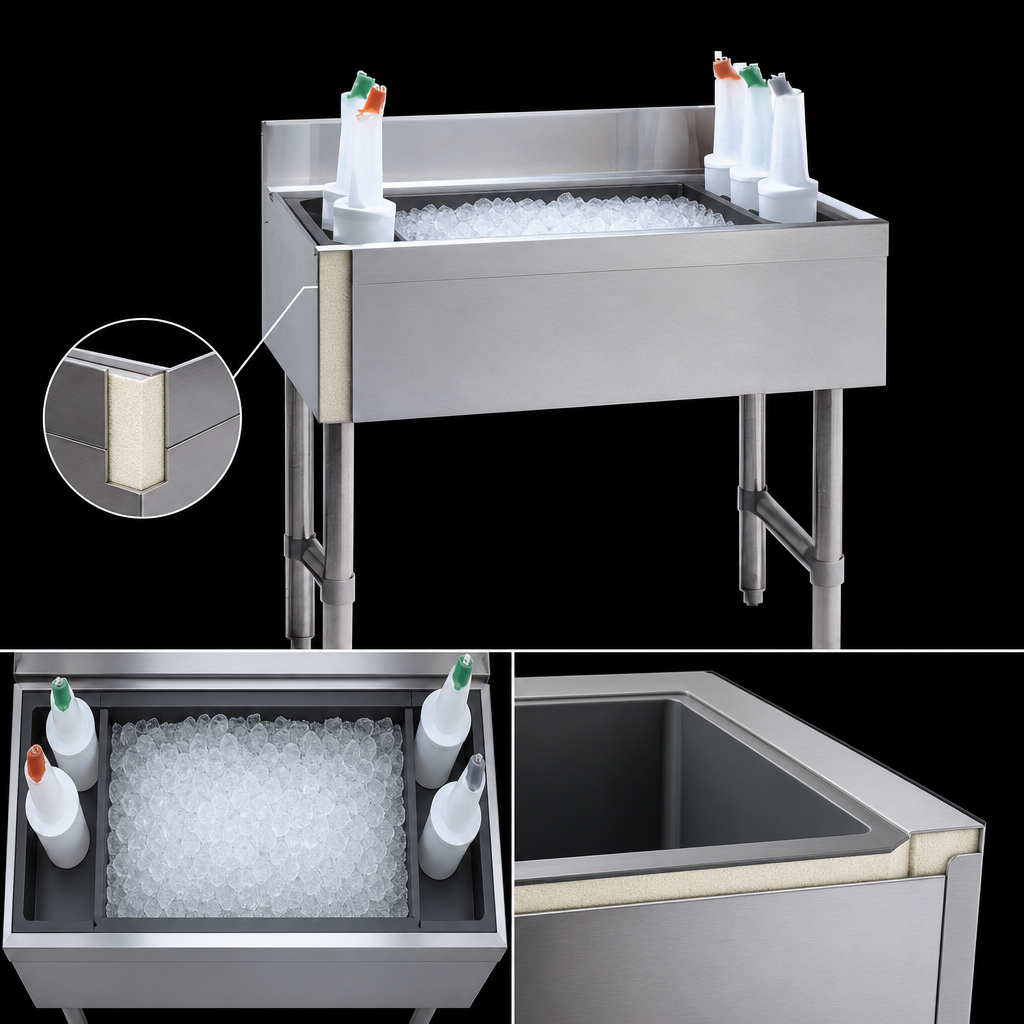

Insulated 12-Inch Deep Bin

Foam-insulated ice bin is designed to hold approximately 77 lb. of ice.

Removable Bottle Racks

Includes two removable injection-molded plastic bottle racks for organizing bottles at the bar.

Stainless Steel Construction

Ice bin, front apron, and backsplash are stainless steel for durability and a clean appearance.

Galvanized Support Structure

Galvanized legs, adjustable plastic bullet feet, and side cross-bracing help provide stability and leveling.

4-Inch Backsplash

Built-in backsplash helps contain splashes and keep the work area cleaner.

1/2-Inch IPS Drain

Cold plate bin includes a 1/2-inch IPS drain connection.

Optional Sliding Cover

SSC-24 sliding stainless steel cover is available separately.

Type Bar Ice Bin
Style Cocktail Unit
Installation Type Freestanding
Material Stainless Steel
Capacity 77 Pounds
Drain Connection Required
Drain Connection Size 1/2 Inch IPS
Shipping Width 24 Inches
Shipping Depth 21 Inches
Shipping Height 33 Inches
Shipping Weight 93 Pounds
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Documents

PDF Cutsheet PDF Download

Frequently Asked Questions

It holds approximately 77 lb. of ice.
The unit measures 24" W x 21" D x 33" H.
Yes. It includes two removable injection-molded plastic bottle racks.
Yes. The cold plate bin includes a 1/2-inch IPS drain connection.
Yes. The optional SSC-24 sliding stainless steel cover is available separately.
