Advance Tabco CRD-4B Underbar Basics™ Bar Equipment
Description

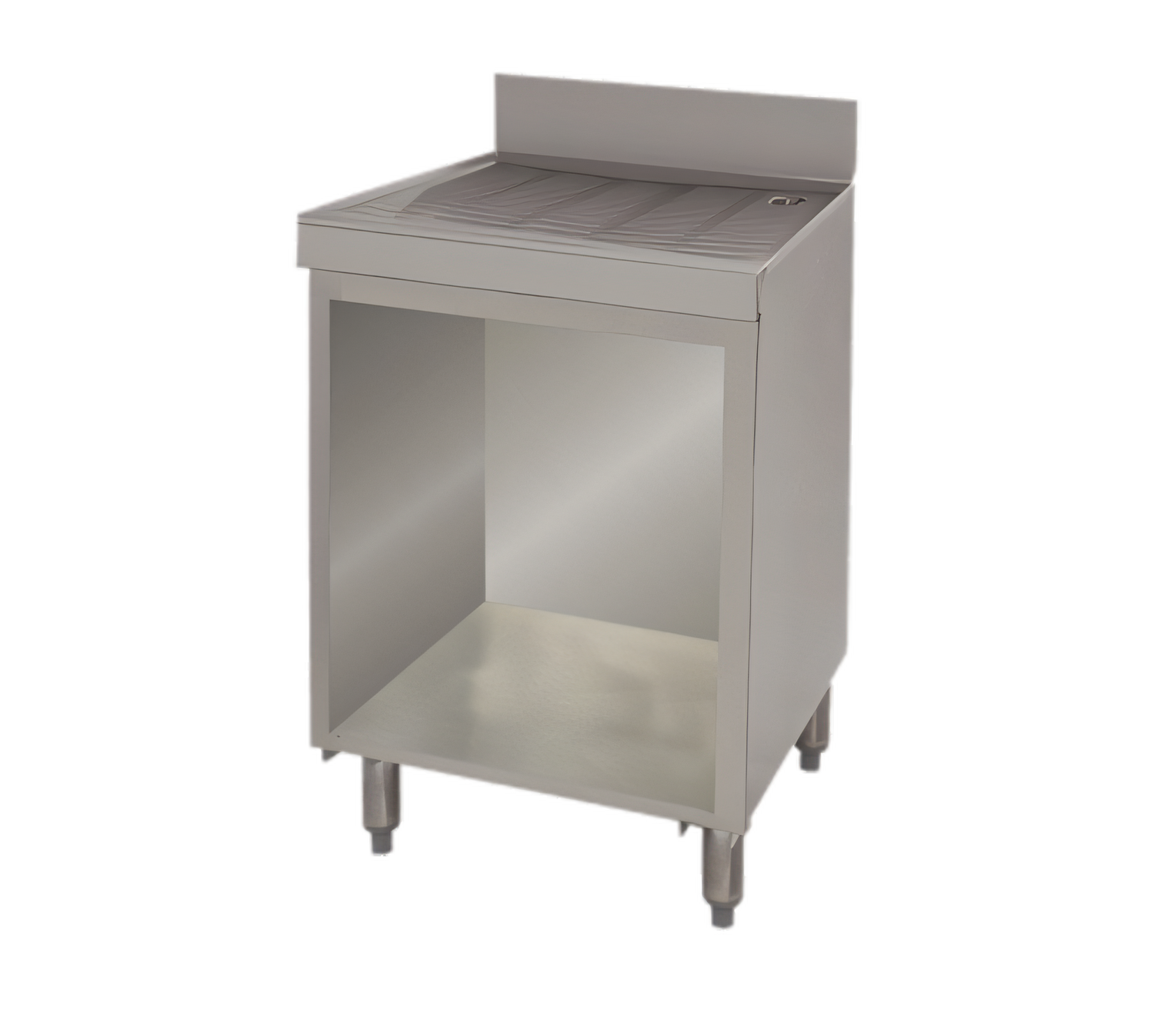

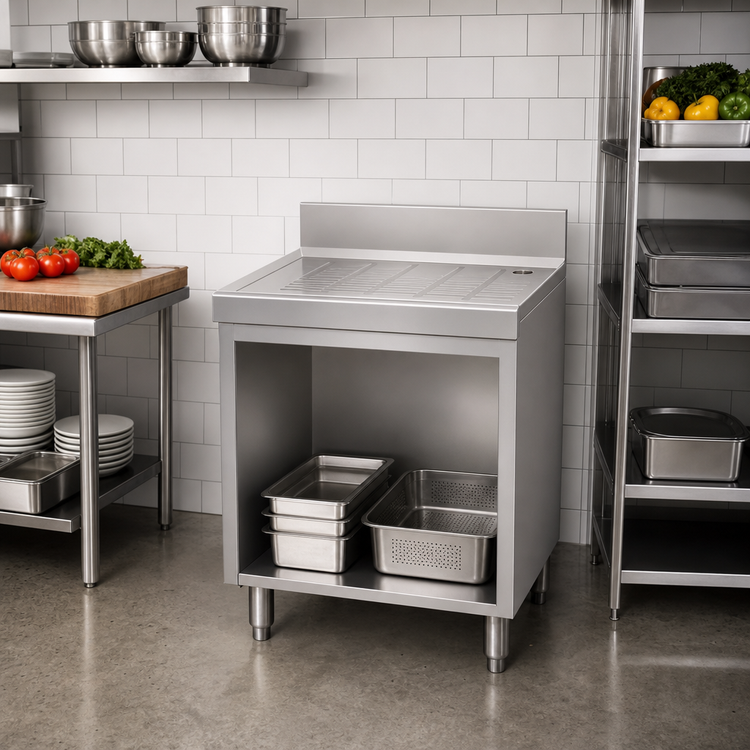

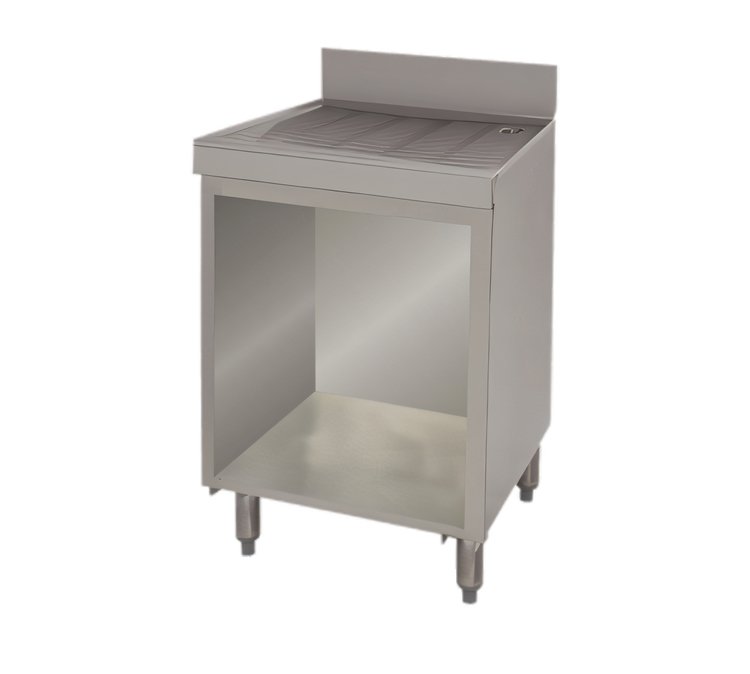

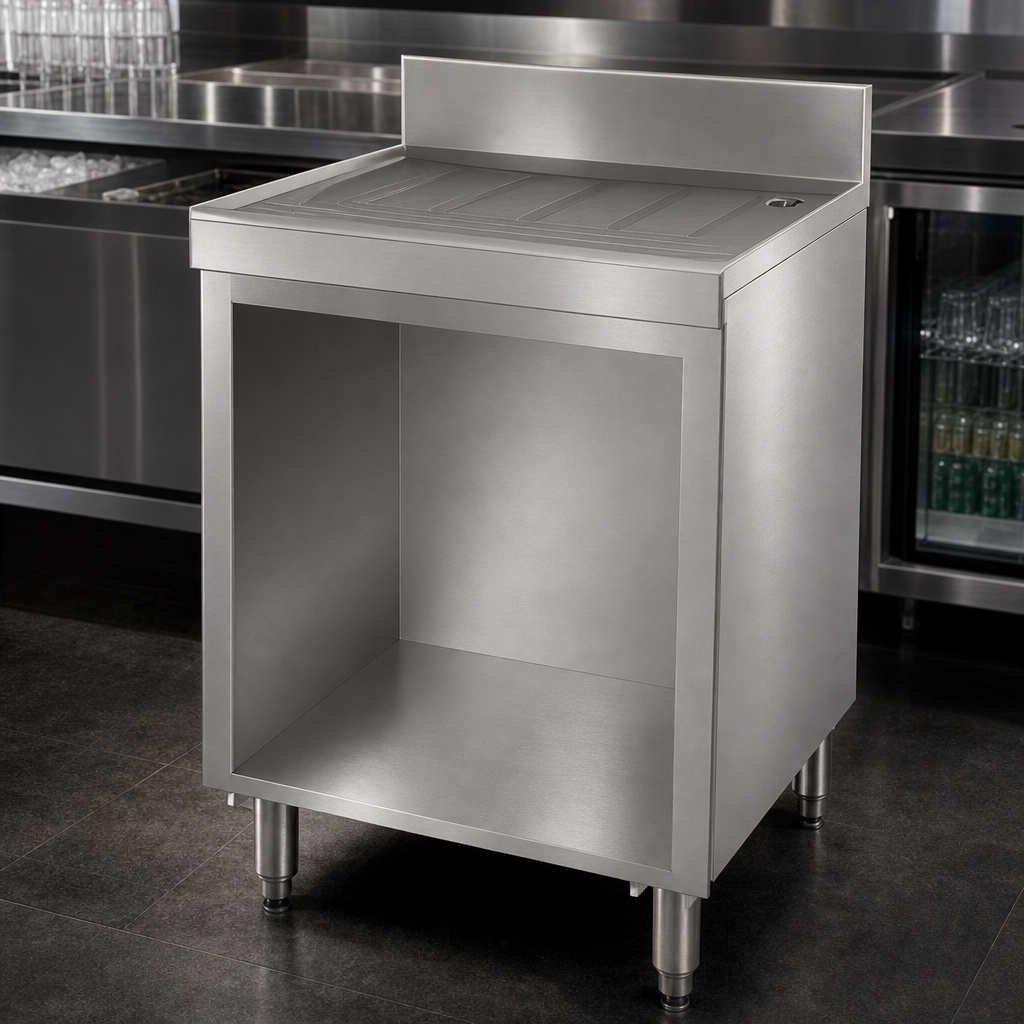

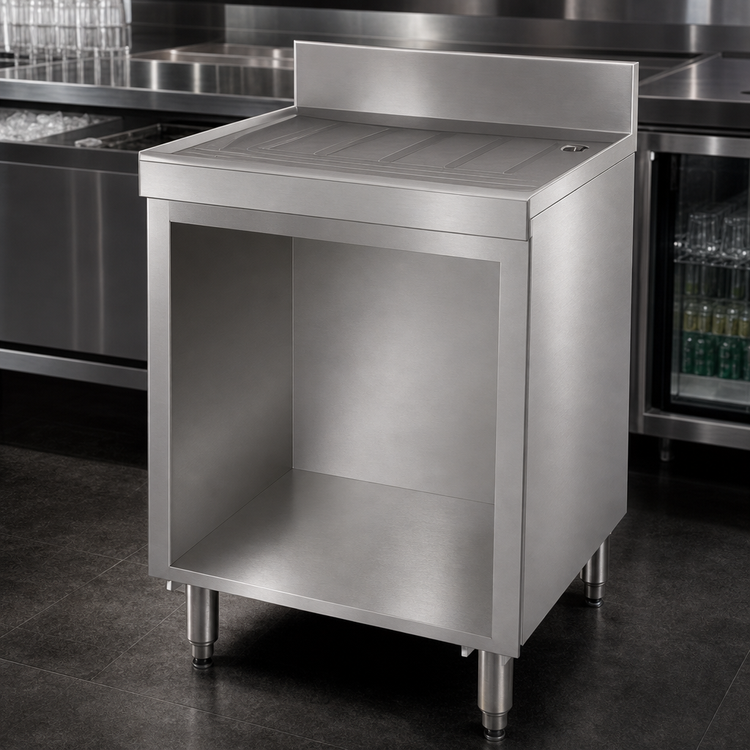

Advance Tabco Underbar Basics™ 48" Drainboard Cabinet – Open Base
Model CRD-4B | 48" W x 21" D x 33" H | NSFEngineered for demanding bar and beverage stations, the Underbar Basics™ drainboard cabinet delivers durable stainless-steel construction, generous drying space and convenient undercounter storage—all in one space-saving footprint.
Key Features
- Embossed, seamless drainboard slopes to a rear 1" IPS drain for rapid water runoff.
- 4" integrated backsplash protects surrounding walls and counters from splashes.
- Open cabinet base keeps bus tubs, mixers and cleaning supplies within easy reach.
- 20-gauge 300 series stainless steel body with 22-gauge backsplash & front molding.
- 16-gauge stainless steel legs with adjustable bullet feet for rock-solid stability.
- Factory-punched 3" plumbing access hole speeds installation.
- NSF certified for safe, sanitary commercial use.
Dimensions & Capacities
| Overall width | 48 in (1219 mm) |
|---|---|
| Overall depth | 21 in (533 mm) |
| Overall height | 33 in (838 mm) |
| Working height | 29 in (737 mm) |
| Drain connection | 1" IPS (rear, right-hand) |
| Approx. weight | 94 lb (42.6 kg) |
Construction Highlights
- Corrugated drainboard keeps glassware elevated for faster air-drying.
- Rear deck supplies extra staging area for garnishes, pourers or bar tools.
- All welded seams are ground and polished for a smooth, easy-clean finish.
Factory-Installed Options (sold separately)
- Hinged stainless steel doors
- Stainless steel mid-shelf
- 10" × 14" × 10" hand sink with deck-mount faucet (SU-22A)
- Smooth, non-corrugated drainboard surface (SU-68)
- Keyed door lock (SU-27)
Looking for a different size or configuration? The Underbar Basics™ series is available in 24", 30" and 36" lengths with optional shelves and doors—contact us for details.
