Advance Tabco CRD-30BM Underbar Basics™ Bar Equipment
Description

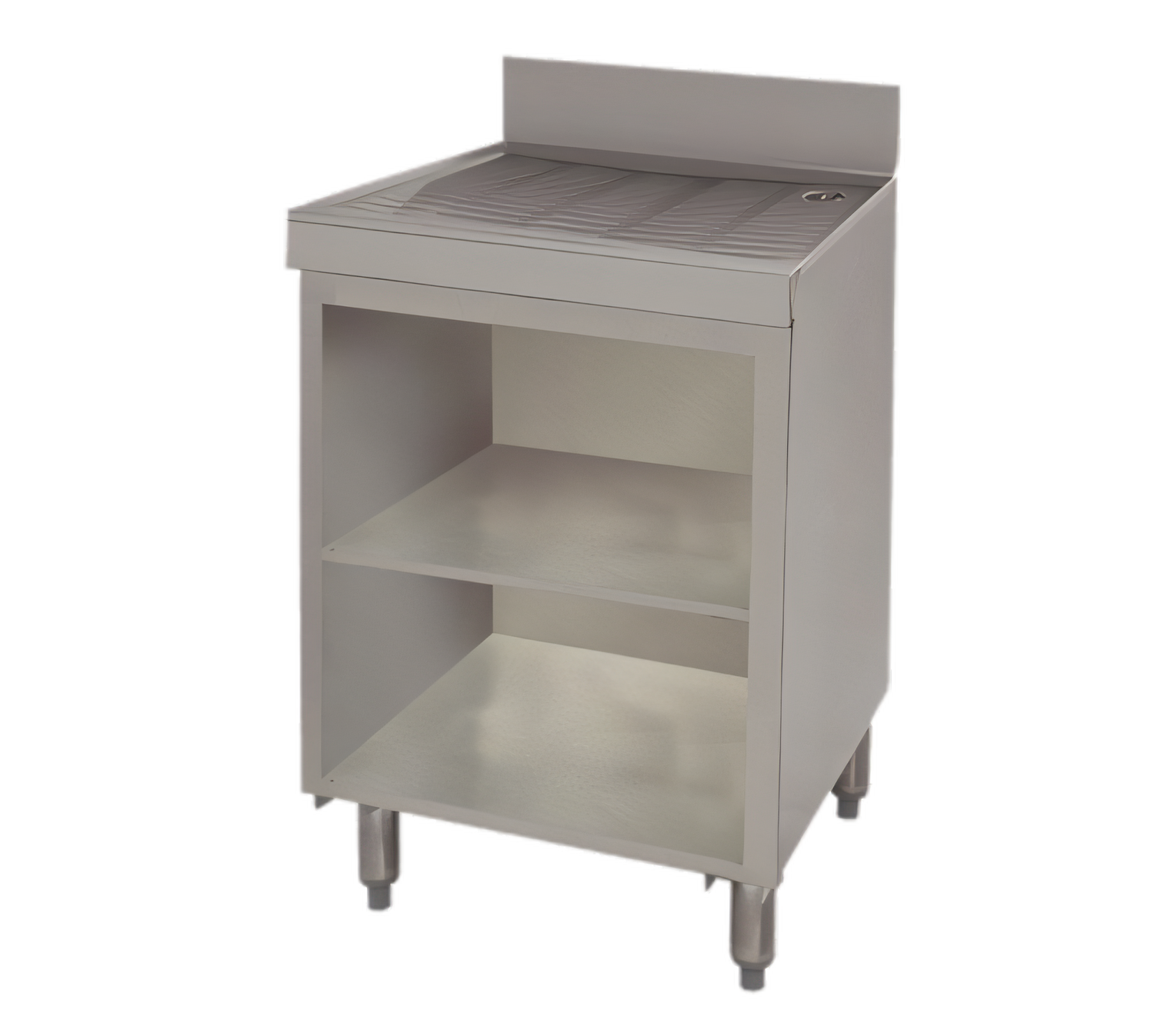

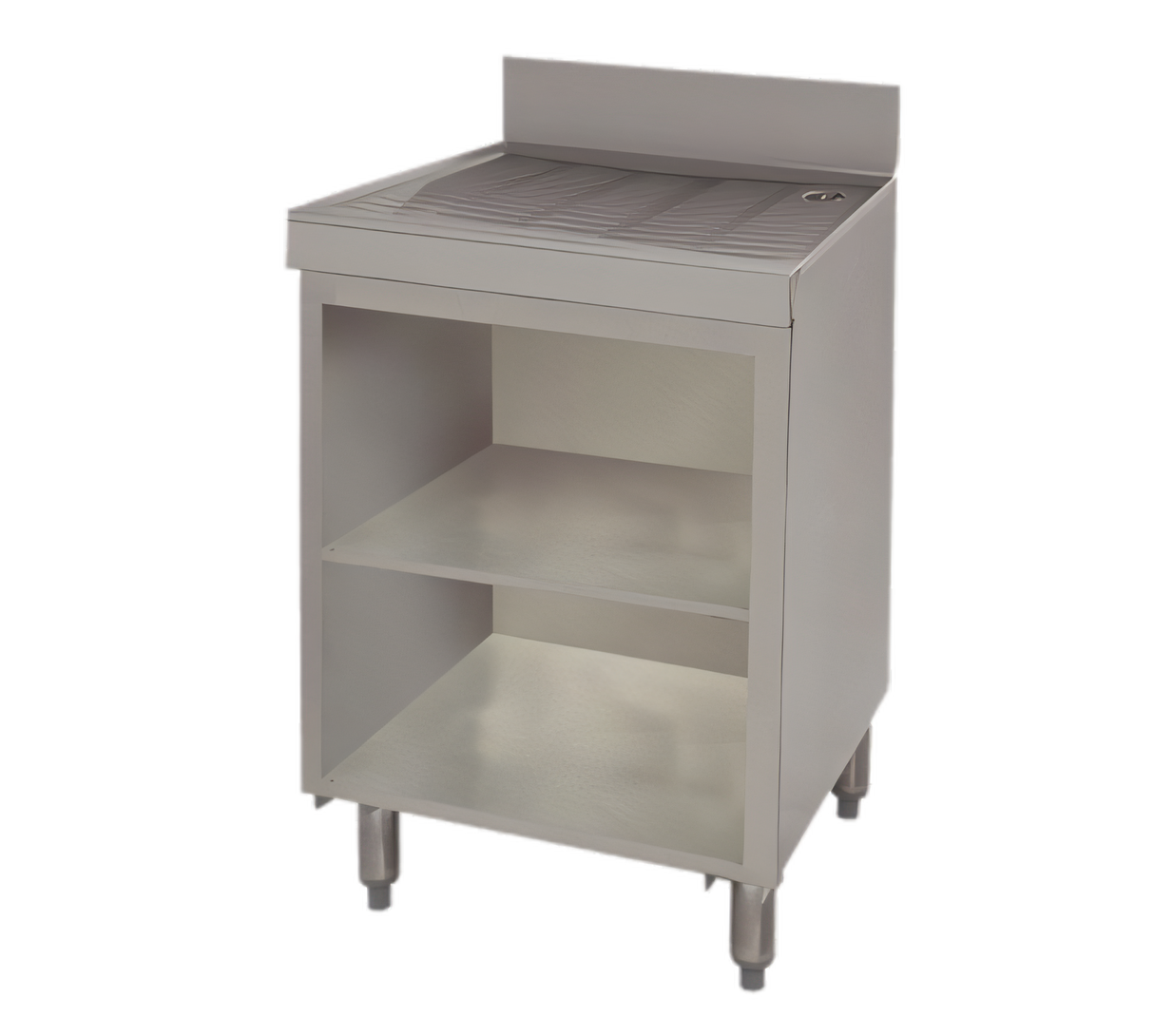

Underbar Basics™ 30" Drainboard Cabinet with Mid-Shelf
Advance Tabco Model CRD-30BM • NSF ListedDry glassware, drain melted ice and keep bar essentials organized in one compact station. The Underbar Basics™ CRD-30BM combines an embossed stainless drainboard with an open storage base and mid-shelf—built tough for busy commercial bars and restaurants.
Key Benefits
- Seamless, embossed drainboard slopes to a rear 1" IPS drain for fast, sanitary runoff.
- 4" backsplash protects surrounding walls and counters from splashes.
- Fabricated from 20-gauge 300 series stainless steel for superior corrosion resistance.

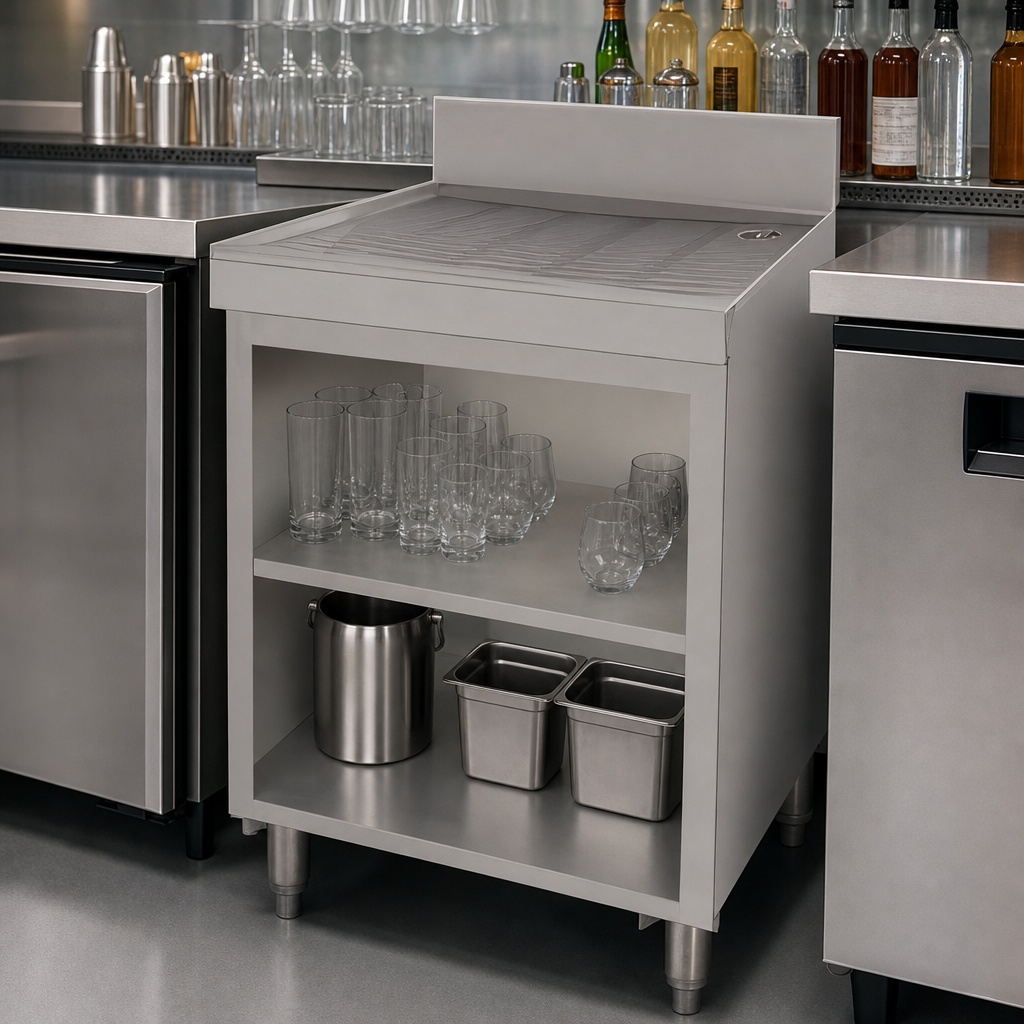

- Open cabinet with stainless mid-shelf maximizes underbar storage space.
- Sturdy 16-gauge, 1 5/8" O.D. stainless legs with adjustable bullet feet maintain a level work surface.
- Factory-punched 3" plumbing access hole speeds installation.
- NSF certified to meet rigorous food-service sanitation standards.
Specifications
| Model | CRD-30BM |
|---|---|
| Overall Dimensions | 30" W x 21" D x 33" H |
| Working Height | 29" |
| Backsplash Height | 4" |
| Drainboard | Embossed stainless, rear right drain |
| Drain Connection | 1" IPS |
| Shelf Configuration | Open base with fixed stainless mid-shelf |
| Material | 20-ga 300 SS body • 22-ga backsplash/front molding |
| Legs / Feet | 16-ga 1 5/8" O.D. stainless legs with adjustable SS bullet feet |
| Approx. Shipping Weight | 78 lb |
| Certification | NSF |
Ideal Applications
- Bar & nightclub glass service stations
- Brewpub tap-line clean-up areas
- Coffee shop pitcher rinsing & drying zones
- Hotel banquet or event beverage service lines
Optional Accessories (sold separately)
- Removable hinged doors for enclosed storage
- Door lock kit (SU-27)
- 10" x 14" x 10" sink bowl with faucet (SU-22A)
- Smooth (non-corrugated) drainboard surface (SU-68)
Build a seamless underbar lineup by pairing this unit with Advance Tabco ice bins, cocktail stations and speed rails—everything lines up perfectly for a professional fit and finish.
