Advance Tabco CRC-84C-L Underbar Basics™ Bar Equipment
Description

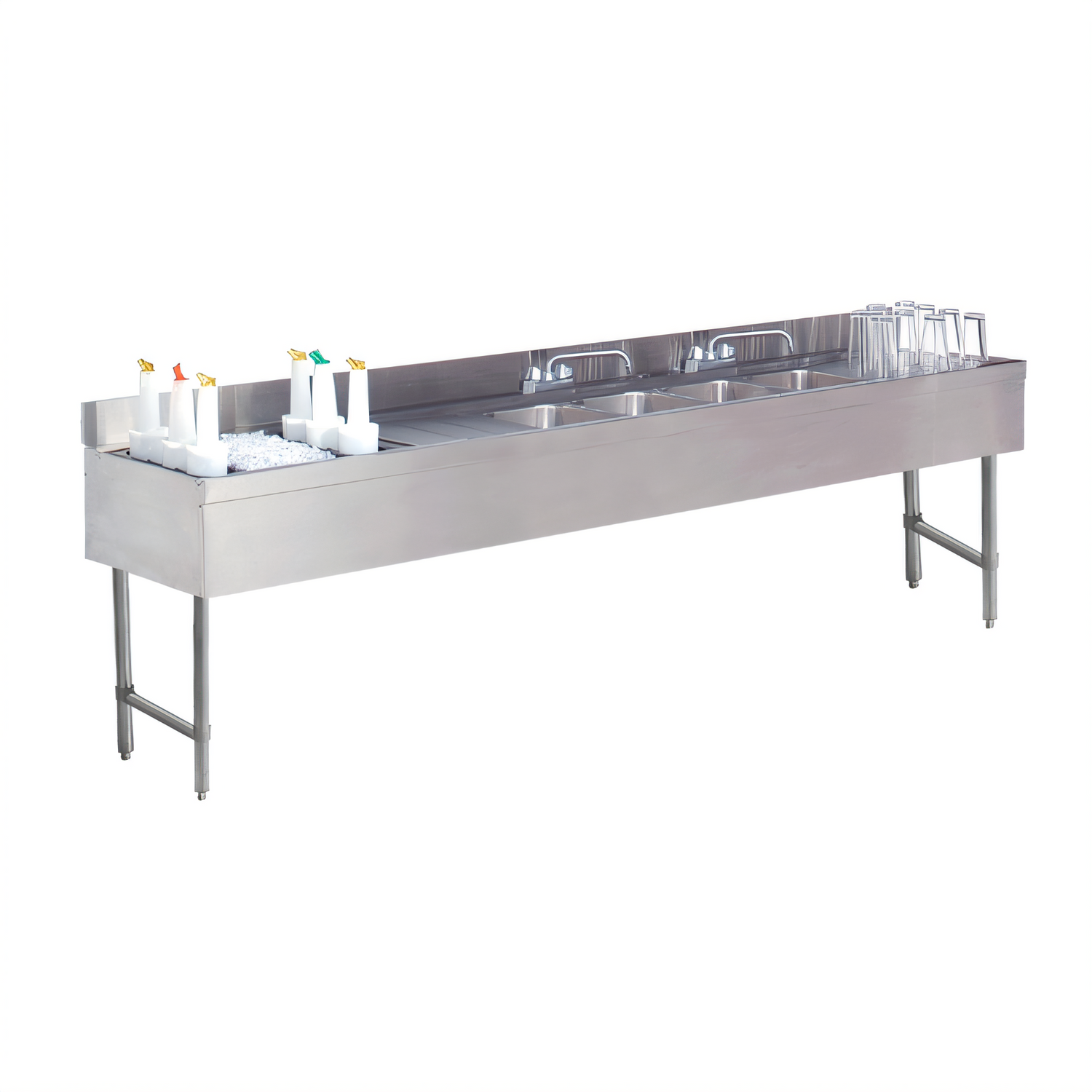

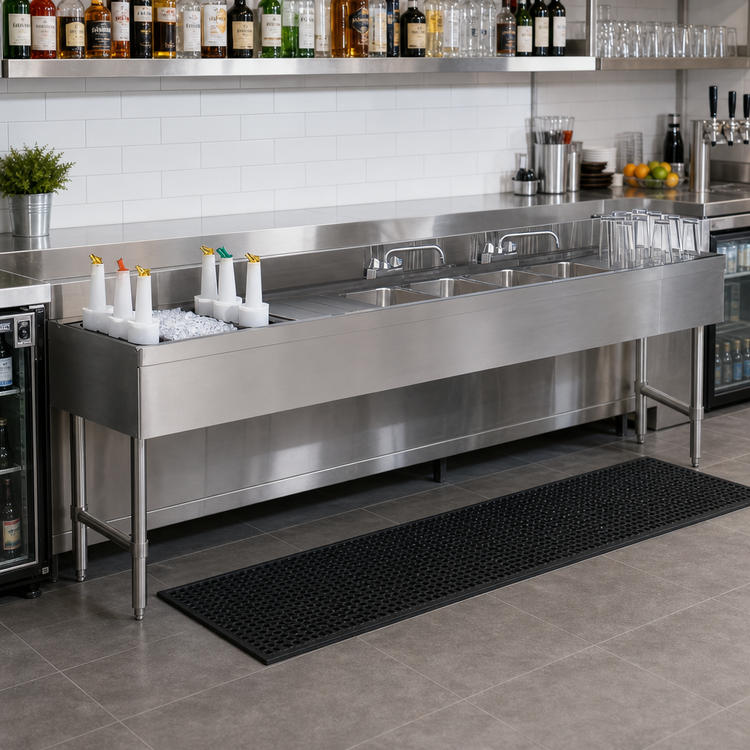

Underbar Basics™ 96" Combination Bar Sink & Ice Bin
Advance Tabco | Model CRC-84C-L (Left-Side Ice Bin)Combine rapid glass-ware cleaning, built-in ice service and efficient bottle storage in a single, NSF-listed station. The Underbar Basics™ 4-compartment combo is purpose-built for high-volume bars that need every inch behind the rail to work harder.
Why You’ll Love It

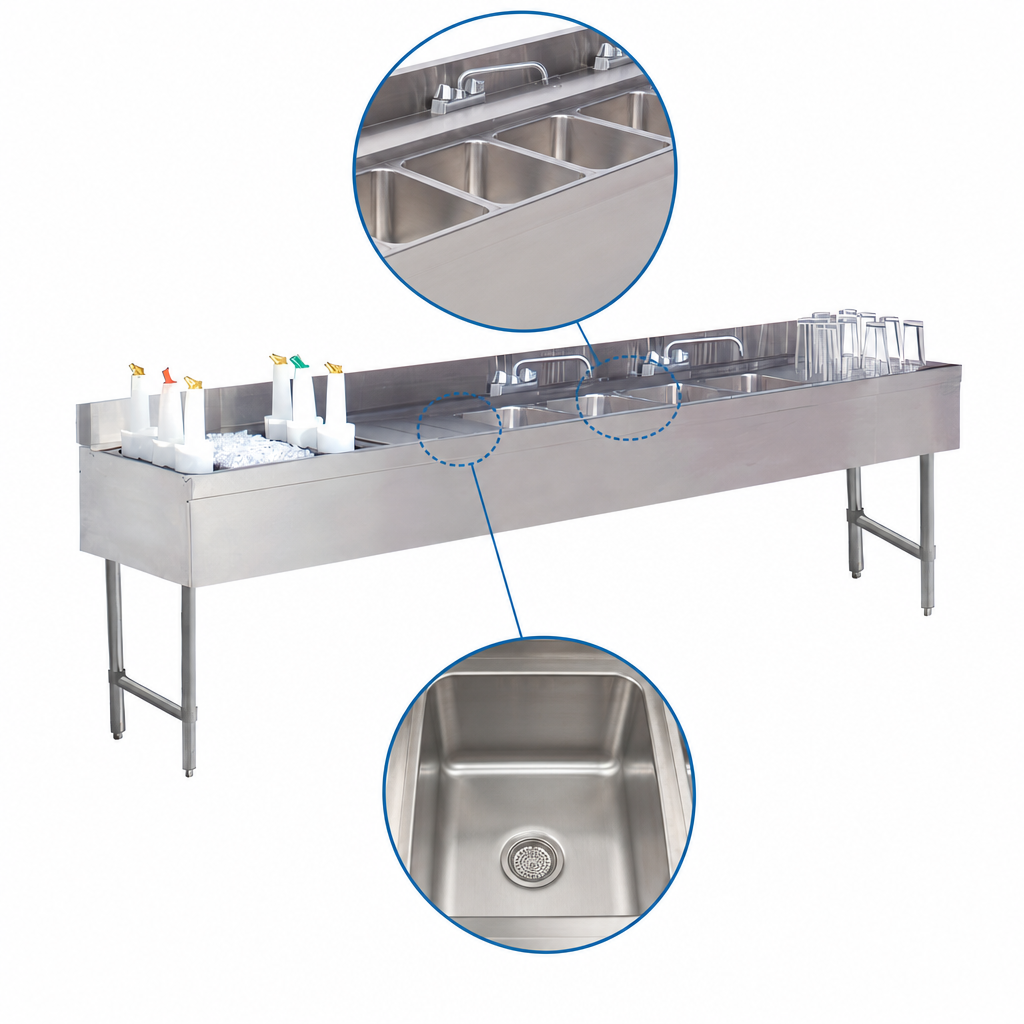

- Four deep-drawn seamless sink bowls (10" W × 14" D × 10" H) for washing, rinsing, sanitising & dumping.

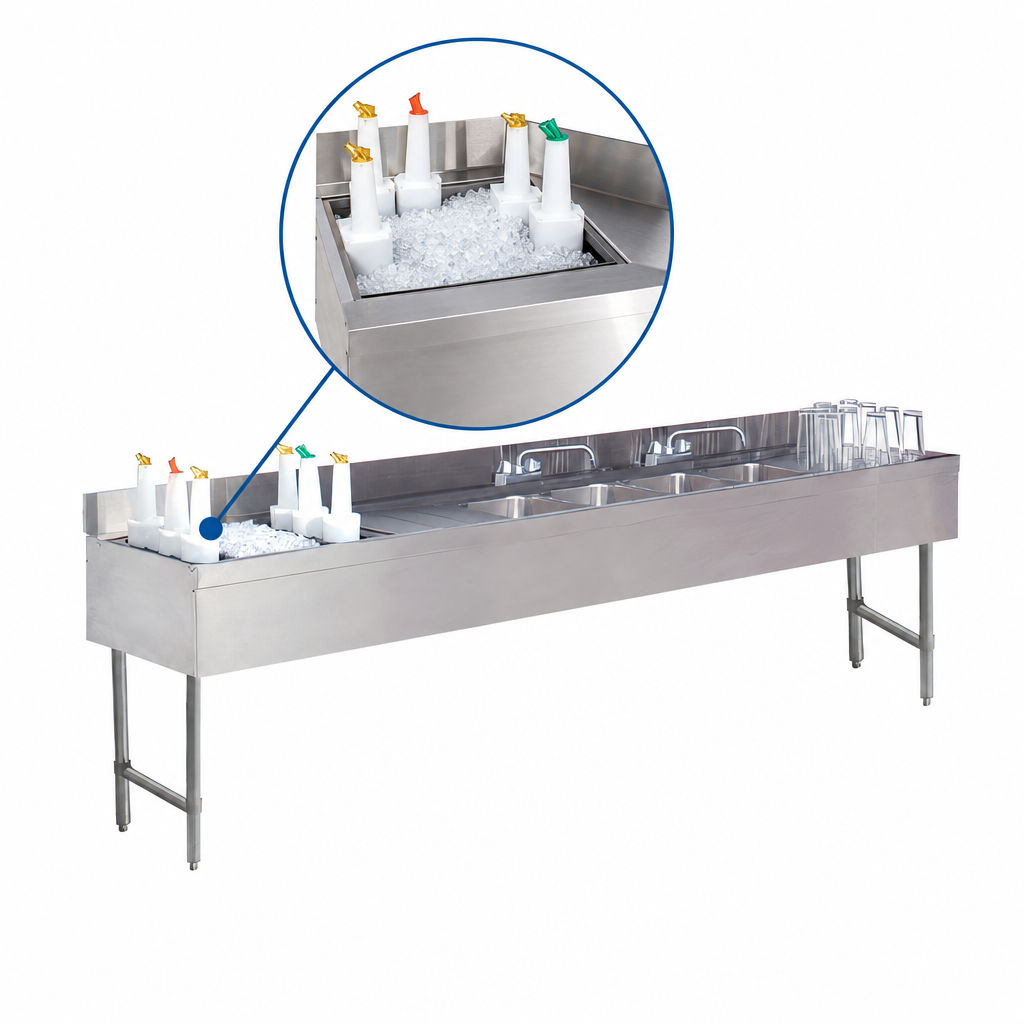

- One insulated 24" W × 15" D × 8" H ice bin (54 lb capacity) with (2) removable plastic bottle racks.
- Dedicated 12" left & 12" right embossed drainboards speed up air-drying and glass staging.
- Pair of 6" deck-mounted lead-free swing-spout faucets on 4" centres for simultaneous operation.
- 4" backsplash and seamless front apron help contain splashes and protect walls & staff.
- 20-gauge 300 series stainless sink bowls & drainboards; 22-gauge stainless apron / backsplash.
- Galvanised legs with adjustable plastic bullet feet & side cross-bracing = rock-solid stability.
- Pre-installed 9" overflow pipes (1 ½" IPS) in each bowl & 1" IPS drain on the ice bin.
- Ships fully NSF certified for open kitchen & bar compliance.
At-a-Glance Specs
| Overall dimensions | 96" W × 21" D × 33" H (including 4" backsplash) |
|---|---|
| Number of sink compartments | 4 |
| Individual sink bowl size | 10" W × 14" D × 10" H |
| Ice bin location / size | Left side | 24" W × 15" D × 8" H (54 lb) |
| Drainboards | 12" left & 12" right, embossed, seamless |
| Faucets included | (2) 6" swing-spout, deck-mounted, lead-free |
| Material & gauge |
• Sink bowls / drainboards: 20 ga 300 SS • Backsplash / apron: 22 ga 300 SS • Sides: 20 ga 430 SS |
| Understructure | 22 ga galvanneal front & back, 11 ga leg channel |
| Legs | 1 ⅝" Ø, 18 ga galvanised steel with adjustable bullet feet |
| Insulation | 2 lb density styrofoam (ice bin) |
| Certifications | NSF |
This product can expose you to chemicals including lead, which is known to the State of California to cause cancer or birth defects. For more information, visit www.p65warnings.ca.gov.
Need speed rails, side splashes or wrist-blade faucet handles? Ask our team about factory options that ship installed and ready to pour.
