Advance Tabco  |  Underbar Basics™  |  SKU: CRC-83C-L  |  UPC: 747545180766

Advance Tabco CRC-83C-L Underbar Basics™ Bar Equipment

$1,923.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Parts list
Related Searches
Advance Tabco Bar Equipment Beverage Equipment Beverage Equipment Ice Machines & Beverage Equipment Restaurant Equipment Underbar Equipment Underbar Hand & Dump Sinks

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

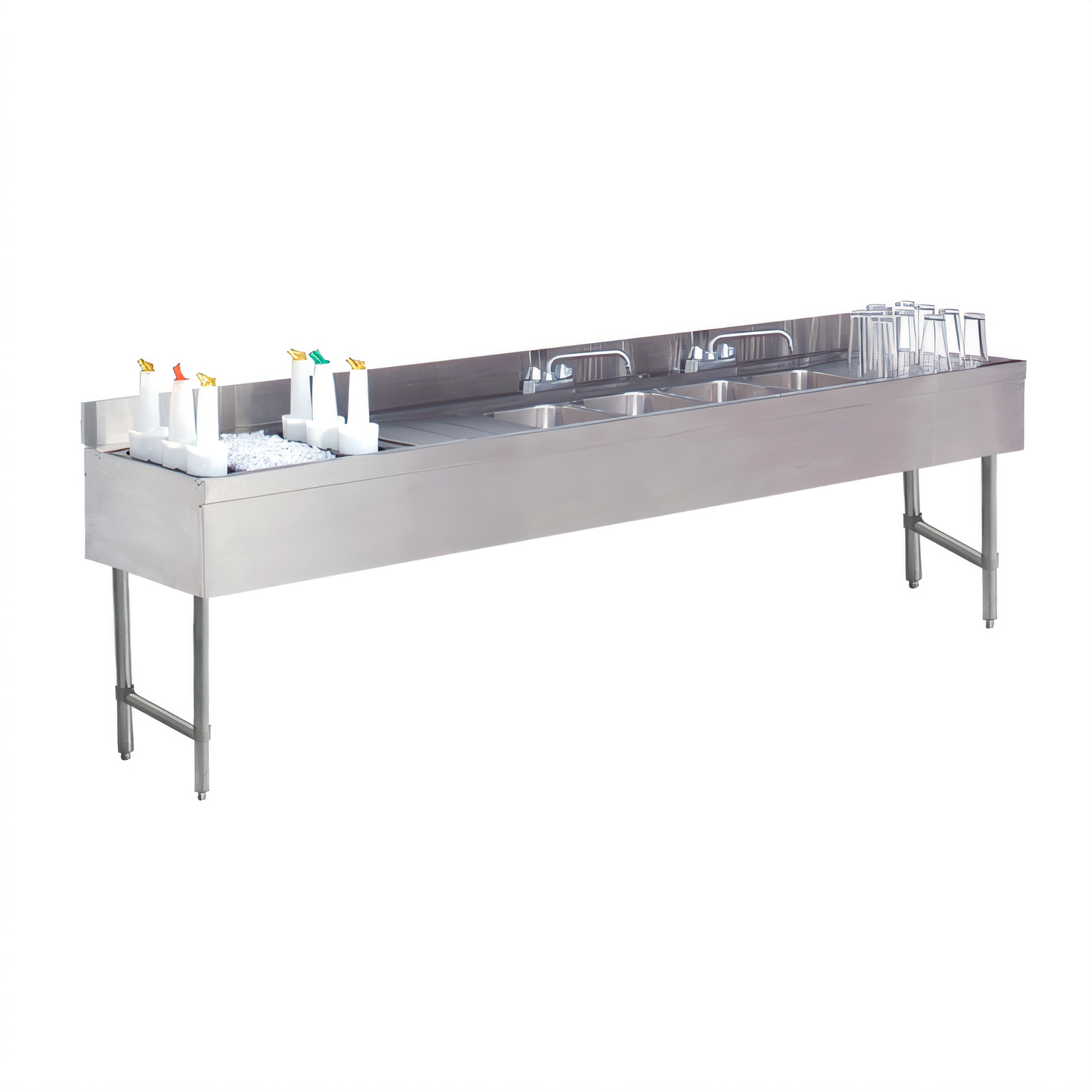

Underbar Basics™ 96" Combination Bar Sink & Ice Bin

Advance Tabco • 3-Compartment • Deck-Mount Faucet • NSF

Give your bartenders everything they need in one rugged, space-saving station. The Underbar Basics™ combination unit merges rapid glass washing, ice storage, draining and bottle organization into a single 96-inch workhorse built from food-grade stainless steel.

Key features

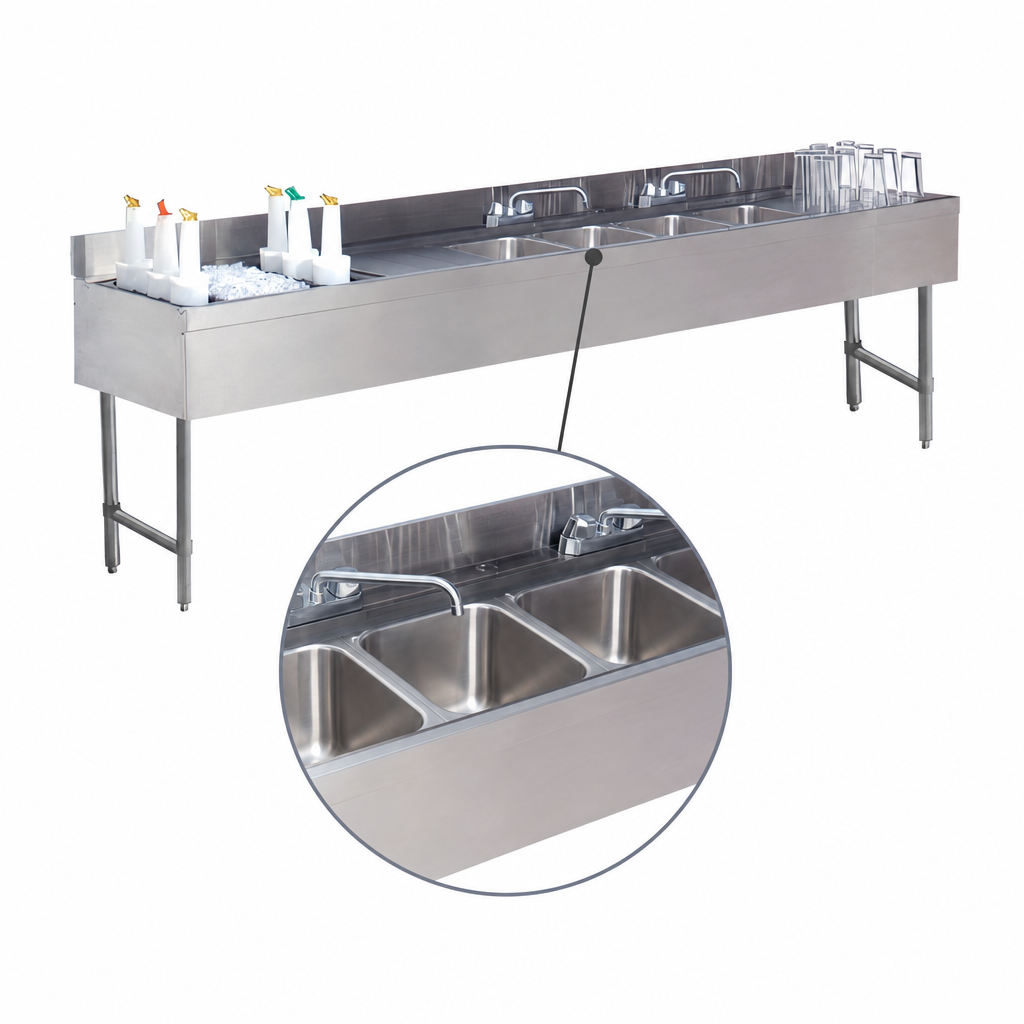

  • Three deep-drawn seamless sink bowls – 10" W × 14" D × 10" H each
  • 12" deck-mount swing spout faucet on 4" O.C. (lead-free)

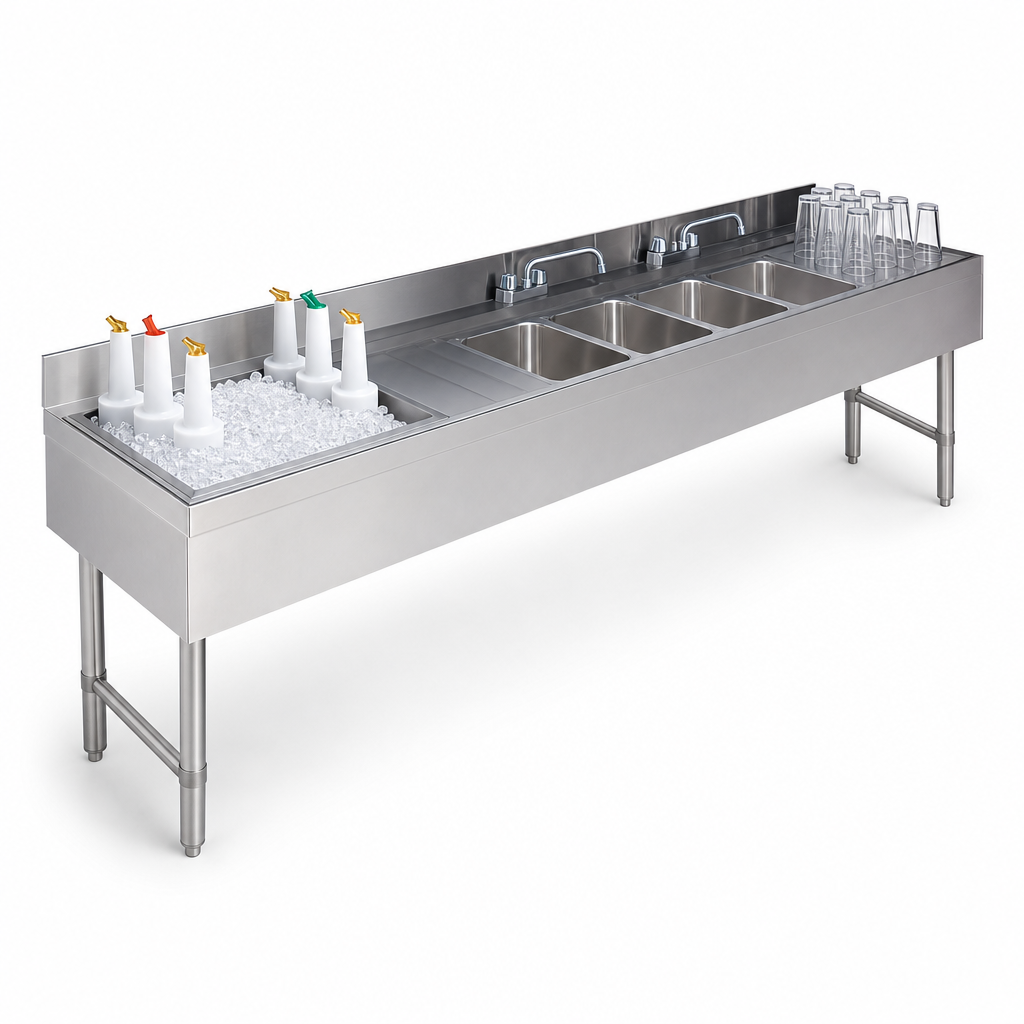

  • 24" W × 15" D × 8" H insulated ice bin holds 54 lb of ice
  • (2) removable injection-molded bottle racks keep mixers upright
  • Embossed 18" drainboards on both left & right sides for fast draining
  • 4" backsplash with molded top edge protects surrounding surfaces
  • 20-gauge 300 series stainless bowls & drainboards; 22-gauge apron/back; 430 stainless sides
  • 1 5⁄8" O.D. galvanized legs with adjustable bullet feet & cross-bracing
  • Separate 1 ½" IPS sink drains with 9" overflow pipes & 1" IPS ice bin drain
  • NSF listed for food-service sanitation

Specification overview

Overall dimensions 96" W × 21" D × 33" H
Backsplash height 4"
Compartments 3 sink bowls
Sink bowl (each) 10" W × 14" D × 10" H
Drainboards 18" W (left) & 18" W (right)
Ice bin 24" W × 15" D × 8" H  |  54 lb capacity
Faucet included 12" swing spout, deck-mount, 4" centers
Primary materials 300/430 stainless steel with galvanized understructure
Legs Galvanized steel, cross-braced, adjustable bullet feet
Compliance NSF & lead-free faucet

Need wrist handles, side splashes or speed-rail prep? Ask us about factory-installed Advance Tabco options.

California Prop 65 Warning: This product can expose you to chemicals including lead, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information visit www.p65warnings.ca.gov.

Features & Specs

Manufacturer

Advance Tabco

Brand_name

Underbar Basics™

Certifications

NSF

Height

33.0in

Width

96.0in

Depth

21.0in

Shipping Weight

225.0lbs

Splash

4"

Components (left to right)

ice bin, drainboard, (3) sinks, drainboard

Width (side - side) OA

91" - 96"

Depth (front - back) OA

20" - 21"

Construction

stainless steel & galvanized

Sink Compartments

(3)

Specifications

Underbar Basics™ Combination Unit, 96"W x 21"D x 33"H (overall), with 4"H backsplash, includes: (3) 10"W x 14"D x 10" deep sink bowls with (1) 12" deck mounted faucet, 18"W left & right drainboards, 24"W x 15"D x 8" deep ice bin (54 lbs capacity) with (2) removable plastic bottle racks on left side, stainless steel construction, galvanized cross braced legs with adjustable bullet feet, NSF
