Advance Tabco  |  Underbar Basics™  |  SKU: CRB-63C  |  UPC: 747545180612

Advance Tabco CRB-63C Underbar Basics™ Bar Equipment

$1,451.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Parts list
Related Searches
Advance Tabco Bar Equipment Beverage Equipment Beverage Equipment Ice Machines & Beverage Equipment Restaurant Equipment Underbar Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

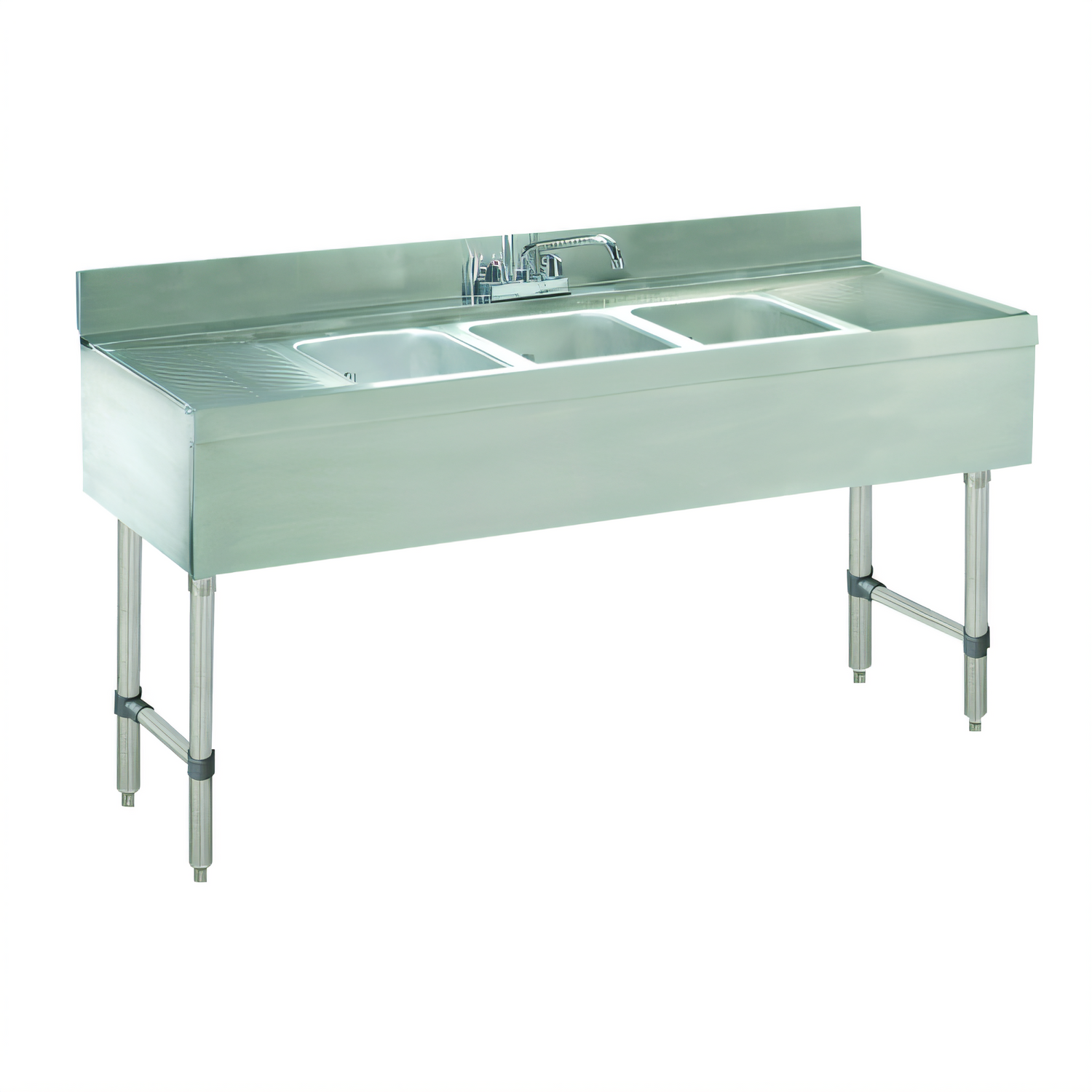

Underbar Basics™ 72" 3-Compartment Bar Sink with Dual 18" Drainboards

Model CRB-63C • Advance Tabco

Built for busy bar programs that can’t afford downtime, the Underbar Basics™ sink combines deep-drawn 300-series stainless bowls, spacious drainboards, and a lead-free deck-mount faucet into one rock-solid, NSF-listed workstation.

Key Features

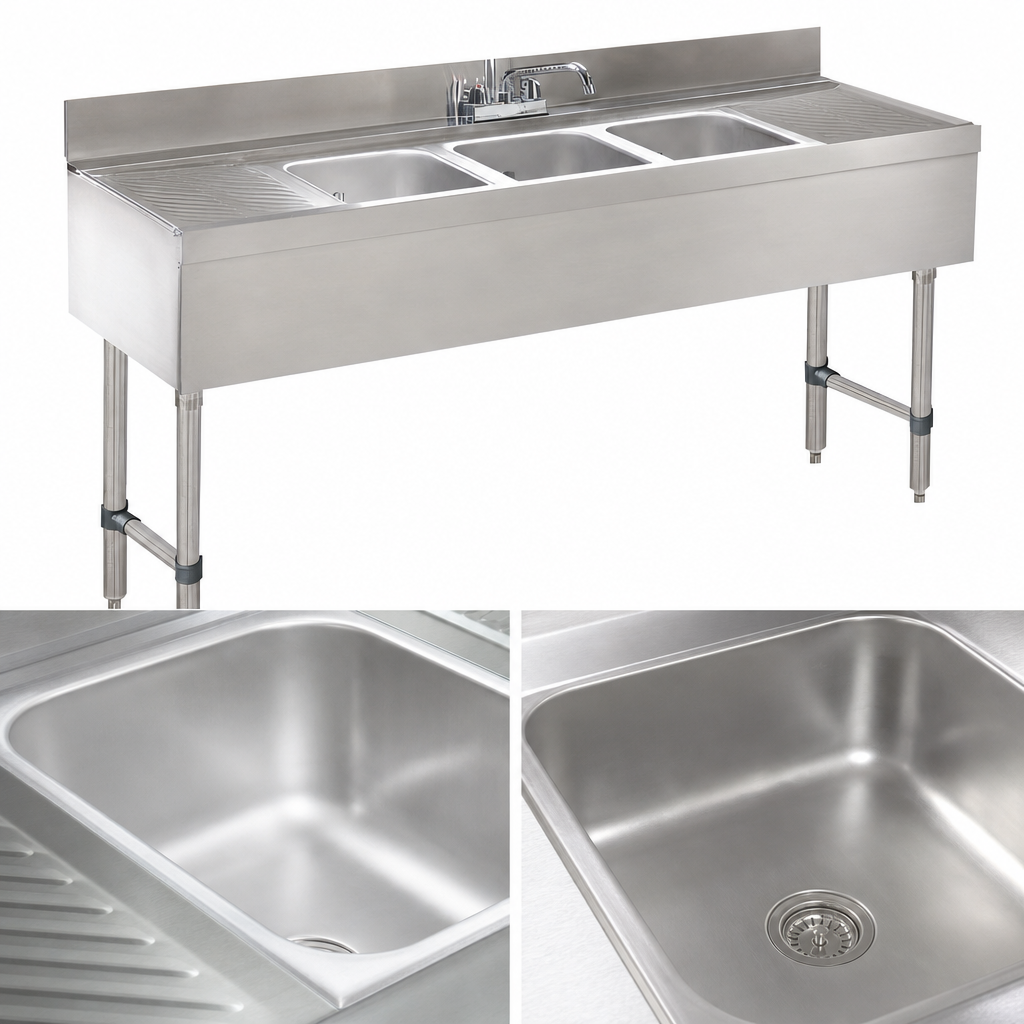

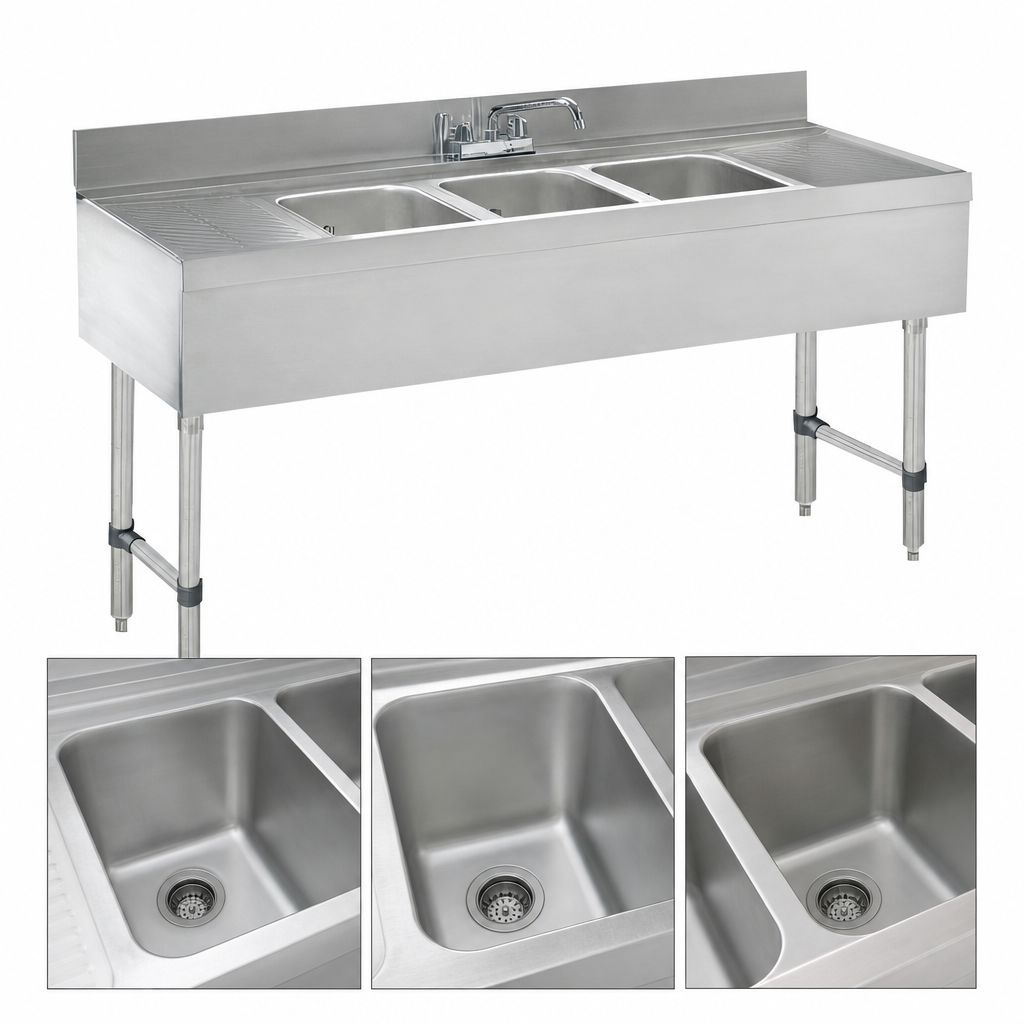

  • (3) seamless 10" W × 14" D × 10" H bowls—wash, rinse & sanitize without cross-contamination.
  • Left & right 18" embossed drainboards speed up drying and glass staging.
  • 4" backsplash helps keep surrounding walls dry and health-code compliant.
  • Factory-installed 4" O.C. deck-mount faucet with 12" swing spout (NSF 61/9 lead-free).
  • 9" overflow pipe and 1 ½" IPS drain in each bowl prevent messy spill-overs.
  • Heavy-duty galvanneal understructure and front-to-back cross rails for lasting rigidity.
  • 1 ⅝" O.D. galvanized legs with adjustable bullet feet level the unit on uneven floors.
  • NSF certified for open-food applications.

Specifications

Overall dimensions (W × D × H) 72" × 21" × 33"
Backsplash height 4"
Number of compartments 3
Bowl interior (each) 10" W × 14" D × 10" H
Drainboards 18" left & right (embossed, seamless)
Faucet Deck-mount, 12" swing spout, 4" centers
Drain connection 1 ½" IPS with 9" overflow pipe (each bowl)
Material – bowls & boards 20 ga 300-series stainless steel
Material – apron & backsplash 22 ga 300-series stainless steel
Material – sides 20 ga 430 stainless steel
Understructure 22 ga galvanneal front/back; 11 ga electro-galv. leg channel
Legs 1 ⅝" O.D. 18 ga galvanized steel w/ adjustable bullet feet
Approx. shipping weight 88 lb
Certifications NSF, lead-free faucet

Custom options such as wrist-action handles, side splashes, or speed-rail prep are available—ask your sales rep for details.

California Proposition 65: This product can expose you to chemicals including lead, which are known to the State of California to cause cancer or birth defects or other reproductive harm. For more information visit www.P65Warnings.ca.gov.

Features & Specs

Manufacturer

Advance Tabco

Brand_name

Underbar Basics™

Certifications

NSF

Height

33.0in

Width

72.0in

Depth

21.0in

Shipping Weight

88.0lbs

Splash

4"

Bowl Size

10" x 14" front-to-back

Drainboards

drainboards on left & right

Width (side - side) OA

67" - 72"

Depth (front - back) OA

20" - 21"

Construction

stainless steel top, front, ends & galvanized legs

Sink Compartments

(3)

Bowl Depth (rim - drain)

10"

Specifications

Underbar Basics™ Sink Unit, 3-compartment, 72"W x 21"D x 33"H overall, 4"H backsplash, (3) 10"W x 14"D x 10" deep sink bowls with overflow pipe, (1) deck mounted faucet with 12" spout, 18" drainboards on left & right, stainless steel construction with galvanneal understructure, galvanized legs with front-to-back cross rails & adjustable bullet feet, NSF
