Advance Tabco CRB-53C-X Special Value Series Bar Equipment
Description

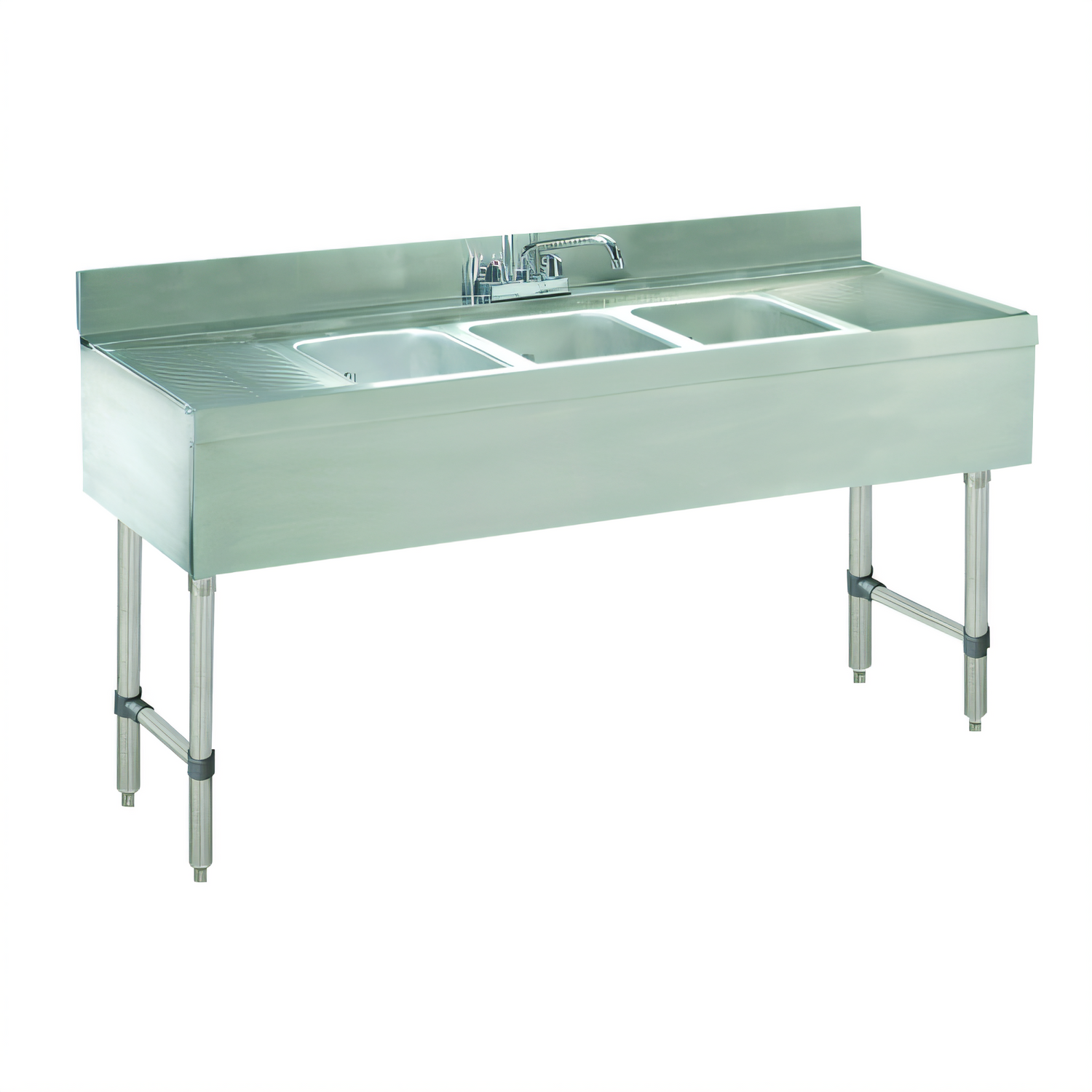

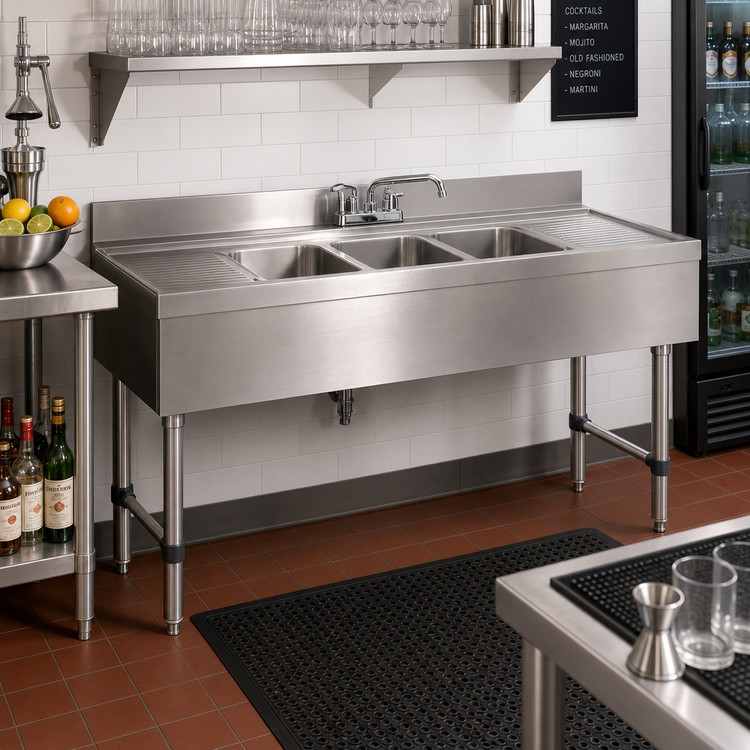

Advance Tabco “Special Value” 60" 3-Compartment Underbar Sink
Model CRB-53C | NSF Listed & Lead-Free FaucetBuilt for busy bars, cafés, and concession stands, the Advance Tabco Special Value Series delivers big performance in a compact footprint. Three deep-drawn bowls, dual 12" drainboards, and a full stainless steel work surface give bartenders everything they need to rinse, wash, and sanitize glassware without leaving the service area.
Why You’ll Love It

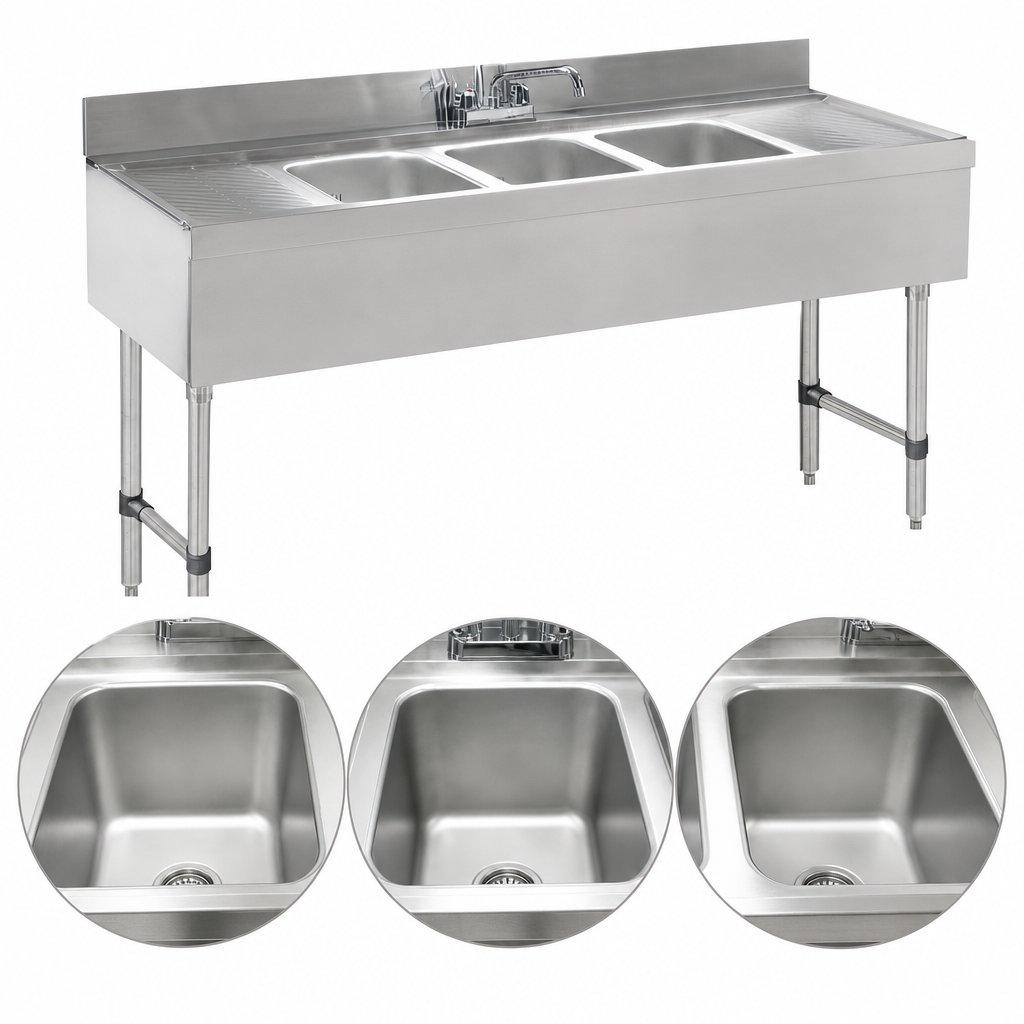

- Three seamless 10" W x 14" D x 10" deep bowls speed up the wash-rinse-sanitize cycle.
- 9" overflow pipes with 1 ½" IPS drains keep each compartment operating at optimal levels.
- Factory-installed 4" O.C. deck-mount faucet with a 12" swing spout (lead-free & NSF/ANSI 61 compliant).

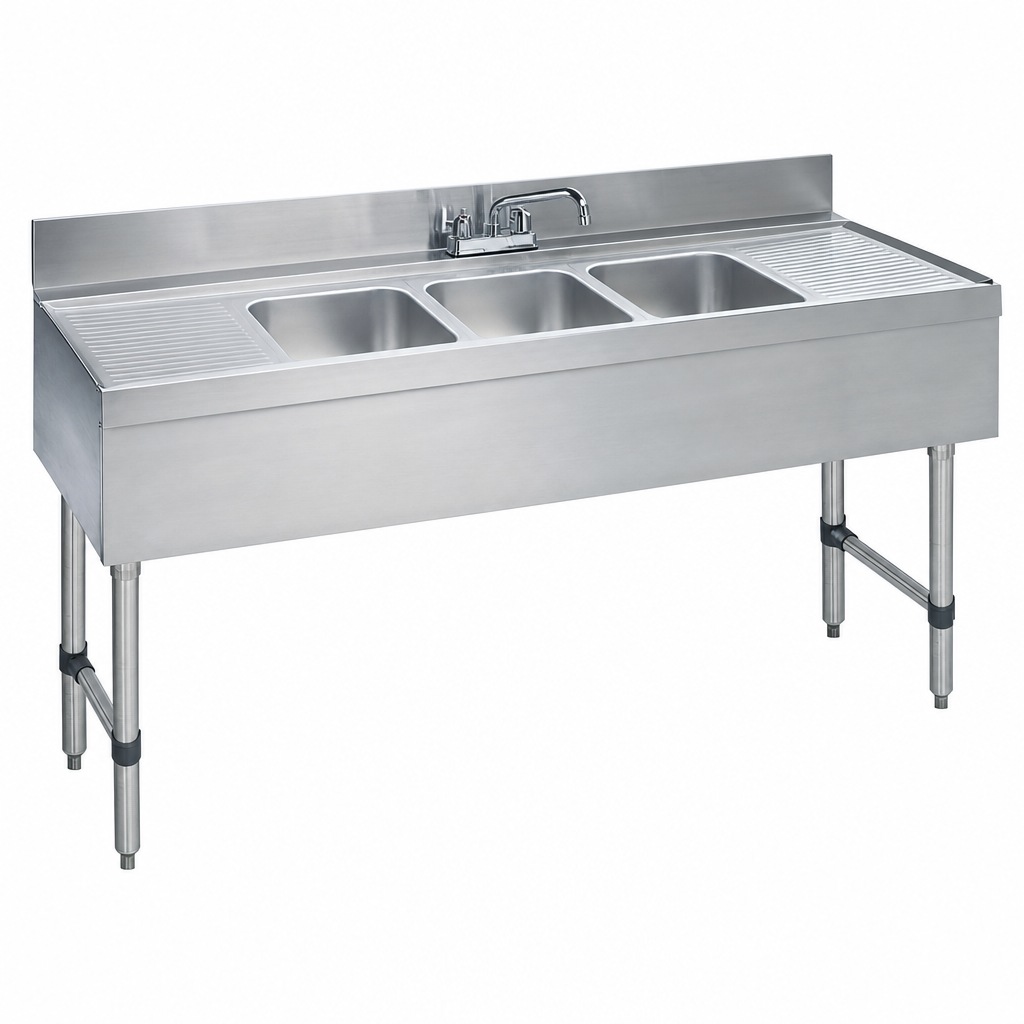

- Embossed 12" drainboards on both the left and right for staging clean or soiled wares.
- 4" backsplash protects surrounding walls from overspray and meets health-code requirements.
- Rugged 20 ga. type 300 series stainless bowls & boards resist dents and corrosion.
- Galvanneal understructure with front-to-back cross-rails adds strength without excess weight.
- 1 ⅝" OD galvanized legs with adjustable bullet feet level the sink on uneven floors.
- NSF listed for open food-zone installation.
Technical Specs
| Model | CRB-53C (Special Value Series) |
|---|---|
| Overall Dimensions | 60" W × 21" D × 33" H |
| Backsplash Height | 4" |
| Compartments | 3 bowls, each 10" W × 14" D × 10" deep |
| Drainboards | 2 (12" L, left & right) |
| Faucet | Deck-mount, 4" centers, 12" swing spout (K-53 series) |
| Overflow / Drain | 9" overflow pipe, 1 ½" IPS outlet (per bowl) |
| Material – Bowls & Boards | 20 ga. 300 series stainless steel |
| Material – Apron & Backsplash | 22 ga. 300 series stainless steel |
| Material – Sides | 20 ga. 430 series stainless steel |
| Material – Understructure | 22 ga. galvanneal front/back with 11 ga. leg channel |
| Legs / Feet | 1 ⅝" OD, 18 ga. galvanized steel with adjustable plastic bullet feet |
| Approx. Shipping Weight | 76 lb |
| Certifications | NSF / ANSI 2; NSF 61/9 (lead free faucet) |
Popular Add-Ons (Sold Separately)
- K-316-LU wrist-blade faucet handles for hands-free activation.
- SU-10A stainless legs with cross-bracing for extra corrosion resistance.
- Speed rail prep kit (SU-40) keeps bottles within arm’s reach.
- Side splashes (SU-21R / SU-21L) to contain overspray.
Dimensions are subject to a manufacturing tolerance of ± 0.5". Images may show optional accessories.
