Advance Tabco Underbar Basics 48-Inch 3-Compartment Stainless Steel Bar Sink Unit with Left Drainboard and Deck-Mount Faucet

SKU: CRB-43R
GTIN: 747545180568
$1,373.00
/each
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Advance Tabco Bar Equipment Best Sellers Beverage Equipment Beverage Equipment Ice Machines & Beverage Equipment New Arrivals Restaurant Equipment Underbar Equipment

Advance Tabco Underbar Basics 48-Inch 3-Compartment Stainless Steel Bar Sink Unit with Left Drainboard and Deck-Mount Faucet

21-Inch Deep, 4-Inch Backsplash, 10" x 14" x 10" Bowls

Built for busy beverage stations, this 3-compartment underbar sink unit combines a left drainboard, included deck faucet, and rugged stainless steel construction.

  • Three-compartment design helps streamline washing, rinsing, and prep tasks in one compact station.
  • 9-inch left-side drainboard provides space for glassware, tools, or drying items.
  • Includes a deck-mounted swing spout faucet with a 12-inch spout.
  • 4-inch backsplash helps protect walls and surrounding surfaces from splashes.
  • Stainless steel construction with a galvanized support structure is built for heavy-duty commercial use.
  • Adjustable bullet feet and cross rails help stabilize and level the unit on uneven floors.
  • NSF-compliant design supports commercial beverage service.

Overall Dimensions:

48.0"W x 21.0"D x 33.0"H

Product Weight:

68.0 lb
Standard Faucet Note: Conforms to NSF 61/9 lead free requirements. Notice for use in California: Proposition 65 - This faucet may expose you to chemicals, including lead, that are known to the State of California to cause cancer, or birth defects or other reproductive harm. For more information visit www.p65Warnings.ca.gov (nc)

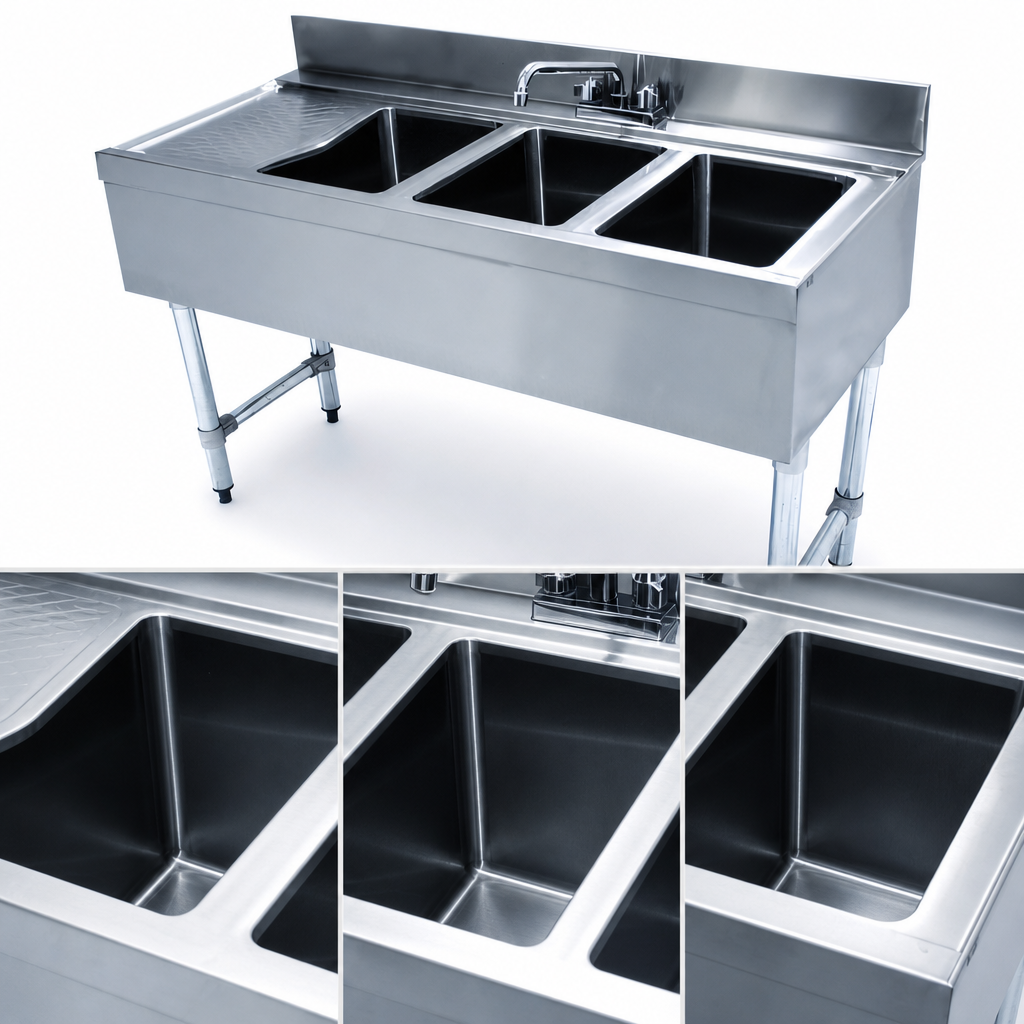

Three Deep Drawn Sink Bowls

Three seamless bowls measure 10" x 14" x 10" deep for multi-step wash and rinse work.

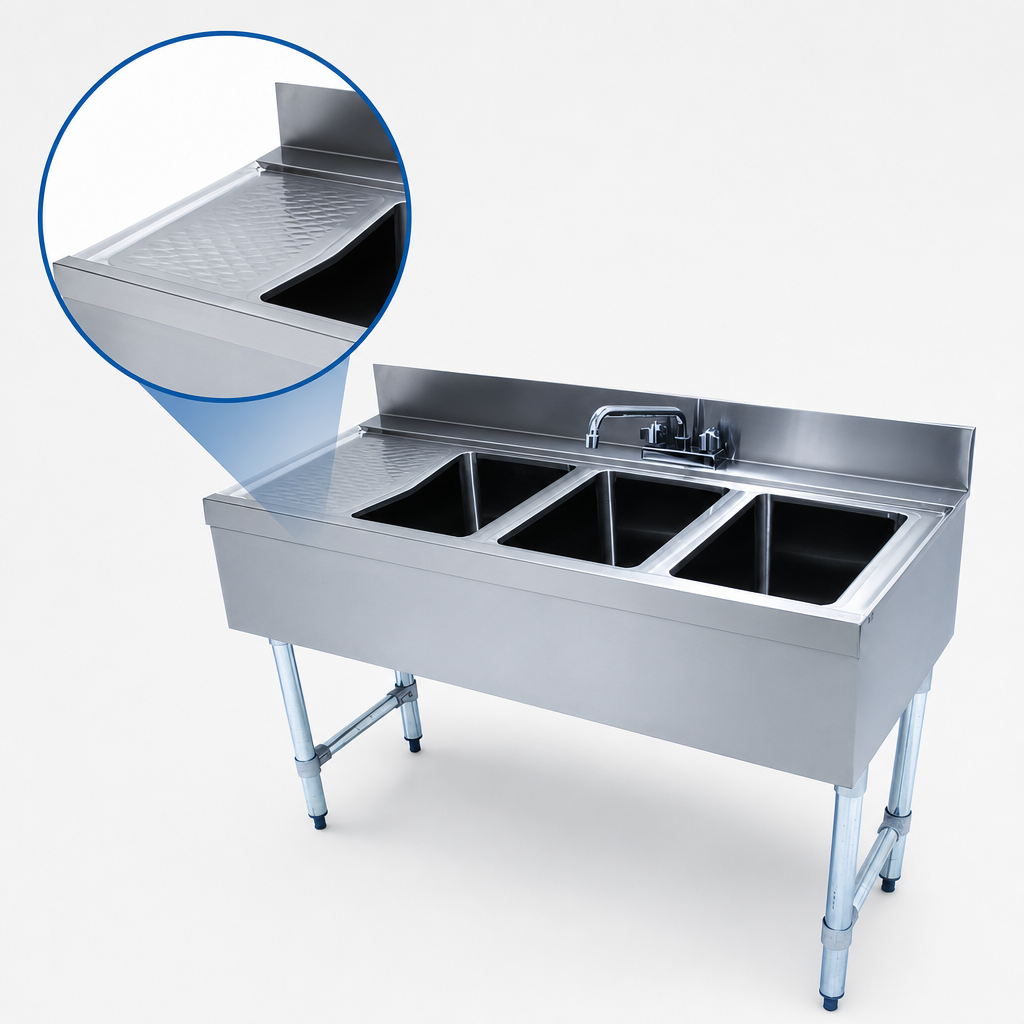

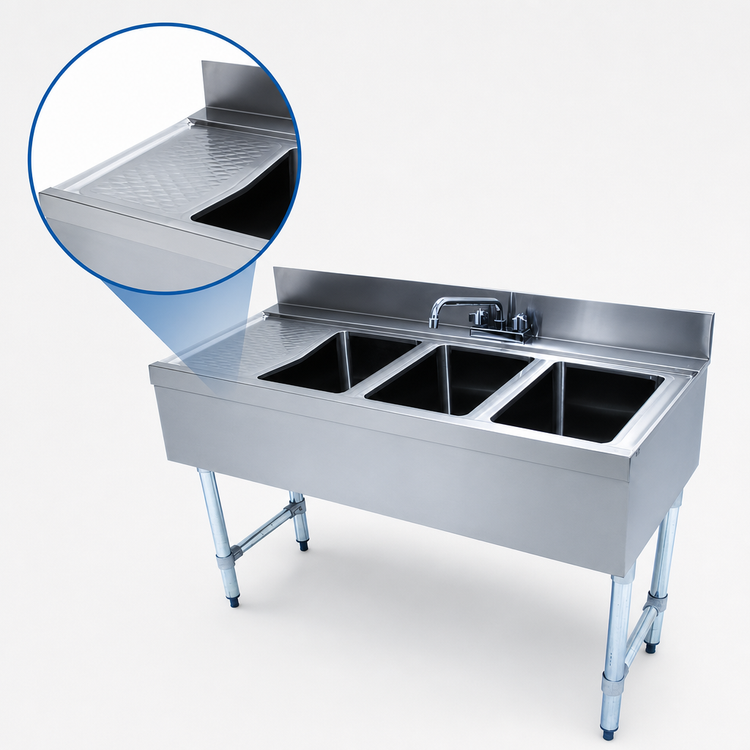

Left-Side Drainboard

The 9" drainboard on the left adds a dedicated landing area for glassware and supplies.

Deck-Mount Swing Spout Faucet

Includes a deck-mounted faucet with a 12" spout for convenient water access.

Overflow Pipes and Drains

Each bowl includes a 9" high overflow pipe and a 1 1/2" IPS drain.

4-Inch Backsplash

Helps reduce splashing behind the sink and protects adjacent surfaces.

Stainless Steel Construction

Stainless steel sink bowls and drainboards are supported by a galvanneal understructure for durability.

Galvanized Support Frame

Galvanized legs with front-to-back cross rails and adjustable bullet feet help keep the unit stable.

Rear Deck Storage

The CRB series includes a rear deck for additional storage space.

Type Bar Sink Unit
Style 3-Compartment with Left Drainboard
Installation Type Freestanding
Compartments 3
Material Stainless Steel
Interior Finish Stainless Steel
Bowl Size 10 Inches x 14 Inches
Bowl Depth 10 Inches
Spout Length 12 Inches
Drainboard Length 9 Inches
Drain Connection Size 1 1/2 Inches IPS
Selling Unit Each
Units Per Case 1
Shipping Width 48 Inches
Shipping Depth 21 Inches
Shipping Height 33 Inches
Shipping Weight 68 lb.

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Documents

PDF Cutsheet PDF Download PDF Parts list PDF Download

Frequently Asked Questions

This unit has 3 sink compartments with 10" x 14" x 10" deep bowls.
Yes. It includes a deck-mounted swing spout faucet with a 12" spout.
The unit has a 9" drainboard on the left side.
Yes. Each bowl includes a 9" overflow pipe and a 1 1/2" IPS drain.
The sink bowls and drainboards are stainless steel, with a galvanneal understructure and galvanized legs.
