Advance Tabco CM-18-84 Stainless Steel Shelving
Description

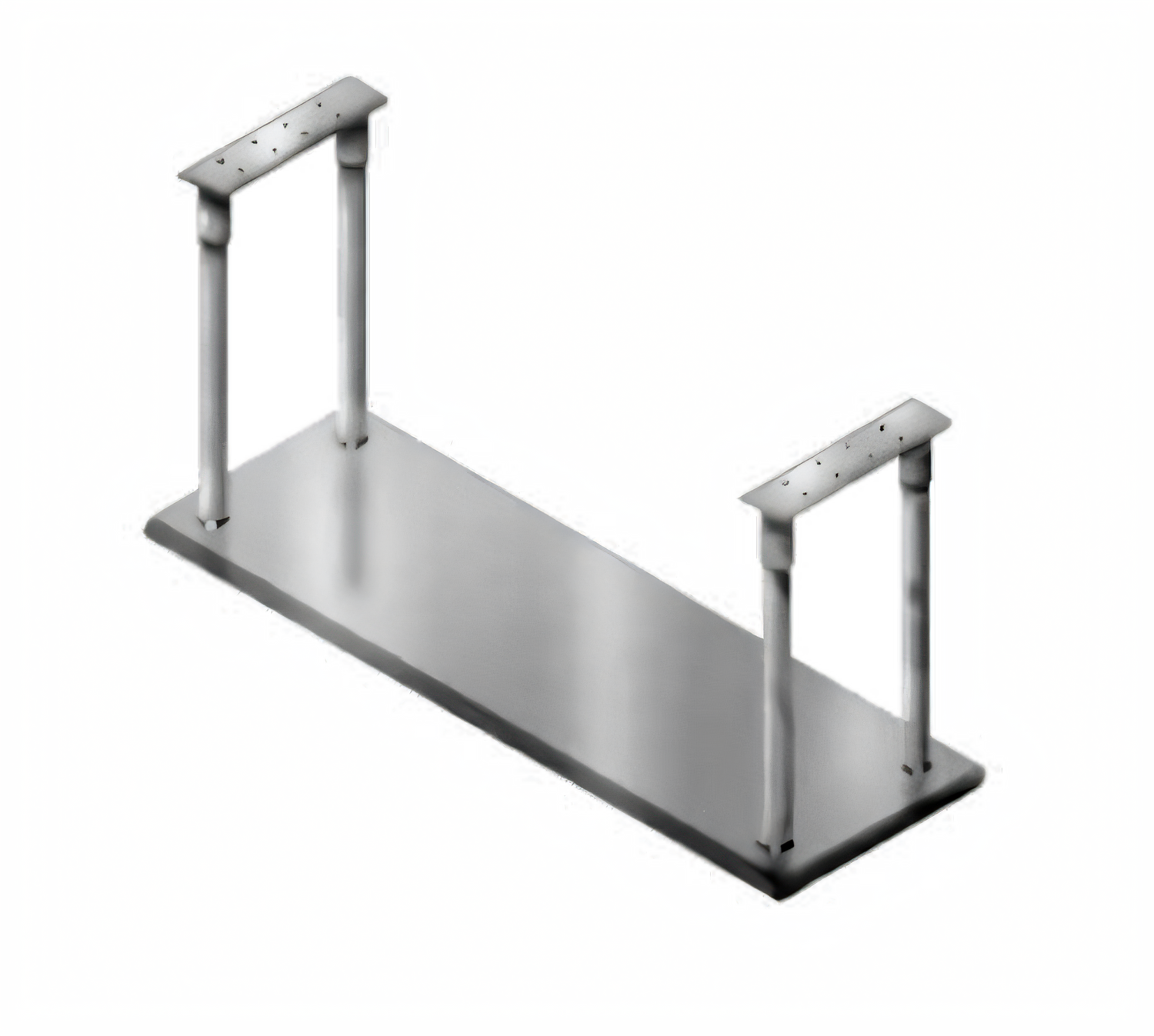

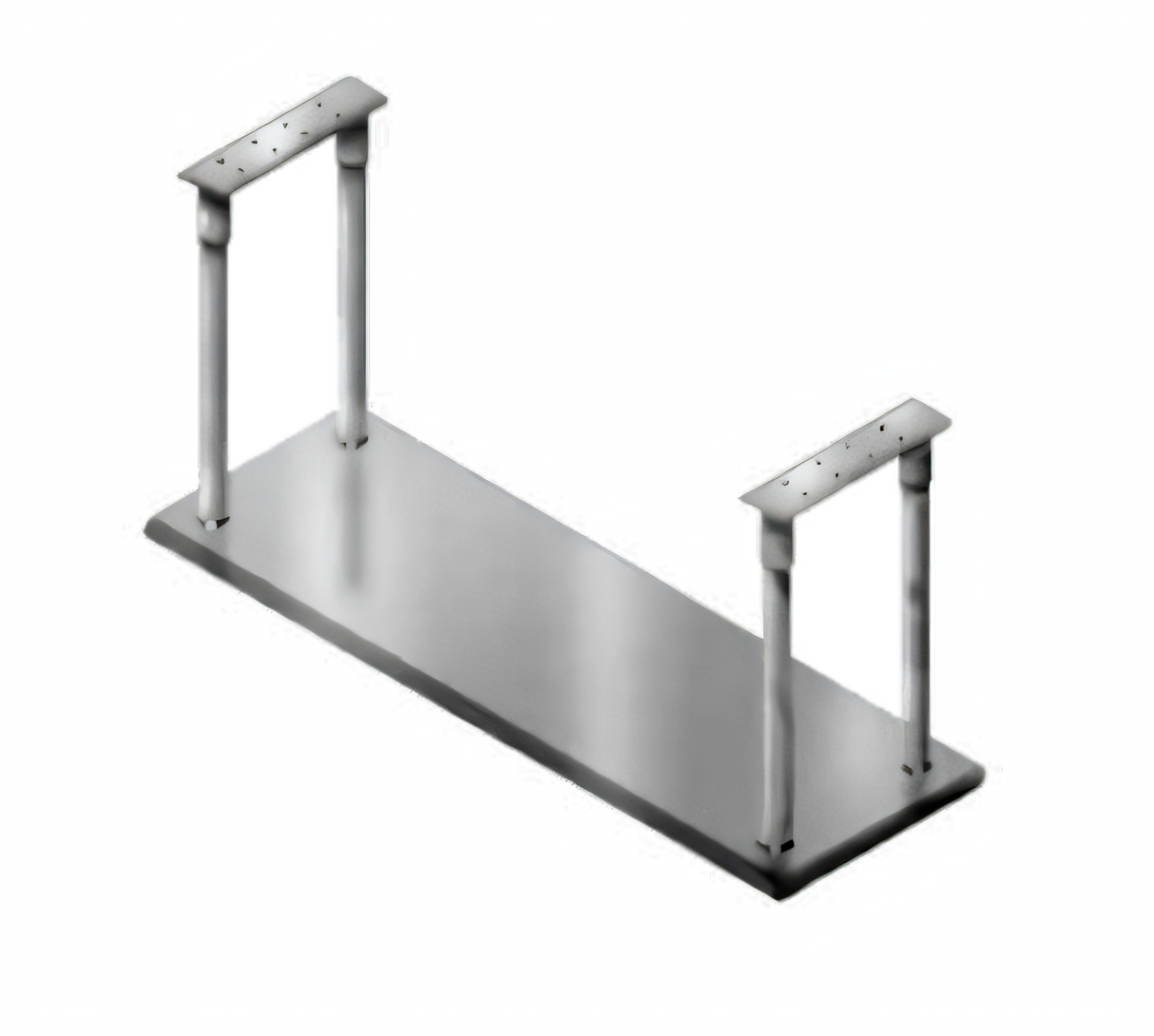

Advance Tabco CM-18-84 Ceiling-Mounted Shelf – Single Deck, 84" W x 18" D
Stainless Steel | 1 ⅝" tubular posts | Custom working & ceiling heightsFree up valuable prep-table and equipment space with Advance Tabco’s heavy-duty CM-18-84 single-deck ceiling shelf. Built from food-service–grade stainless steel and TIG-welded for lasting rigidity, this 84" model provides a generous run of overhead storage while keeping your work zone clear.
Key advantages
- 18" wide fully adjustable shelf accommodates pans, smallwares, ingredients, and light equipment.
- Load capacity: 5 lb. per sq. ft. (evenly distributed).
- TIG-welded 18 ga. type 430 stainless steel shelf with satin-polished exposed surfaces.
- 1 ⅝" Ø stainless steel tubular posts run all the way to your ceiling for rock-solid support.
- Ships knock-down (KD) for lower freight cost and easier job-site handling.
Built to perform in demanding environments
- Corrosion-resistant stainless construction stands up to steam, grease, and daily washdowns.
- Support channels and stainless thru-bolts keep the shelf straight and true over time.
- Smooth satin finish cleans quickly and matches other Advance Tabco fabrication.
Technical specifications
| Model | CM-18-84 (single shelf) |
|---|---|
| Overall width | 84" (2134 mm) |
| Shelf depth | 18" (457 mm) |
| Standard post diameter | 1 ⅝" (41 mm) tubular S/S |
| Material & gauge | 18 ga. type 430 stainless steel shelf |
| Finish | Satin-polished exposed surfaces |
| Load rating | 5 lb. per sq. ft., evenly distributed |
| Shipping weight | 46 lb. |
| Ships | Knock-down (assembly hardware included) |
Installation & ordering notes
- Customer must specify finished working height (underside of shelf) and ceiling height when ordering.
- Verify adequate ceiling structure to support total static load.
- 84" units ship with two support posts; no center post required.
- For special lengths, double-deck units, or non-standard clearances, contact our SMART FABRICATION™ team.
Advance Tabco continuously improves its products and reserves the right to change specifications without notice.
