Advance Tabco | SKU:
CH-4848
Advance Tabco CH-4848 Condensate Hoods
$2,268.00
Unit price
/
Unavailable
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Advance Tabco CH-4848 Condensate Hoods is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Advance Tabco CH-4848 Condensate Hoods
$2,268.00
Unit price
/
Unavailable
Description

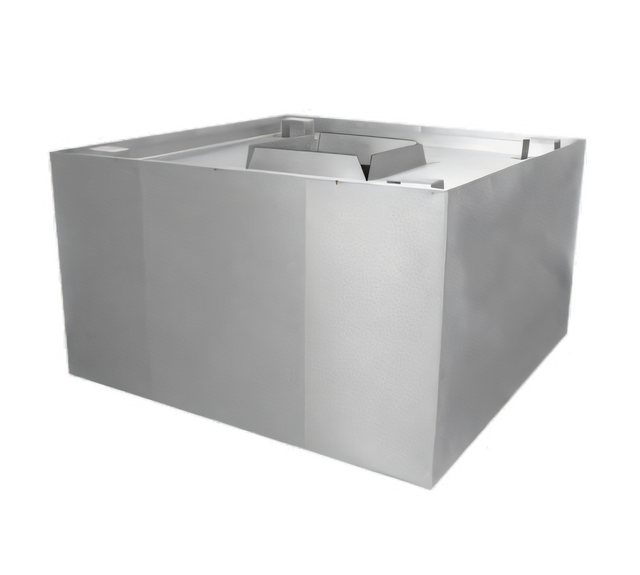

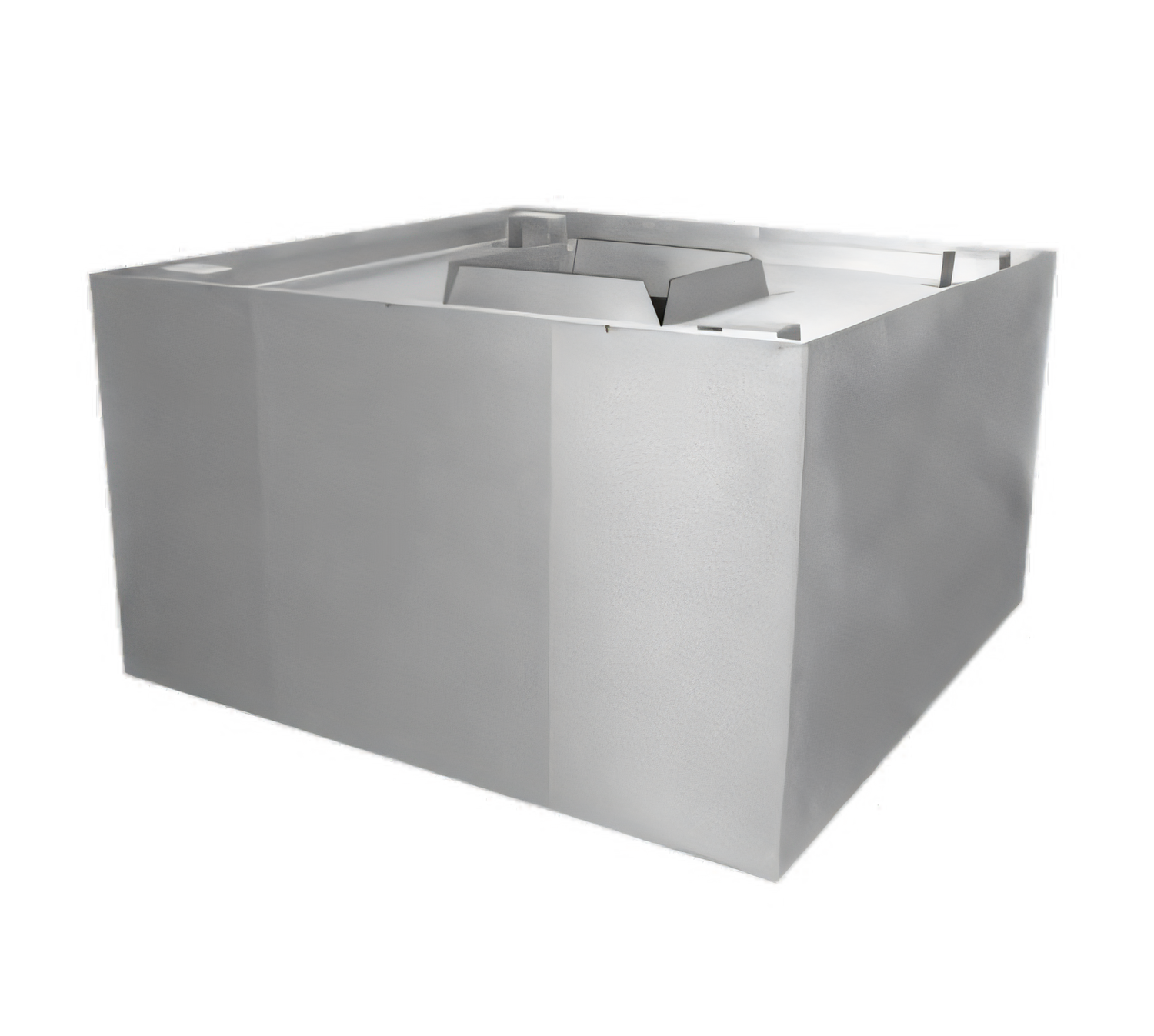

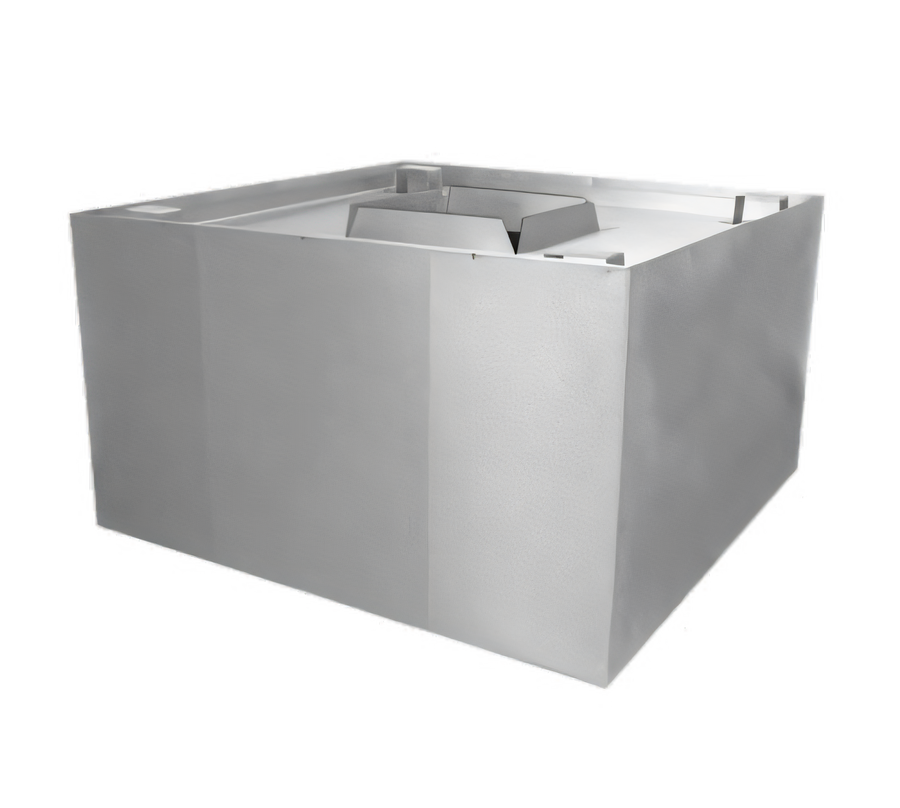

Advance Tabco Stainless Steel Condensate Hood – 48" x 48" (No Fan)
20.5" High • Centered 8" x 10" Exhaust Opening • Rear 3⁄8" DrainEngineered to capture steam and condensate from ware-washing and other non-grease equipment, this rugged hood combines Advance Tabco craftsmanship with job-site ready convenience.
Key Benefits
- Heavy-gauge Type 300 stainless steel construction resists corrosion in high-humidity areas.
- Flanged, factory-sealed seams ensure a water-tight interior—no leaks, no mess.
- 1 ½" full-perimeter interior gutter directs moisture to the integrated 3⁄8" rear drain.

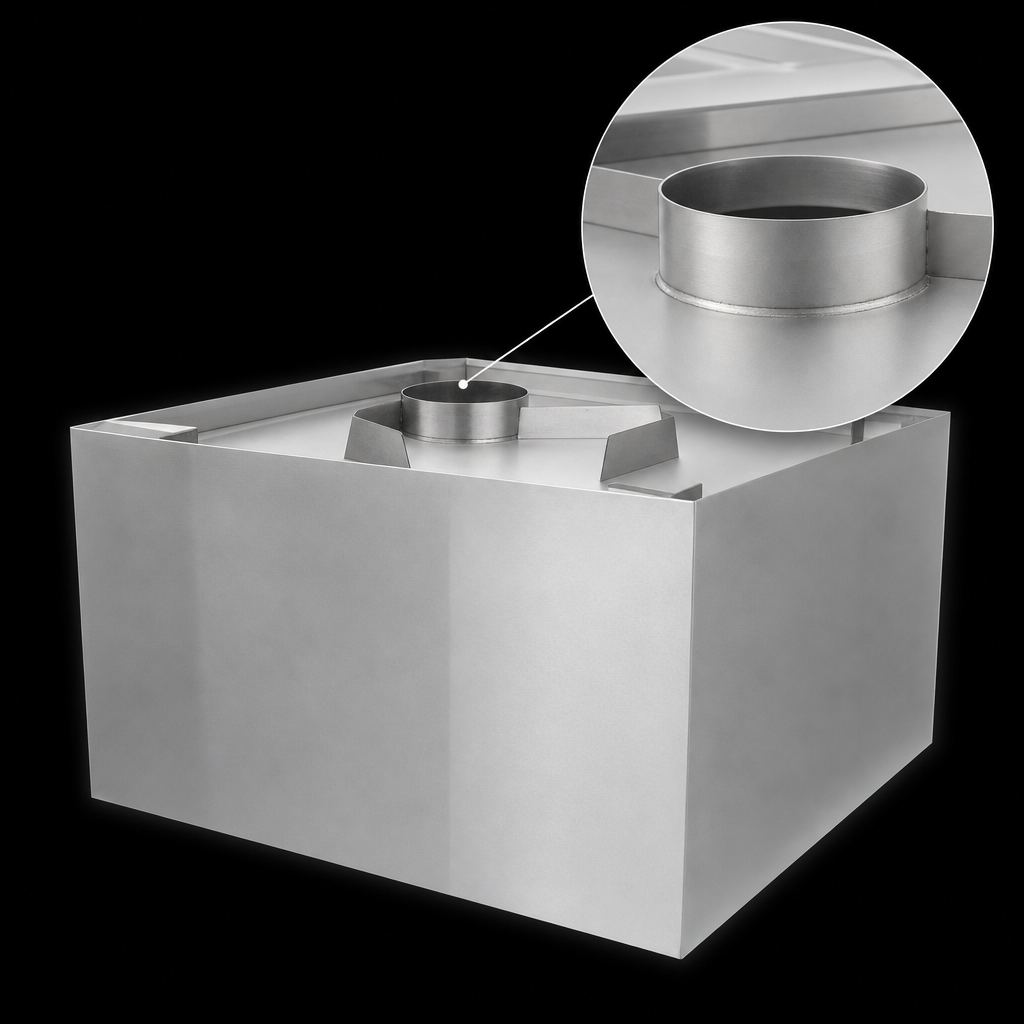

- 8" x 10" top exhaust opening with 2" high collar—ready for field-supplied duct and fan.

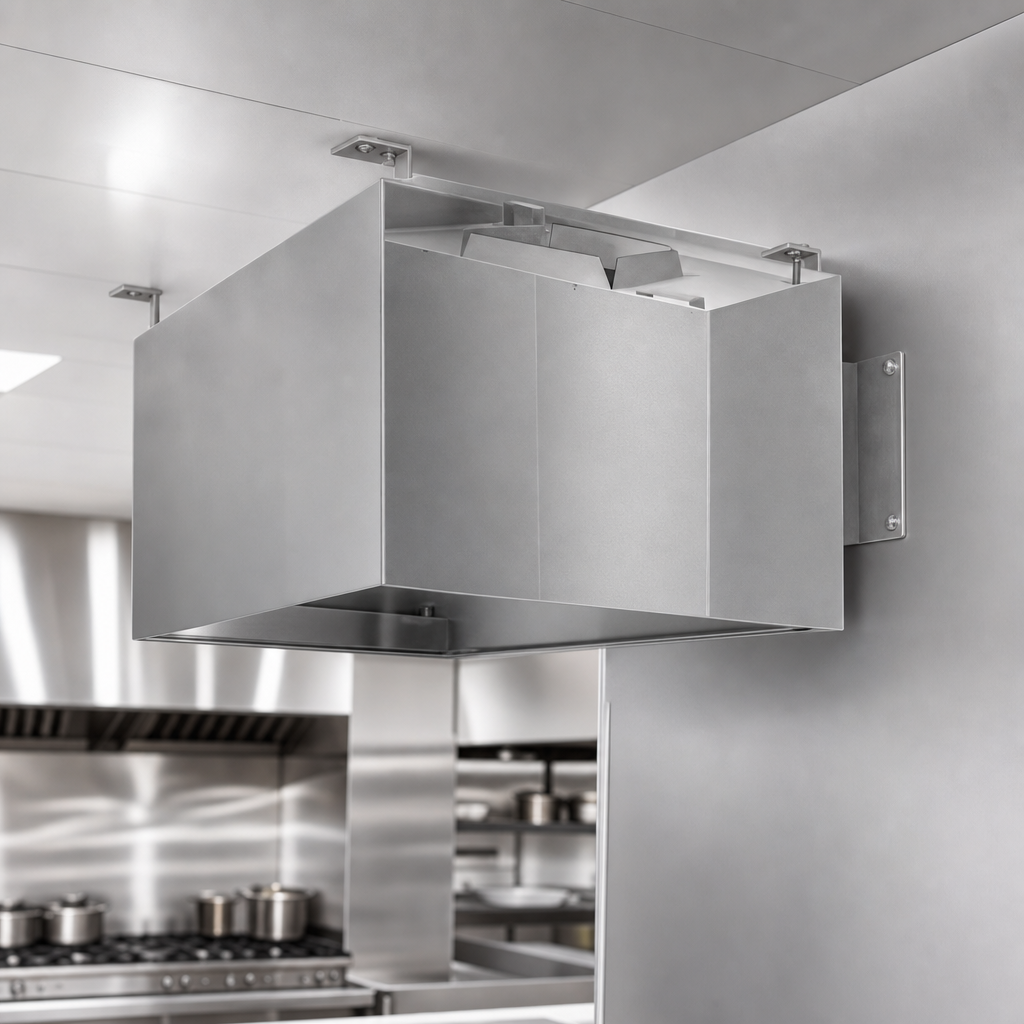

- Back panel is notched for a 2 × 4 cleat, simplifying wall or ceiling installation.
- Compact 20.5" overall height maximizes capture while fitting under lower ceilings.
- Ships fully welded and assembled for quick, hassle-free set-up.
Ideal For
- High-temperature dishwashers & glass washers
- Steamers, kettles, and proofers (non-grease)
- Pot & pan sinks or other high-moisture workstations
Specifications
| Overall Dimensions | 48" L × 48" D × 20.5" H |
|---|---|
| Vent Opening | 8" × 10" (centered on top; 2" high collar) |
| Drain Connection | 3⁄8" NPT at rear of gutter |
| Gutter Width | 1 ½" (internal, full perimeter) |
| Material | Heavy-duty Type 300 series stainless steel |
| Mounting | Back notched for 2 × 4 cleat; wall/ceiling brackets provided |
| Approx. Weight | 160 lb |
| Fan / Motor | Not included (supplied & installed by others) |
| Listings | Not UL or NFPA listed |
Important: This hood is intended for steam and condensate only. It is not approved for grease-laden
vapors. Install in accordance with local mechanical and plumbing codes. Fan, ductwork, and electrical connections
must be supplied by others.
Advance Tabco may change specifications without notice.
Features & Specs
Features & Specs
Manufacturer
Advance Tabco
Height
20.0in
Width
48.0in
Depth
48.0in
Shipping Weight
170.0lbs
Depth (front - back)
48"
Height
20"
Hood Finish
stainless steel
Mounting options
ceiling mount
Length
48"
Specifications
Condensate Hood, 20.50"H, 48"L, 48"D, stainless steel, inside bottom gutter with a 3/8" drain at rear, back notched for a 2 x 4 for mounting, 8 x 10 opening for exhaust conduit centered in top (conduit by others) NO FAN
