Advance Tabco  |  SKU: CH-3636  |  UPC: 747545114846

Advance Tabco CH-3636 Condensate Hoods

$1,843.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet
Related Searches
Advance Tabco Commercial Kitchen Hoods Condensate Hoods Hoods & Ventilation Kitchen Ventilation & Climate Control Restaurant Equipment Ventless Hoods

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

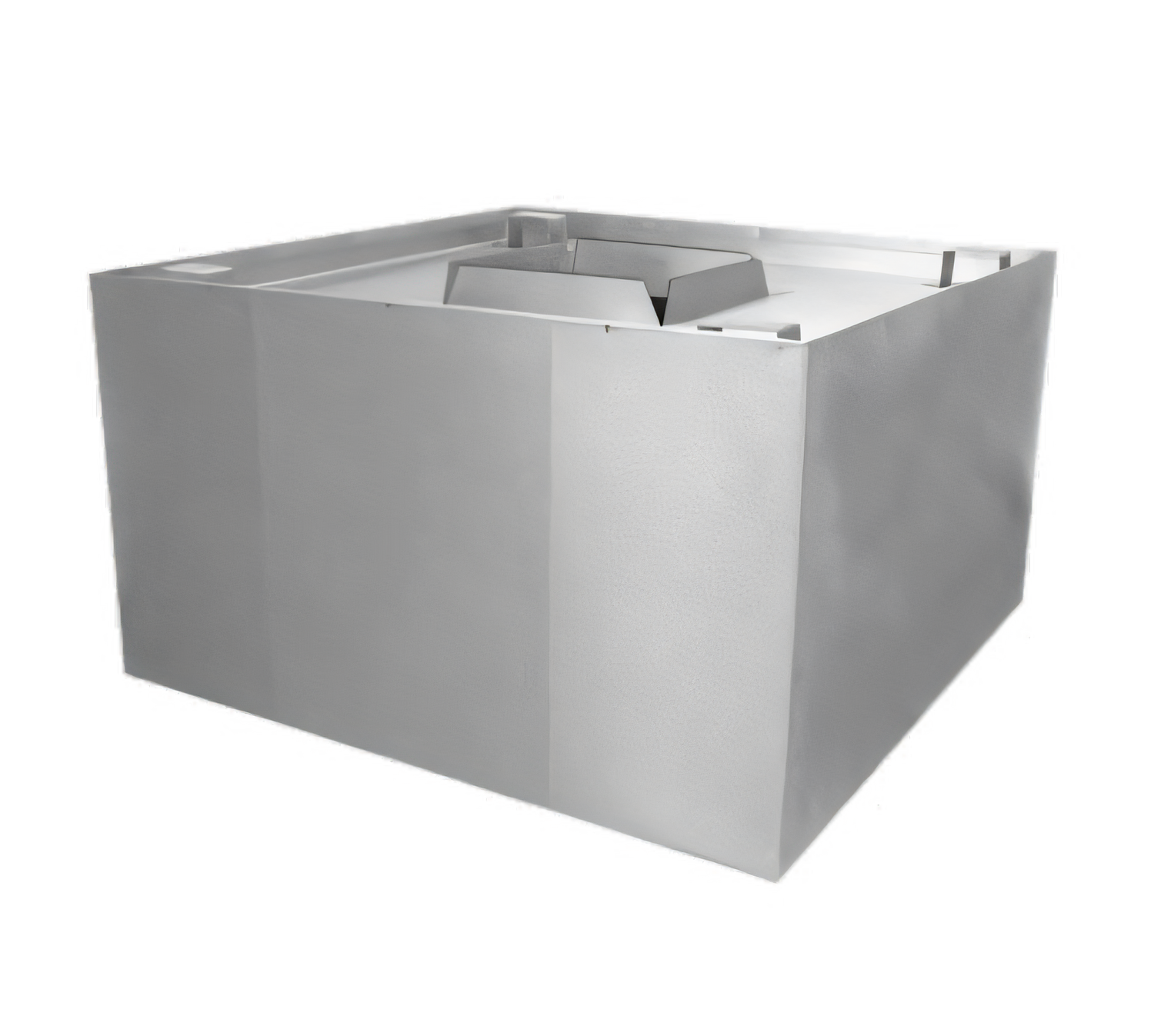

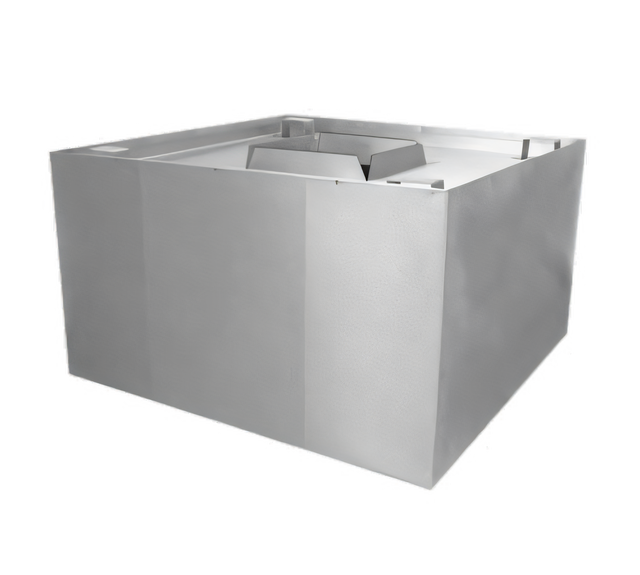

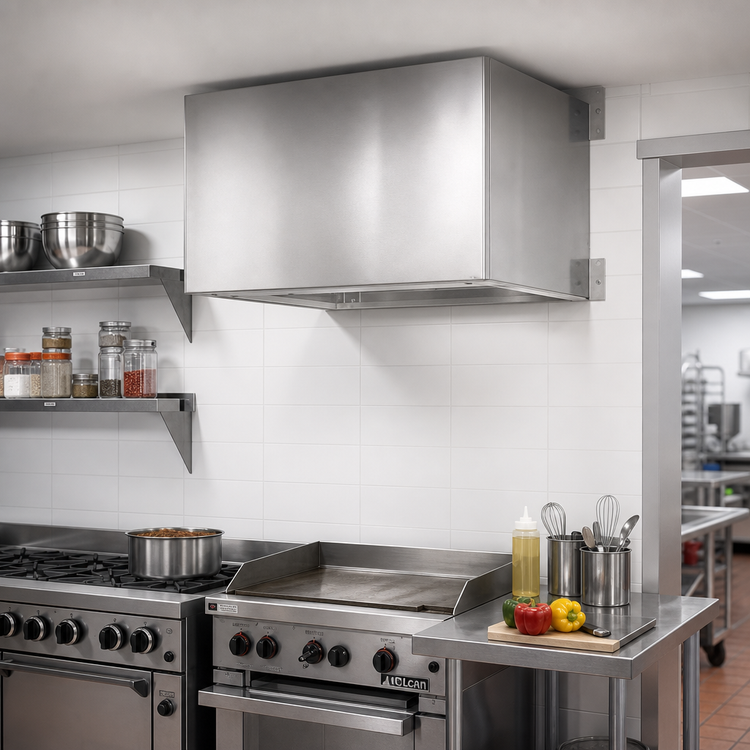

Advance Tabco Stainless Steel Condensate Hood — 36" L x 36" D

Model CH-3636 | 20-1/2" Overall Height | Fan Not Included

Designed to capture steam, vapor and heat above dishwashers, kettles and other non-grease equipment, this heavy-gauge stainless-steel condensate hood delivers reliable moisture control in compact 36" x 36" footprints. Factory-sealed seams, an integrated perimeter gutter and a centered 8" x 10" exhaust collar give you the durability, drainage and easy duct connection Advance Tabco is known for.

Key Features
  • Heavy-duty type 300 stainless steel construction resists corrosion and daily wear.
  • Flanged, factory-sealed seams create a water-tight interior.
  • 1-1/2" inside gutter with rear 3/8" drain efficiently channels condensate away.

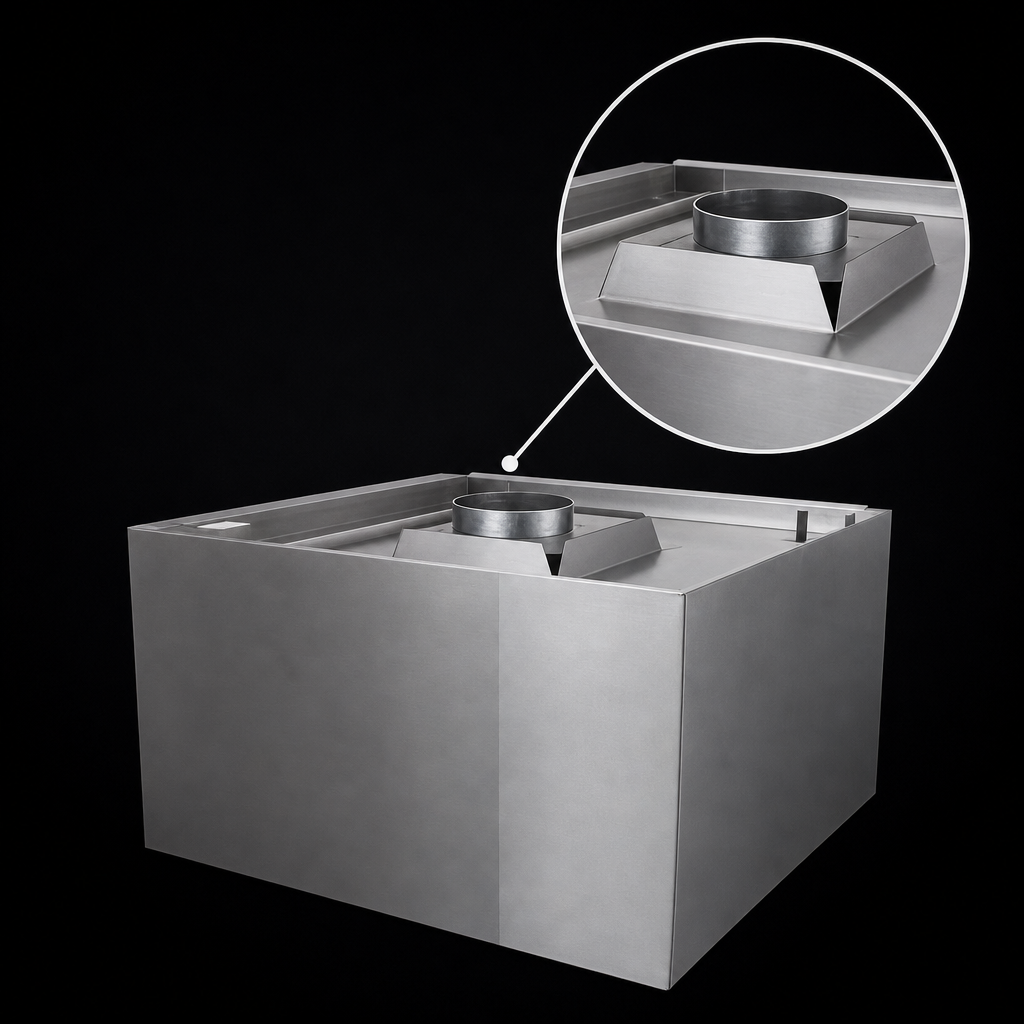

  • Centered 8" x 10" exhaust opening with 2" high collar — ready for field duct connection (conduit by others).

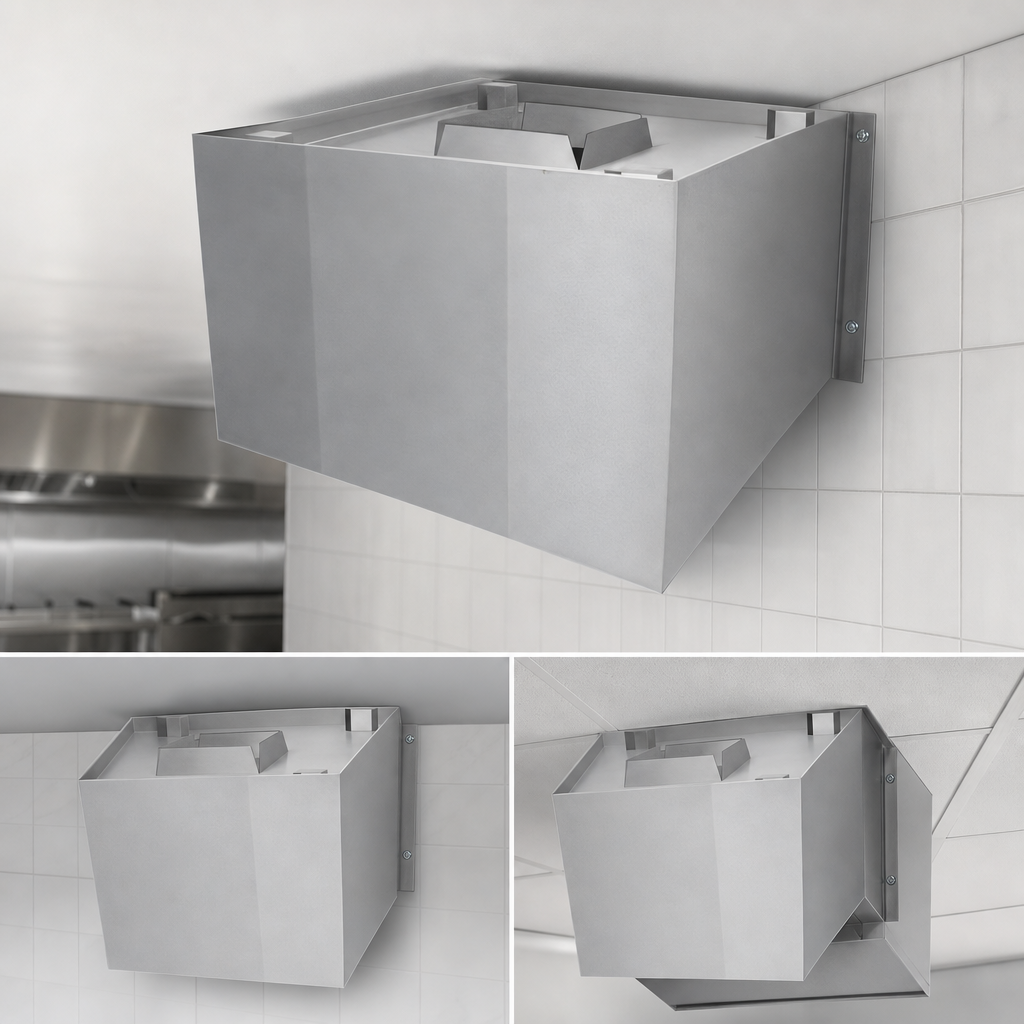

  • Back panel notched to accept a 2" x 4" for quick wall or ceiling mounting; heavy-duty brackets included.
  • Low-profile 20-1/2" body height keeps the hood out of sight while maintaining airflow.
  • No fan supplied — pair with the remote blower of your choice for maximum layout flexibility.
Specifications
Model CH-3636
Length (L) 36" (914 mm)
Depth (D) 36" (914 mm)
Overall Height 20-1/2" (521 mm)
Vent Opening 8" x 10" rectangular  (203 x 254 mm)
Exhaust Collar Height 2"
Gutter Width 1-1/2"
Drain Connection 3/8" rear stub
Approx. Shipping Weight 120 lb (54 kg)
Material Heavy-gauge 300-series stainless steel
Mounting Wall or ceiling – back notched for 2" x 4" stud; brackets included

Need a different size or collar location? Contact us for Advance Tabco Smart Fabrication™ specials.

Important: This condensate hood is not UL or NFPA listed and is intended for non-grease applications only. Always verify local code requirements before installation.

Features & Specs

Manufacturer

Advance Tabco

Height

20.0in

Width

36.0in

Depth

36.0in

Shipping Weight

115.0lbs

Hood Finish

stainless steel

Length

36"

Depth (front - back)

36"

Height

20"

Mounting options

ceiling mount

Specifications

Condensate Hood, 20.50"H, 36"L, 36"D, stainless steel, inside bottom gutter with a 3/8" drain at rear, back notched for a 2 x 4 for mounting, 8 x 10 opening for exhaust conduit centered in top (conduit by others) NO FAN
