Advance Tabco BEV-30-72L Bar Equipment
Description

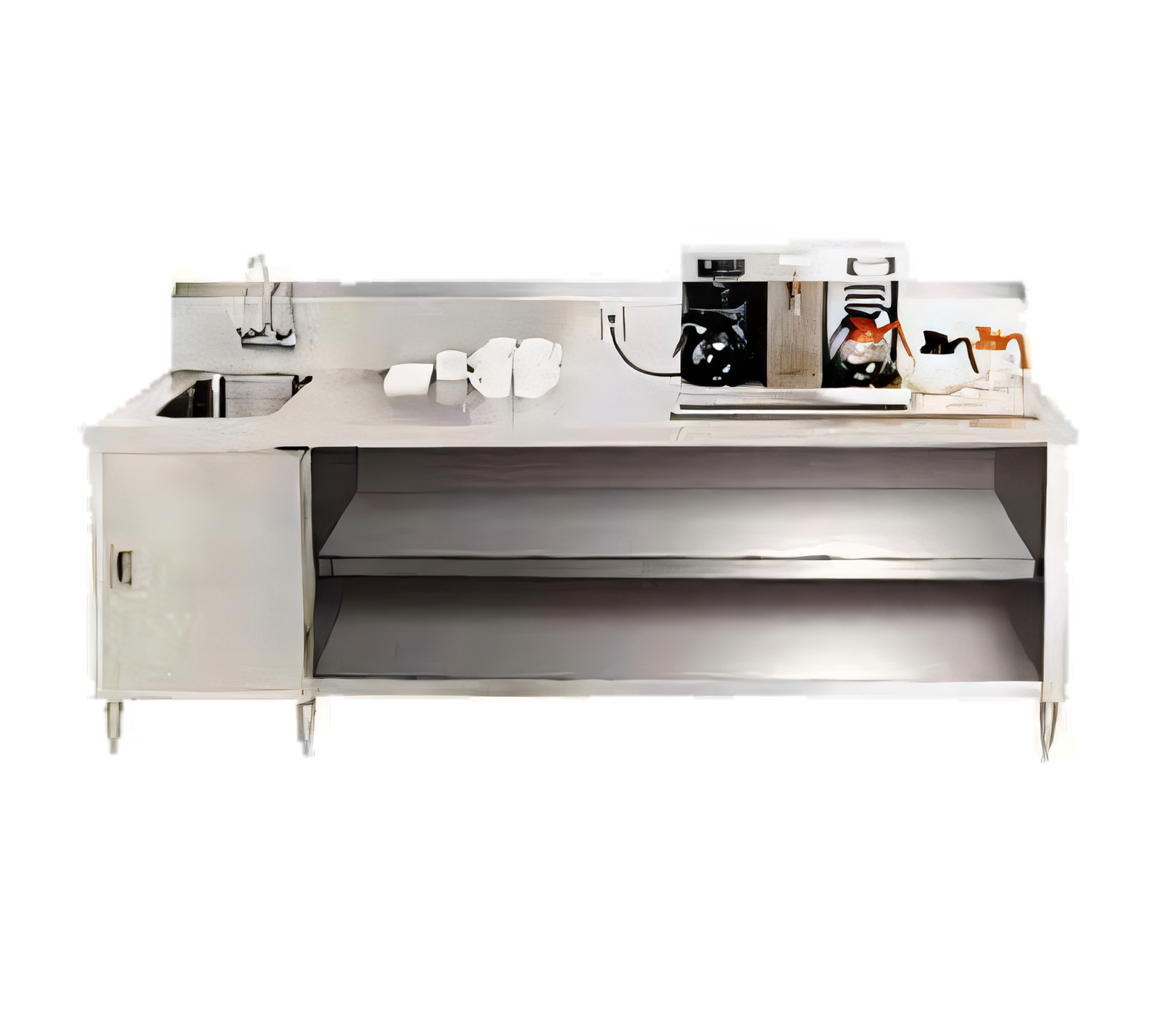

Advance Tabco BEV-30-72L Enclosed Base Beverage Table – 72"
14-gauge 304 stainless top, left-hand sink & 36" urn troughPurpose-built for high-volume beverage programs, the Advance Tabco BEV-30-72L combines a rugged prep surface, built-in sink, and generous dry storage in one easy-to-install unit. From coffee urns to iced tea dispensers, this 72" wide table keeps everything you need right where you need it—while its all-stainless construction stands up to years of daily service.
Key Features
- 14 ga. type 304 stainless steel top with die-embossed No-Drip edge on three sides
- Integrated 14" × 16" × 12" deep sink (left side) TIG-welded to the top
- Splash-mounted 4" O.C. gooseneck faucet (8 ½" spout) – ½" hot & cold inlets
- 5" × 36" urn trough with no-splash drain plate for mess-free beverage service
- 10" high backsplash with 2" return protects walls and meets local codes
- Enclosed base cabinet with hinged door, open rear for fast plumbing hook-up
- Fixed intermediate shelf plus full bottom shelf maximize dry-storage capacity
- Stainless steel legs with 1 ½" adjustable bullet (hex) feet for fast leveling
- Factory-installed GFCI duplex outlet in backsplash keeps brewers & grinders powered
- NSF & NSF/ANSI 61-9 lead-free compliant for food-zone safety
Product Specifications
| Model | BEV-30-72L (sink on left) |
|---|---|
| Overall width | 72" |
| Front-to-back depth | 30" (BEV-30 series) |
| Work height | 35 ½" to top | 45 ½" to top of backsplash* |
| Sink bowl size | 14" L × 16" W × 12" D |
| Urn trough | 5" W × 36" L with drain plate |
| Top material | 14 ga. 304 stainless steel, satin polish |
| Body material | 18 ga. 430 stainless steel |
| Edge profile | 2" × 1" square die-embossed No-Drip with ½" return |
| Drain | 1 ½" I.P.S. basket-type (K-6) – 7 gpm flow |
| Shelves | 1 fixed intermediate & 1 full bottom shelf (stainless steel) |
| Electrical | GFCI duplex outlet, pre-wired in backsplash |
| Approx. weight | 300 lb. |
| Certifications | NSF, NSF/ANSI 61-9 lead-free |
*Heights are typical; field-adjustable 1 ½" bullet feet provide up to 1" of additional leveling.
Built for the Real-World Beverage Station
Advance Tabco’s smart fabrication delivers a one-piece body, roll-formed hat channels, and bolt-on legs for rock-solid stability even under fully loaded urns. All TIG welds are blended to a food-safe satin finish, while sound-deadening under the top keeps noise to a minimum during busy service.
