Advance Tabco  |  SKU: BEV-30-60R  |  UPC: 747545112736

Advance Tabco BEV-30-60R Bar Equipment

$4,645.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Video Product standards and use guide Installation guide
Related Searches
Bar Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

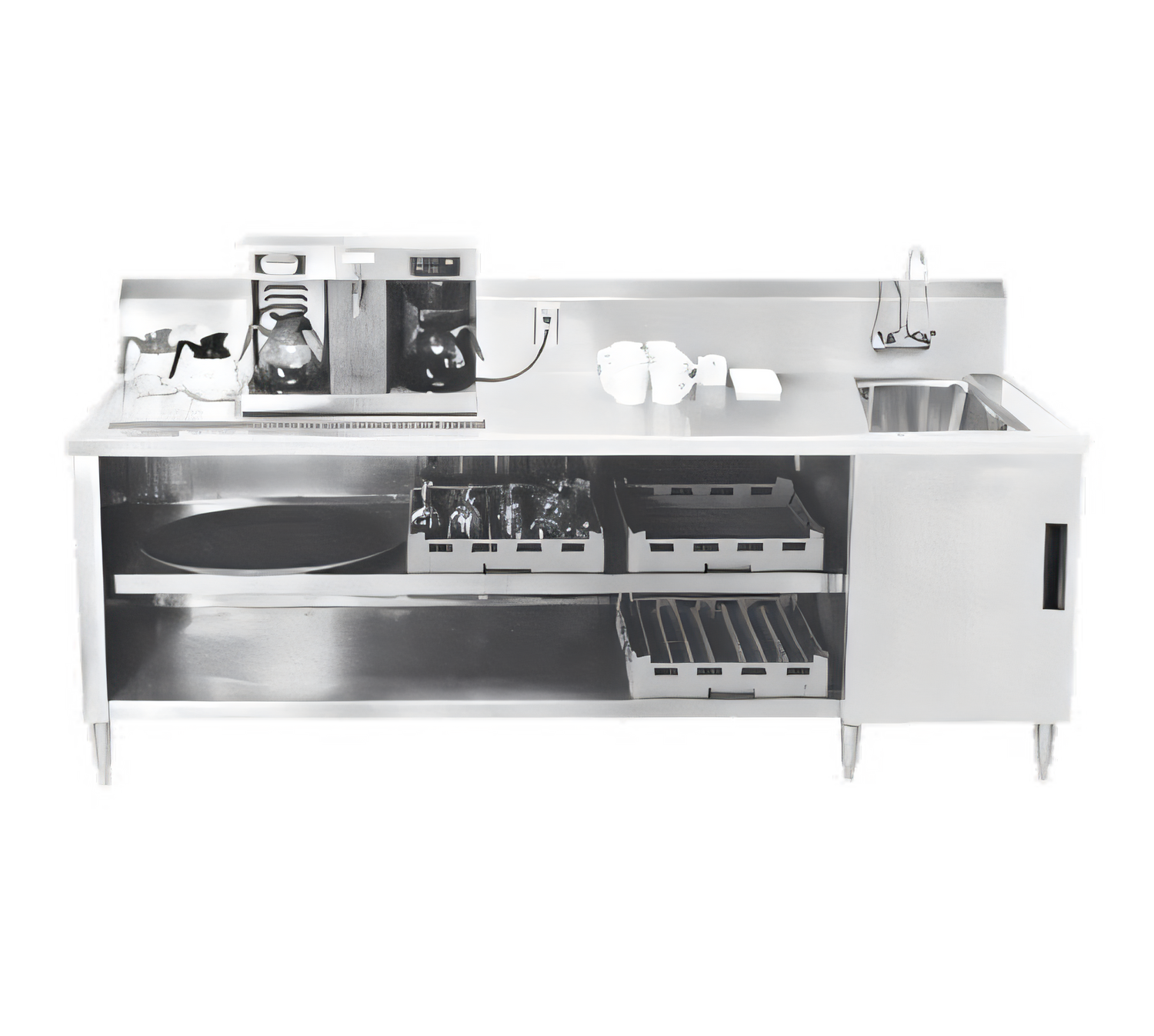

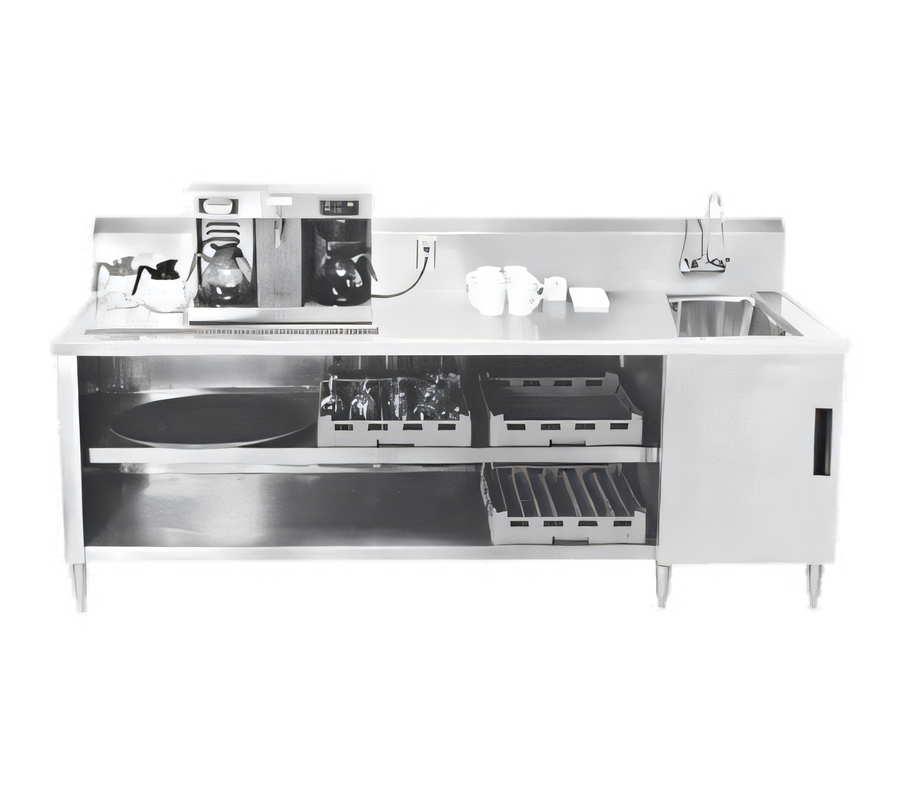

Advance Tabco BEV-30-60R Enclosed Base Beverage Table – 60"W

Right-hand 14" × 16" × 12" sink • 14 ga. 304 SS top • NSF 61/9 lead-free

Build a dedicated, code-compliant beverage station that stands up to the daily rush. The Advance Tabco BEV-30-60R integrates a deep sink, urn trough, GFI outlet and generous storage into a single, easy-to-install unit—ideal for coffee, tea and other self-service drink programs.

Key Features

  • 60" wide beverage table with right-hand sink orientation (Model BEV-30-60R).
  • Heavy-duty 14 gauge, type 304 stainless steel top with No-Drip mirror-finished countertop edge.
  • 10" high backsplash with 2" return keeps walls dry; factory-installed GFI duplex outlet for brewers or grinders.
  • 14" × 16" × 12" deep sink bowl is TIG-welded into the top for a sanitary, one-piece surface.
  • Splash-mounted gooseneck faucet, 4" O.C., 8 ½" spout; ½" NPT hot & cold inlets.
  • 5" × 24" urn trough with no-splash drain plate speeds pitcher rinsing and drip containment.
  • Enclosed stainless steel base with front hinged door, open rear for simple plumbing access.
  • Intermediate & bottom fixed shelves increase storage capacity for cups, liners and cleaning supplies.
  • Stainless steel legs with 1 ½" adjustable bullet feet bolt to the base for rock-solid stability.
  • NSF certified; conforms to NSF 61/9 lead-free requirements for potable water contact.

Technical Specifications

Overall width 60" (1524 mm)
Depth 30" (762 mm)
Work surface height 35 ½" (902 mm)
Backsplash 10" H × 2" return
Sink bowl 14" W × 16" L × 12" D; 1 ½" IPS basket drain
Top material / thickness Type 304 stainless steel, 14 ga.
Base & shelves 18 ga. type 430 stainless steel
Faucet type Splash-mounted, 4" centers, 8 ½" gooseneck spout
Urn trough 5" W × 24" L with perforated drain plate
Electrical 15-A GFI duplex outlet in backsplash (pre-wired, 120 V)
Unit weight 250 lb. (113 kg)
Certifications NSF, NSF 61/9

Rear of sink cabinet is open for straightforward drain and supply hook-ups (plumbing fittings by installer).

Prop 65 Notice: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm.

Features & Specs

Manufacturer

Advance Tabco

Certifications

NSF

Height

46.0in

Width

60.0in

Depth

30.0in

Shipping Weight

250.0lbs

Width (side - side)

60"

Style

cabinet base with open shelf(s)

Depth (front - back)

30"

Exterior Finish

all stainless steel exterior

Specifications

Beverage Table, 60"W, with 14" x 16" x 12" deep sink on right with faucet 4"OC, urn trough 5" x 24" with no splash drain plate, 14 gauge 304 stainless steel top with no drip counter top edge, 10" x 2" backsplash, enclosed stainless steel base with bottom & intermediate undershelves, stainless steel legs, NSF
