Advance Tabco BEV-30-48L Bar Equipment
Description

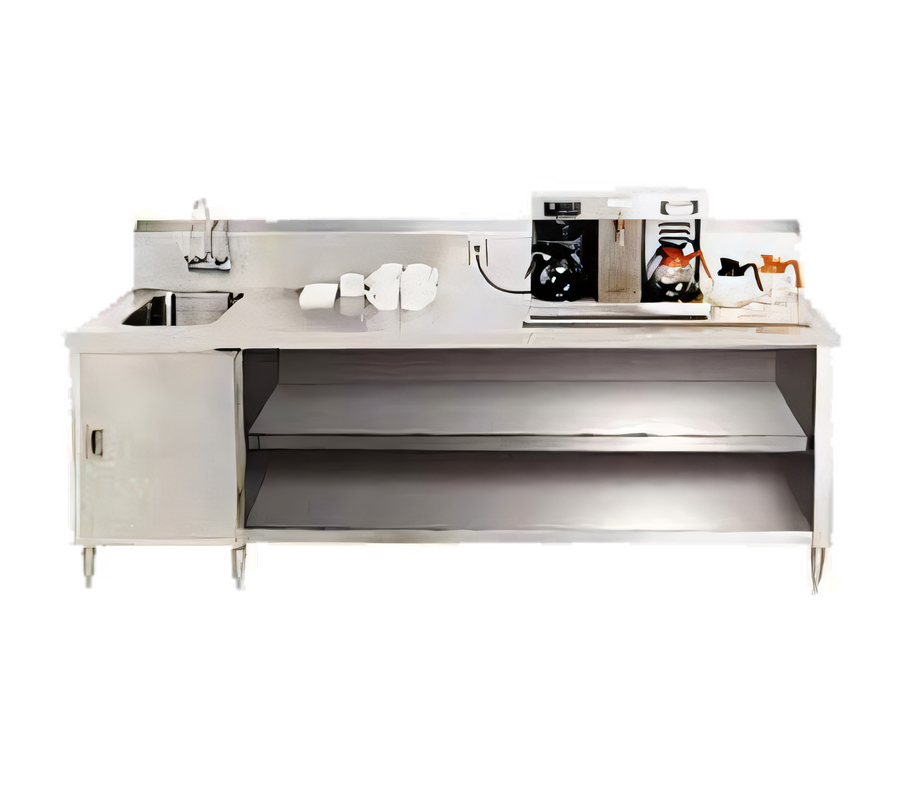

48" Enclosed Base Beverage Table – Left Sink
Advance Tabco Model BEV-30-48L | NSF/ANSI 61 & 9 Lead-FreeCombine beverage prep, service and storage in one rugged, space-saving station. Built from heavy-gauge stainless steel and pre-plumbed with a deep sink and urn trough, this 48" Advance Tabco beverage table is the smart solution for cafés, bakeries, banquet halls and other high-volume drink programs.
Key Benefits
- 14 gauge type 304 stainless steel top with die-embossed 2" × 1" No-Drip edge.
- 10" backsplash with 2" return protects walls and houses a factory-installed GFCI duplex outlet.
- Integrated 14" × 16" × 12" deep sink (left end) TIG-welded to the top for a sanitary, leak-free seal.
- Splash-mounted K-60 faucet, 4" on-center, with an 8 ½" gooseneck spout (½" hot & cold inlets).
- 5" × 18" urn trough with stainless no-splash drain plate catches drips from coffee urns and dispensers.
- Rigid unit-body construction: 18 gauge type 430 stainless steel sides, back and shelves.
- Enclosed base includes a fixed intermediate shelf, full-width bottom shelf and hinged door for secure storage.
- Stainless steel bolt-on legs with 1 ½" adjustable bullet feet ensure fast, level installation.
- NSF listed and fully compliant with NSF/ANSI 61 & 9 lead-free requirements.
Specifications
| Overall width | 48" / 1219 mm |
|---|---|
| Front-to-back depth | 30" / 762 mm |
| Backsplash | 10" H × 2" return |
| Sink bowl size | 14" W × 16" L × 12" D (≈ 11.25 gal) |
| Drain | 1 ½" IPS basket type |
| Urn trough | 5" W × 18" L with drain plate |
| Countertop material | 14 ga 304 stainless |
| Base material | 18 ga 430 stainless |
| Legs / feet | Stainless steel, bolt-on, 1 ½" adjustable feet |
| Approx. weight | 230 lb / 104 kg |
| Certifications | NSF, NSF/ANSI 61 & 9 |
Built to Perform
Every weld is TIG-finished, every exposed surface mechanically polished to a satin sheen and sound-deadened for a quieter workspace. The mirror-polished No-Drip edge keeps spills off the floor, while bolt-on legs speed up on-site assembly. It’s the legendary Advance Tabco durability your operation can count on, shift after shift.
Need a right-hand sink, additional legs or custom dimensions? Ask us about Smart Fabrication™ options available direct from the factory.
