Advance Tabco BEV-30-144R Bar Equipment
Description

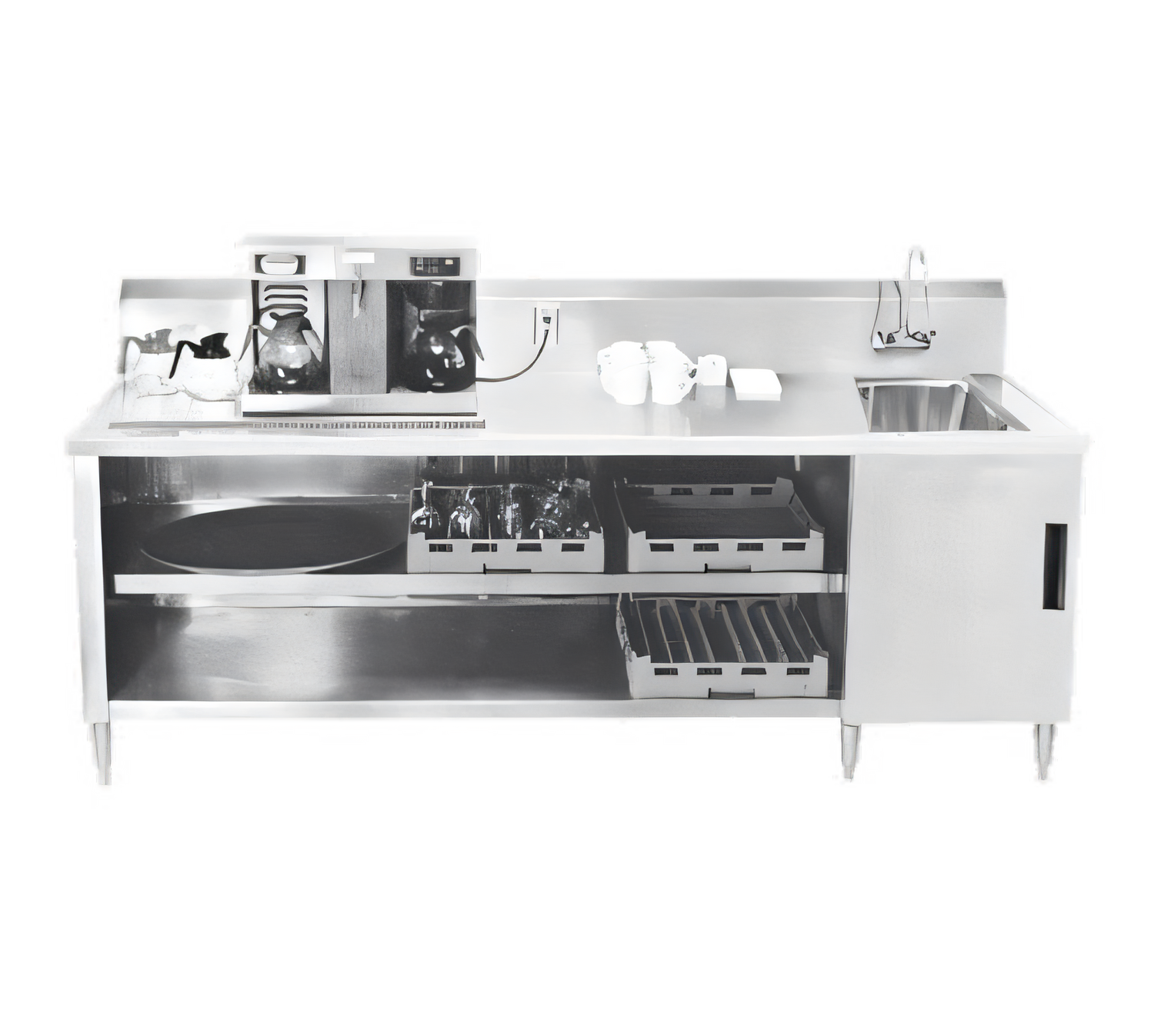

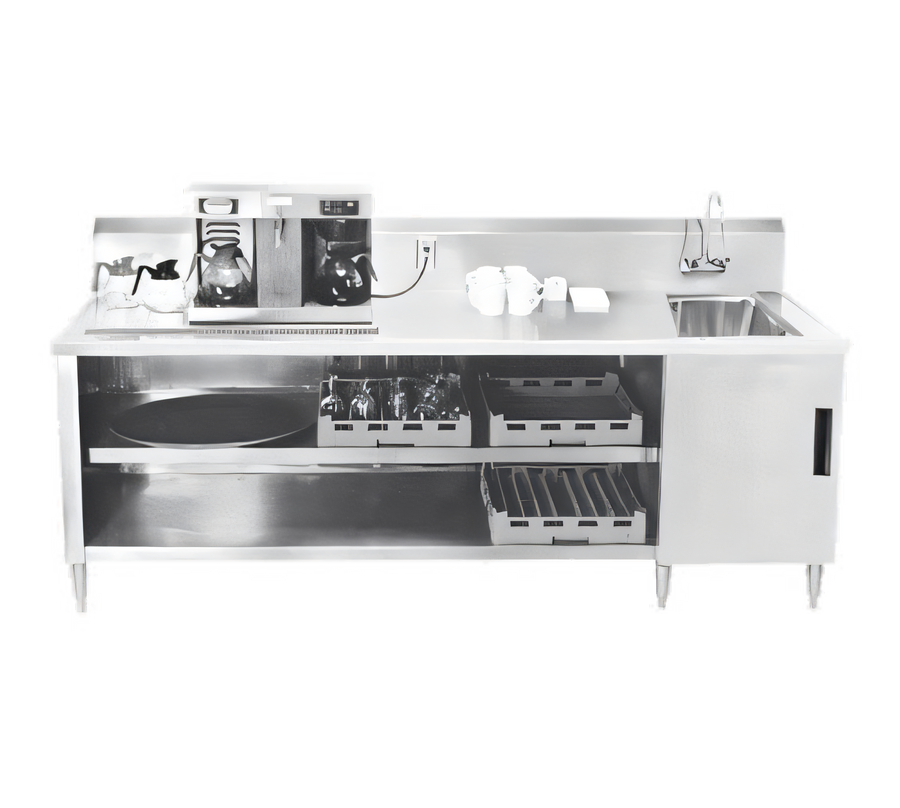

Advance Tabco BEV-30-144R Enclosed Base Beverage Table
144" W • Right-Hand Sink • NSF/ANSI 61 & 9 Lead-Free CompliantBuilt to anchor the busiest beverage lines, this 12-foot Advance Tabco stainless steel beverage table pairs a heavy-duty 14 gauge work surface with a fully enclosed storage base. A right-hand sink, extra-long urn trough, and integrated GFI outlet turn one footprint into a complete beverage service station that installs fast and lasts for years.
Key Features
- 14 ga 304 stainless steel top with 2" × 1" die-embossed No-Drip edge and ½" return on three sides.
- 10" H × 2" return backsplash keeps wall surfaces dry and houses a factory-mounted GFI duplex outlet.
- Right-hand sink bowl – 14" × 16" × 12" D TIG-welded to the top, supplied with 1½" IPS basket drain (K-6).
- 4" on-center splash-mount faucet with 8½" gooseneck spout, ½" hot & cold inlets (lead-free compliant).
- 5" × 36" urn trough with no-splash drain plate for mess-free coffee urn and tea dispenser service.
- Enclosed base (18 ga 430 SS) features hinged access door, fixed midshelf, and full-length undershelf for bulk storage.
- Open rear under-sink cavity simplifies final plumbing hook-ups on site.
- Bolt-on stainless steel legs with 1½" adjustable bullet feet deliver rock-solid support—load rated up to 1,500 lb. distributed.
- All TIG-welded construction, mechanically polished to a sanitary satin finish; sound-deadened top for quieter operation.
- NSF listed for food-zone use and passes NSF/ANSI 61 & 9 lead-free requirements.
At-a-Glance Specs
| Model No. | BEV-30-144R |
|---|---|
| Overall length | 144 in. (12 ft.) |
| Depth | 30 in. |
| Work surface material | 14 ga Type 304 stainless steel |
| Backsplash | 10 in. H × 2 in. return |
| Sink bowl (right) | 14" W × 16" L × 12" D, 11.25 gal. capacity |
| Faucet | Splash-mount, 4" O.C., 8½" gooseneck, ½" NPT inlets |
| Drain | 1½" IPS basket type (7 gpm flow) |
| Urn trough | 5" W × 36" L with removable drain plate |
| Base material | 18 ga Type 430 stainless steel |
| Shelving | 1 fixed midshelf & 1 full-length undershelf |
| Electrical | Factory-installed GFI duplex outlet (120 V) |
| Legs / feet | Stainless steel, bolt-on, 1½" adjustable hex feet |
| Certifications | NSF, NSF/ANSI 61 & 9, Prop 65 |
| Ship weight | Approx. 550 lb. |
Ideal For
- High-volume coffee & tea service lines
- Hotel or banquet beverage stations
- Convenience stores and cafés needing combined prep & storage
For more information go to www.P65Warnings.ca.gov.
Advance Tabco reserves the right to modify product design and specifications without prior notice.
