Advance Tabco BEV-30-120L Bar Equipment
Description

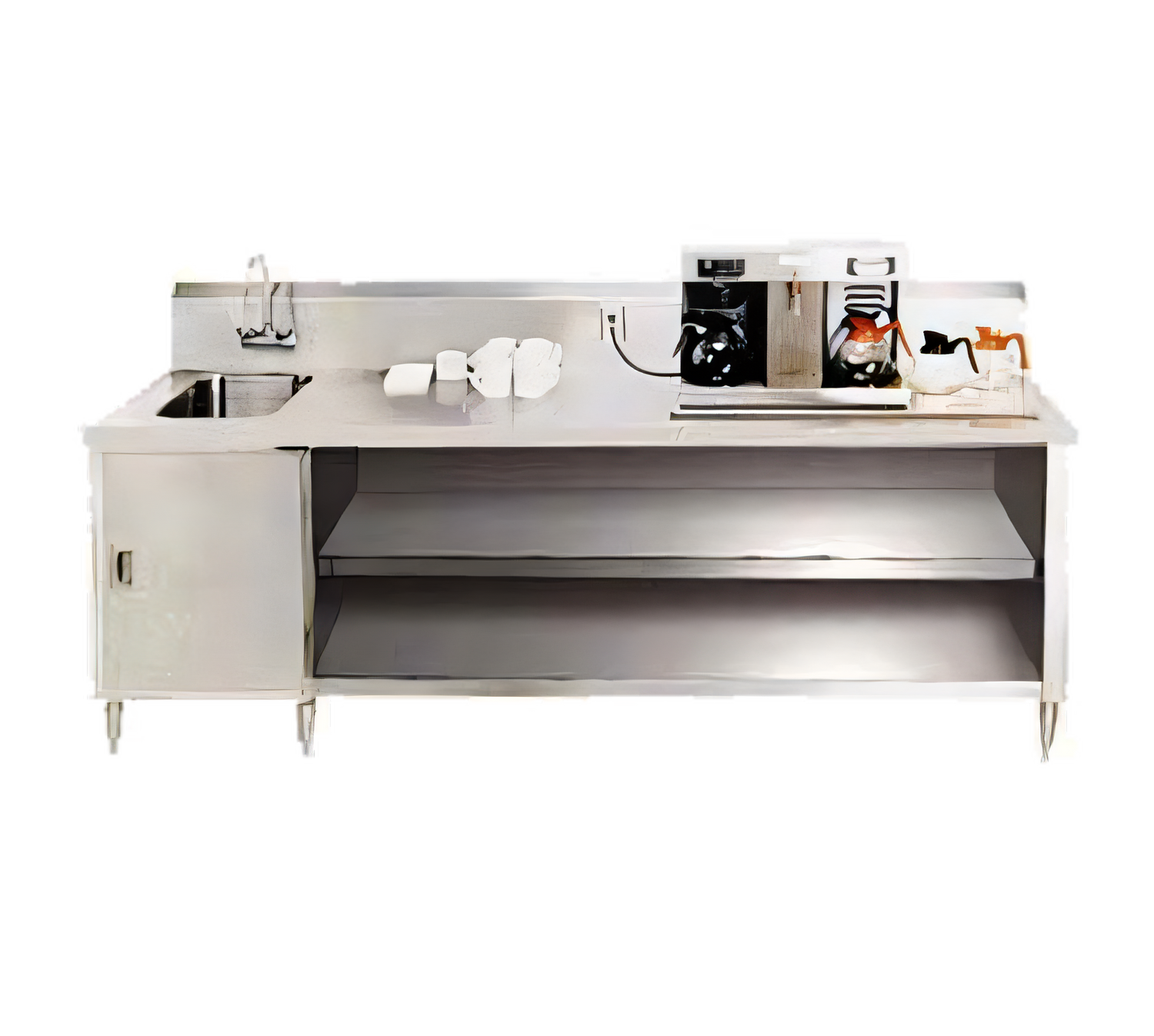

Advance Tabco BEV-30-120L Enclosed Base Beverage Table
120" W x 30" D | Left-Hand Sink | 14 ga 304 Stainless SteelEngineered for high-volume beverage service, the Advance Tabco BEV-30-120L combines a heavy-duty work surface, built-in plumbing, and generous dry storage in one sanitary, NSF-listed station. Perfect for cafés, banquet halls, stadium suites, and anywhere speed and cleanliness are paramount.
Why It Stands Out
- Rugged 14 ga 304 top resists dents, corrosion, and chemical attack.
- 2" × 1" die-embossed No-Drip countertop edge keeps spills off the floor.
- 10" backsplash with 2" return protects surrounding walls and integrates a GFI duplex outlet.
- Integral 14" × 16" × 12" deep sink (left end) with 1 ½" I.P.S. basket drain and splash-mount faucet, 4" centers, 8 ½" gooseneck spout.
- 5" × 36" urn trough with no-splash drain plate captures coffee & tea overflows.
- Fully welded, enclosed base with hinged access door plus open rear for fast plumbing hook-ups.
- Fixed intermediate shelf and full-width bottom shelf keep cups, liners, or cleaning supplies close at hand.
- Stainless steel bolt-on legs with 1 ½" adjustable bullet feet level the table on uneven floors.
- All TIG-welded seams are polished to a satin finish; exposed countertop edge is mirror polished for a premium look.
- NSF 61/9 lead-free compliant for safe potable-water contact.
Technical Specifications
| Model | BEV-30-120L |
|---|---|
| Overall Length | 120 in (3048 mm) |
| Overall Depth | 30 in (762 mm) |
| Top Material / Gauge | 304 Stainless Steel, 14 ga |
| Sink Bowl (L × W × D) | 14" × 16" × 12" |
| Faucet | Splash-mount, 4" O.C., 8 ½" gooseneck, ½" hot & cold inlets |
| Urn Trough | 5" W × 36" L with no-splash drain plate |
| Backsplash Height | 10" H × 2" return |
| Base Construction | 18 ga 430 stainless steel panels; fixed mid & bottom shelves |
| Legs / Feet | Stainless steel, bolt-on, 1 ½" adjustable bullet feet |
| Electrical | GFI duplex outlet in backsplash |
| Approx. Ship Weight | 500 lb (227 kg) |
| Certifications | NSF • NSF 61/9 Lead Free |
Care & Maintenance
- Clean daily with a mild detergent and soft cloth; avoid chlorides and harsh abrasives.
- Rinse thoroughly and wipe dry to maintain the satin finish.
- Periodically check faucet, drain, and electrical connections for proper operation.
Need a different length, right-hand sink, or custom options? Contact us for a quick Smart Fabrication™ quote.
