Advance Tabco  |  SKU: 94-K8-30D  |  UPC: 747545111685

Advance Tabco 94-K8-30D Compartment Sinks

$5,850.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options

Documents

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

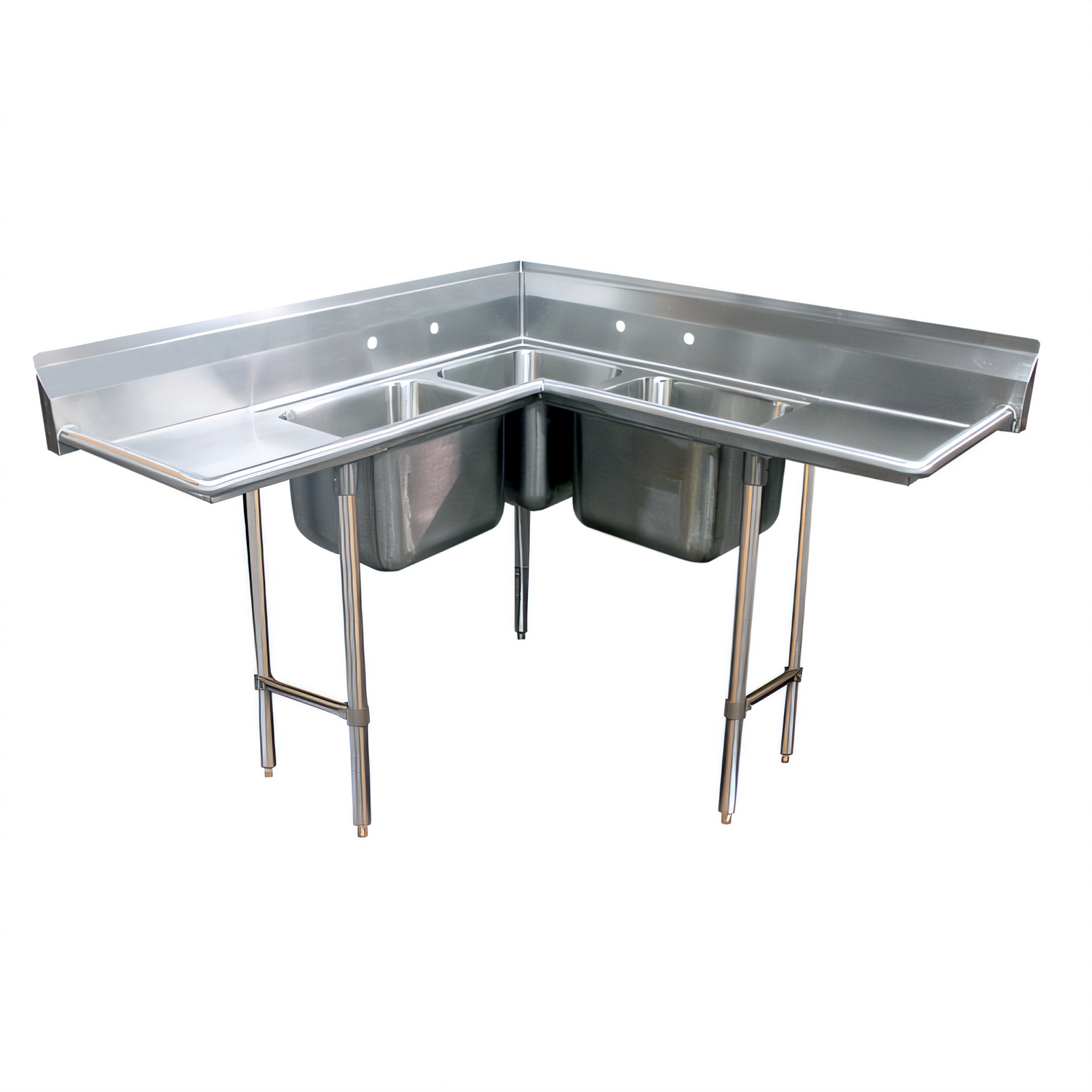

Advance Tabco 94-K8-30D Regaline 3-Compartment Corner Sink

85 ½" × 85 ½" overall • dual 30" drainboards • NSF

Turn an under-used corner into a full-scale warewashing station. Built from extra-heavy 16 ga 304 stainless steel, this Regaline series sink delivers three generous bowls, two roomy drainboards, and rock-solid durability—ideal for high-volume kitchens that demand maximum efficiency and minimal footprint.

Why You’ll Love It

  • Space-saving L-shaped design frees up valuable straight-line wall space.
  • (1) 20" × 20" × 12" bowl plus (2) oversized 20" × 28" × 12" bowls create a true wash/rinse/sanitize workflow.
  • Integrated 30" drainboards on both legs keep dirty and clean wares separated.

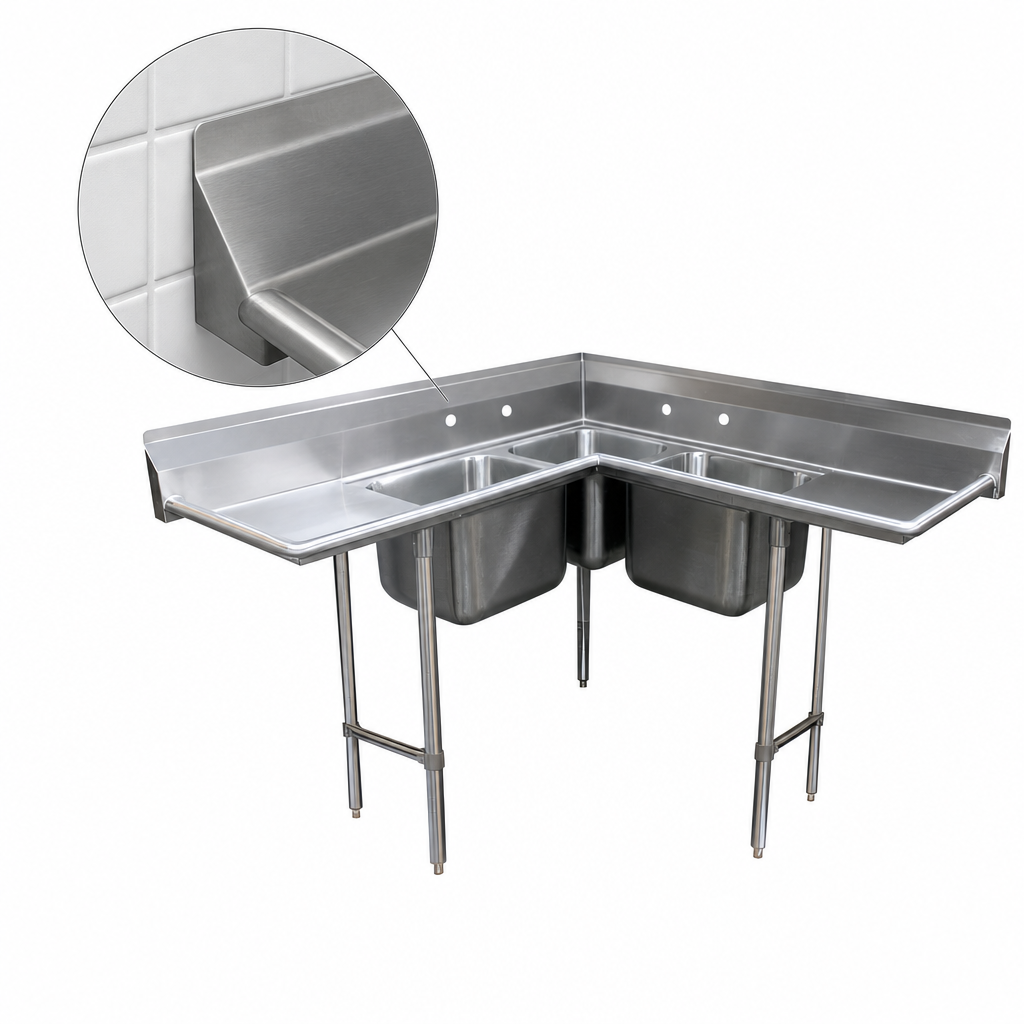

  • 8" backsplash with tile edge protects walls and makes sealing fast & easy.
  • Deep-drawn seamless bowls with 3" radiused corners rinse clean in seconds.
  • 1 ⅝" Ø tubular stainless steel legs with side cross-rails eliminate wobble.
  • Adjustable stainless steel bullet feet level the sink on uneven floors.
  • TIG-welded construction; welds are blended to a uniform satin finish.
  • NSF listed for open-kitchen, food-contact confidence.

What’s Included / What You Need

  • Stainless steel 1 ½" IPS basket drains (3)
  • (2) sets of punched 8"-on-center faucet holes
  • Requires: (2) wall-mount faucets, ½" IPS hot & cold supplies (sold separately)

Technical Specifications

Model # 94-K8-30D
Overall size 85 ½" × 85 ½"
Compartments 3 total
Bowl 1 20" W × 20" F-B × 12" D
Bowls 2 & 3 20" W × 28" F-B × 12" D
Drainboards 30" left & 30" right (integral, pitched)
Backsplash 8" H with tile edge
Steel grade 16 ga type 304 stainless
Legs / base 1 ⅝" Ø stainless tube, open frame with side cross-bracing
Feet Adjustable stainless bullet feet
Drain connection 1 ½" IPS per bowl (center)
Faucet mounting 8" centers (two sets)
Certification NSF
Installation note: Faucets are not included. Two wall-mount faucets with 8" centers are required for operation.

Questions about plumbing rough-ins or compatible faucets? Chat with our product specialists—we’re here to help.

Features & Specs

Manufacturer

Advance Tabco

Certifications

NSF

Height

42.0in

Width

85.0in

Depth

27.0in

Shipping Weight

350.0lbs

Sink Depth (rim - drain)

12"

Compartment (front - back)

20"

Top Stainless Series

300 series

Compartments

3 compartments

Base Construction

stainless steel

Compartment Width (side - side)

various

Overall Length

85" - 96"

Top Gauge

16 gauge

Splash Height

8"

Specifications

Corner Sink, 3-compartment, (1) 20" x 20" x 12" deep bowl, (2) 20" x 28" x 12" deep bowls, with 30" left & right-hand drainboards, with 8"H backsplash, stainless steel open frame base, side crossrails, adjustable stainless steel bullet feet, 16 gauge 304 stainless steel, 85" x 85" overall, NSF (requires 2 faucets)
