Advance Tabco 94-K4-24D Compartment Sinks
Description

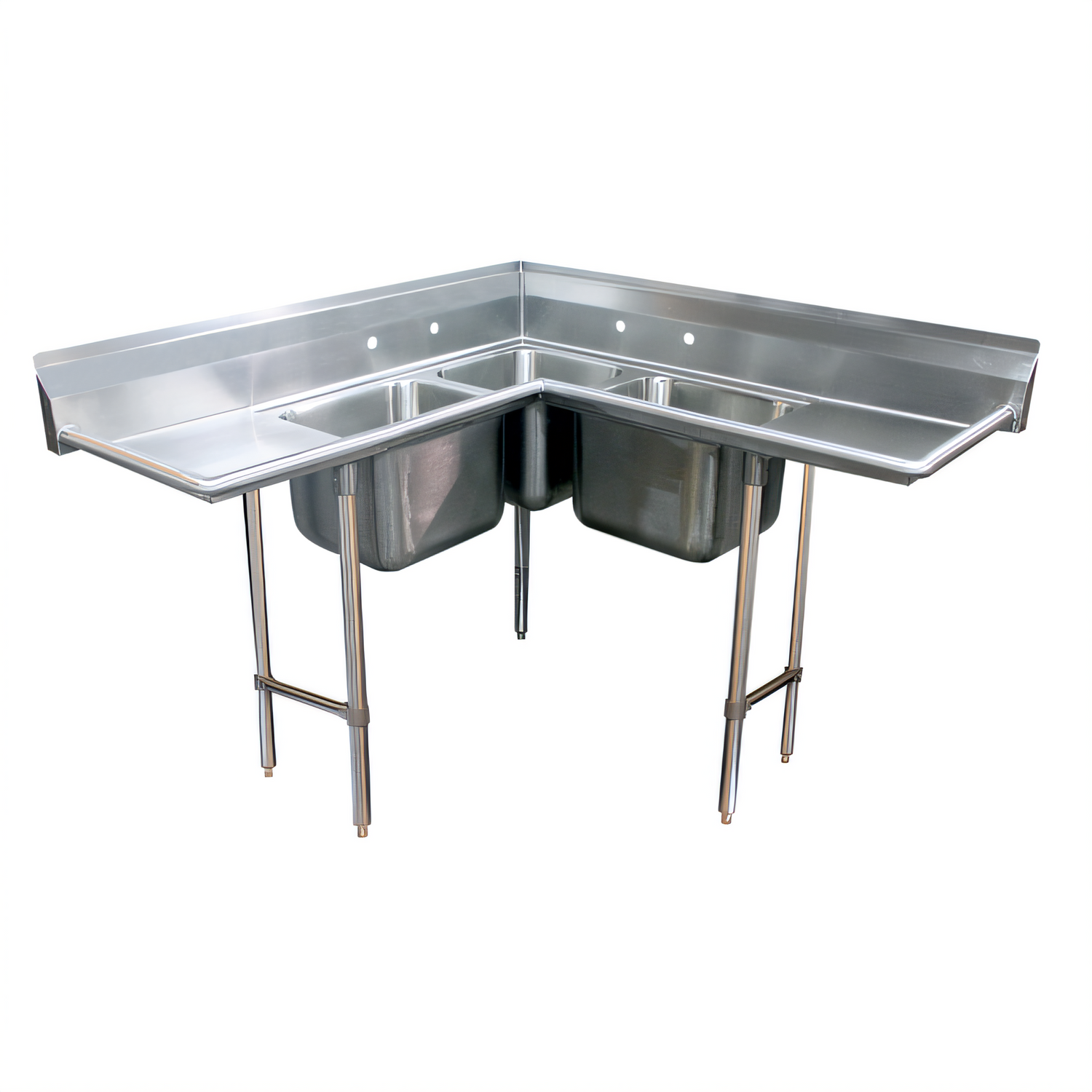

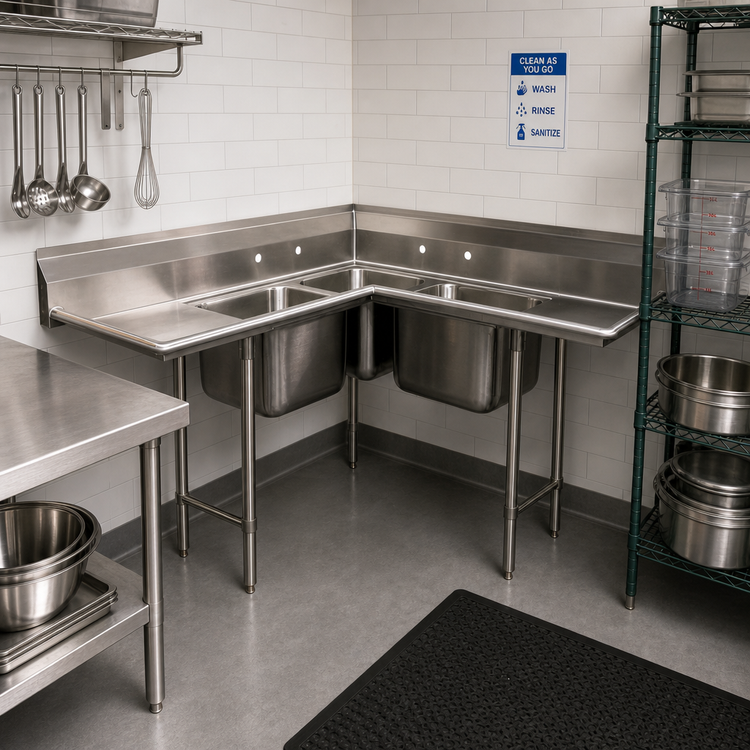

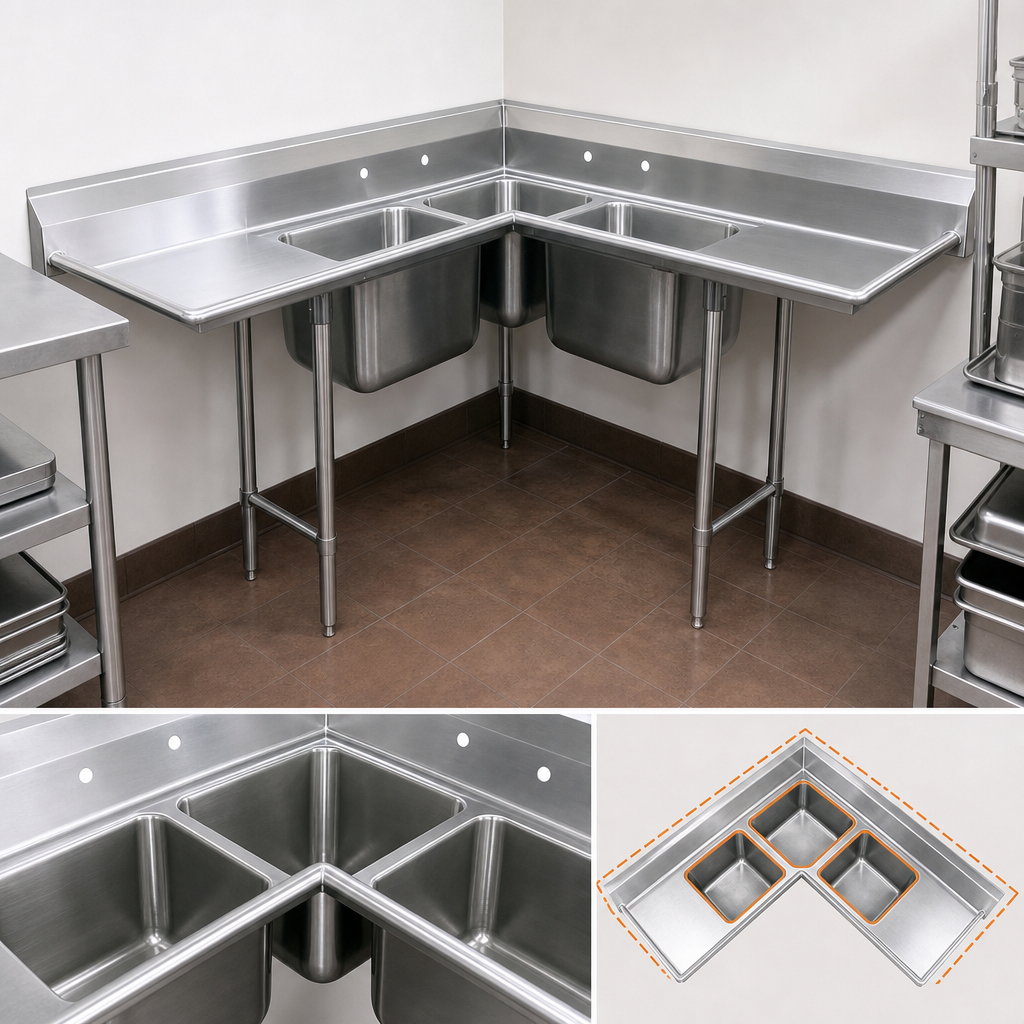

Advance Tabco 94-K4-24D Regaline 3-Compartment Corner Sink
24" x 24" Bowls • Dual 24" Drainboards • NSF ListedDesigned to drop neatly into a corner and maximize valuable floor space, the Advance Tabco 94-K4-24D Regaline sink brings heavy-duty performance and ergonomic workflow to busy commercial kitchens. Three generous 24" x 24" x 12" bowls let you separate wash, rinse and sanitize tasks, while 24" drainboards on both sides keep dishes moving without cluttering the workspace.
Built for daily abuse – and easy sanitation
- 16-gauge type 304 stainless steel resists corrosion, dents and harsh chemicals.
- One-piece deep-drawn bowls with seamless integral drainboards prevent trapped debris.
- 3" inside corner radius promotes fast wipe-downs and meets health-code mandates.
- 8" high backsplash with 8"-on-center faucet holes contains splashes and protects walls.
- Open stainless steel frame with 1 ⅝" tubular legs & side cross-rails adds rock-solid stability.
- Adjustable stainless steel bullet feet level the sink on uneven floors.
- Tile-edge rim speeds up installation and delivers a clean, built-in look.
- Includes three 1 ½" IPS basket drains; bowls are centered for efficient plumbing.
- NSF certified for food-service use.
Specification Sheet
| Manufacturer / Series | Advance Tabco – Regaline Corner Sink |
|---|---|
| Model # | 94-K4-24D |
| Compartments | 3 |
| Bowl Size (W × L × D) | (3) 24" × 24" × 12" |
| Drainboards | 24" left & 24" right (integral, creased & pitched) |
| Backsplash Height | 8" |
| Overall Dimensions | 79 ½" × 79 ½" |
| Material / Gauge | 16-gauge 304 stainless steel |
| Legs & Bracing | 1 ⅝" Ø stainless legs, welded gussets, adjustable side cross-braces |
| Feet | 1" adjustable stainless steel bullet feet |
| Plumbing | ½" IPS hot & cold supplies • 1 ½" IPS drains |
| Faucet Holes | (2) sets on 8" centers (faucets sold separately) |
| Certifications | NSF |
| Optional Accessories | Poly-Vance cutting board / sink cover (model K-2F), splash-mount faucets, pre-rinse units |
Installation & Operational Notes
- Requires two wall-mount or splash-mount faucets with 8" centers (not included).
- Allow 38" A.F.F. for hot/cold rough-ins; bottom of bowl sits 20" above finished floor.
- Leg clearance (right-to-left) for 3-compartment 24" bowls: 81 ⅛".
- Drainboards under 36" include factory pitch & crease for rapid draining.
Need a custom modification? Ask us about Advance Tabco Smart Fabrication™ for made-to-order sink accessories and alterations.
