Advance Tabco 94-84-80-36L Regaline Compartment Sinks
Description

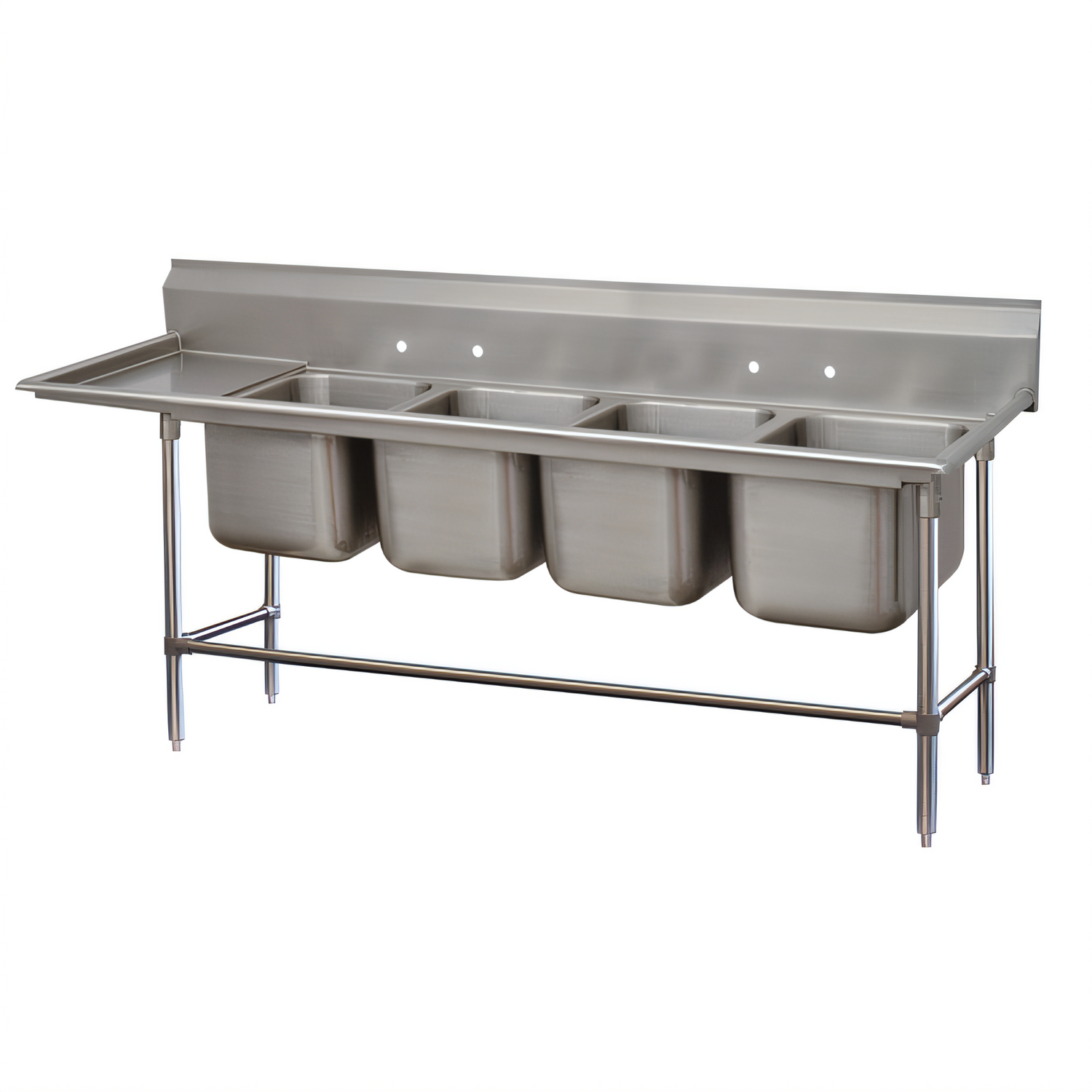

Advance Tabco “Regaline” 94-84-80-36L 4-Compartment Sink with 36" Left Drainboard
130" L/R × 36" F/B overall • 20" × 28" × 14" bowls • NSF ListedEngineered for heavy-duty use, the Spec-Line Regaline series pairs extra-thick 14 ga 304 stainless steel with seamless TIG welds for maximum durability and sanitation. Four oversized compartments streamline the wash-rinse-sanitize cycle, while the full-length 36" left-hand drainboard keeps workflow efficient and counters clutter-free.
Key Features
- Spec-Line 94 Series construction – rugged 14 ga type 304 stainless steel

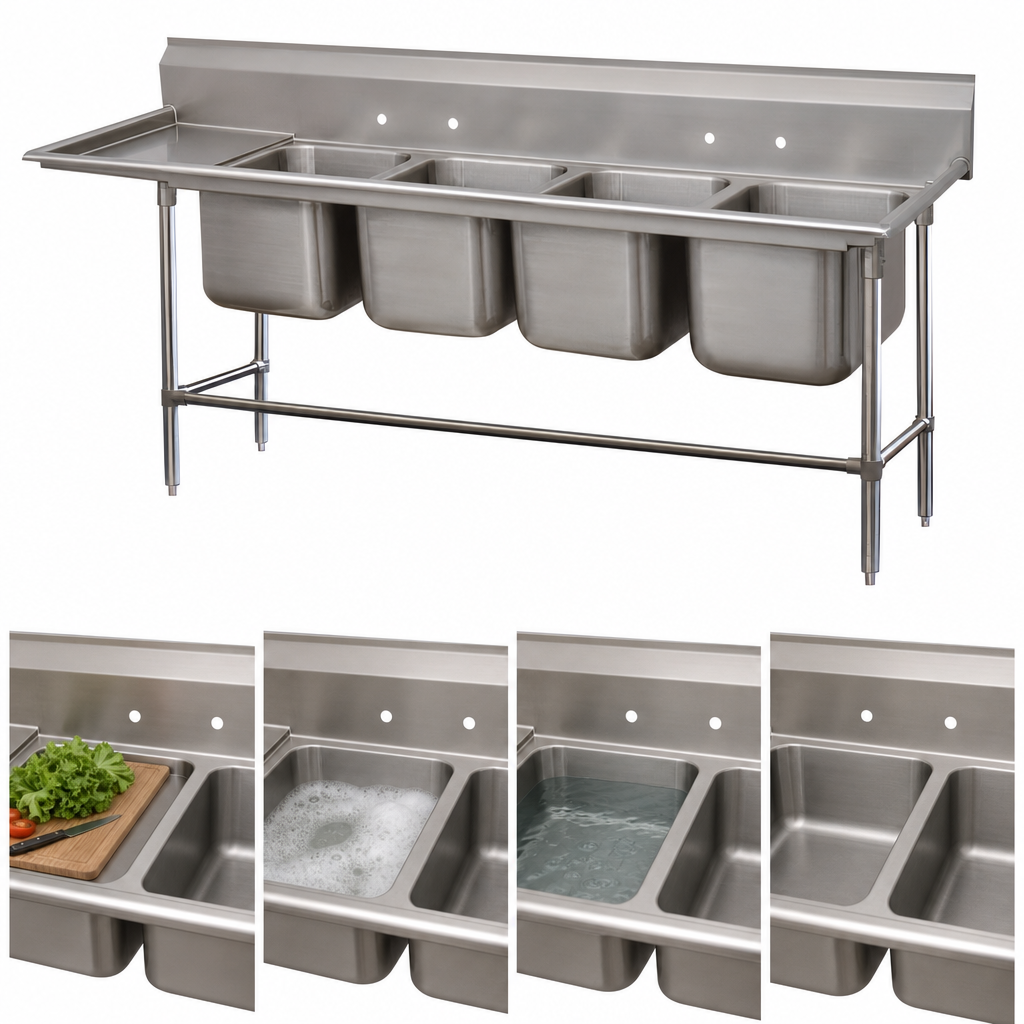

- (4) deep-drawn bowls, each 20" W × 28" F/B × 14" D with easy-clean 3" radius corners
- 36" left-hand drainboard pitched for rapid drainage and welded in place
- 11" high backsplash with tile edge for quick, sanitary wall installation
- (2) sets of 8"-on-center faucet holes – unit requires two faucets (sold separately)
- 1 ½" IPS basket drains included; centered in every bowl
- 1 ⅝" Ø stainless legs with gussets, plus adjustable front & side cross-bracing
- Extra support legs under the 36" drainboard for long-term stability
- 1" adjustable stainless bullet feet for fast, level setup on uneven floors
- NSF certified; welds blended to a smooth satin finish
At-a-Glance Specifications
| Brand / Series | Advance Tabco Regaline – 94 Spec-Line |
|---|---|
| Model | 94-84-80-36L (left drainboard) |
| Compartments | 4 |
| Bowl Size (W × F/B × D) | 20" × 28" × 14" |
| Drainboard | 36" left-hand with integral splash |
| Overall Dimensions | 130" L/R × 36" F/B × 45" H (to backsplash top) |
| Backsplash Height | 11" |
| Material Thickness | 14 ga type 304 stainless steel |
| Legs / Bracing | 1 ⅝" Ø S/S legs, adjustable front & side cross rails, 1" bullet feet |
| Faucet Holes | 2 sets, 8" O.C., ½" IPS hot & cold |
| Drain Openings | 1 ½" IPS basket strainers (included) |
| Approx. Shipping Weight | ≈ 382 lb |
| Certifications | NSF |
Ideal For
- High-volume kitchens needing separate wash, rinse, sanitize & soak bays
- Hotels, resorts & banquet facilities
- Commissaries, catering hubs & central production kitchens
- Bakeries and food-processing plants
Looking for factory-installed accessories or custom modifications? Email our Smart Fabrication team for a quick quote.
