Advance Tabco 94-84-80-24R Regaline Compartment Sinks
Description

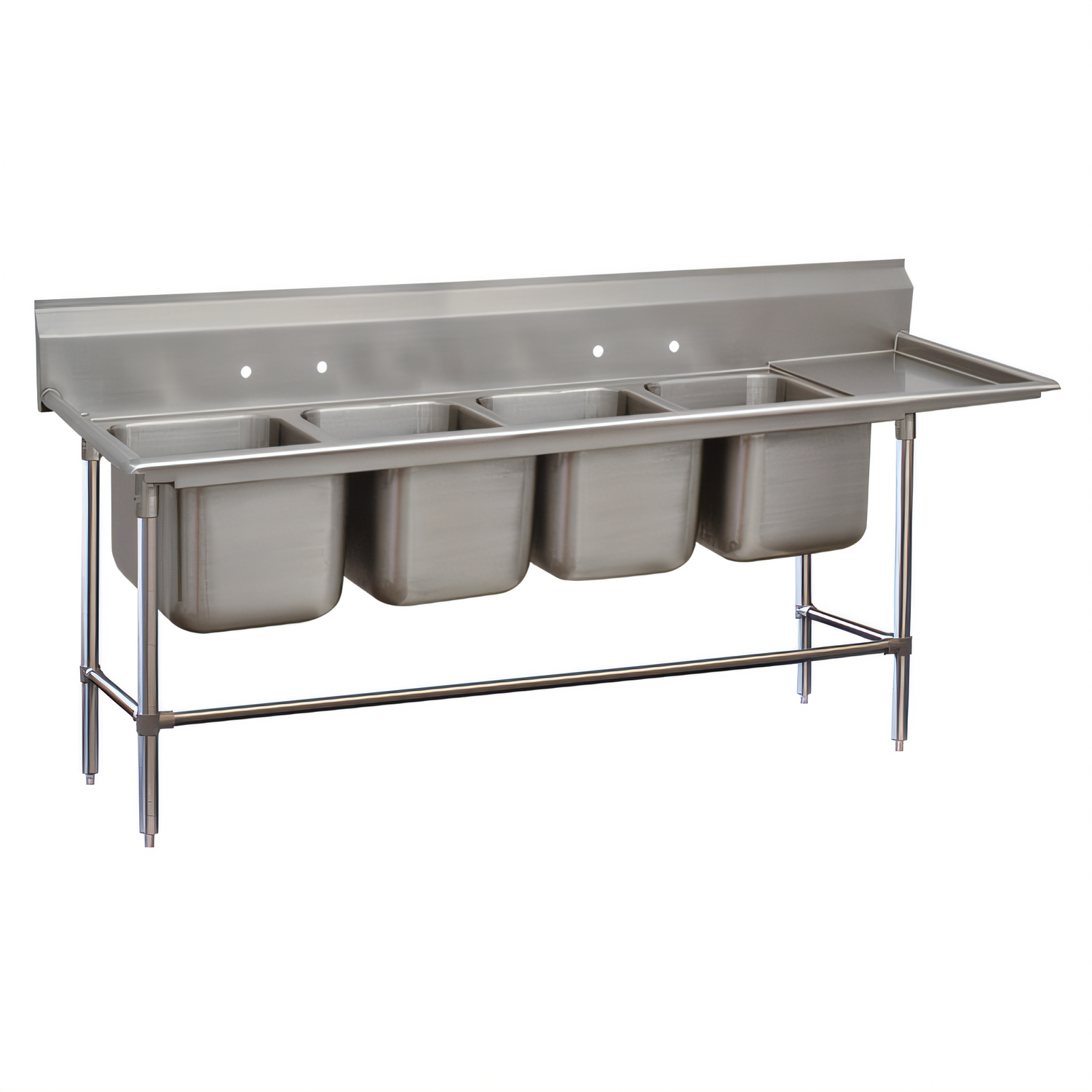

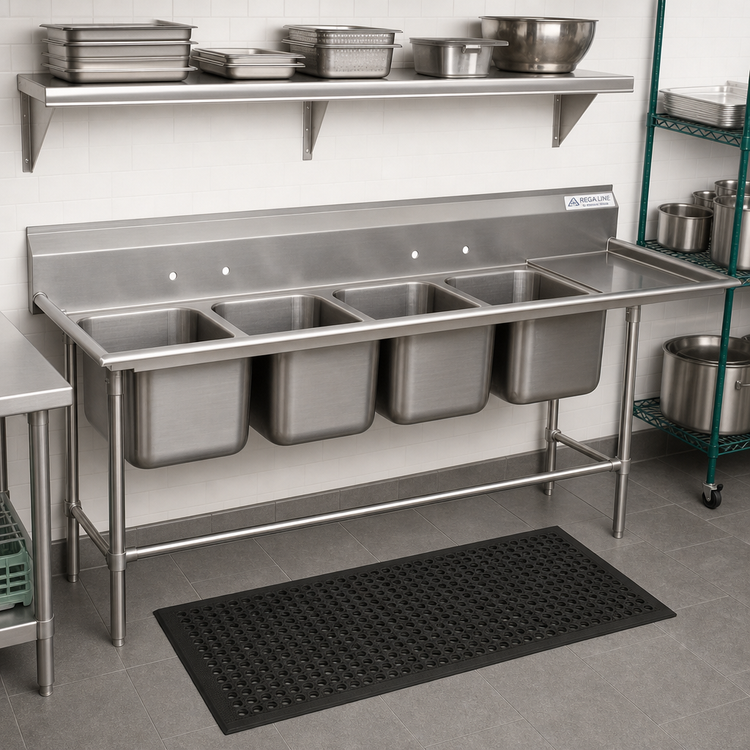

Advance Tabco Regaline 94-84-80-24R – 4-Compartment Sink with 24" Right-Hand Drainboard
118" L x 36" F/B • 14 ga 304 Stainless Steel • NSF ListedBuilt for the busiest prep lines, this Regaline Spec-Line sink delivers industrial-grade strength, generous bowl capacity and a seamless, easy-to-sanitize work surface in one rugged unit. The 94-Series construction adds extra-heavy 14 gauge stainless steel, front & side cross-bracing and an 11 inch backsplash—perfect for high-volume dish or pan washing stations.
Key advantages

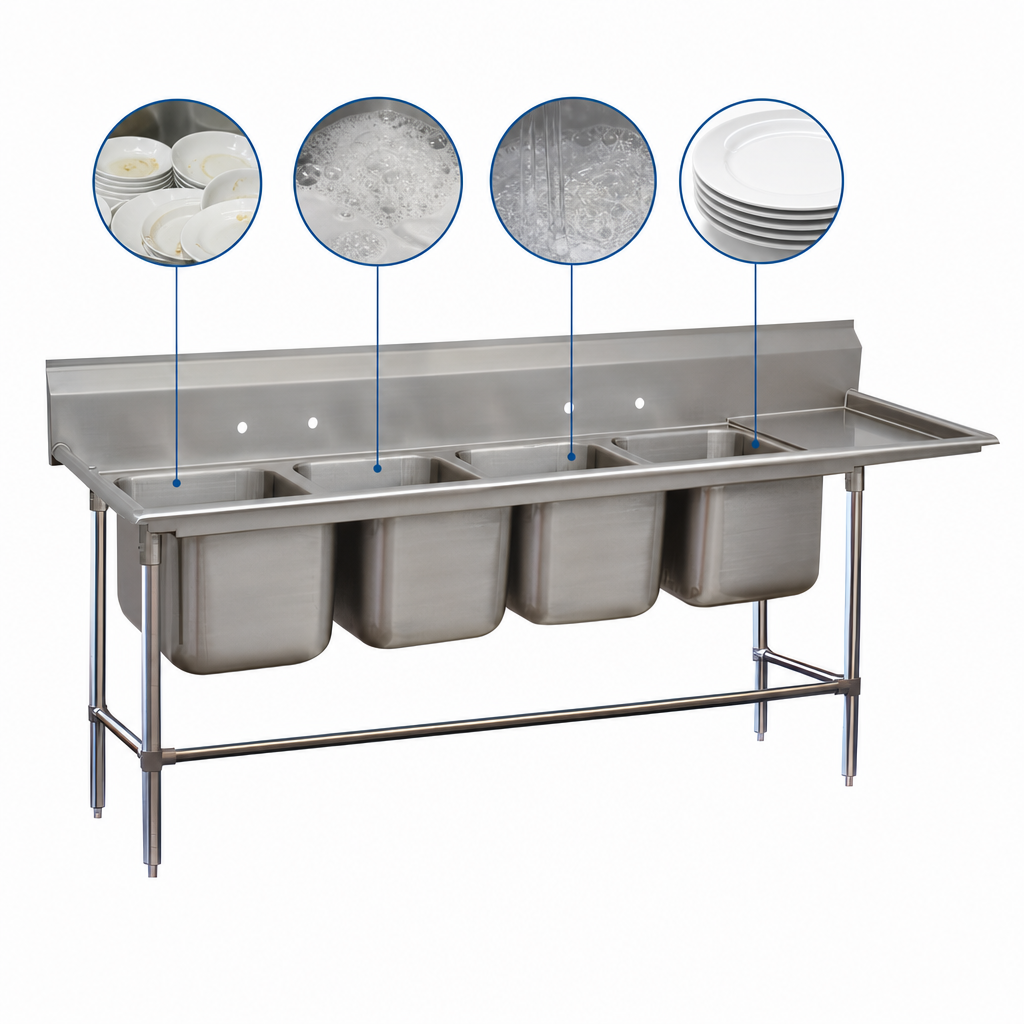

- Four spacious 20" W x 28" F/B x 14" D bowls with large 3" radius corners for fast clean-up
- 24" right-hand drainboard with welded splash to keep countertops dry
- One-piece TIG-welded top with satin finish and sanitary tile edge for simple wall mounting
- 11" high backsplash includes (2) sets of 8"-on-center faucet holes – two faucets required, sold separately
- 1 ⅝" O.D. tubular stainless steel legs with adjustable front & side cross-rails for rock-solid stability
- 1" adjustable stainless steel bullet feet level the sink on uneven floors
- NSF certified for food-service sanitation compliance
Dimensions & capacities
| Overall length (L/R) | 118" |
|---|---|
| Overall front-to-back | 36" |
| Number of compartments | 4 |
| Individual bowl size | 20" W x 28" F/B x 14" D |
| Drainboard | 24" (right-hand) |
| Backsplash height | 11" |
| Material / gauge | 14 ga type 304 stainless steel |
| Approx. shipping weight | ≈ 364 lb |
What’s included
- (4) 1 ½" IPS stainless steel basket drains (centered in each bowl)
- (4) Stainless steel gusset plates – pre-welded for lasting strength
- Adjustable front & side cross-bracing with leg clamps
Installation notes
- Supply connections: ½" IPS hot & cold, 8" O.C.
- Two faucets required (not included). View our faucet collection for compatible models.
- Waste line connection: 1 ½" IPS per bowl.
Need custom modifications or accessories such as cutting boards, sink covers or lever waste drains? Contact our team for a Smart Fabrication™ quote.
