Advance Tabco 94-84-80-24L Regaline Compartment Sinks
$7,620.00
Unit price
/
Unavailable
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Advance Tabco 94-84-80-24L Regaline Compartment Sinks is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Advance Tabco 94-84-80-24L Regaline Compartment Sinks
$7,620.00
Unit price
/
Unavailable
Description

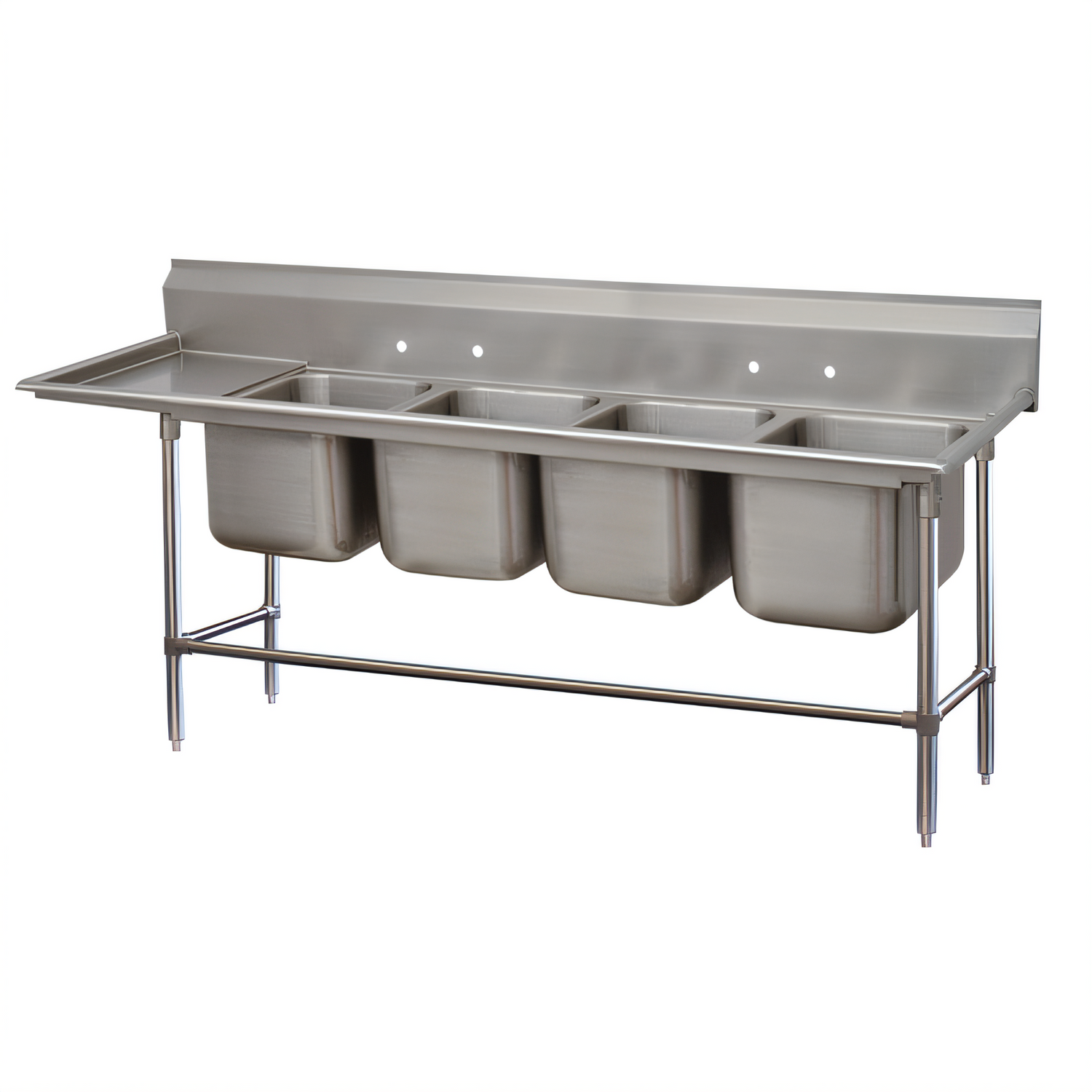

Advance Tabco Regaline 94-84-80-24L Four-Compartment Sink 24" Left Drainboard • 14-Gauge 304 Stainless Steel
Give your dish room the fire-power it deserves. Built from heavy-duty 14-gauge type 304 stainless steel, this Regaline sink delivers the rugged strength, generous capacity, and NSF-listed sanitation every busy commercial kitchen needs.
Key Features

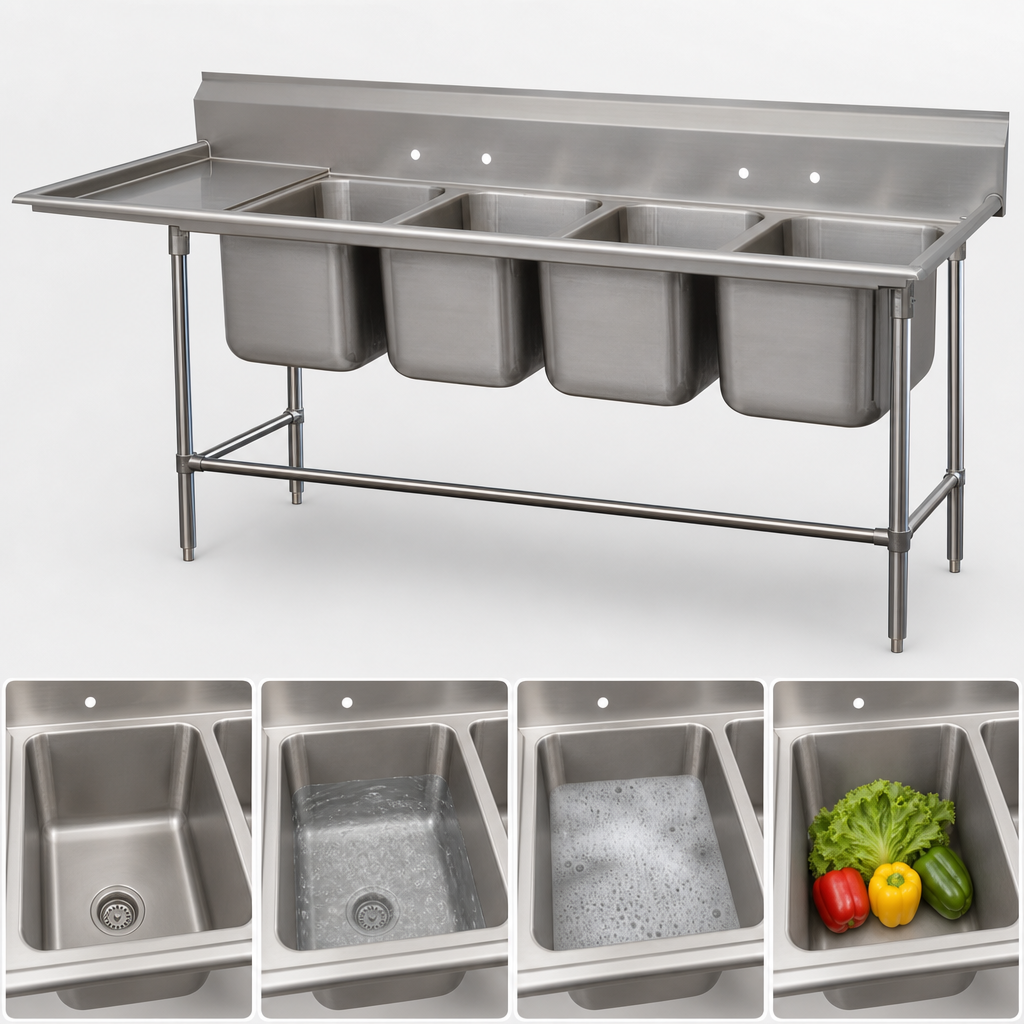

- Four spacious bowls – each 20" W x 28" F/B x 14" D – fit sheet pans, food-boxes, and stock pots with room to spare.
- Integrated 24" left-hand drainboard keeps clean wares organized and off the work-surface.
- 11" high backsplash with tile edge contains splashes and installs flush against a wall.
- Spec-Line 94 Series construction: extra-thick 14-ga 304 stainless steel for superior dent and corrosion resistance.
- All TIG-welded seams are blended to a smooth, satin finish for easy wipe-down.
- 1 5/8" Ø stainless legs with adjustable side & front cross-bracing eliminate wobble.
- 1" adjustable stainless bullet feet level the unit on uneven floors.
- Large 3" radius bowl corners speed cleaning and improve drainage.
- (2) sets of 8"-on-center faucet holes – ideal for separate wash and rinse faucets.
- (4) 1-1/2" IPS basket drains included; positioned in bowl centers for efficient flow.
Specifications
| Manufacturer / Series | Advance Tabco — Regaline 94 Series (Spec-Line) |
|---|---|
| Model # | 94-84-80-24L (left-hand drainboard) |
| Number of Compartments | 4 |
| Bowl Dimensions (each) | 20" W × 28" F/B × 14" D |
| Drainboard Size | 24" L (left end) |
| Overall Dimensions | 118" L/R × 36" F/B × 44" H (to top of backsplash) |
| Backsplash | 11" H with 1" return |
| Material & Gauge | 14-ga type 304 stainless steel top & bowls; 1 5/8" Ø stainless legs |
| Drains | 1-1/2" IPS with stainless basket strainers (included) |
| Faucet Holes | (2) sets on 8" centers — faucets required, sold separately |
| Approx. Shipping Weight | ≈ 364 lb |
| Certifications | NSF |
All dimensions are typical and subject to ±0.5" manufacturing tolerance.
Important: Faucets and other accessories shown in photos are not included.
This sink requires two 8"-center faucets (sold separately).
Features & Specs
Features & Specs
Manufacturer
Advance Tabco
Brand_name
Regaline
Certifications
NSF
Height
45.0in
Width
118.0in
Depth
36.0in
Shipping Weight
364.0lbs
Overall Length
114" - 129"
Base Construction
stainless steel
Sink Depth (rim - drain)
14"
Compartment (front - back)
28"
Compartment Width (side - side)
20"
Drainboards
with left-hand drainboard
Top Gauge
14 gauge
Base Type
legs with boxed crossrails
Top Stainless Series
300 series
Splash Height
11"
Specifications
Regaline Sink, 4-compartment, with left-hand drainboard, 28" front-to-back x 20"W sink compartments, 14" deep, with 11"H backsplash, stainless steel legs with adjustable left-to-right and front cross rails, 24" drainboard, 1" adjustable bullet feet, 14 gauge 304 stainless steel, overall 36" F/B x 118" L/R, NSF (requires 2 faucets)
