Advance Tabco  |  Regaline  |  SKU: 94-84-80-18L  |  UPC: 747545111494

Advance Tabco 94-84-80-18L Regaline Compartment Sinks

$7,564.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Plumbing Installation manual
Related Searches
4-compartment Sinks Advance Tabco Commercial Plumbing Supplies Commercial Sinks Compartment Sinks Restaurant Equipment Sinks & Handwashing Stations

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

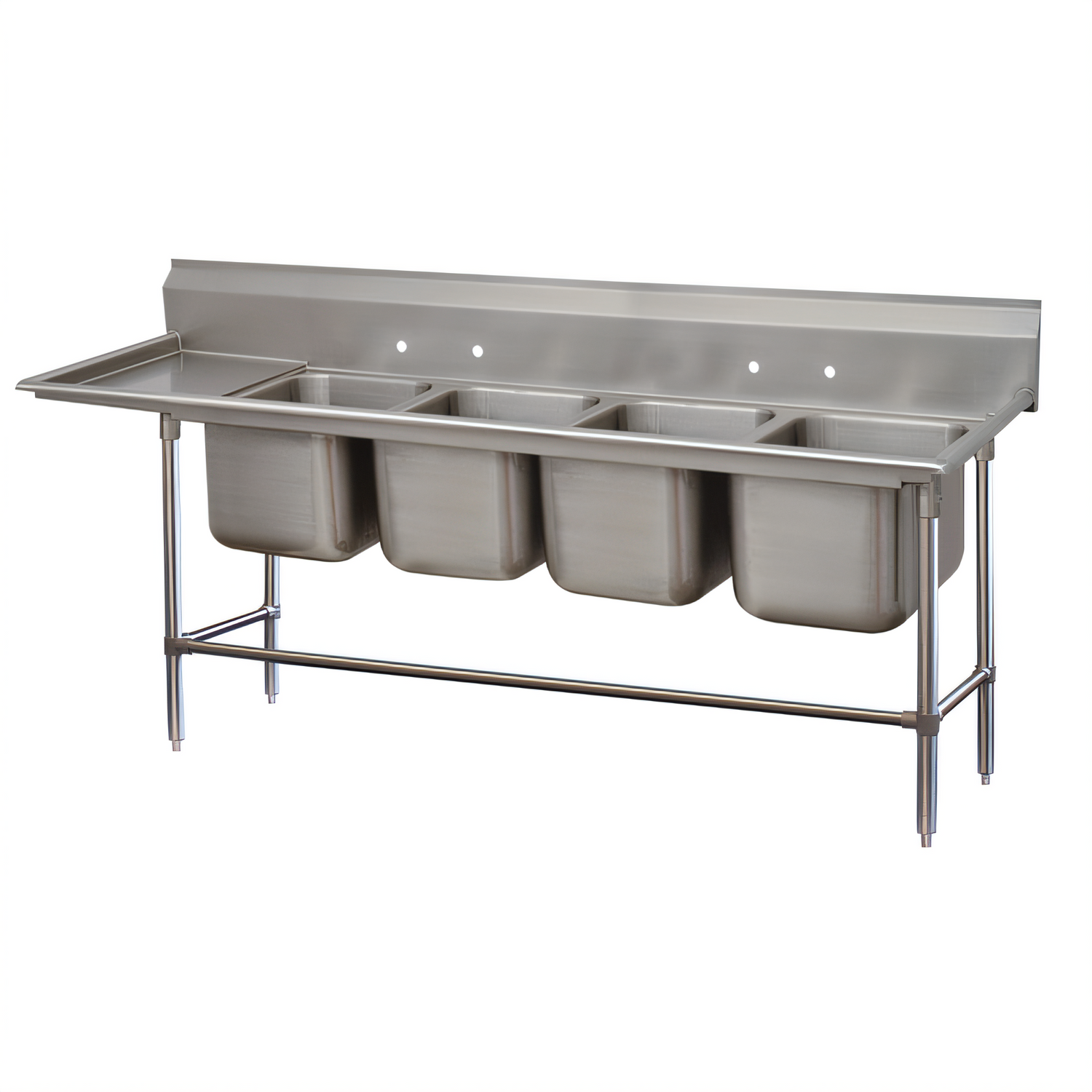

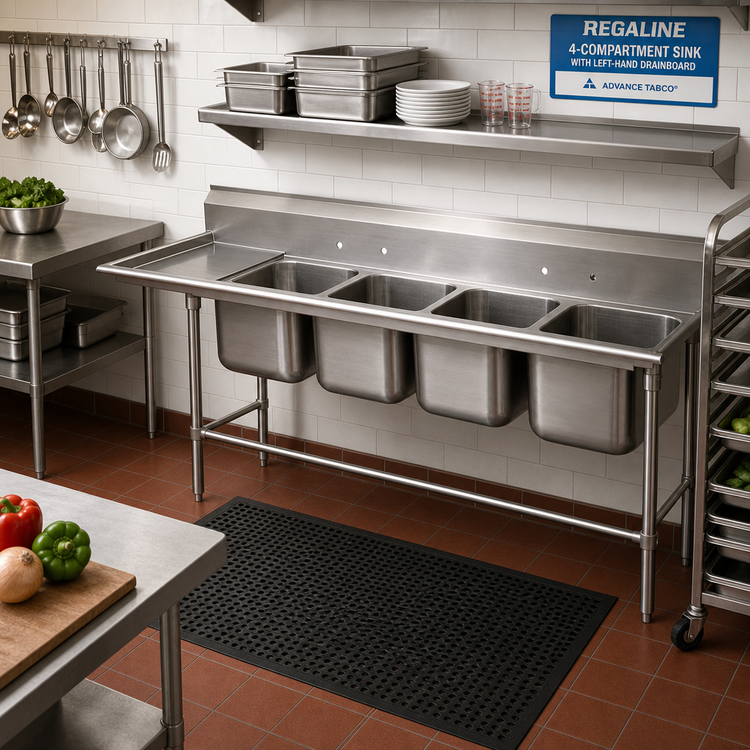

Advance Tabco “Regaline” 4-Compartment Sink with 18" Left Drainboard

94 Series • Model 94-84-80-18L • Heavy-Duty 14 ga 304 Stainless Steel

Engineered for high-volume dish and pot washing, the 94-Series Regaline sink combines extra-heavy 14 gauge 304 stainless steel with seamless TIG-welded construction. Four oversized compartments and a generous 18" left-hand drainboard speed up workflow while meeting the strictest NSF sanitation standards.

Why Choose Regaline?

  • Spec-Line 14 ga bowls & tops—66 % thicker than “economy” 18 ga sinks.

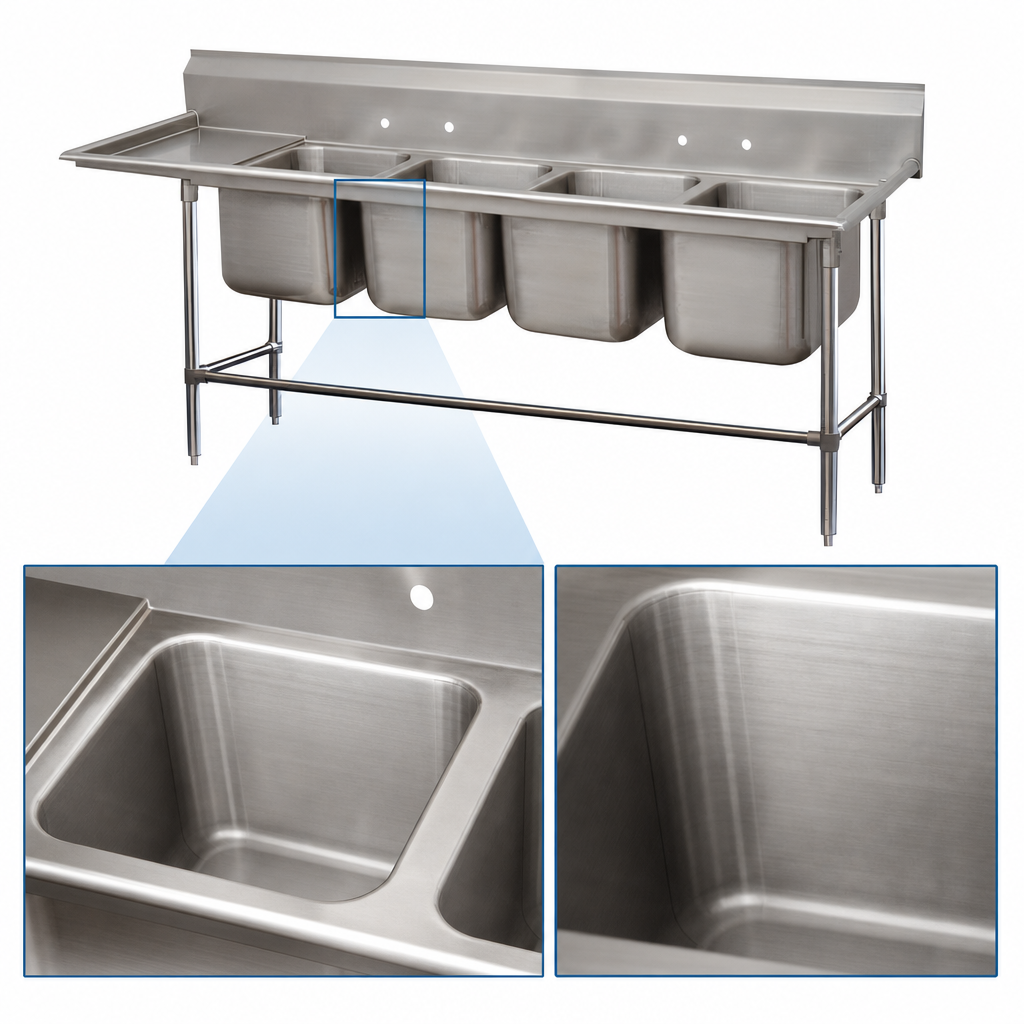

  • One-piece Deep Drawn bowls with a large 3" radius for effortless cleaning.
  • 11" high backsplash with 8" on-center faucet holes.
  • 18" drainboard (left) slopes toward the sink to keep water off your floor.
  • 1 5/8" Ø stainless steel legs with adjustable side and front cross-bracing for rock-solid stability.
  • 1" stainless bullet feet—level the unit fast, even on uneven floors.
  • NSF listed & ready for commercial food-service installation.

Bowl Dimensions (4 Compartments)

Inside length (left → right) 20"
Inside front-to-back 28"
Inside depth 14"
Corner radius 3"

Overall Specifications

Compartments 4
Overall length 112"
Overall front-to-back 36"
Drainboard 18" left-hand, integrally welded & flanged
Backsplash height 11"
Working height 34" to rolled rim (≈45" to top of backsplash)
Material & finish 14 ga Type 304 stainless, satin finish
Faucet holes Two sets, 8" centers (faucets required, sold separately)
Waste drains 1 ½" IPS basket-type (centered in each bowl)
Certifications NSF

Plumbing & Installation

  • Supply: ½" IPS hot & cold per faucet.
  • Drain: 1 ½" IPS per compartment; basket drains included.
  • Legs ship loose for field attachment; bullet feet adjust ±1".
  • Tile-edge back simplifies sealing to existing walls.

Need custom modifications or accessories (cutting boards, sink covers, lever-handle faucets)? Ask about Advance Tabco Smart Fabrication™ options.

Important: This sink requires two deck-mount faucets (8" centers), which are not included. Be sure to add compatible faucets and trap assemblies to your order for a complete installation.

Features & Specs

Manufacturer

Advance Tabco

Brand_name

Regaline

Certifications

NSF

Height

45.0in

Width

112.0in

Depth

36.0in

Shipping Weight

348.0lbs

Compartment Width (side - side)

20"

Overall Length

98" - 113"

Top Gauge

14 gauge

Splash Height

11"

Sink Depth (rim - drain)

14"

Base Construction

stainless steel

Base Type

legs with boxed crossrails

Top Stainless Series

300 series

Compartment (front - back)

28"

Drainboards

with left-hand drainboard

Specifications

Regaline Sink, 4-compartment, with left-hand drainboard, 28" front-to-back x 20"W sink compartments, 14" deep, with 11"H backsplash, stainless steel legs with adjustable left-to-right and front cross rails, 18" drainboard, 1" adjustable bullet feet, 14 gauge 304 stainless steel, overall 36" F/B x 112" L/R, NSF (requires 2 faucets)
