Advance Tabco 94-83-60-36RL Regaline Compartment Sinks
$6,978.00
Unit price
/
Unavailable
Description

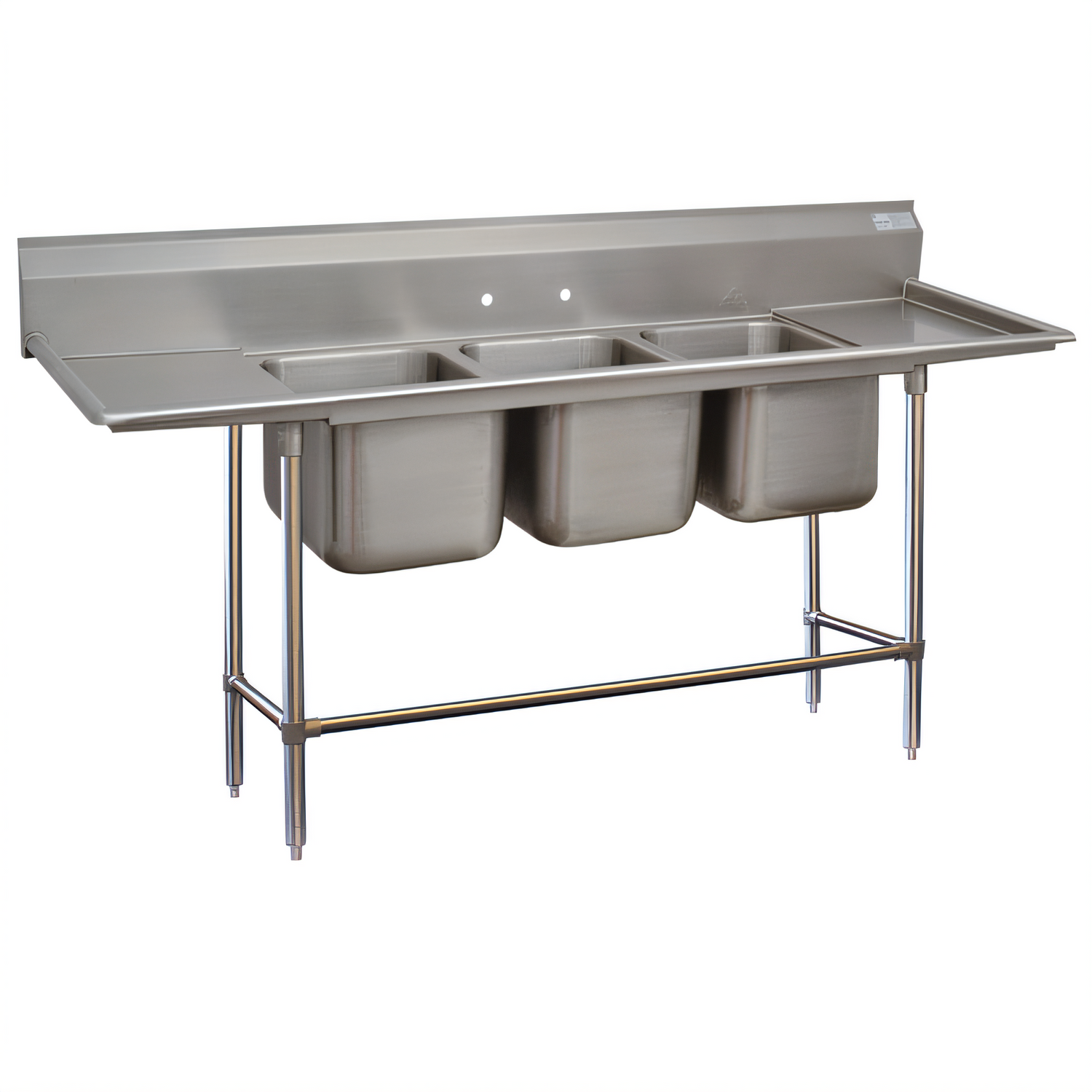

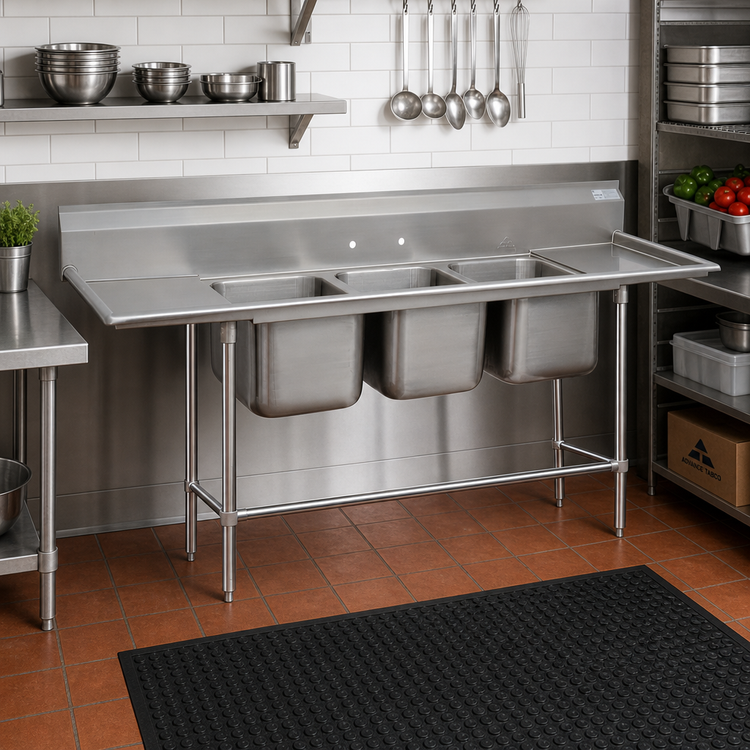

Advance Tabco Regaline 94 Series 3-Compartment Sink with Twin 36" Drainboards
Model 94-83-60-36RL | 139" W × 36" D | 14 ga 304 Stainless SteelBuilt for busy commercial kitchens, this heavy-duty Regaline sink gives you three spacious 20" × 28" × 14" bowls and a full-size drainboard on each side—perfect for high-volume warewashing, prep or pot & pan work.
Key Features

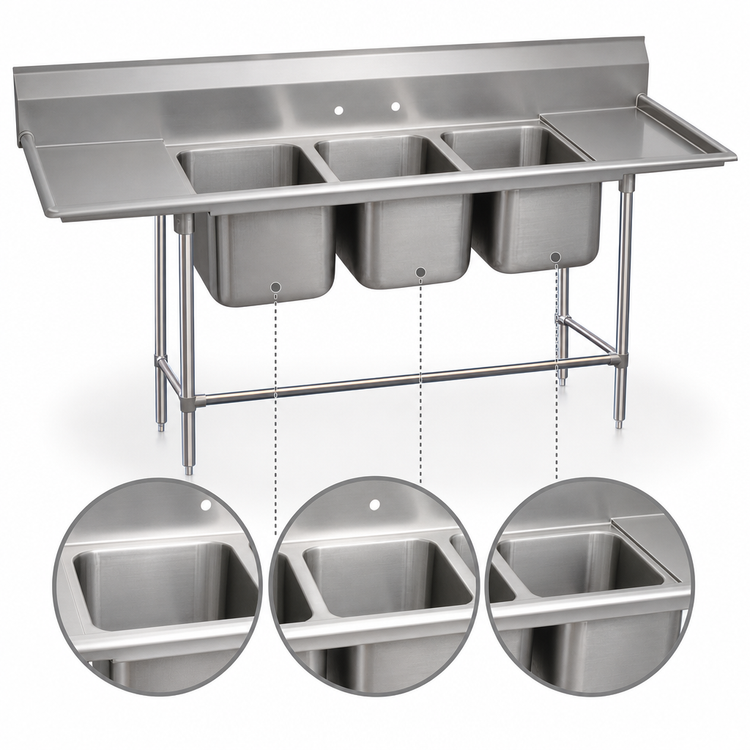

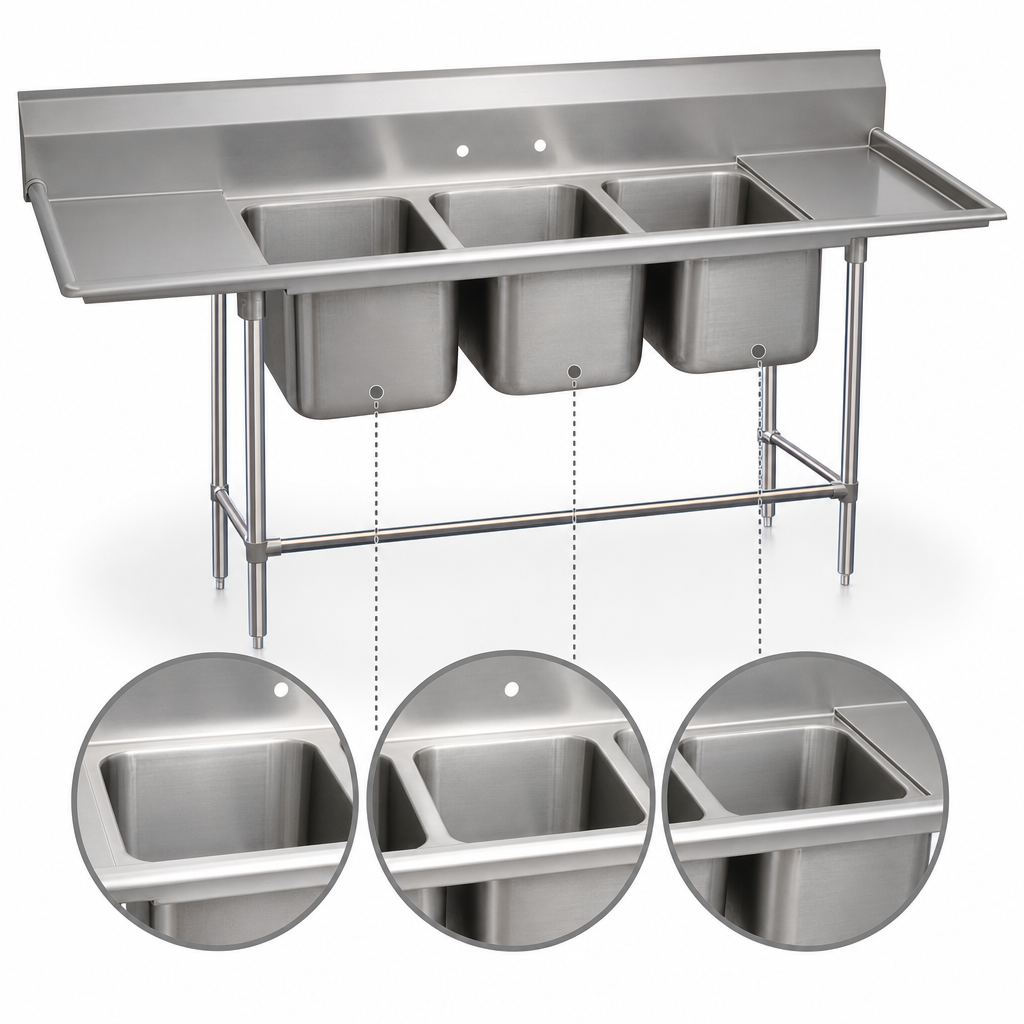

- Three one-piece deep-drawn bowls with easy-clean 3" radius corners.
- Integrated 11" backsplash with tile edge for a tight, sanitary wall seal.
- Dual 36" drainboards with raised splash—ample landing space for soiled & clean wares.
- 14 ga type 304 stainless steel deck, bowls & drainboards—corrosion-resistant and NSF listed.
- All TIG-welded construction; welds are blended to a smooth satin finish.
- 1 5⁄8" Ø stainless steel legs with gussets, adjustable front and side cross-bracing & 1" bullet feet.
- (3) 1-1⁄2" IPS stainless steel basket drains centered in each compartment.
- Pre-punched 8"-on-center faucet holes (faucets sold separately).
At-a-Glance Specs
| Manufacturer / Series | Advance Tabco Regaline 94 |
|---|---|
| Model | 94-83-60-36RL |
| Compartments | 3 – 20" W × 28" F/B × 14" D |
| Drainboards | 2 – 36" L (left & right) |
| Backsplash | 11" H with tile edge |
| Overall Dimensions | 139" L × 36" D × 45" H (to top of backsplash) |
| Material & Gauge | 14 ga type 304 stainless steel |
| Legs / Feet | 1 5⁄8" Ø S/S legs, adjustable side & front cross-braces, 1" bullet feet |
| Faucet Holes | 8" centers (3 sets) |
| Drain Size | 1-1⁄2" IPS basket drains (included) |
| Shipping Weight | ≈ 451 lb |
| Certifications | NSF |
Heads up: Faucets, cutting boards, sink covers and other accessories are sold separately.
Need a custom bowl size, scrap ring, or pre-rigged faucet set? Ask about Advance Tabco Smart Fabrication options.
Features & Specs
Features & Specs
Manufacturer
Advance Tabco
Brand_name
Regaline
Certifications
NSF
Height
45.0in
Width
139.0in
Depth
36.0in
Shipping Weight
451.0lbs
Base Type
legs with boxed crossrails
Compartment (front - back)
28"
Sink Depth (rim - drain)
14"
Top Gauge
14 gauge
Splash Height
11"
Compartment Width (side - side)
20"
Base Construction
stainless steel
Top Stainless Series
300 series
Overall Length
109" - 170"
Drainboards
with left & right-hand drainboards
Specifications
Regaline Sink, 3-compartment, with left & right-hand drainboards, 28" front-to-back x 20"W sink compartments, 14" deep, with 11"H backsplash, stainless steel legs with adjustable left-to-right and front cross rails, 36" drainboards, 1" adjustable bullet feet, 14 gauge 304 stainless steel, overall 36" F/B x 139" L/R, NSF
