Advance Tabco  |  Regaline  |  SKU: 94-83-60-36R  |  UPC: 747545111463

Advance Tabco 94-83-60-36R Regaline Compartment Sinks

$6,490.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Plumbing Installation manual
Related Searches
3-compartment Sinks Advance Tabco Commercial Plumbing Supplies Commercial Sinks Compartment Sinks Restaurant Equipment Sinks & Handwashing Stations

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

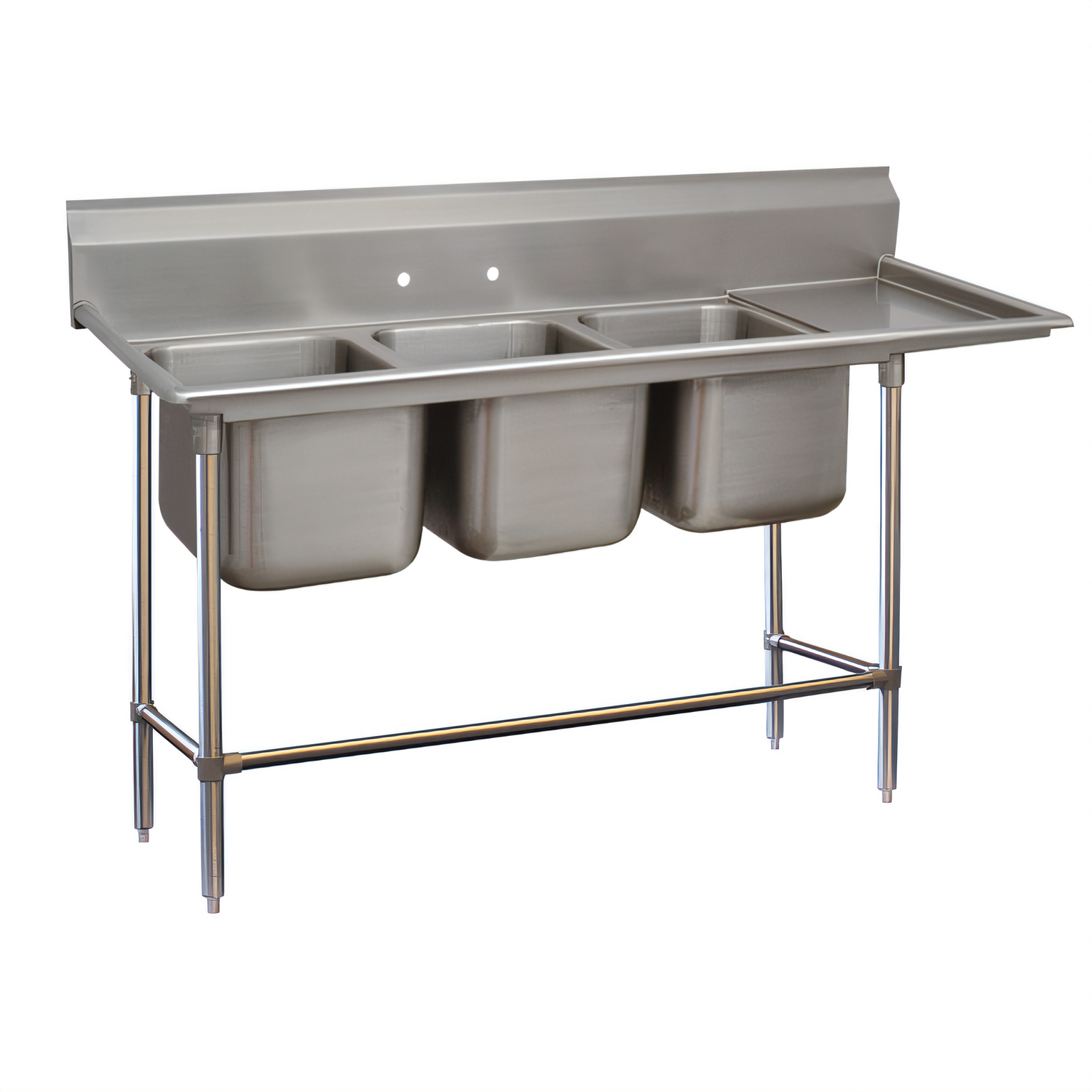

Advance Tabco “Regaline” 3-Compartment Sink with 36" Right-Hand Drainboard

94 Series • Model 94-83-60-36R • 14 ga 304 Stainless Steel • NSF

Engineered for heavy-duty, all-day ware-washing, the Regaline 94 Series delivers the strength of seamless TIG-welded 14-gauge stainless steel, deep drawn bowls, and rock-solid leg bracing—ready to stand up to the busiest commercial kitchens.

Key Benefits

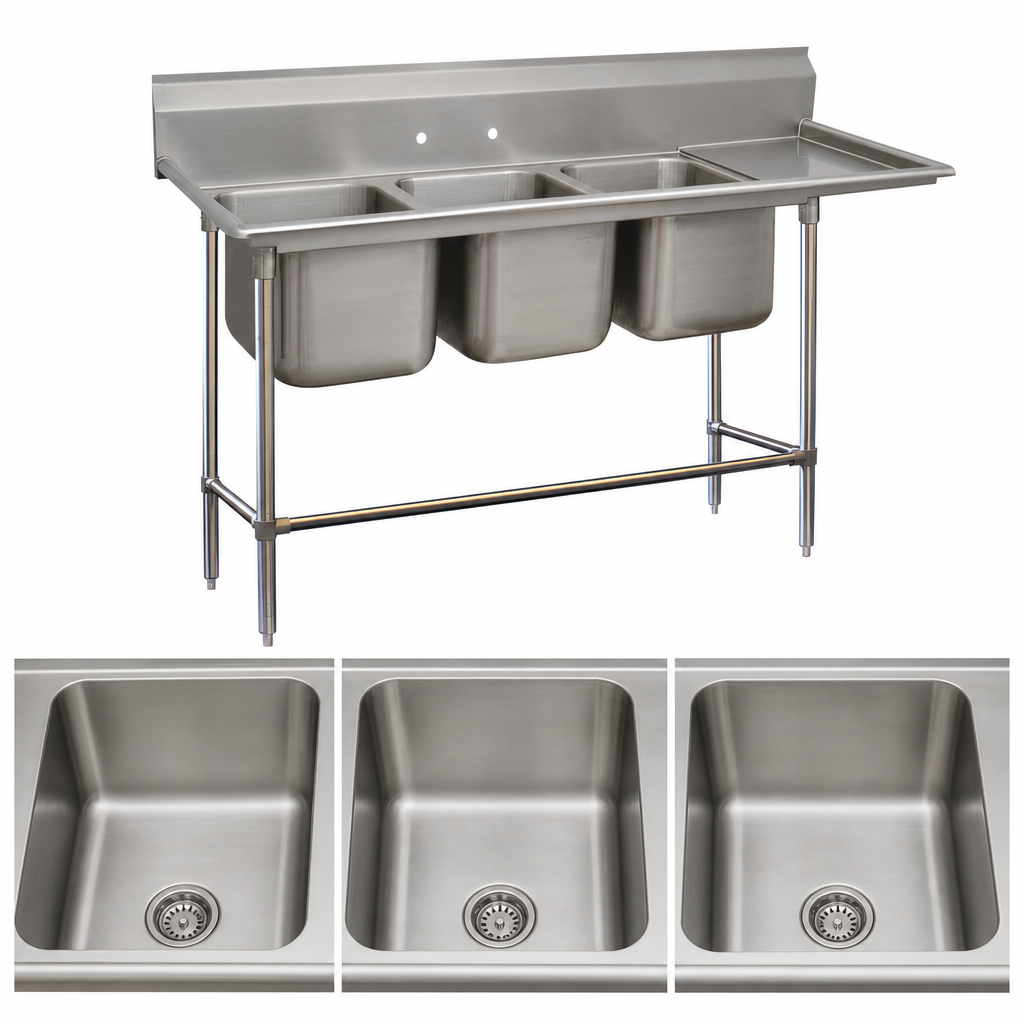

  • Three spacious 20" W x 28" F/B x 14" D bowls—ideal for wash, rinse & sanitize or pot-washing tasks.
  • Extra-long 36" right-hand drainboard with integral splash and pitched embossing for fast draining.
  • One-piece 11" high backsplash with tile edge for a watertight, easy-to-seal installation.
  • Large 3" interior bowl corner radius speeds rinsing and wipe-downs.
  • 1⅝" Ø stainless steel legs with adjustable side and front cross-rails for unbeatable rigidity.
  • (2) additional drainboard support legs supplied for 36" board stability.
  • 1" stainless steel bullet feet make on-site leveling quick and tool-free.
  • (3) 1½" IPS stainless steel basket drains—centered in each bowl—are factory installed.
  • Faucet holes pre-punched on 8" centers; accepts standard commercial splash-mount faucets.
  • NSF listed for open-kitchen compliance.
At-a-Glance Specs
Overall dimensions 108" L x 36" F/B x 43½" H (to top of backsplash)
Bowl size (each) 20" W x 28" F/B x 14" D
Drainboard 36" L, right-hand, reinforced; includes (2) extra legs
Material & gauge 14 ga Type 304 stainless steel (top, bowls & drainboard)
Backsplash height 11"
Plumbing connections ½" IPS hot & cold supplies • 8" O.C. faucet holes • 1½" IPS drains
Legs & feet 1⅝" Ø S/S tubular legs, adjustable front & side cross-braces, 1" bullet feet
Shipping weight Approx. 308 lb
Certifications NSF

Faucets, cutting boards, over-shelves and other accessories shown in images are sold separately.

Features & Specs

Manufacturer

Advance Tabco

Brand_name

Regaline

Certifications

NSF

Height

45.0in

Width

108.0in

Depth

36.0in

Shipping Weight

308.0lbs

Base Type

legs with boxed crossrails

Drainboards

with right-hand drainboard

Overall Length

97" - 108"

Base Construction

stainless steel

Splash Height

11"

Compartment (front - back)

28"

Sink Depth (rim - drain)

14"

Compartment Width (side - side)

20"

Top Gauge

14 gauge

Top Stainless Series

300 series

Specifications

Regaline Sink, 3-compartment, with right-hand drainboard, 28" front-to-back x 20"W sink compartments, 14" deep, with 11"H backsplash, stainless steel legs with adjustable left-to-right and front cross rails, 36" drainboard, 1" adjustable bullet feet, 14 gauge 304 stainless steel, overall 36" F/B x 108" L/R, NSF
