Advance Tabco  |  Regaline  |  SKU: 94-82-40  |  UPC: 747545111227

Advance Tabco 94-82-40 Regaline Compartment Sinks

$4,335.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Installation manual Plumbing
Related Searches
Compartment Sinks Sinks & Handwashing Stations

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

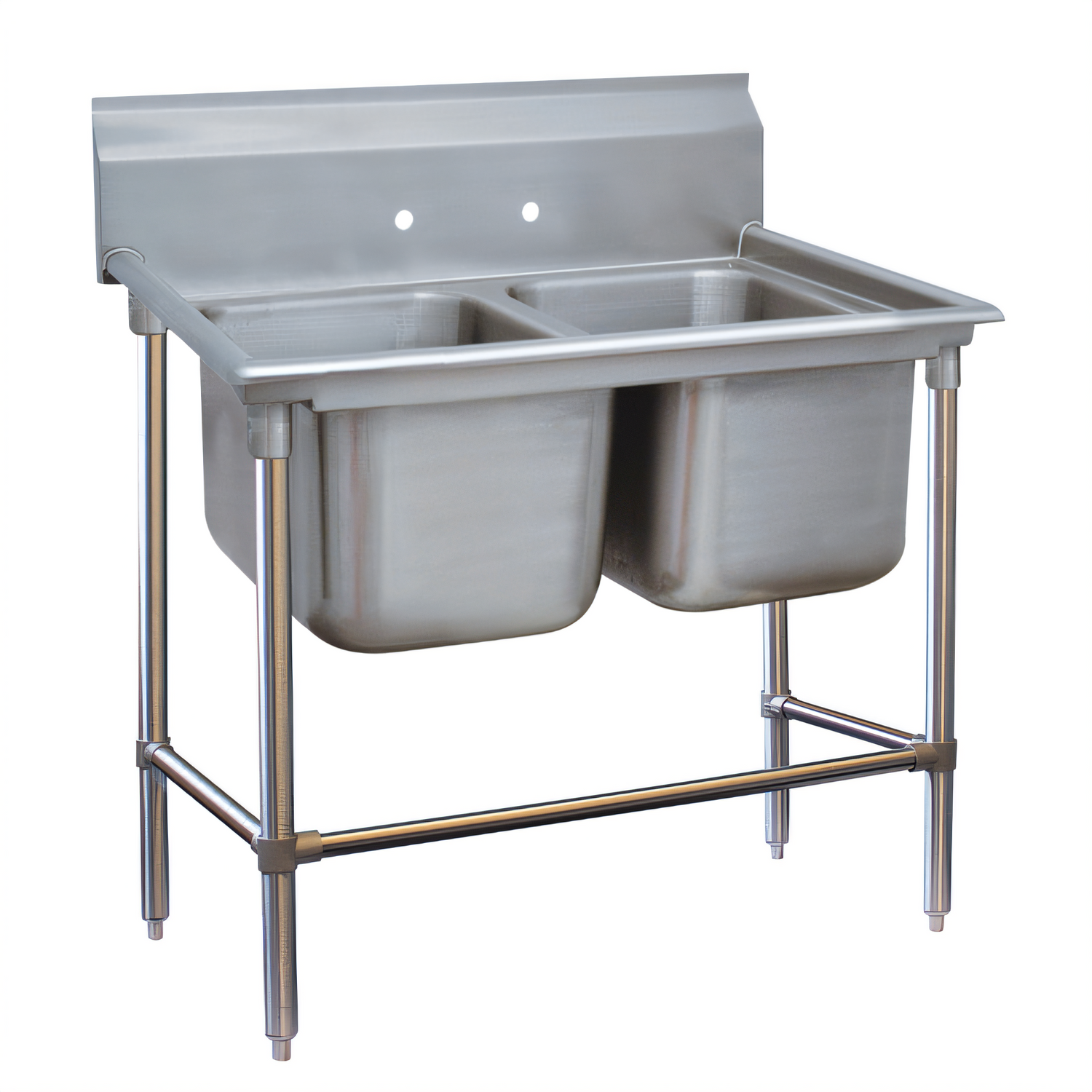

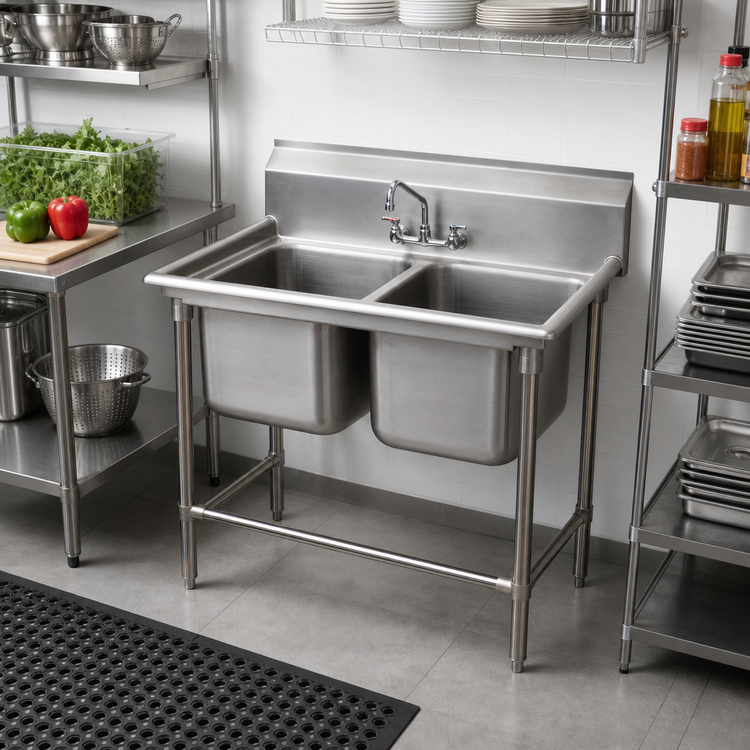

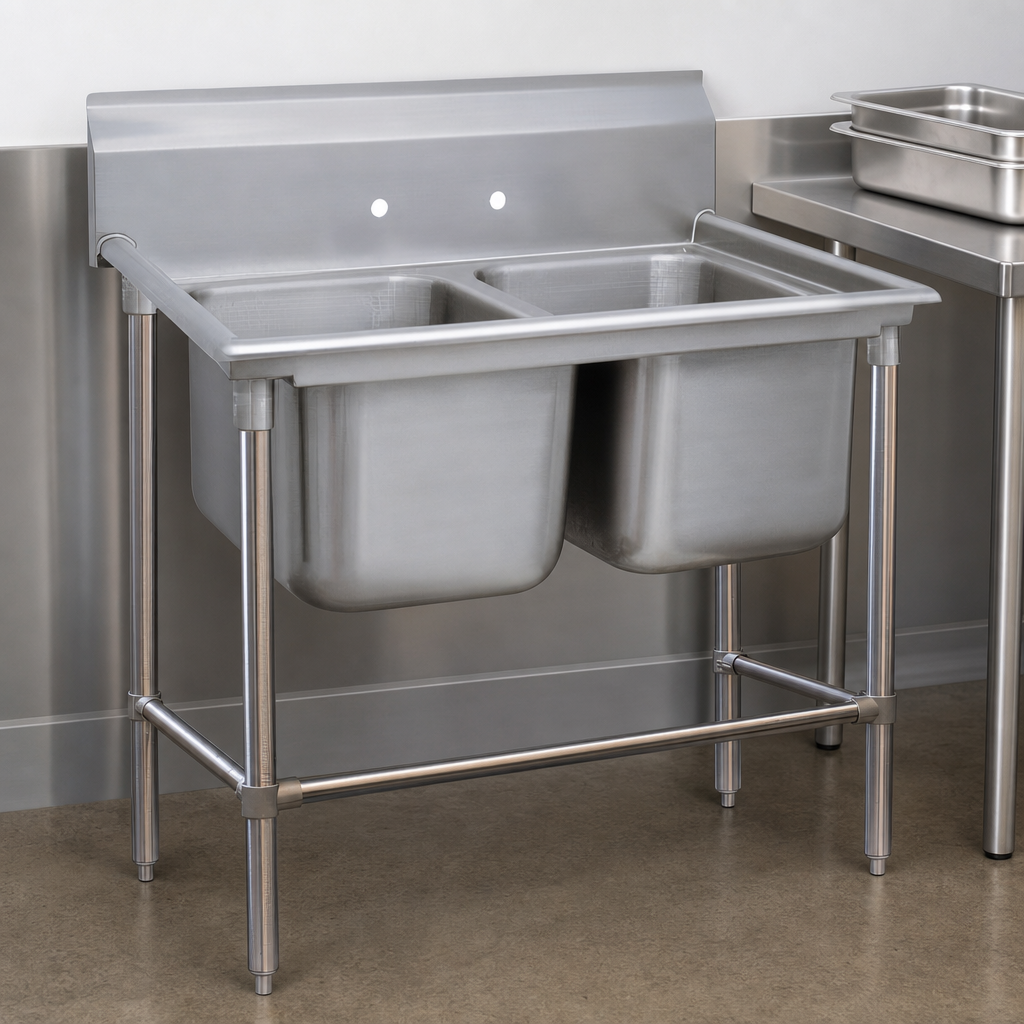

Advance Tabco Regaline 94-82-40 Two-Compartment Sink

54" L/R x 36" F/B • 14 ga 304 Stainless Steel • NSF

Built for the busiest commercial kitchens, the Regaline 94-82-40 delivers heavy-duty performance in a compact footprint. Deep 28" front-to-back bowls swallow full sheet pans, while an 11" splash and rock-solid leg bracing keep your dish room clean and steady shift after shift.

Key Features

  • Two deep-drawn bowls – each 28" F/B x 20" W x 14" D – ideal for sheet pans, stock pots and bus boxes.
  • 11" one-piece rear splash with tile edge for quick, leak-free installation.
  • Spec-Line construction: rugged 14 ga type 304 stainless steel top, bowls & splash.
  • 1 5/8" Ø stainless legs with adjustable side AND front cross-bracing for superior rigidity.
  • 1" stainless bullet feet provide up to 1" of leveling adjustment.
  • Large 3" corner radii speed clean-up and promote proper drainage.
  • (2) 1 1/2" IPS stainless basket drains included – centered in each bowl.
  • Pre-punched 8" on-center faucet holes (faucets sold separately).
  • Fully TIG-welded, blended and satin-finished; NSF listed.

At-a-Glance Specifications

Brand / Series Advance Tabco Regaline – 94 Series (Spec-Line)
Model 94-82-40
Compartments 2
Per-Bowl Interior 28" F/B × 20" W × 14" D
Overall Dimensions 36" F/B × 54" L/R × 44" H (to top of splash)
Splash Height 11"
Material / Gauge 14 ga type 304 stainless steel
Legs & Bracing 1 5/8" Ø S/S legs, adjustable side & front cross-rails
Feet 1" adjustable stainless bullet feet
Drain Size 1 1/2" IPS (basket strainers included)
Faucet Mount 8" centers, deck-mount (not included)
Certifications NSF
Shipping Weight ≈ 176 lb

Ideal Applications

  • Restaurants & banquet halls needing separate wash and rinse bays
  • Hotel, resort & institutional kitchens handling large cookware
  • Commissaries and ghost kitchens wanting heavy-duty, code-compliant equipment
  • Catering operations that frequently clean sheet pans and food storage tubs
Heads-up: Faucets, pre-rinse units and overflow fittings are sold separately. Add them below or contact us for expert pairing assistance.

Need custom bowl sizes, extra faucet holes or a scrap ring? Ask us about Advance Tabco SmartFab™ modifications.

Features & Specs

Manufacturer

Advance Tabco

Brand_name

Regaline

Certifications

NSF

Height

45.0in

Width

54.0in

Depth

36.0in

Shipping Weight

176.0lbs

Sink Depth (rim - drain)

14"

Compartment (front - back)

28"

Top Gauge

14 gauge

Splash Height

11"

Base Construction

stainless steel

Drainboards

without drainboards

Top Stainless Series

300 series

Compartment Width (side - side)

20"

Base Type

legs with front & side crossrails

Specifications

Regaline Sink, 2-compartment, 28" front-to-back x 20" wide sink compartments, 14" deep, with 11" high splash, stainless steel legs with adjustable left-to-right and front cross rails, 1" adjustable bullet feet, 14 gauge 304 stainless steel, overall 36" F/B x 54" L/R, NSF
