Advance Tabco 94-82-40-36R Regaline Compartment Sinks
Description

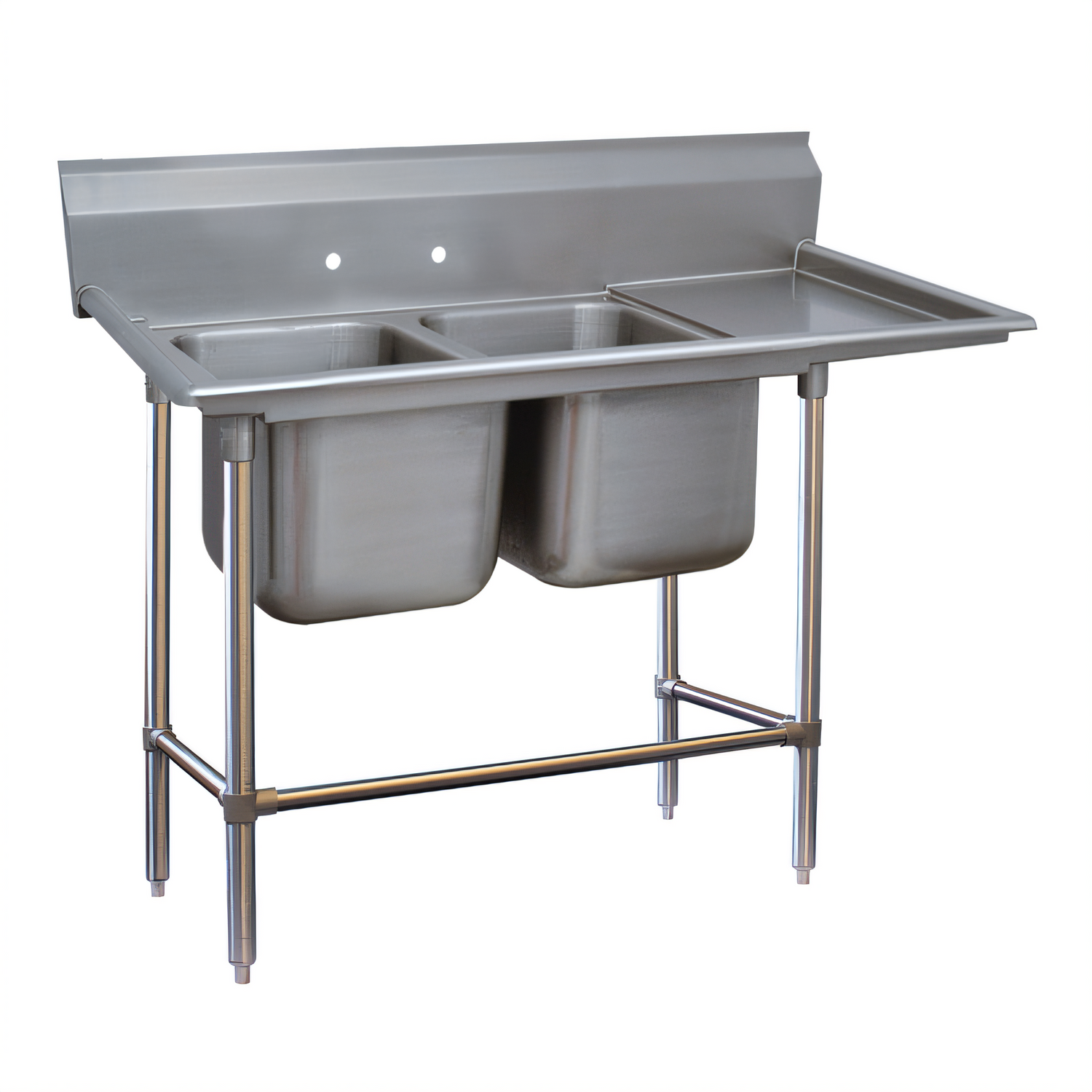

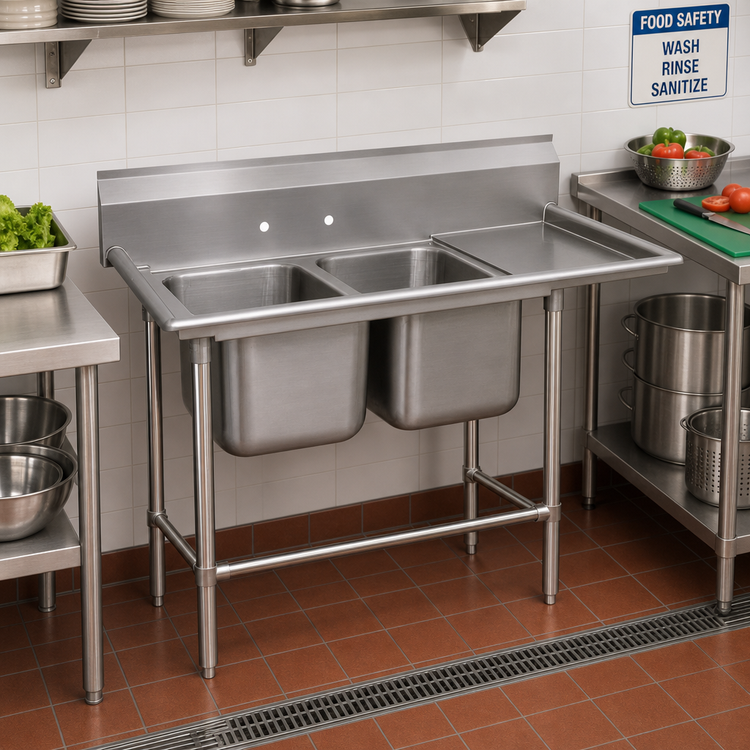

Advance Tabco Regaline 2-Compartment Sink w/ 36" Right-Hand Drainboard – 14 ga 304 SS
Model 94-82-40-36R • 85" L/R × 36" F/B overall • NSF ListedBuilt for relentless commercial use, the Advance Tabco Spec-Line “Regaline” 94 Series pairs oversize 20" × 28" bowls with an extra-long 36" right-hand drainboard. Thick 14-gauge type 304 stainless steel, full TIG welding and rock-solid cross-bracing make this sink an ideal choice for hotels, institutions and high-volume kitchens that refuse to compromise on durability or sanitation.
Key Features
- Two seamless deep-drawn sink bowls – 20" W × 28" F/B × 14" D each.
- 36" right-hand drainboard with integral splash and recessed surface for cutting boards or sink covers.
- 11" high tile-edge backsplash simplifies sealing and shields surrounding walls.
- 14-gauge type 304 stainless steel top, bowls & drainboard for maximum strength and corrosion resistance.
- All TIG-welded construction; welds blended to a smooth satin finish for easy cleaning.
- 1 ⅝" Ø tubular stainless steel legs with stainless gussets plus adjustable front and side cross-bracing.
- 1" adjustable stainless bullet feet level the unit on uneven floors.
- Large 3" radius bowl corners speed up wash-down and meet NSF sanitation standards.
- Pre-punched 8" O.C. faucet holes; (2) 1 ½" IPS stainless basket drains included (faucets & traps sold separately).
Specifications
| Series / Type | Regaline 94 Series (Spec-Line) |
|---|---|
| Manufacturer | Advance Tabco |
| Model # | 94-82-40-36R (right-hand drainboard) |
| Compartments | 2 |
| Bowl Interior (each) | 20" W × 28" F/B × 14" D |
| Drainboard | 36" long, right side |
| Overall Dimensions | 85" L/R × 36" F/B × 44" H (to top of backsplash) |
| Backsplash | 11" high with 2" return |
| Material & Gauge | 14 ga type 304 stainless steel |
| Legs / Bracing | (6) 1 ⅝" Ø stainless legs, adjustable front & side cross rails, 1" bullet feet |
| Drain Size | 1 ½" IPS basket drains (included) |
| Faucet Mount | 8" on-center splash mount (faucets not included) |
| Certifications | NSF |
| Approx. Shipping Weight | 266 lb |
Why Spec-Line 94 Beats Standard Sinks
- 14-ga tops are 56% thicker than 16-ga sinks, resisting dents and hammering.
- Factory-installed front cross-brace prevents sway when loading heavy stock pots or sheet pans.
- Deep 14" bowls handle bulky cookware while reducing splash-over.
Looking for custom faucet hole spacing, extra drainboards or undershelves? Ask about Advance Tabco Smart Fabrication™ modifications.
