Advance Tabco 94-82-40-24L Regaline Compartment Sinks
Description

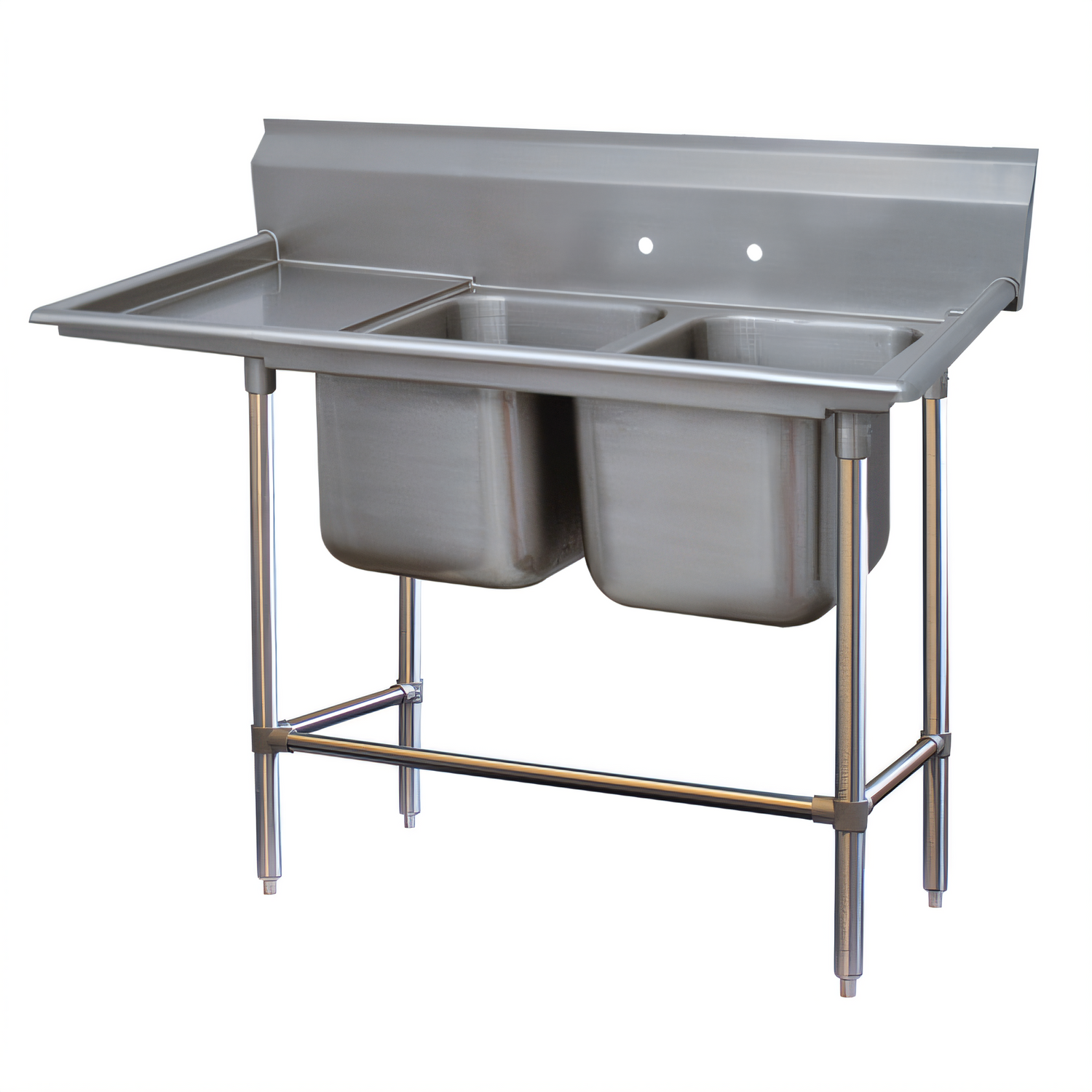

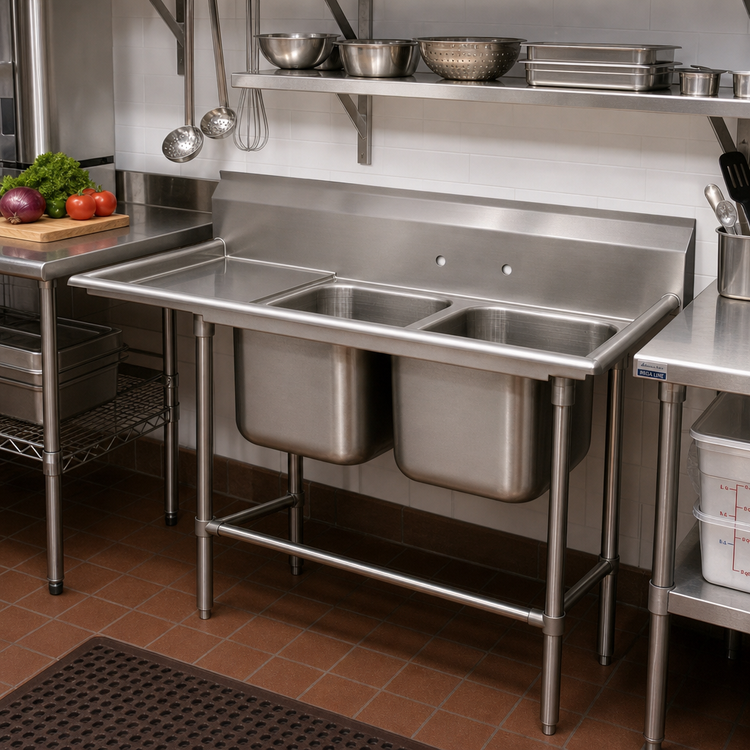

Advance Tabco Regaline 2-Compartment Sink w/ 24" Left Drainboard – 14 Ga 304 SS
Model 94-82-40-24L | NSF Listed Spec-Line (94 Series)Built to shrug off punishing commercial use, the Regaline 94-82-40-24L combines extra-heavy 14-gauge 304 stainless steel with seamless TIG-welded construction for a sink that simply lasts. Two oversized 20" × 28" × 14" deep bowls handle everything from sheet pans to stock pots, while the integral 24" left-hand drainboard speeds drying and staging. An 11" high backsplash, stainless cross-braced legs and NSF certification make this unit a smart, code-compliant upgrade for any high-volume prep, warewashing or pot-washing station.
Key Features
- Two 20" W × 28" F/B × 14" D deep-drawn bowls with a generous 3" radius for easy cleaning.

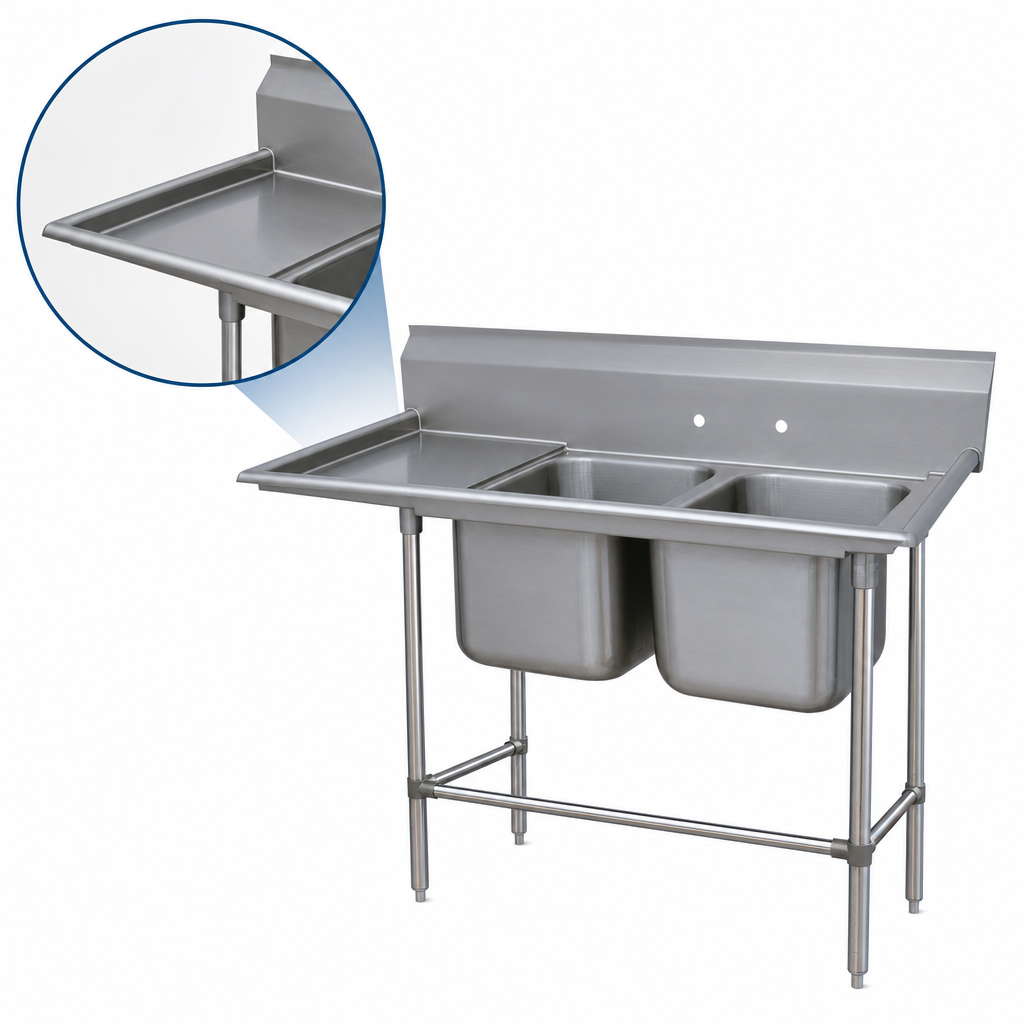

- Seamless 24" left-hand drainboard pitched toward the sink for rapid drainage.
- 11" high backsplash with tile edge and 2" return protects surrounding walls.
- Heavy-duty 14-gauge type 304 stainless steel top, bowls & drainboard – part of the Spec-Line 94 Series.
- 1 5/8" O.D. stainless steel legs with front & side adjustable cross-bracing and gussets for rock-solid stability.
- 1" adjustable stainless steel bullet feet level the unit on uneven floors.
- TIG-welded and polished to a uniform satin finish – “Yes! It’s Seamless!”
- Pre-punched 8"-on-center faucet holes (faucet sold separately).
- Includes (2) 1 1/2" IPS stainless steel basket drains located in the center of each bowl.
Specifications
| Manufacturer | Advance Tabco |
|---|---|
| Series / Collection | Regaline – Spec-Line 94 Series |
| Model # | 94-82-40-24L (Left-Hand Drainboard) |
| Compartments | 2 |
| Bowl Dimensions (W × F/B × D) | 20" × 28" × 14" |
| Drainboard | 24" long, left side, integral & pitched |
| Backsplash | 11" H with 2" return |
| Material / Gauge | 14-gauge type 304 stainless steel |
| Legs & Bracing | 1 5/8" Ø stainless legs with adjustable front & side cross rails |
| Feet | 1" NSF-approved adjustable stainless bullet feet |
| Faucet Holes | (2) holes on 8" centers – faucet not included |
| Drains | (2) 1 1/2" IPS stainless basket drains included |
| Overall Dimensions | 73" L/R × 36" F/B × ≈45" H (to top of backsplash) |
| Working Height | ≈34" to top of rolled rim |
| NSF Listed | Yes |
| Shipping Weight | Approx. 227 lb |
Installation & Compliance Notes
- Hot & cold water supplies: 1/2" IPS.
- Waste outlet: 1 1/2" IPS connection.
- Suggested rough-in dimensions are provided in the Regaline plumbing guide (see Resources tab).
- Unit ships fully assembled – simply set, level and hook up plumbing.
Faucet, trap and any shown accessories are not included and are sold separately.
