Advance Tabco Regaline 94 Series 2-Compartment Sink with Left-Hand Drainboard, 20 x 28 Inch Bowls, 14 Gauge 304 Stainless Steel

SKU: 94-82-40-18L
GTIN: 747545111234
$4,828.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Advance Tabco Best Sellers Commercial Plumbing Supplies Commercial Sinks Compartment Sinks New Arrivals Restaurant Equipment Sinks & Handwashing Stations

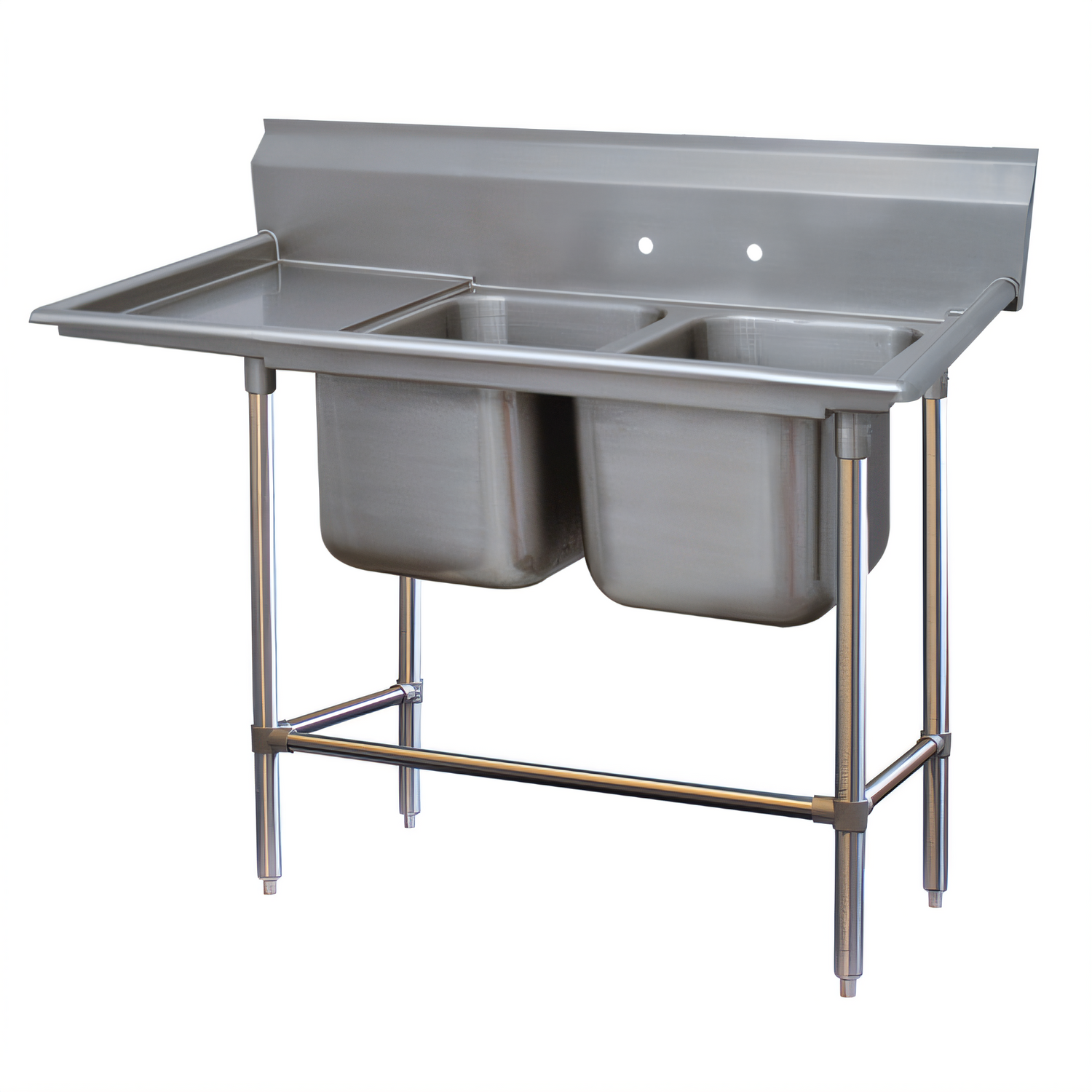

Advance Tabco Regaline 94 Series 2-Compartment Sink with Left-Hand Drainboard, 20 x 28 Inch Bowls, 14 Gauge 304 Stainless Steel

14 Inches Deep, 11 Inch Backsplash, Floor Model

Built for heavy-duty dishwashing, this floor model combines two deep bowls, a left-hand drainboard, and rugged 14-gauge 304 stainless steel construction.

  • Two 20" x 28" sink compartments with 14" deep bowls provide ample working space.
  • Left-hand 18" drainboard adds room for staging, draining, and pre-rinsing.
  • 11" backsplash helps protect walls from splashes.
  • 14-gauge type 304 stainless steel construction is built for demanding commercial use.
  • Adjustable front and side cross-bracing with stainless steel legs adds stability.
  • 1" adjustable bullet feet help level the sink on uneven floors.
  • Waste drains are included; faucets are sold separately.

Overall Dimensions:

67.0"W x 36.0"D x 45.0"H

Product Weight:

213.0 lb
Note: Conforms to NSF 61/9 lead free requirements. Notice for use or sale in California: Proposition 65 this faucet may expose you to chemicals, including lead, that are known to the State of California to cause cancer, or birth defects or other reproductive harm. For more information visit www.p65warnings.ca.gov.

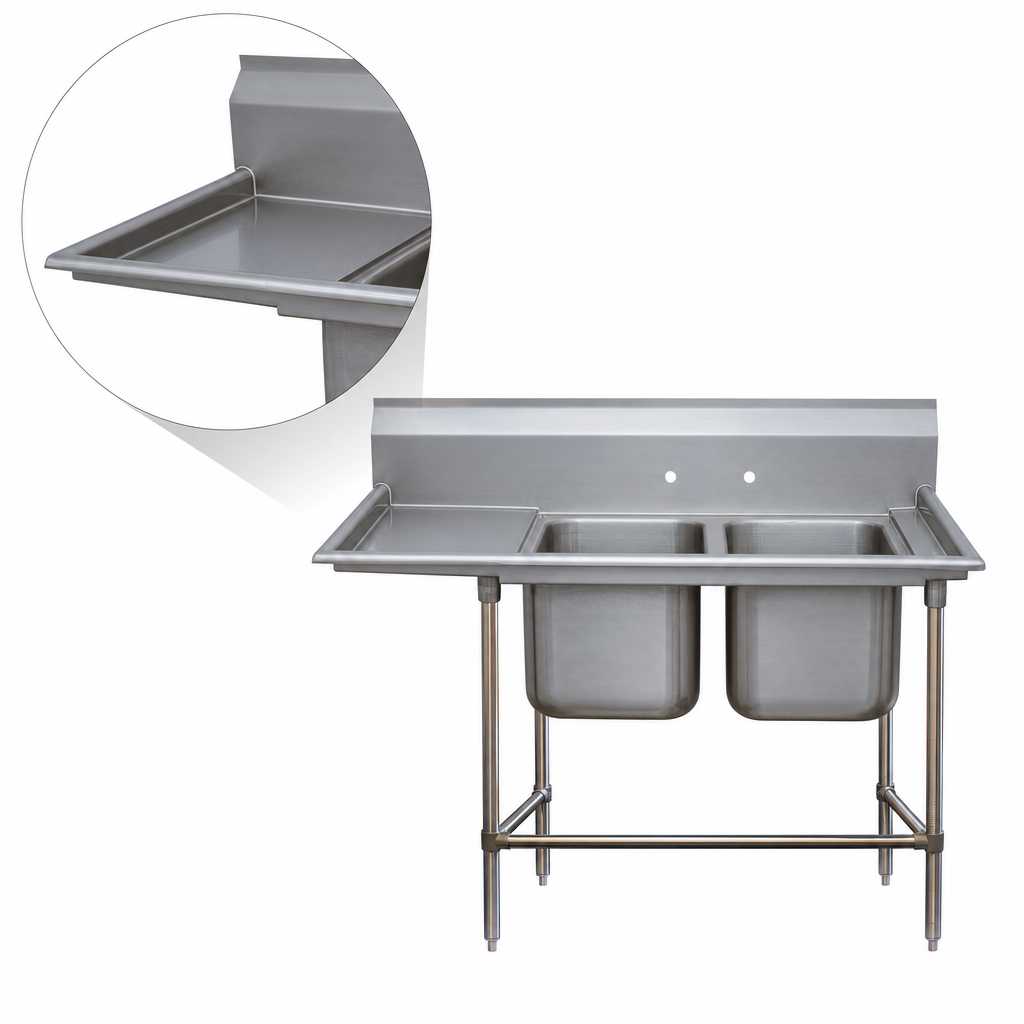

Left-Hand Drainboard

Integrated 18-inch drainboard is positioned on the left side for convenient workflow.

Two Deep Drawn Compartments

Two sink bowls are sized 20 inches side-to-side by 28 inches front-to-back and 14 inches deep.

14-Gauge 304 Stainless Steel Construction

Heavy-duty stainless steel construction is designed for long-term commercial durability.

11-Inch Backsplash

Tall backsplash helps contain splatter and protect the wall behind the sink.

Adjustable Cross-Bracing

Front and side cross-braces with leg clamps add rigidity and support.

Stainless Steel Legs With Bullet Feet

Tubular stainless steel legs and 1-inch adjustable bullet feet help provide stable leveling.

TIG-Welded Satin Finish

Welded areas are blended smooth and finished to match adjacent surfaces with a satin appearance.

Included Basket-Type Waste Drains

1 1/2-inch IPS stainless steel basket-type waste drains are included in the sink bowls.

Tile Edge

Tile edge detail is designed to help simplify installation against a finished wall.

Faucet Hole Layout

Faucet holes are provided on 8-inch centers; faucets are not included.

Type Sink
Style Two-Compartment With Left-Hand Drainboard
Installation Type Floor Model
Compartments 2
Material 304 Stainless Steel
Finish Satin Finish
Water Inlet Size 1/2 Inch IPS
Drain Connection Size 1 1/2 Inches IPS
Selling Unit Each
Units Per Case 1
Shipping Width 66 Inches
Shipping Depth 36 Inches
Shipping Height 45 Inches
Shipping Weight 213 lb.

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Documents

PDF Cutsheet PDF Download PDF Plumbing PDF Download PDF Installation manual PDF Download

Frequently Asked Questions

Each compartment measures 20 inches side-to-side by 28 inches front-to-back and is 14 inches deep.
This model has a left-hand drainboard.
It is made from 14-gauge type 304 stainless steel.
No. Faucets are not included, though faucet holes are provided on 8-inch centers.
Yes. 1 1/2-inch IPS stainless steel basket-type waste drains are included.
