Advance Tabco 94-44-96-24R Regaline Compartment Sinks
Description

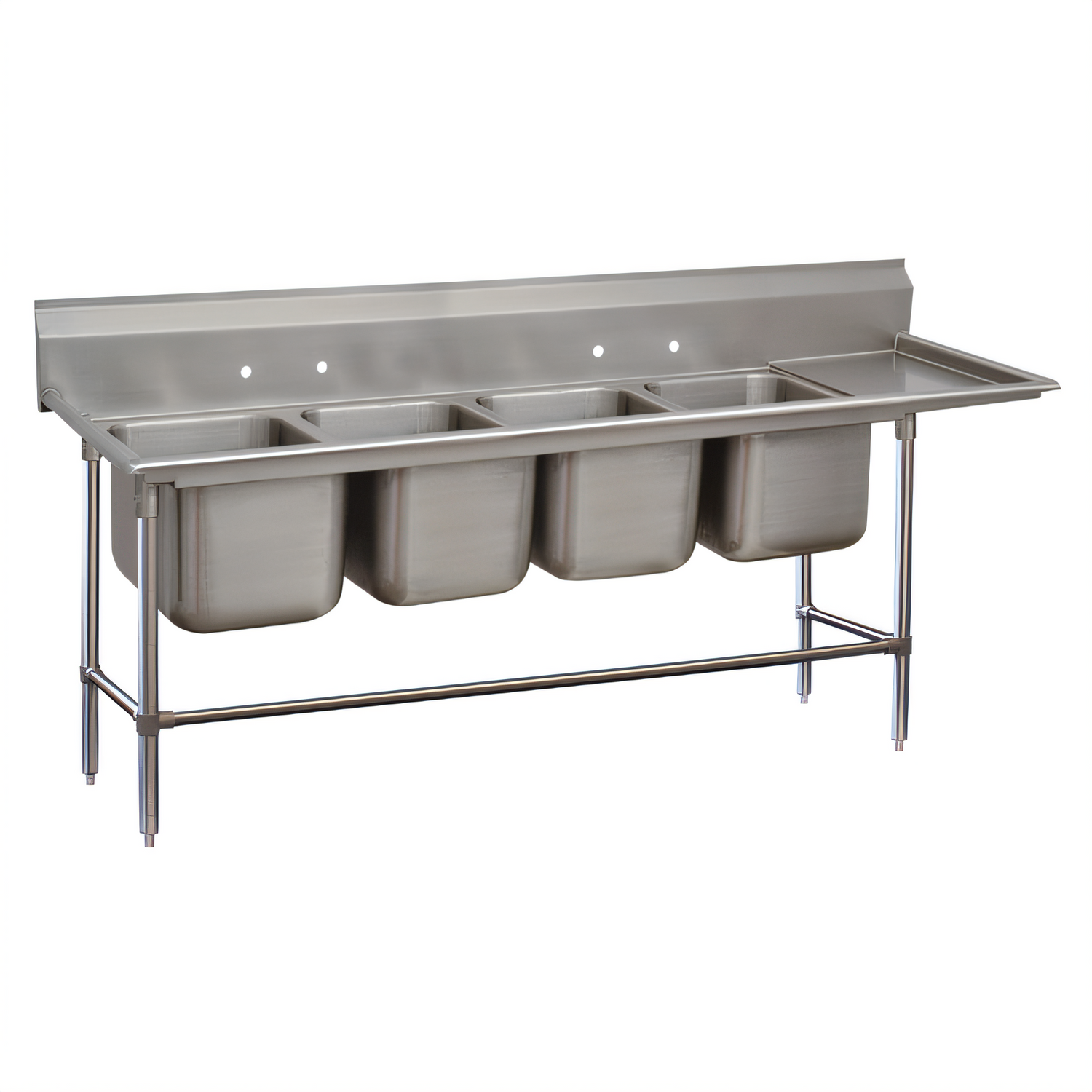

Advance Tabco Regaline 4-Compartment Sink w/ Right Drainboard – 14 ga 304 SS
Model 94-44-96-24R | NSF Listed | Heavy-Duty Spec-Line SeriesEngineered for the busiest kitchens, the Regaline 94 Series delivers rock-solid durability, ergonomic workflow, and sanitary performance in one seamless stainless-steel package. This 4-compartment pot sink features full-size 24" × 24" bowls, a spacious 24" right-hand drainboard, and an 11" backsplash—all fabricated from extra-thick 14 gauge type 304 stainless steel that stands up to daily abuse.
Key Features

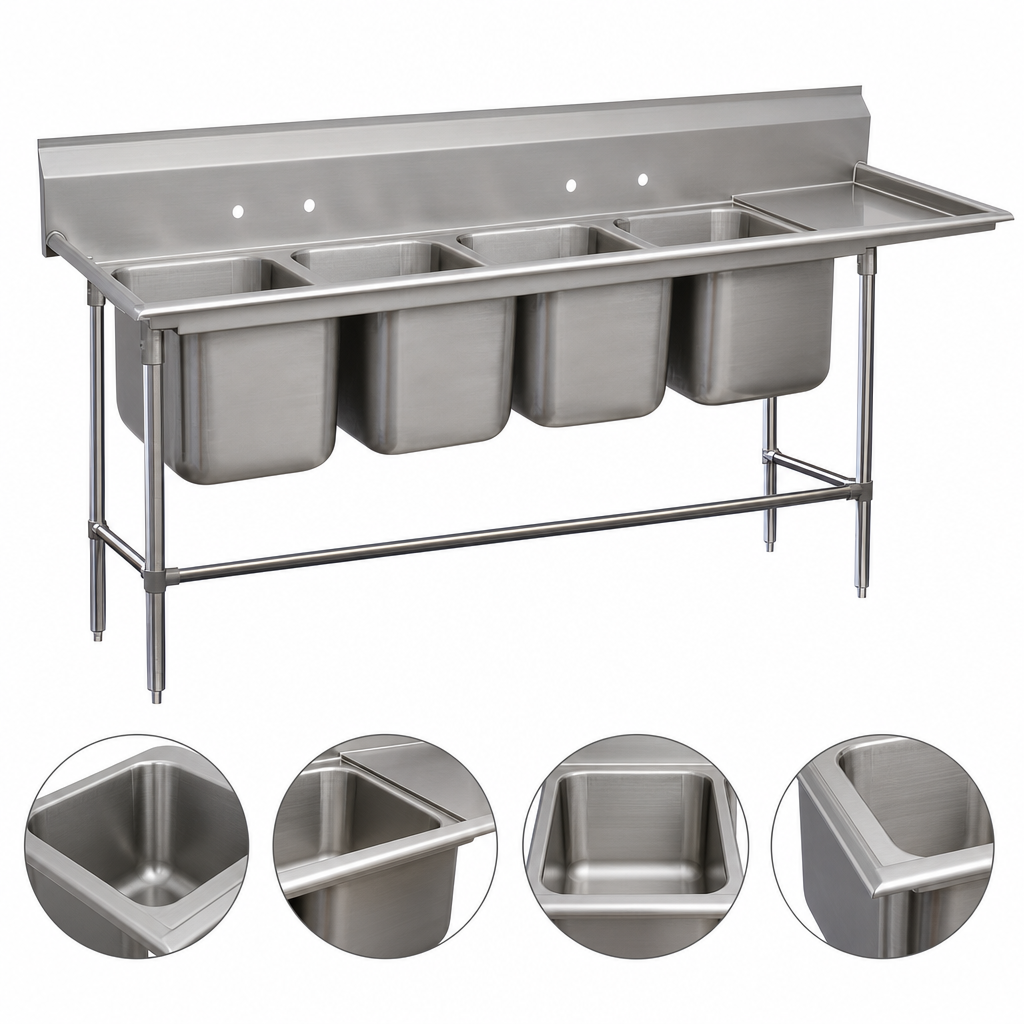

- Four 24" × 24" × 14" deep deep-drawn bowls with generous 3" radiused corners for easy cleaning.
- Seamless integral 24" right-hand drainboard with splash guards keeps water where it belongs.
- One-piece TIG-welded construction; welds are blended to a smooth satin finish.
- 11" high backsplash with tile-edge for quick, watertight wall installation.
- 1 ⅝" O.D. stainless steel legs with adjustable front & side cross-bracing for maximum rigidity.
- 1" adjustable stainless steel bullet feet level the sink on uneven floors.
- Pre-punched 8" on-center faucet holes (two faucets required, sold separately).
- 1 ½" IPS stainless steel basket drains included—one per bowl.
- NSF certified for safe, sanitary operation.
At-a-Glance Specifications
| Series / Gauge | Regaline Spec-Line 94 Series – 14 ga type 304 SS |
|---|---|
| Compartments | 4 |
| Bowl Interior (W × F/B × Depth) | 24" × 24" × 14" |
| Drainboard | 24" right-hand, integrally welded |
| Backsplash Height | 11" |
| Overall Dimensions (L × F/B) | 134" × 32" |
| Faucet Holes | Two sets, 8" O.C. (faucets not included) |
| Waste Drain | 1 ½" IPS basket drains, centered in each bowl |
| Legs & Feet | 1 ⅝" tubular SS legs, adjustable side & front cross-rails, 1" bullet feet |
| Certifications | NSF |
Why Choose Advance Tabco Regaline?
- Industry-leading thickness – 14 gauge steel is 25 % thicker than standard 16 ga sinks.
- SeaM-less™ deep-drawn bowls limit weld seams for superior sanitation.
- Modular compatibility – recessed rim accepts optional poly cutting boards and sink covers.
- Smart Fabrication™ support – custom modifications available direct from Advance Tabco.
Need a different drainboard side, bowl size, or pre-rinsing accessories? Contact us for a custom quote on any Advance Tabco Smart Fabrication™ sink.
