Advance Tabco  |  Regaline  |  SKU: 94-43-72  |  UPC: 747545110558

Advance Tabco 94-43-72 Regaline Compartment Sinks

$5,447.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options

Documents

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

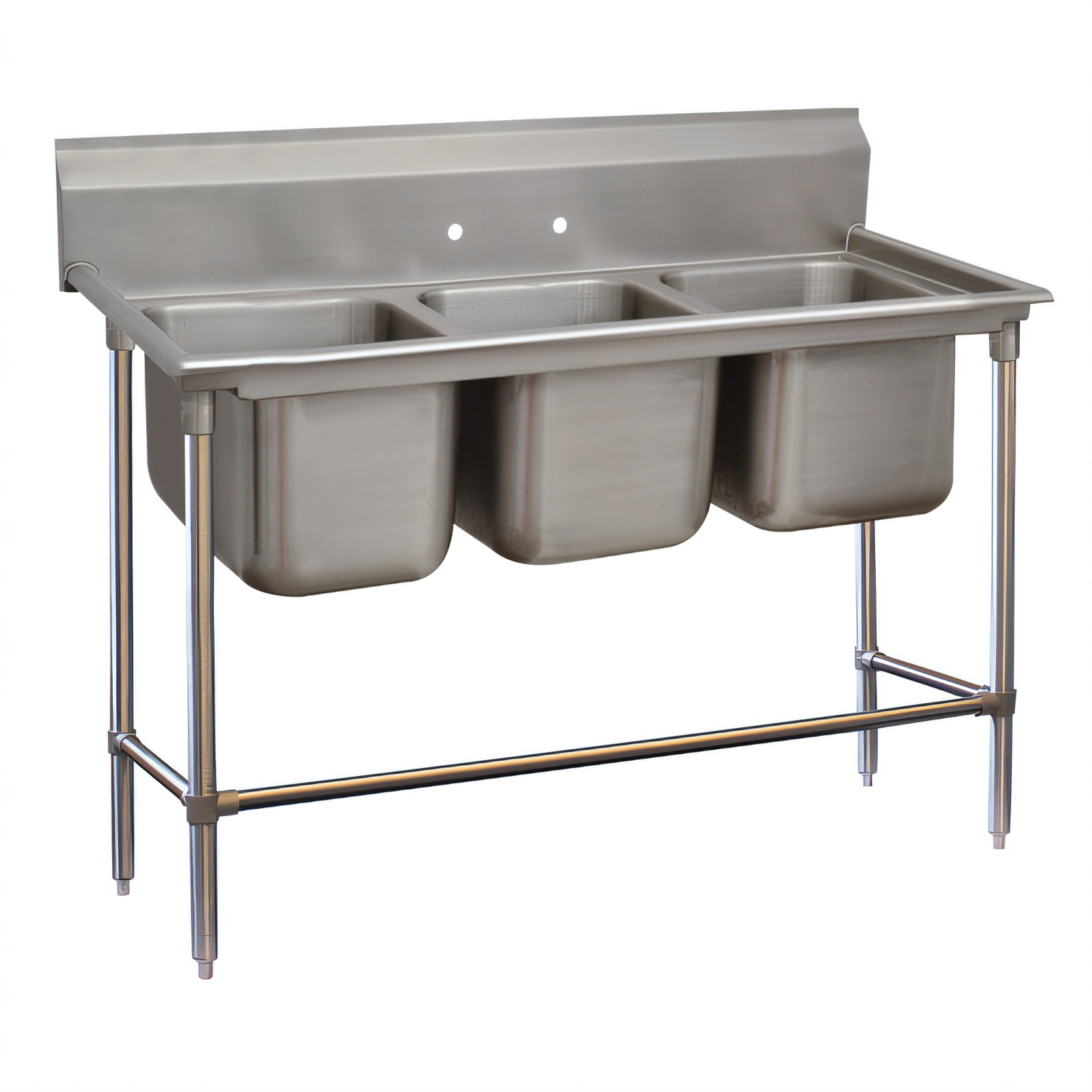

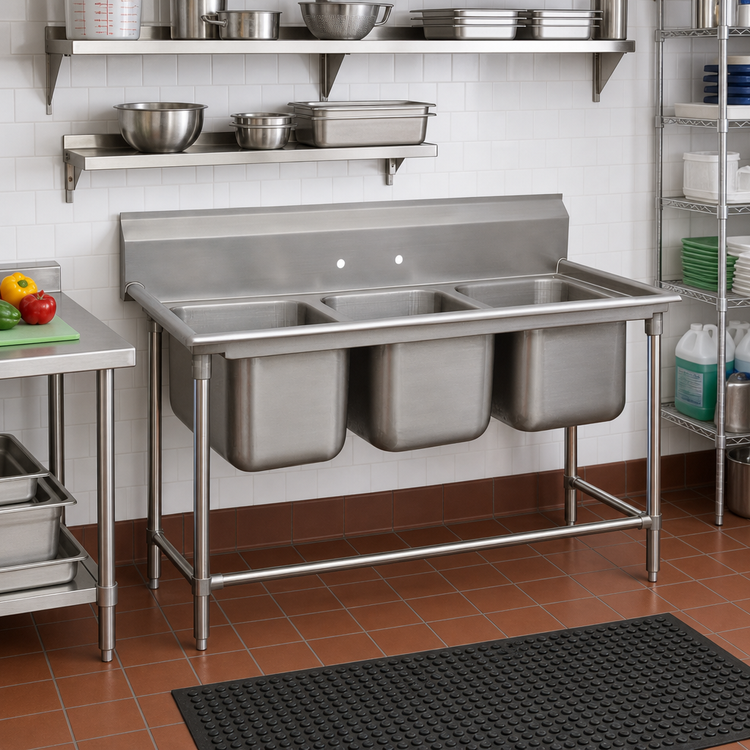

Advance Tabco “Regaline” 3-Compartment Sink – 14 ga 304 Stainless Steel

94 Series • 24" × 24" × 14" Bowls • 88" L × 32" D Overall • NSF Listed

Built to survive the busiest prep and pot-washing stations, the Advance Tabco Regaline 94-Series sink combines extra-heavy 14-gauge 304 stainless steel with deep-drawn, seamless bowls and rock-solid tubular leg construction. Oversized 24" × 24" × 14" compartments easily accommodate stockpots, sheet pans and mixing bowls, while the 11" high backsplash and front-to-rear tile edge help you create a sanitary, code-compliant installation in minutes.

Why this sink excels

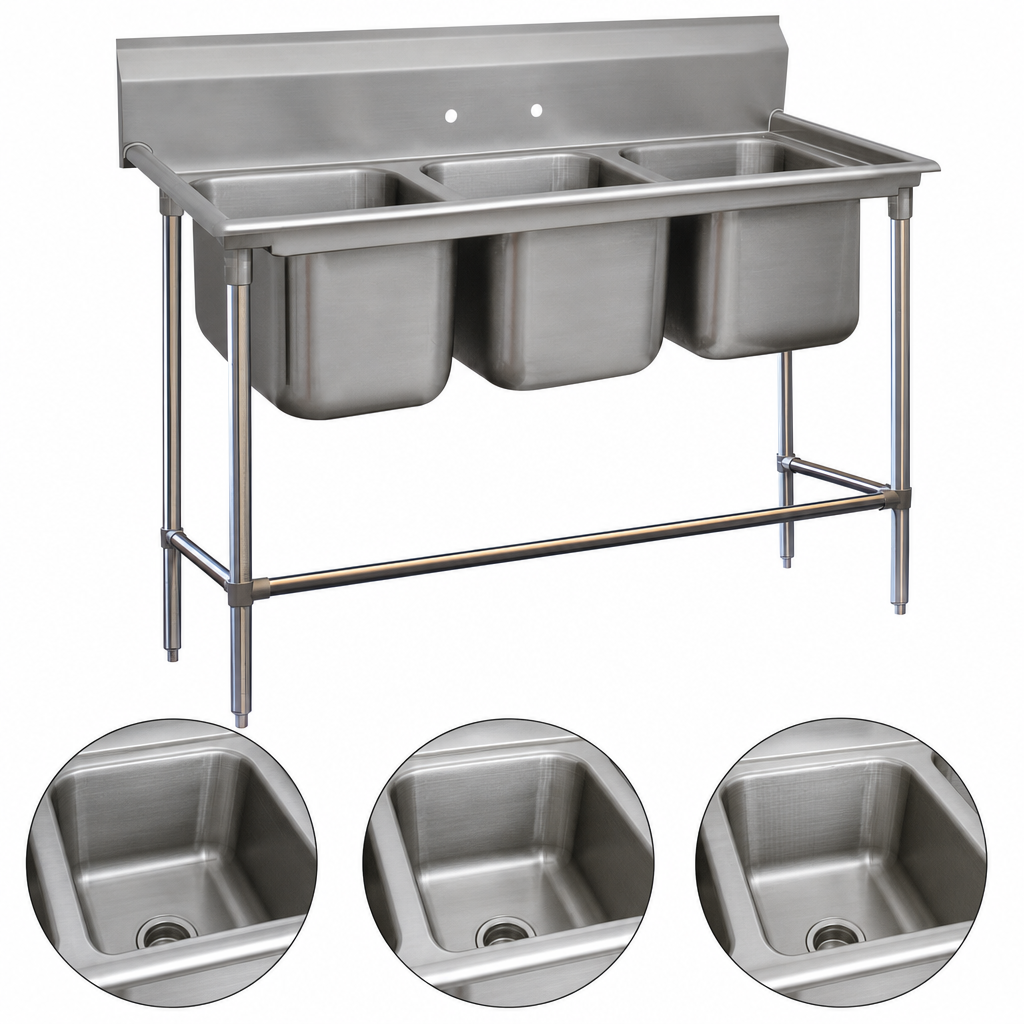

  • Three one-piece 24" F/B × 24" W × 14" D bowls with generous 3" inside corner radii for fast clean-up.
  • 14-gauge type 304 stainless steel (Spec-Line) resists dents, corrosion and harsh chemicals.
  • 11" high backsplash with tile edge & (2) sets of 8" O.C. faucet holes (faucets sold separately).
  • Adjustable front & side cross-bracing with TIG-welded gussets—add strength without blocking storage space.
  • 1 5/8" Ø tubular stainless steel legs with 1" adjustable bullet feet keep the unit level on uneven floors.
  • Center-mounted 1 1/2" IPS stainless steel basket drains are included.
  • NSF certified; all welds are blended to a satin finish for a professional look.
  • Recessed bowl rims accept optional Poly-Vance cutting boards & sink covers for added versatility.

Specifications

Compartments 3
Bowl interior (each) 24" front-to-back × 24" left-to-right × 14" deep
Overall dimensions 32" front-to-back × 88" left-to-right × 45" H (to top of backsplash)
Backsplash height 11"
Material & finish 14 ga 304 stainless steel, satin finish
Legs / feet 1 5/8" Ø S/S tubular legs with adjustable S/S bullet feet
Cross-bracing Adjustable side & front rails with stainless leg clamps
Drain openings (3) 1 1/2" IPS basket drains (included)
Faucet mounts (2) sets of 8" on-center holes (requires two faucets; not included)
Shipping weight ≈ 252 lb
Certifications NSF

Installation & rough-in tips

  • Hot & cold supply: 1/2" IPS — position on 8" centers.
  • Open, wall or through-floor drain layouts are supported; see cut-sheet for detailed rough-ins.
  • Top of rolled rim sits 34" above finished floor (adjustable).

Complete your station with Advance Tabco swing or gooseneck faucets, wall-mounted pre-rinses, cutting boards and removable sink covers (sold separately).

Important: Two 8" center faucets are required for operation and are not included with this sink.

Features & Specs

Manufacturer

Advance Tabco

Brand_name

Regaline

Certifications

NSF

Height

45.0in

Width

88.0in

Depth

32.0in

Shipping Weight

252.0lbs

Compartment (front - back)

24"

Sink Depth (rim - drain)

14"

Top Gauge

14 gauge

Overall Length

85" - 96"

Compartment Width (side - side)

24"

Base Type

legs with boxed crossrails

Top Stainless Series

300 series

Splash Height

11"

Base Construction

stainless steel

Drainboards

without drainboards

Specifications

Regaline Sink, 3-compartment, 24" front-to-back x 24" wide sink compartments, 14" deep, with 11" high splash, stainless steel legs with adjustable left-to-right and front cross rails, 1" adjustable bullet feet, 14 gauge 304 stainless steel, overall 32" F/B x 88" L/R, NSF (requires 2 faucets)
