Advance Tabco  |  Regaline  |  SKU: 94-43-72-36L  |  UPC: 747545110596

Advance Tabco 94-43-72-36L Regaline Compartment Sinks

$6,661.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options

Documents

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

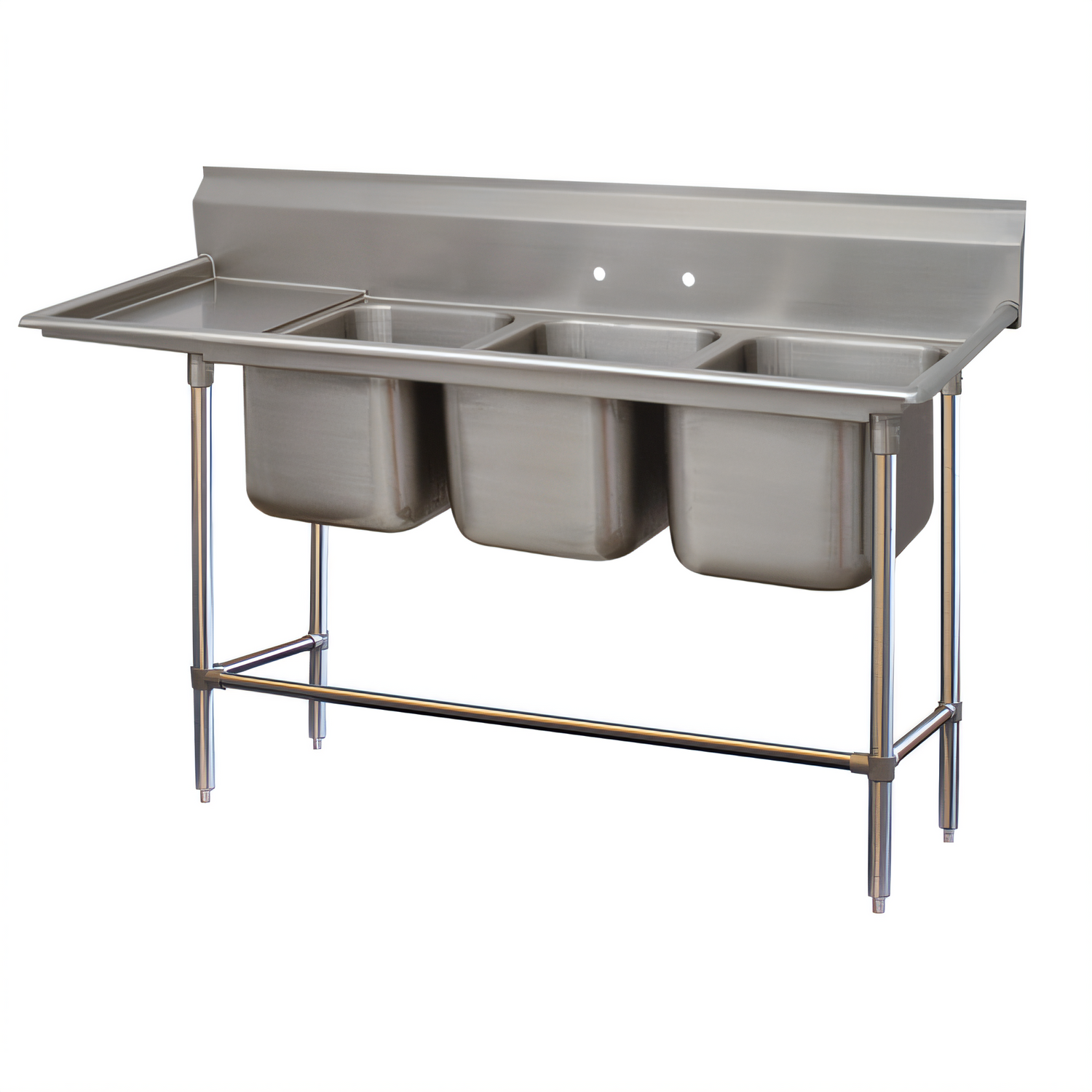

Advance Tabco Regaline 3-Compartment Sink w/ 36" Left Drainboard – 120" x 32", 14 ga 304 SS

Model 94-43-72-36L | NSF Listed

Engineered for the most demanding commercial kitchens, the Regaline 94 Series combines extra-heavy 14-gauge stainless steel, seamless deep-drawn bowls, and a full-length drainboard to deliver a rock-solid washing and rinsing station that stands up to years of abuse.

Key Features

  • Three 24" × 24" × 14" deep compartments accommodate large stock pots and sheet pans.

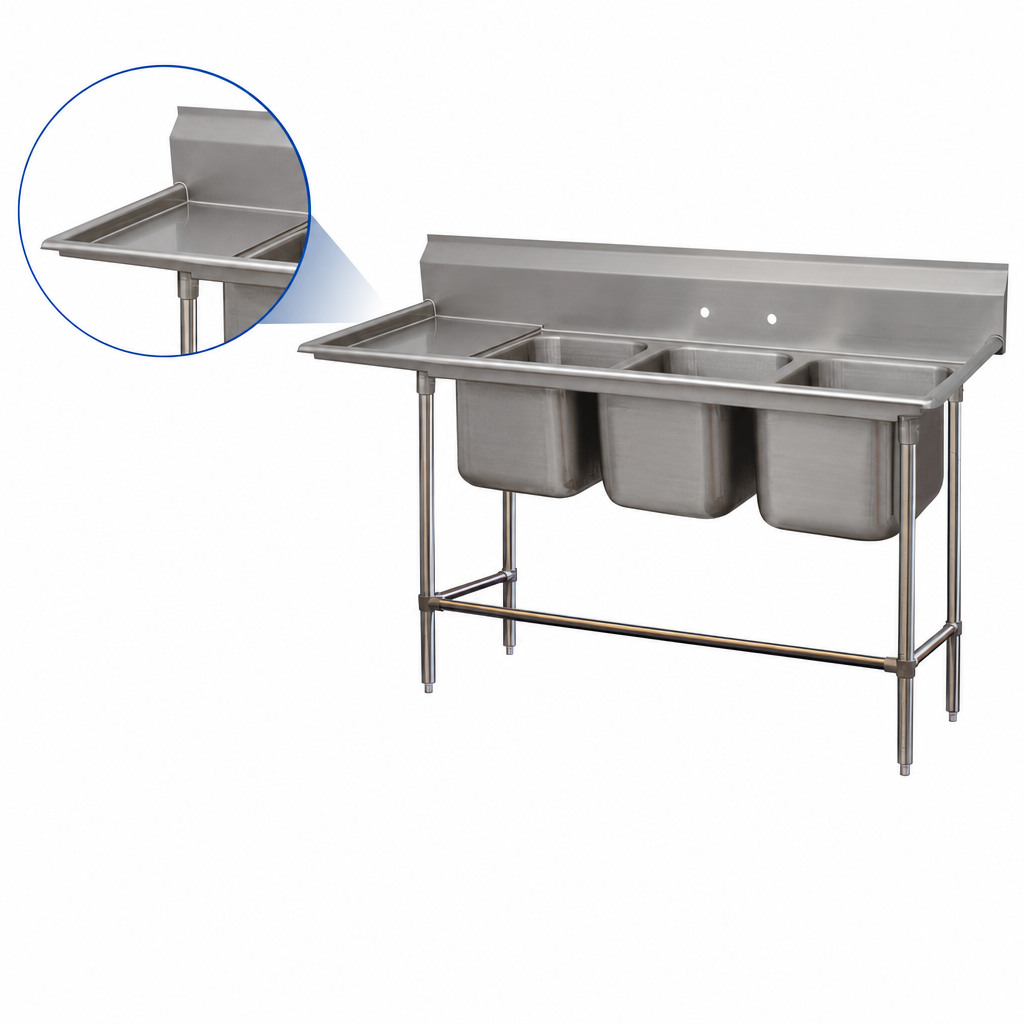

  • 36" left-hand drainboard with integral boxed splash and pitched surface for fast drying.
  • 11" high one-piece backsplash with 8"-on-center faucet holes (requires two faucets, sold separately).
  • Rugged 14 ga type 304 stainless steel top, bowls, and drainboard resist corrosion and dents.
  • 3" radius bowl corners speed up cleaning and improve sanitation.
  • 1 ⅝" Ø stainless legs with adjustable side and front cross-bracing for maximum stability.
  • Extra support legs under the 36" drainboard prevent sagging under heavy loads.
  • 1" adjustable stainless bullet feet let you level the unit on uneven floors.
  • (3) 1 ½" IPS basket drains included – centered in each bowl.

At-a-Glance Specs

Overall dimensions 120" L × 32" F/B × 44" H (to top of backsplash)
Compartment size (3) 24" L/R × 24" F/B × 14" D
Drainboard 36" L (left side), embossed & pitched
Backsplash 11" H, integral with sink top
Material / thickness 14-gauge 304 stainless steel
Faucet holes (2) sets, 8" centers, 1 ⅛" dia.
Drain connection 1 ½" IPS basket type (included)
Shipping weight Approx. 365 lb
Certifications NSF

Ideal Applications

  • High-volume pot & pan washing stations
  • Commissary and central production kitchens
  • Institutional cafeterias & universities
  • Hotel, resort, and casino back-of-house areas

Installation Notes

Plumbing rough-in required: ½" IPS hot & cold supplies on 8" centers and 1 ½" IPS waste outlet. Review Advance Tabco rough-in drawings prior to installation.

Faucets, lever drains, and other accessories are available separately. Contact us for Advance Tabco Smart Fabrication™ options.

Features & Specs

Manufacturer

Advance Tabco

Brand_name

Regaline

Certifications

NSF

Height

45.0in

Width

120.0in

Depth

32.0in

Shipping Weight

365.0lbs

Drainboards

with left-hand drainboard

Compartment (front - back)

24"

Base Type

legs with boxed crossrails

Top Gauge

14 gauge

Sink Depth (rim - drain)

14"

Compartment Width (side - side)

24"

Splash Height

11"

Top Stainless Series

300 series

Base Construction

stainless steel

Overall Length

109" - 170"

Specifications

Regaline Sink, 3-compartment, with left-hand drainboard, 24" front-to-back x 24"W sink compartments, 14" deep, with 11"H backsplash, stainless steel legs with adjustable left-to-right and front cross rails, 36" drainboard, 1" adjustable bullet feet, 14 gauge 304 stainless steel, overall 32" F/B x 120" L/R, NSF (requires 2 faucets)
