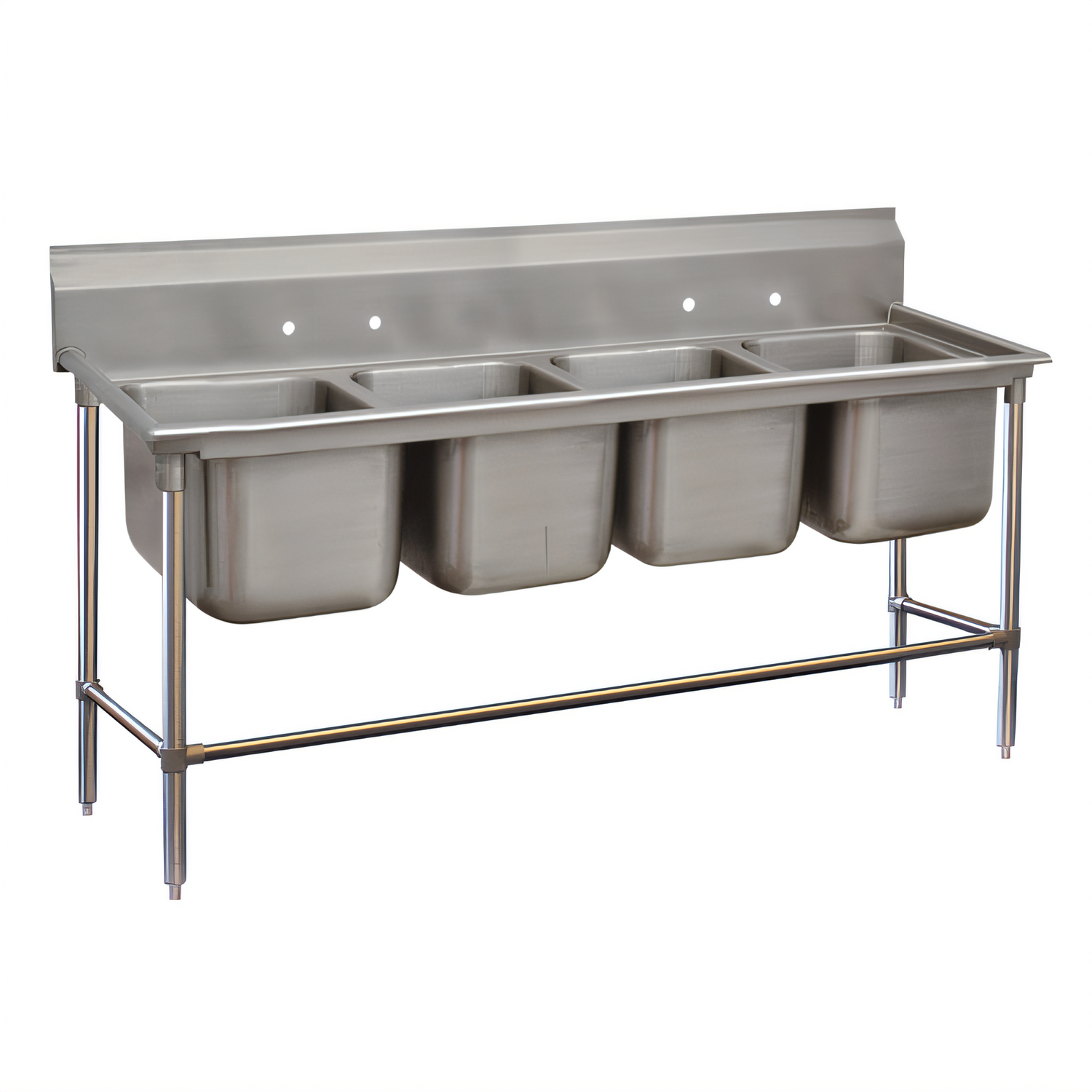

Advance Tabco Regaline 4-Compartment Deep Drawn Sink with 16 x 20-Inch Bowls, 14-Gauge 304 Stainless Steel

No Drainboards, 83-Inch Overall Length

Built for heavy-duty wash stations, this deep-drawn 4-compartment sink combines rugged 14-gauge 304 stainless steel construction with large 16 x 20-inch bowls and an 11-inch backsplash.

  • Four deep-drawn compartments support washing, rinsing, soaking, or prep workflows.
  • 14-gauge 304 stainless steel construction is built for demanding commercial use.
  • 11-inch high splash helps protect walls and simplifies installation against tile or backsplash surfaces.
  • Adjustable stainless steel legs with crossrails and 1-inch bullet feet provide stable support.
  • Center-mounted basket drains are included, and faucet holes are spaced on 8-inch centers.
  • Recessed bowl surfaces accommodate Poly-Vance cutting boards and sink covers.
  • NSF-listed for foodservice sanitation requirements.

Overall Dimensions:

83.0"W x 28.0"D x 45.0"H

Product Weight:

225.0 lb
Note: Conforms to NSF 61/9 lead free requirements. Notice for use or sale in California: Proposition 65 this faucet may expose you to chemicals, including lead, that are known to the State of California to cause cancer, or birth defects or other reproductive harm. For more information visit www.p65warnings.ca.gov.

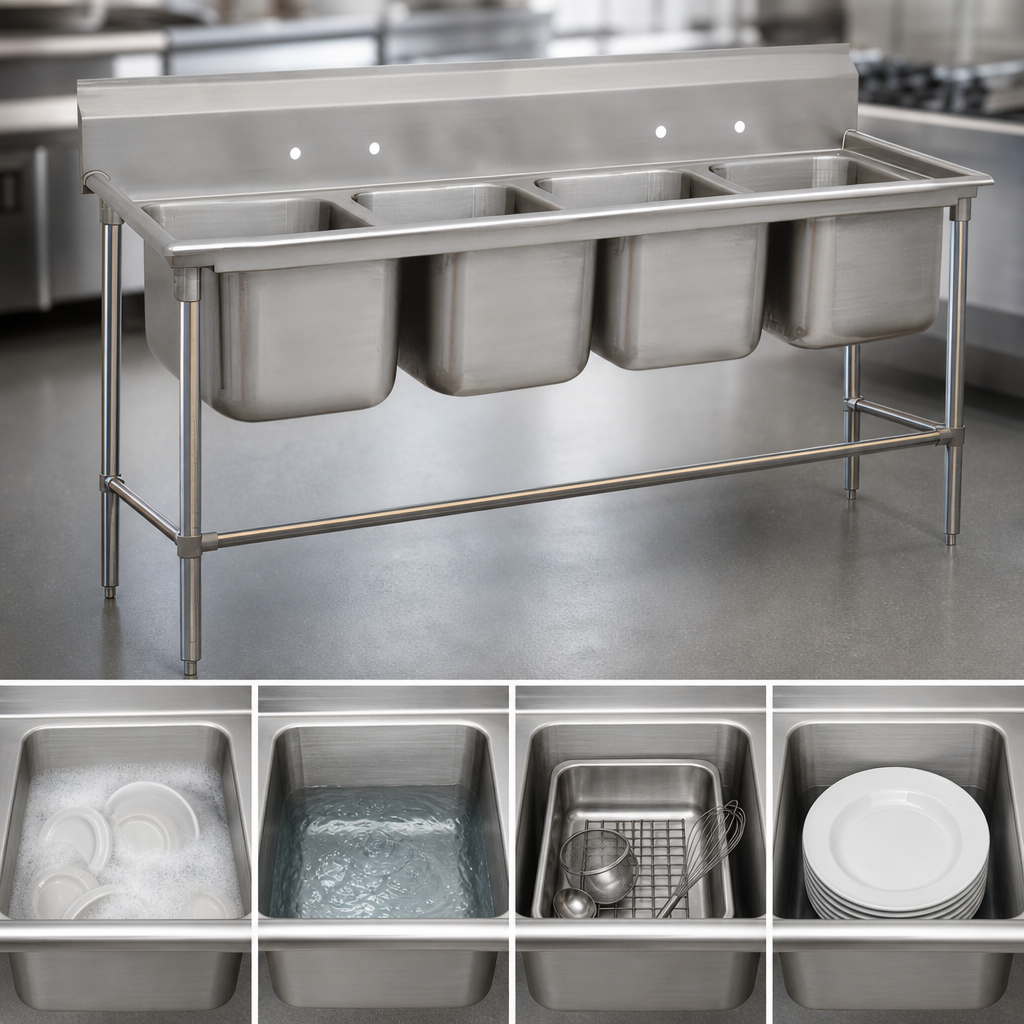

Four-Compartment Layout

Provides separate bowl space for multi-step sink workflows in busy kitchens.

Deep Drawn Sink Bowls

One-piece 16 x 20-inch bowls with large 3-inch radius corners help simplify cleaning.

14-Gauge 304 Stainless Steel

Heavy-duty stainless steel construction delivers durability and corrosion resistance.

11-Inch Tile Edge Splash

Tall backsplash helps protect the wall and supports easier installation.

Adjustable Crossrail Base

Stainless steel legs with front and side cross braces add stability and rigidity.

TIG-Welded Construction

All welded areas are blended to match adjacent surfaces and finished satin smooth.

Included Basket Drains

1 1/2-inch IPS stainless steel basket-type waste drains are centered in each bowl and included.

Faucet-Ready Rough-In

Faucet holes are on 8-inch centers; faucets are required and sold separately.

Recessed Bowl Surface

Designed to accommodate Poly-Vance cutting boards and sink covers.

NSF Listed

Meets NSF requirements for commercial kitchen applications.

Type Sink
Style Deep Drawn
Installation Type Freestanding
Compartments 4
Base Type Legs with Crossrails
Pan Size 16 x 20 Inches
Material 304 Stainless Steel
Finish Satin
Top Gauge 14 Gauge
Splash Height 11 Inches
Drain Connection Size 1 1/2 Inches IPS
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Documents

PDF Cutsheet PDF Download PDF Plumbing PDF Download PDF Installation manual PDF Download

Frequently Asked Questions

No. The sink has faucet holes on 8-inch centers, but faucets are not included and must be ordered separately.
No, this specific model is a 4-compartment sink without drainboards.
Each compartment measures 16 inches wide by 20 inches front-to-back and 14 inches deep.
It is made from 14-gauge 304 stainless steel.
Yes. Center-mounted 1 1/2-inch IPS stainless steel basket-type waste drains are included.
