Advance Tabco  |  Regaline  |  SKU: 94-4-72-24RL  |  UPC: 747545110374

Advance Tabco 94-4-72-24RL Regaline Compartment Sinks

$5,574.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Plumbing Installation manual
Related Searches
Compartment Sinks Sinks & Handwashing Stations

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

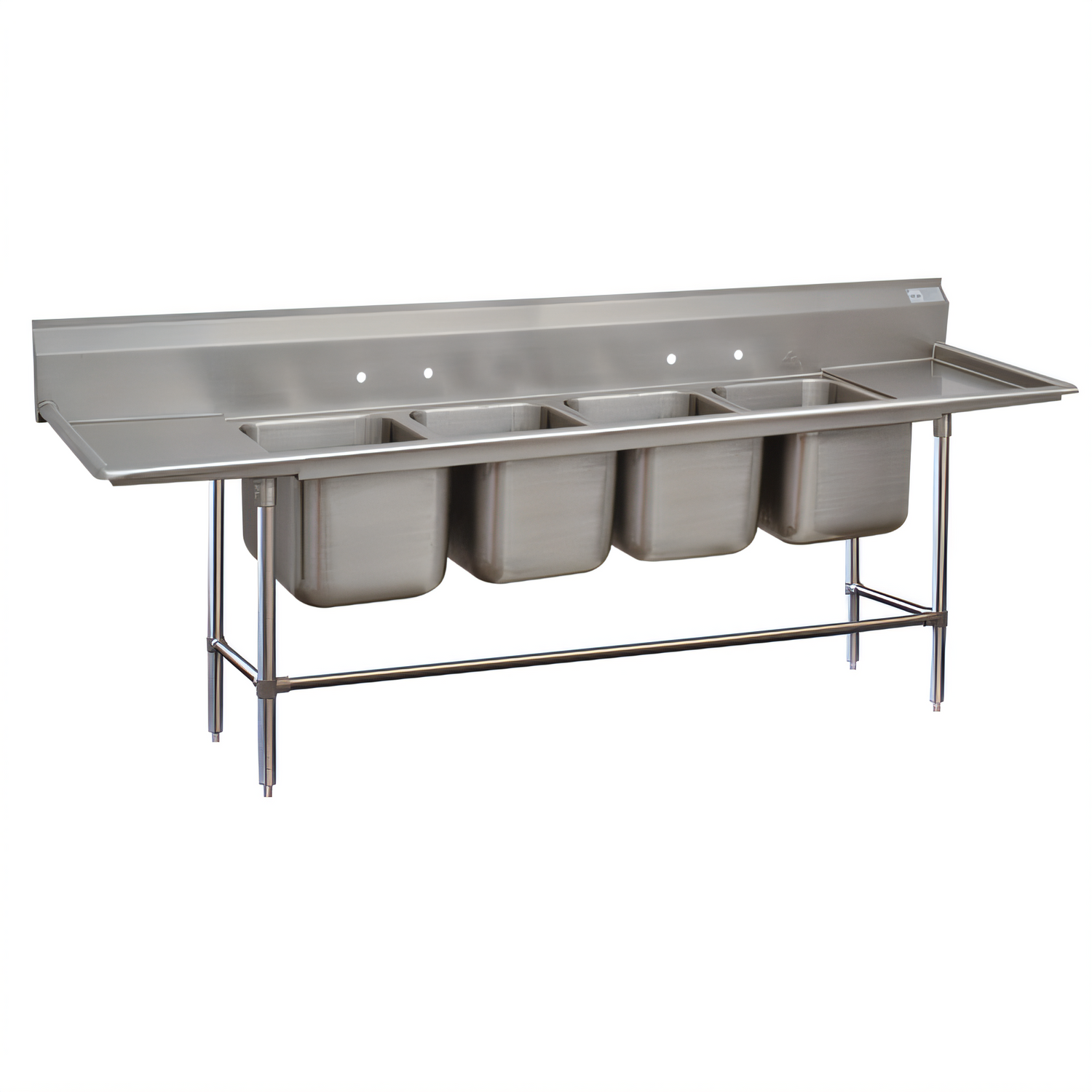

Advance Tabco “Regaline” 4-Compartment Sink with Dual 24" Drainboards

Model 94-4-72-24RL | 14 ga 304 Stainless | NSF Listed

Built for the punishing pace of high-volume kitchens, the Regaline series delivers seamless construction, rock-solid stability, and the extra workspace you need to keep dishes moving. This 122" unit combines four deep-drawn bowls with left- and right-hand drainboards—so you can wash, rinse, sanitize, and air-dry in one efficient run.

Key benefits

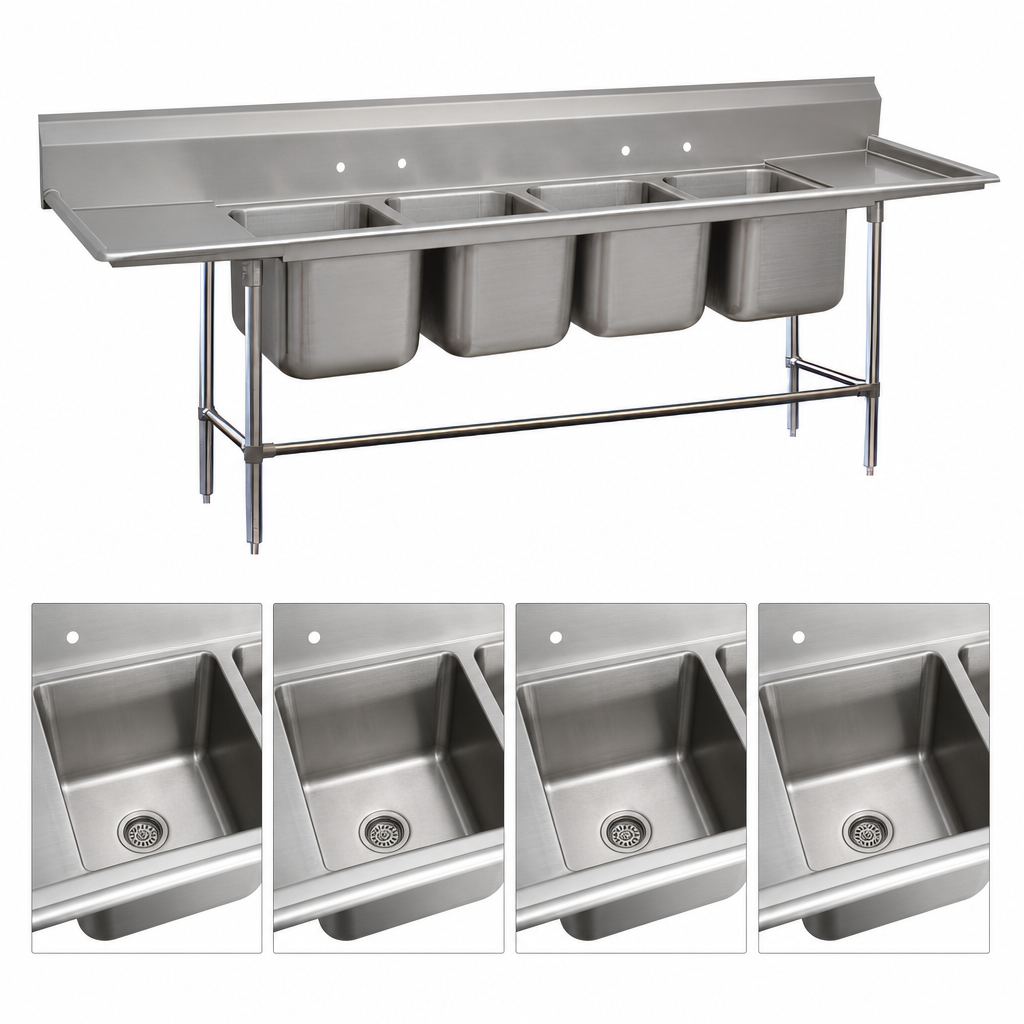

  • Four (4) spacious compartments – 20" front-to-back × 16" wide × 14" deep with sanitary 3" corner radius.
  • One-piece TIG-welded bowls blended to a satin finish for a completely SeaMless work surface.
  • Integrated 11" backsplash with tile edge stops splashes and speeds installation.
  • Dual 24" drainboards slope to the bowls, keeping water off your floor and work area.
  • 1 ⅝" Ø stainless legs with gussets plus adjustable side and front cross-bracing for unmatched rigidity.
  • 1" stainless bullet feet adjust to level the sink on uneven floors.
  • Heavy-duty 14 ga type 304 stainless steel stands up to harsh chemicals and daily abuse.
  • NSF certified for open food-service use.
Specifications
Series / Model Regaline 94-4-72-24RL
Number of Compartments 4
Bowl Inside Dimensions (W × F/B × D) 16" × 20" × 14"
Drainboards (2) × 24" – left & right, with splash
Overall Dimensions 122" L × 28" F/B × ≈44" H (to top of backsplash)
Backsplash Height 11"
Material / Gauge 14 ga type 304 stainless steel
Legs & Bracing 1 ⅝" Ø S/S legs, adjustable front & side cross rails, 1" bullet feet
Drain Openings 1 ½" IPS basket drains (included)
Faucet Holes (2) sets on 8" centers – faucets sold separately
Certifications NSF
Approx. Shipping Weight 275 lb
Heads-up: This sink requires two 8" center deck-mount faucets. Be sure to add compatible faucets before checking out.

Need custom punchings or accessories? Ask about Advance Tabco’s SmartFabrication™ options—reference model 94-4-72-24RL.

Features & Specs

Manufacturer

Advance Tabco

Brand_name

Regaline

Certifications

NSF

Height

45.0in

Width

122.0in

Depth

28.0in

Shipping Weight

275.0lbs

Overall Length

114" - 129"

Base Construction

stainless steel

Sink Depth (rim - drain)

14"

Compartment (front - back)

20"

Compartment Width (side - side)

16"

Drainboards

with left & right-hand drainboards

Top Gauge

14 gauge

Base Type

legs with boxed crossrails

Top Stainless Series

300 series

Splash Height

11"

Specifications

Regaline Sink, 4-compartment, with left & right-hand drainboards, 20" front-to-back x 16"W sink compartments, 14" deep, with 11"H backsplash, stainless steel legs with adjustable left-to-right and front cross rails, 24" drainboards, 1" adjustable bullet feet, 14 gauge 304 stainless steel, overall 28" F/B x 122" L/R, NSF (requires 2 faucets)
