Description

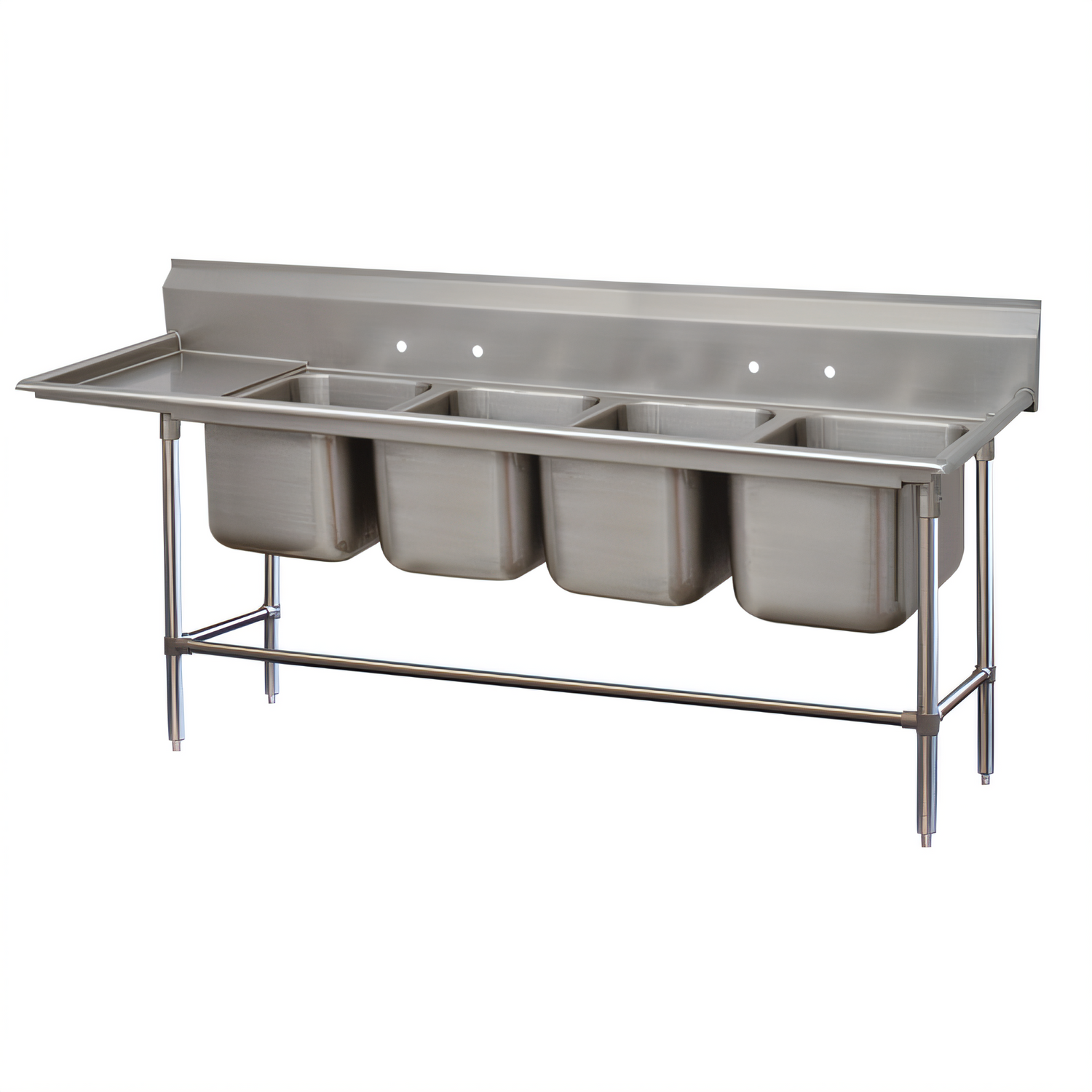

Advance Tabco Regaline 94-4-72-18L 4-Compartment Sink with 18" Left Drainboard

14 ga Type 304 Stainless Steel • 96" W × 28" D • NSF Listed

Built for busy commercial kitchens, the Regaline 94-Series delivers rock-solid durability, generous bowl capacity, and a seamless one-piece design that simplifies cleaning and sanitation.

Why it works in your kitchen

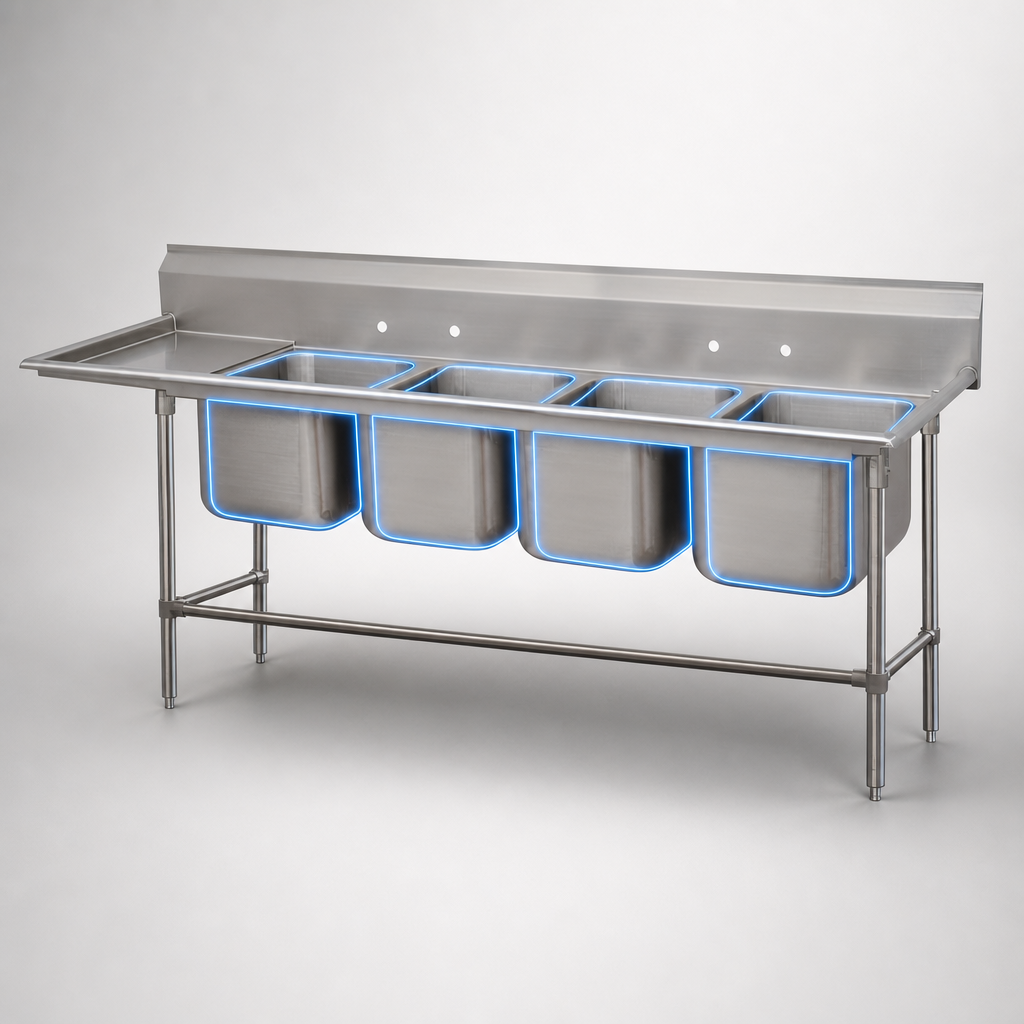

  • Four deep-drawn bowls measure 16" L × 20" F/B × 14" D—ideal for heavy pots, sheet pans, and ware-washing rotation.
  • Integrated 18" left-hand drainboard with pitched surface quickly channels water back to the sink.
  • 11" high backsplash with 2" return and tile edge keeps moisture off walls and speeds installation.
  • Heavy-duty 14 gauge Type 304 stainless steel resists corrosion and dents in high-volume environments.
  • TIG-welded construction; welds are ground smooth to a satin finish for a hygienic, snag-free surface.
  • 1 5/8" Ø stainless legs with adjustable side & front cross-bracing add rigidity without blocking the floor drain.
  • 1" stainless bullet feet level the unit on uneven floors.
  • Large 3" radius bowl corners promote thorough, fast cleaning.
  • Pre-punched 8"-on-center faucet holes (two sets) support dual splash-mount faucets (required, sold separately).
  • Includes four 1 1/2" IPS stainless basket drains; NSF certified for food-service sanitation.
Technical specifications
Overall dimensions 96" L × 28" F/B × 44" H (to top of backsplash)
Sink compartments (4) – 16" L × 20" F/B × 14" D
Drainboard 18" L, left side
Backsplash 11" H with 2" return
Material / gauge 14 ga Type 304 stainless steel (sink, drainboard & backsplash)
Legs & bracing 1 5/8" Ø stainless legs with adjustable left-right & front cross-rails; 1" bullet feet
Drains (4) 1 1/2" IPS basket drains (included)
Faucet mounts (2) sets of 8"-on-center holes – requires two faucets (not included)
Approx. weight 202 lb
Certifications NSF
Installation note: Hot & cold water supplies are 1/2" IPS. Professional installation and adherence to local plumbing codes are recommended.

Need compatible faucets, pre-rinse units, or cutting boards? Browse our Accessories collection or contact us for expert assistance.

Features & Specs

Manufacturer

Advance Tabco

Brand_name

Regaline

Certifications

NSF

Height

45.0in

Width

96.0in

Depth

28.0in

Shipping Weight

202.0lbs

Compartment Width (side - side)

16"

Base Construction

stainless steel

Sink Depth (rim - drain)

14"

Compartment (front - back)

20"

Top Gauge

14 gauge

Top Stainless Series

300 series

Base Type

legs with boxed crossrails

Drainboards

with left-hand drainboard

Overall Length

75" - 97"

Splash Height

11"

Specifications

Regaline Sink, 4-compartment, with left-hand drainboard, 20" front-to-back x 16"W sink compartments, 14" deep, with 11"H backsplash, stainless steel legs with adjustable left-to-right and front cross rails, 18" drainboard, 1" adjustable bullet feet, 14 gauge 304 stainless steel, overall 28" F/B x 96" L/R, NSF (requires 2 faucets)
