Advance Tabco  |  Regaline  |  SKU: 94-3-54-36RL  |  UPC: 747545110305

Advance Tabco 94-3-54-36RL Regaline Compartment Sinks

$4,893.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Installation manual Plumbing
Related Searches
Compartment Sinks Sinks & Handwashing Stations

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

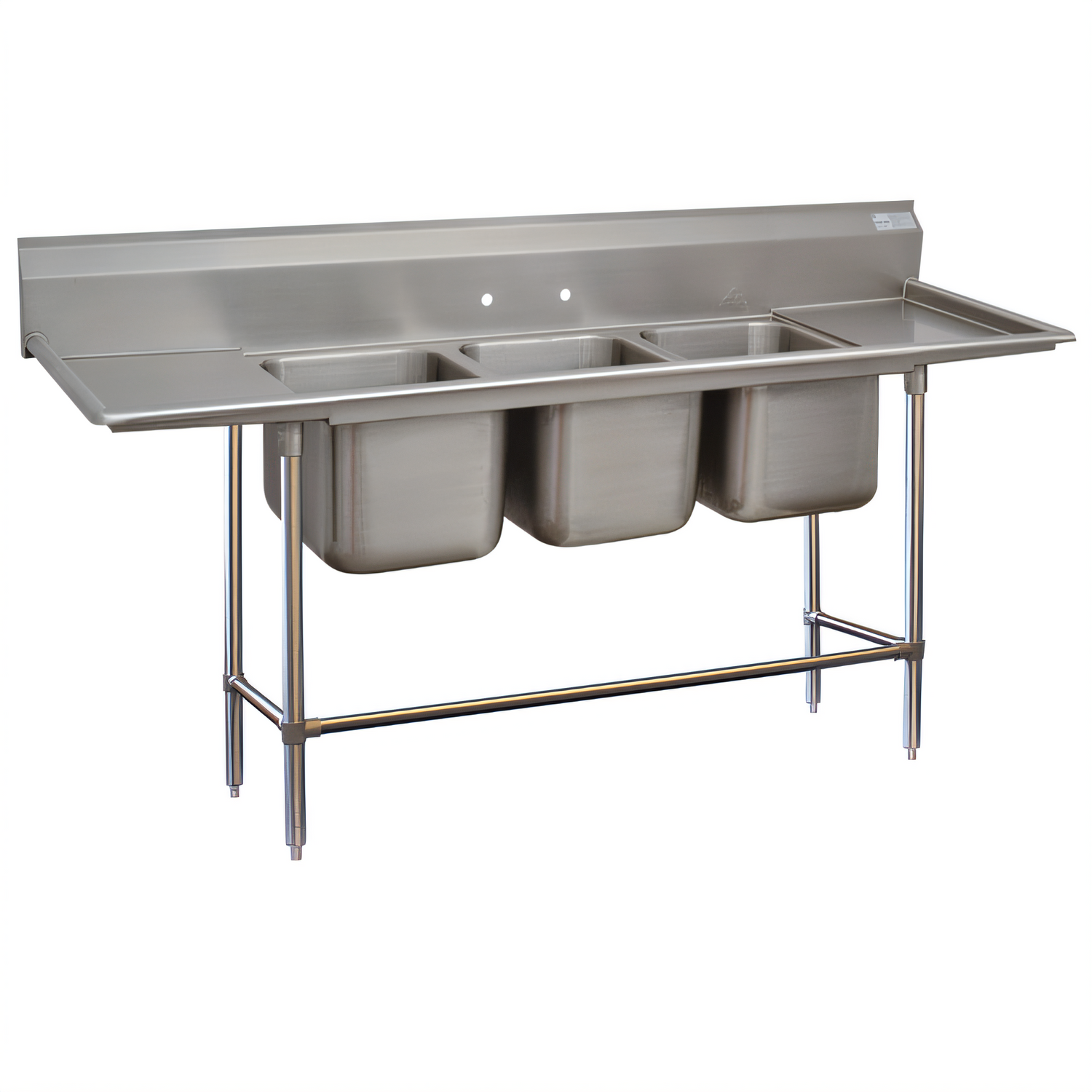

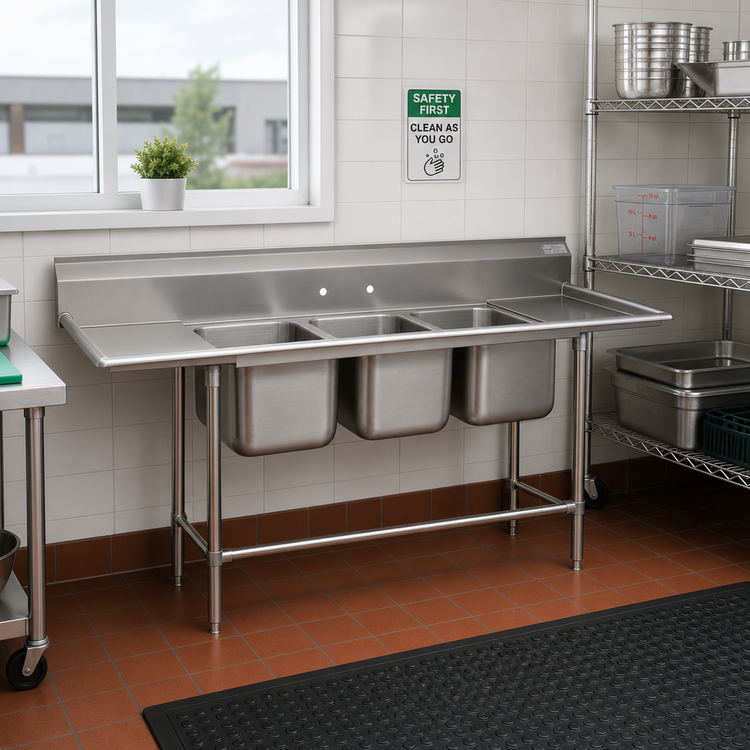

Advance Tabco Regaline 94-3-54-36RL 3-Compartment Sink with Dual 36" Drainboards

14 ga. 304 Stainless Steel  |  16" × 20" × 14" Bowls  |  127" Wide

Engineered for nonstop commercial use, the Regaline 94-Series sink features seamless TIG-welded construction, extra-long dual drainboards, and heavy-gauge stainless steel that stands up to the busiest dishrooms.

Key Advantages

  • Spec-Line strength – fabricated from rugged 14 ga. type 304 stainless.

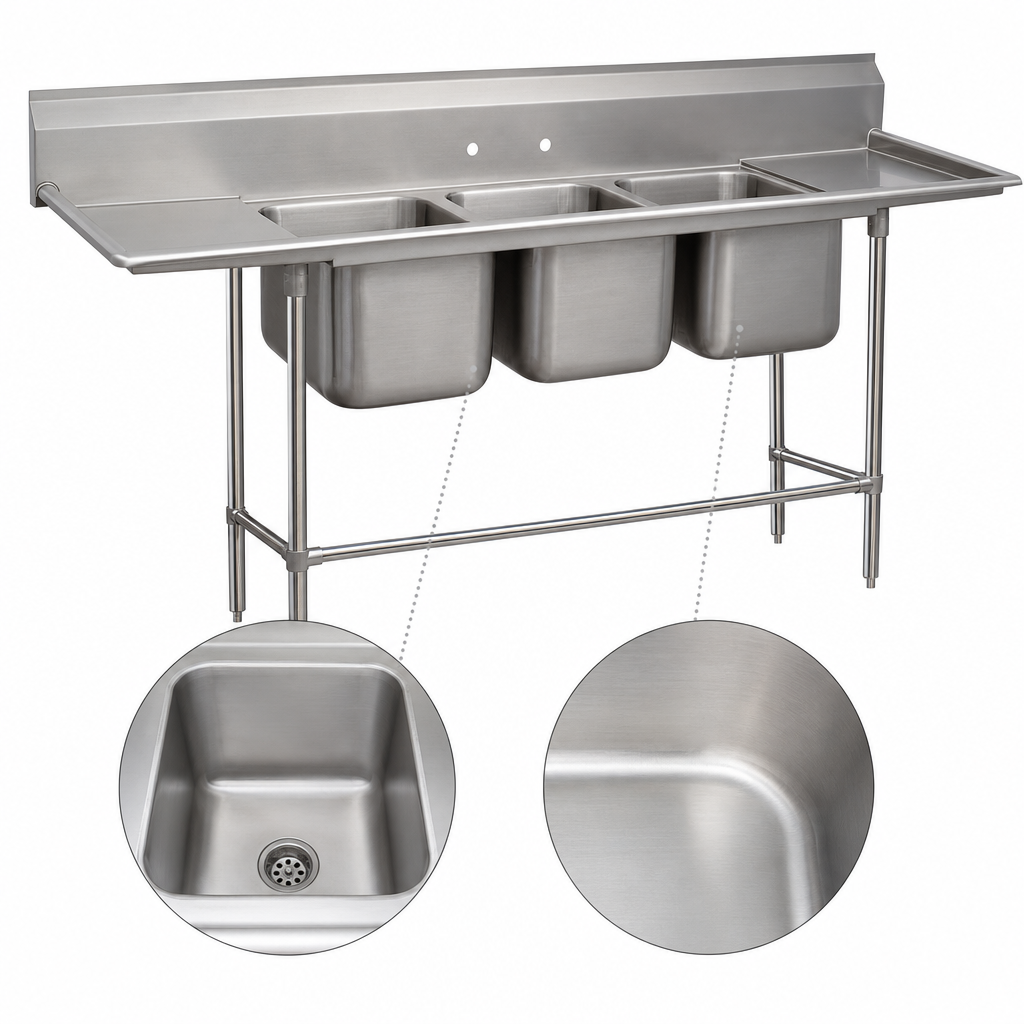

  • Seamless deep-drawn bowls with generous 3" coved corners for fast, hygienic cleanup.
  • 11" high backsplash with sanitary tile edge protects walls and speeds installation.
  • Two spacious 36" drainboards (left & right) provide a full 6 ft. of landing area.
  • 1 5⁄8" Ø stainless legs with adjustable side and front cross rails—plus two extra drainboard legs—for rock-solid stability.
  • 1" stainless bullet feet level the sink quickly on uneven floors.
  • (3) 1 ½" IPS basket drains included; faucet holes punched on 8" centers.
  • NSF listed for open foodservice use.

Specifications

Series / Model Regaline 94 Series – 94-3-54-36RL
Compartments 3
Bowl Interior (each) 16" W × 20" F/B × 14" D
Drainboards 36" left & right with splash
Overall Dimensions 127" W × 28" D × 34" H to rim (45" to top of backsplash)
Backsplash Height 11"
Construction All TIG-welded; welds blended to a satin finish
Material / Gauge 14 ga. type 304 stainless steel
Legs & Bracing 1 5⁄8" Ø S/S legs, adjustable side & front cross rails, 1" bullet feet
Drain Fittings (3) 1 ½" IPS basket strainers (centered in bowls)
Faucet Mount 8" centers, ½" IPS inlets (faucet not included)
Approx. Shipping Weight 275 lb
Certifications NSF

Perfect For

  • High-volume restaurant & hotel kitchens
  • School cafeterias and commissaries
  • Food manufacturing & prep areas requiring large drainboard capacity
Please note: Faucet, overflow assemblies, and all supply/drain plumbing are sold separately. Images may show optional accessories.

Features & Specs

Manufacturer

Advance Tabco

Brand_name

Regaline

Certifications

NSF

Height

45.0in

Width

127.0in

Depth

28.0in

Shipping Weight

275.0lbs

Top Stainless Series

300 series

Base Type

legs with boxed crossrails

Top Gauge

14 gauge

Sink Depth (rim - drain)

14"

Overall Length

109" - 170"

Compartment (front - back)

20"

Base Construction

stainless steel

Compartment Width (side - side)

16"

Drainboards

with left & right-hand drainboards

Splash Height

11"

Specifications

Regaline Sink, 3-compartment, with left & right-hand drainboards, 20" front-to-back x 16"W sink compartments, 14" deep, with 11"H backsplash, stainless steel legs with adjustable left-to-right and front cross rails, 36" drainboards, 1" adjustable bullet feet, 14 gauge 304 stainless steel, overall 28" F/B x 127" L/R, NSF
