Advance Tabco 94-3-54-36R Regaline Compartment Sinks

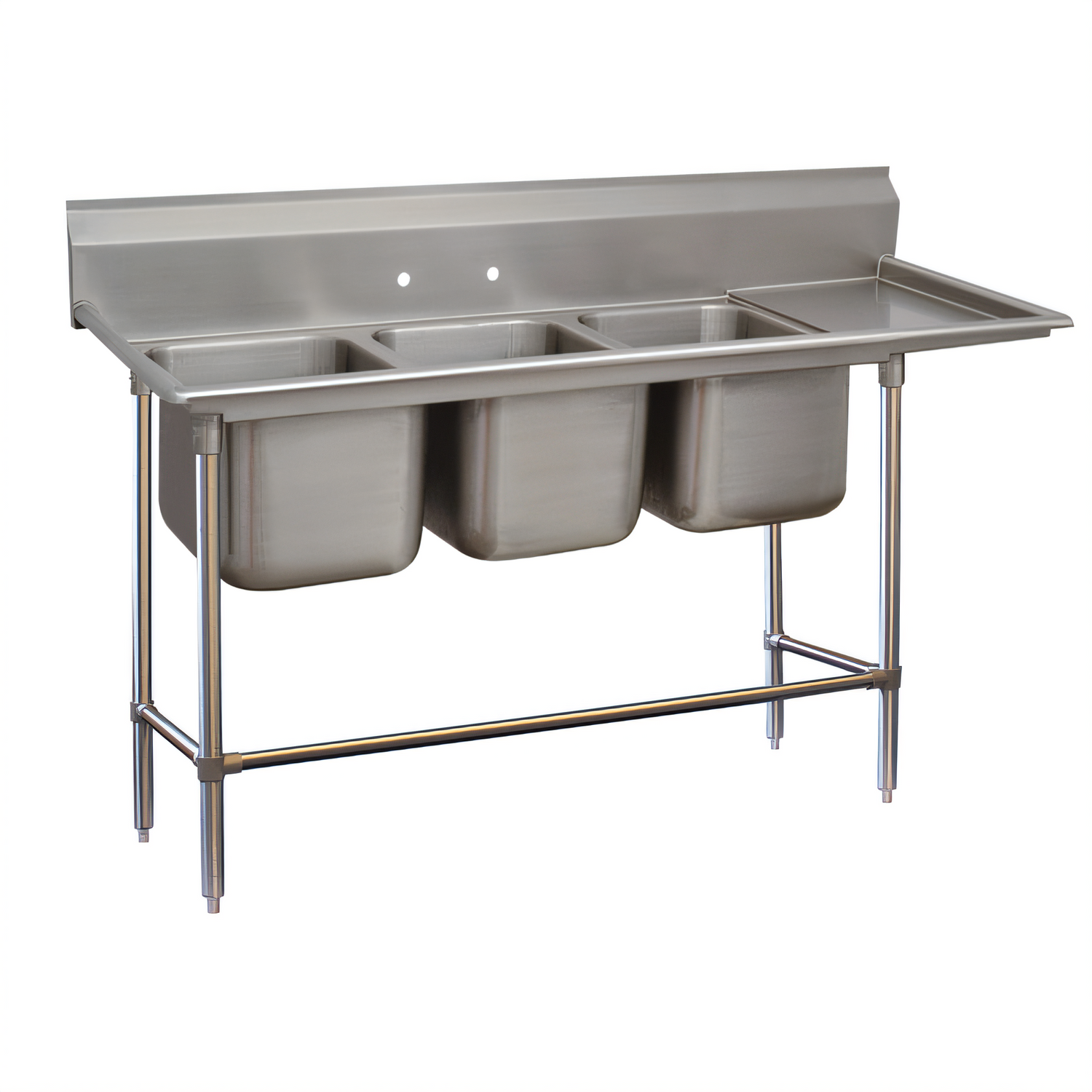

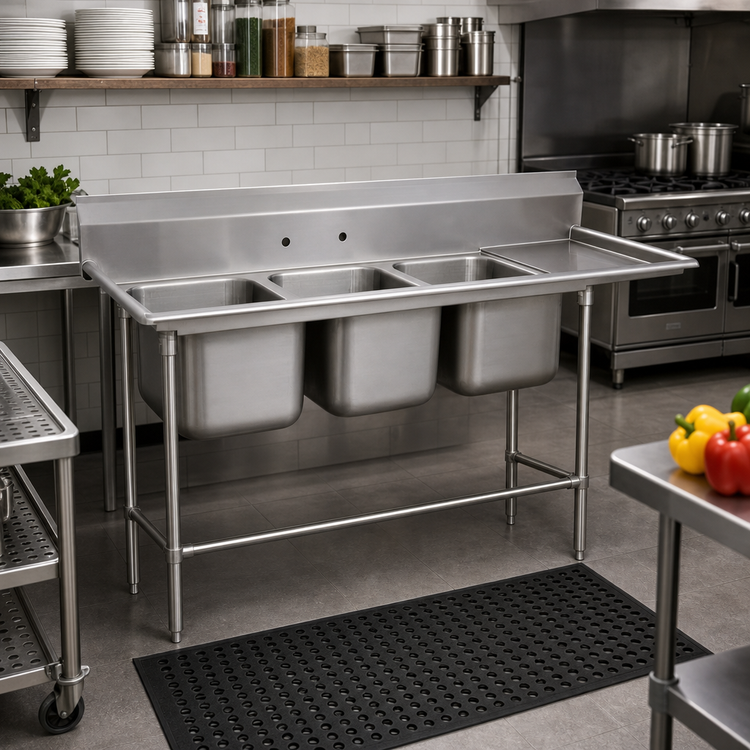

Advance Tabco Regaline 94-3-54-36R 3-Compartment Sink with 36" Right Drainboard

Give your dishroom the strength and workflow it deserves. The Regaline 94 Series combines extra-thick 14-gauge 304 stainless steel with seamless deep-drawn bowls, an oversize drainboard and rock-solid leg bracing — all NSF-listed and ready to power through the toughest shifts.

Key Features

• (3) bowls — 20" front-to-back × 16" wide × 14" deep for sheet pans, stock```html

  Advance Tabco Regaline 94-3-54-36R 3-Compartment Sink with 36" Right Drainboard

  14 ga 304 stainless steel — engineered for high-volume warewashing

  Upgrade your dishroom with heavy-duty construction, spacious 14"-deep bowls and a generous drainboard that keeps workflow moving. The Regaline 94 Series is TIG-welded, NSF-listed and ready for years of dependable service.

  Top Benefits

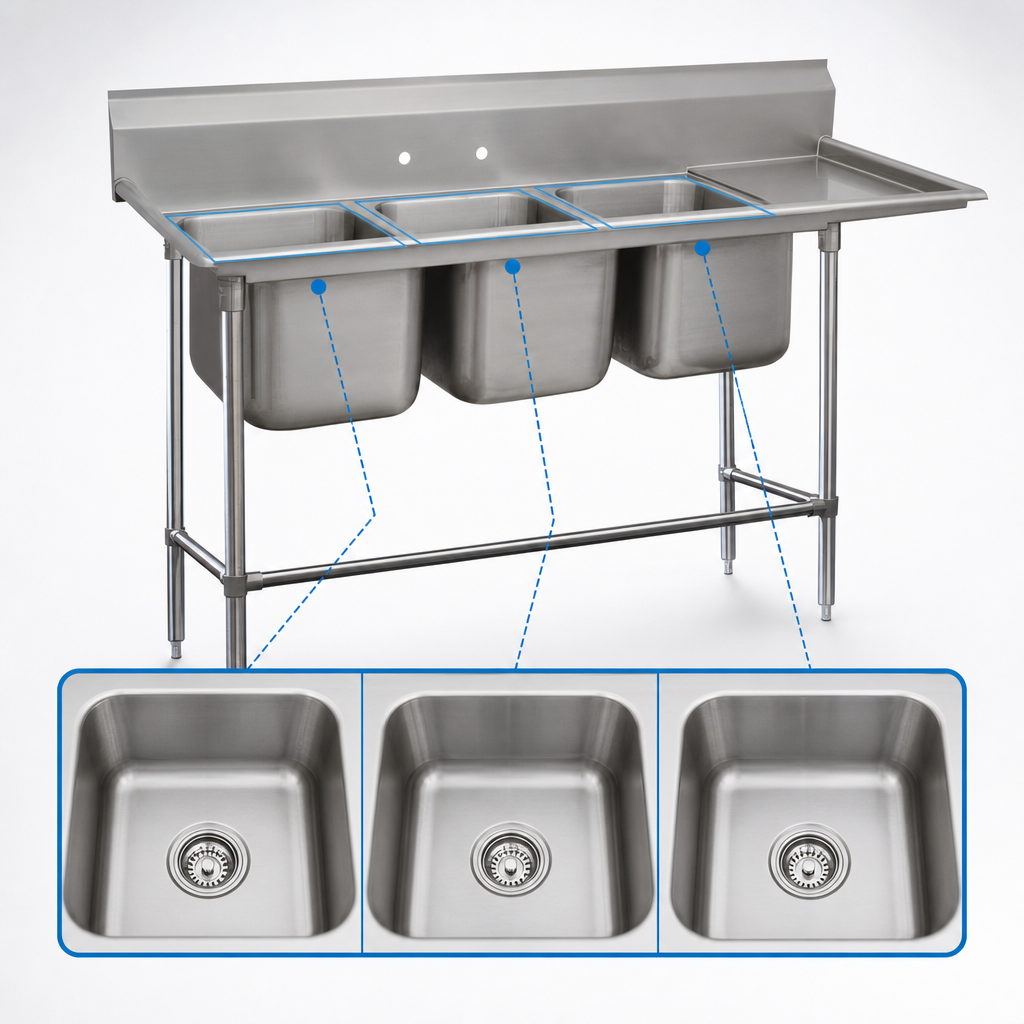

  • Three seamless 20" F/B × 16" W × 14" D bowls with 3" radius corners for fast, hygienic clean-ups.
  • Integrated 36" right-hand drainboard pitched toward the sink; two extra legs supplied for added support.
  • 11" backsplash with 2" return edge deflects water back into the sink and protects walls.
  • (2) sets of pre-punched 8"-on-center faucet holes — ideal for pairing a pre-rinse and standard faucet (fixtures sold separately).
  • All-TIG-welded; welds are ground and polished to a uniform satin finish.
  • 1 ⅝" Ø stainless steel legs with adjustable left-to-right & front cross-bracing and 1" bullet feet.
  • Includes (3) 1 ½" IPS stainless steel basket drains centered in each bowl.
  • Meets NSF standards for food-service sanitation.

  Specifications

  Manufacturer / Series	Advance Tabco Regaline 94 Series
  Model	94-3-54-36R (right-hand drainboard)
  Compartments	3
  Bowl Size (each)	20" F/B × 16" W × 14" D
  Drainboard	36" right side, integrally welded
  Backsplash Height	11"
  Overall Dimensions	96" L × 28" D × 44" H (to top of backsplash)
  Material & Gauge	14-gauge type 304 stainless steel
  Faucet Holes	(2) sets, 8" centers, 1 ⅛" Ø
  Drains	(3) 1 ½" IPS S/S basket drains (included)
  Legs & Feet	1 ⅝" Ø S/S legs, adjustable side & front cross-braces, 1" bullet feet
  Certifications	NSF

  Built-in Advantages

  • 14-gauge top — 59 % thicker than 18-gauge economy sinks, resisting dents and flexing.
  • Deep-drawn bowls eliminate interior seams, reducing bacteria harborage points.
  • Adjustable cross-rails slide to clear plumbing, floor drains or other obstacles.
  • Compatible with Advance Tabco Smart Fabrication™ accessories like cutting boards and sink covers.

  Note: Faucets, pre-rinse units and accessories are shown for illustration only and are sold separately.
