Advance Tabco  |  Regaline  |  SKU: 94-3-54-24L  |  UPC: 747545110251

Advance Tabco 94-3-54-24L Regaline Compartment Sinks

$4,311.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options

Documents

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

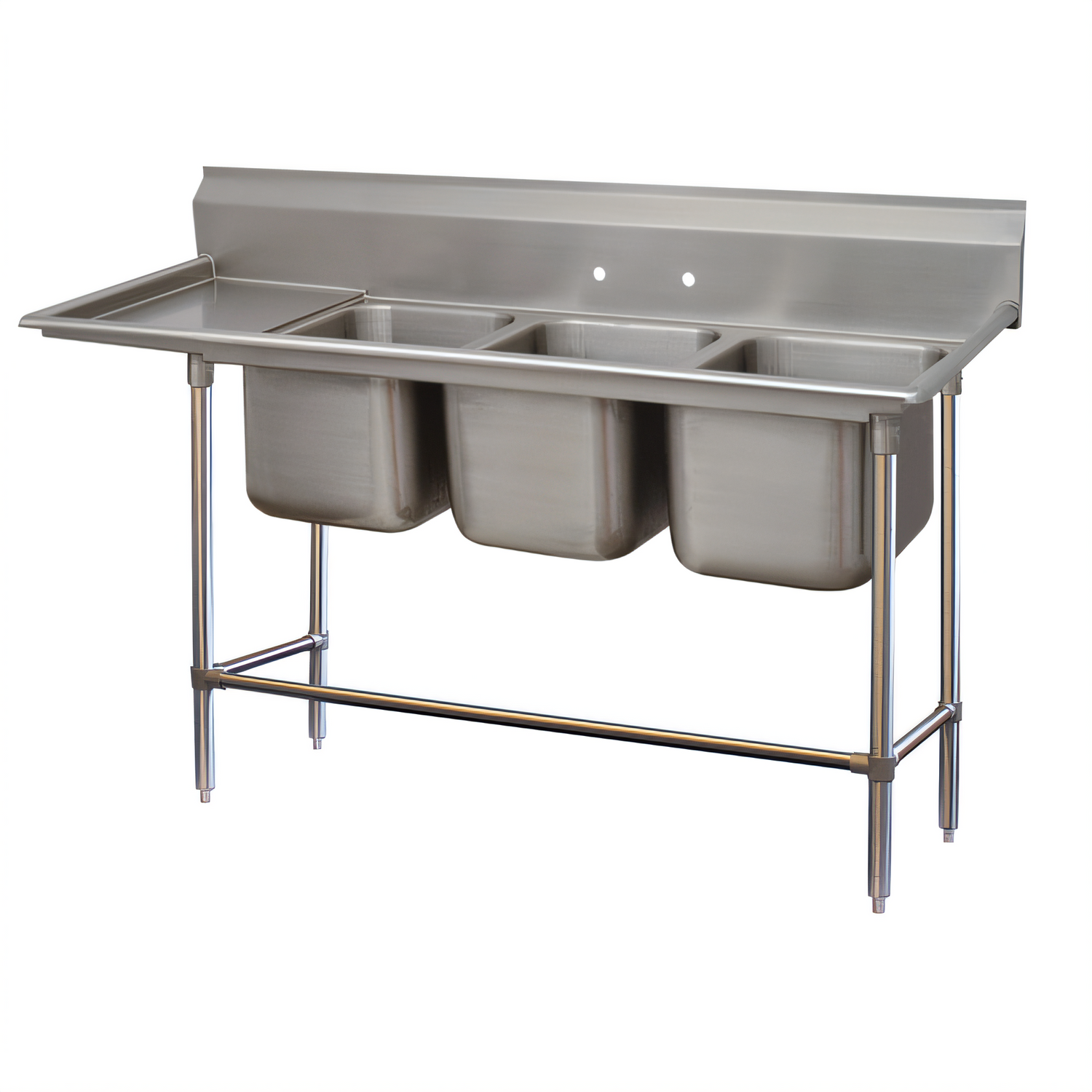

Advance Tabco Regaline 94-3-54-24L | 3-Compartment Sink w/ 24" Left-Hand Drainboard

14 ga Type 304 Stainless Steel • 16" W x 20" F/B x 14" D Bowls • 84" L x 28" D Overall

Engineered for the heavy-duty demands of commercial kitchens, the Advance Tabco Regaline 94-3-54-24L delivers rock-solid durability, generous work space, and true “SeaM less!” hygiene. Deep-drawn bowls, an extra-thick 14-gauge body, and fully TIG-welded construction make this NSF-listed sink a long-term investment that keeps your ware-washing line moving shift after shift.

Why You’ll Love It

  • Three roomy 16" x 20" bowls handle separate wash, rinse & sanitize tasks without cross-contamination.
  • 14-gauge type 304 stainless steel resists corrosion, dents, and harsh ware-washing chemicals.
  • 24" left-hand drainboard with positive drain pitch speeds drying and staging of clean wares.
  • 11" integrally formed backsplash with tile edge simplifies wall sealing and contains splashes.
  • Adjustable front & side cross-bracing stabilizes the frame under heavy loads.
  • 1 5/8" Ø stainless steel legs with 1" bullet feet level the unit on uneven floors.

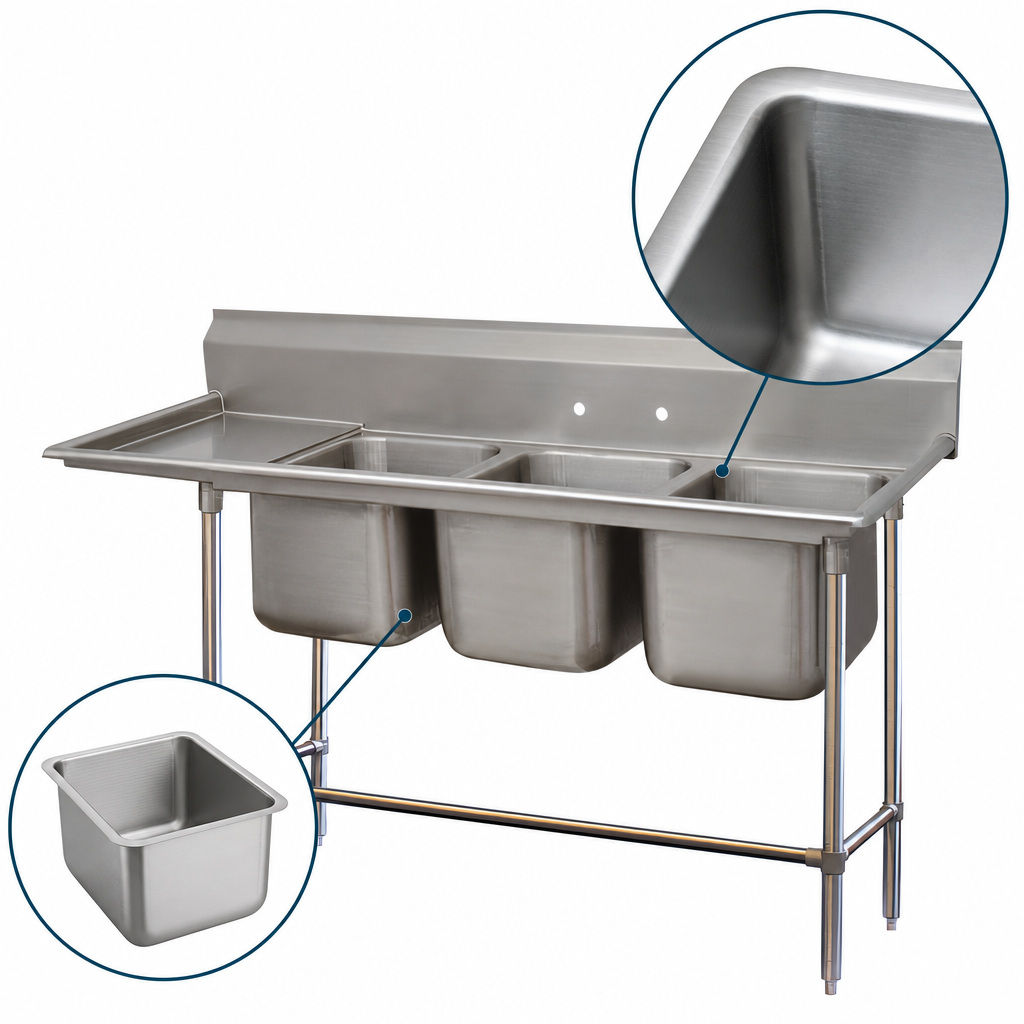

  • Deep-drawn bowls with smooth 3" radius corners clean up fast and meet tough sanitation codes.
  • Pre-punched 8" O.C. faucet holes—just add the faucet that suits your workflow (sold separately).
  • (3) 1 1/2" IPS stainless steel basket drains included for plug-and-play installation.

Technical Specs

Model 94-3-54-24L (left-hand drainboard)
Compartments 3
Bowl Size (W x F/B x Depth) 16" x 20" x 14"
Drainboard Length 24" (left side)
Backsplash Height 11"
Overall Dimensions (L x D) 84" x 28"
Material / Gauge 14 ga 304 stainless steel
Legs & Feet 1 5/8" Ø S/S legs, adjustable bullet feet
Faucet Holes (2) holes on 8" centers, 1 1/8" Ø
Drain Connection 1 1/2" IPS per bowl (basket strainers included)
Certifications NSF Listed
Shipping Weight ≈ 222 lb

Ideal Applications

  • High-volume restaurants & hotel kitchens
  • Catering commissaries & ghost kitchens
  • School, hospital & corporate cafeterias
  • Breweries, bars & taprooms
• Faucet, supply lines, and trap are sold separately.
• Some assembly required (legs & cross-braces ship knocked down).
• Need custom modifications? Ask about Advance Tabco Smart Fabrication™.

Features & Specs

Manufacturer

Advance Tabco

Brand_name

Regaline

Certifications

NSF

Height

45.0in

Width

84.0in

Depth

28.0in

Shipping Weight

222.0lbs

Overall Length

73" - 84"

Drainboards

with left-hand drainboard

Top Gauge

14 gauge

Base Type

legs with boxed crossrails

Top Stainless Series

300 series

Sink Depth (rim - drain)

14"

Base Construction

stainless steel

Compartment (front - back)

20"

Compartment Width (side - side)

16"

Splash Height

11"

Specifications

Regaline Sink, 3-compartment, with left-hand drainboard, 20" front-to-back x 16"W sink compartments, 14" deep, with 11"H backsplash, stainless steel legs with adjustable left-to-right and front cross rails, 24" drainboard, 1" adjustable bullet feet, 14 gauge 304 stainless steel, overall 28" F/B x 84" L/R, NSF
