Advance Tabco  |  Regaline  |  SKU: 94-3-54-18RL  |  UPC: 747545110244

Advance Tabco 94-3-54-18RL Regaline Compartment Sinks

$4,370.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options

Documents

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

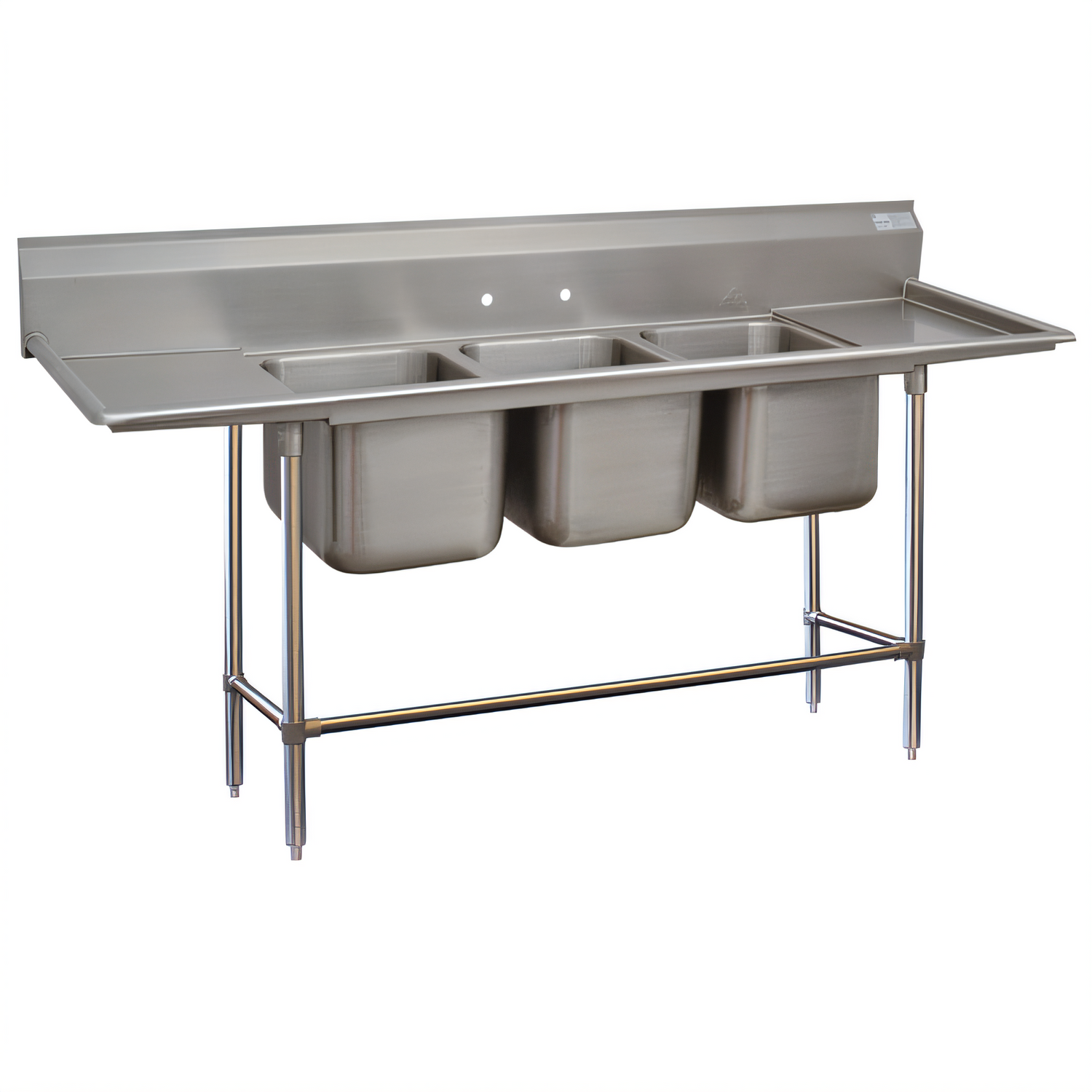

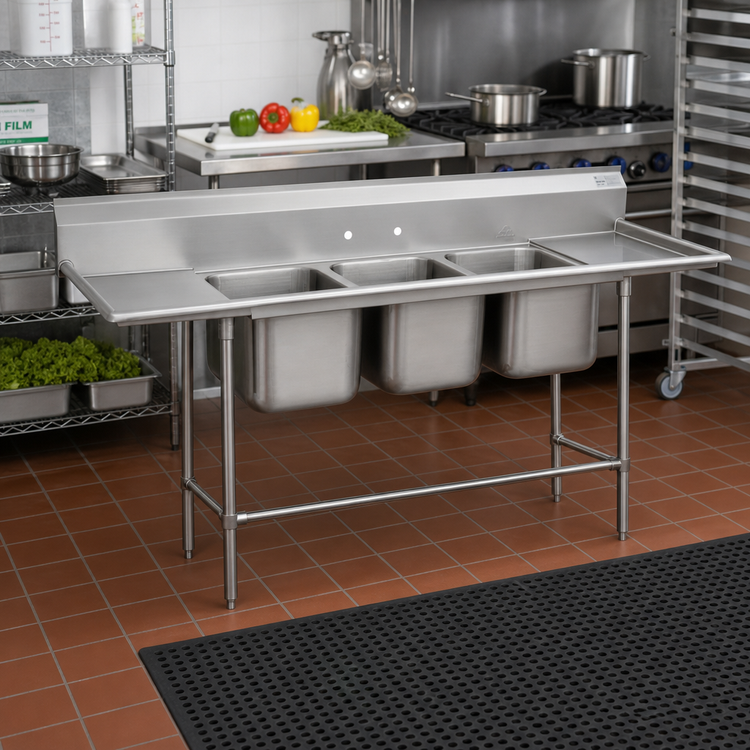

Advance Tabco Regaline 94-3-54-18RL 3-Compartment Sink

14 ga 304 Stainless Steel • Dual 18" Drainboards • NSF Listed

Built for busy prep and ware-washing lines, the Advance Tabco Regaline 94-3-54-18RL delivers rock-solid durability and ergonomic performance in one seamless, TIG-welded package. Three roomy 16" × 20" bowls tackle high-volume cleaning, while 18" drainboards on both ends speed up drying and staging. Fabricated from extra-heavy 14 gauge type 304 stainless steel and reinforced with adjustable front & side cross-bracing, this Spec-Line sink is engineered to thrive in the toughest commercial environments.

Why You’ll Love It

  • Spec-Line strength: heavy-duty 14 ga 304 stainless steel resists dents, corrosion and harsh chemicals.

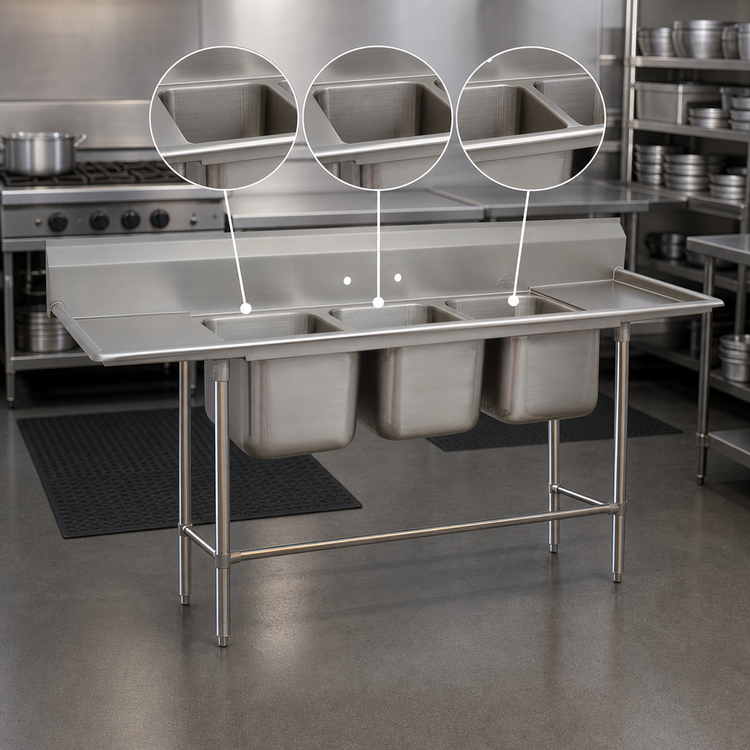

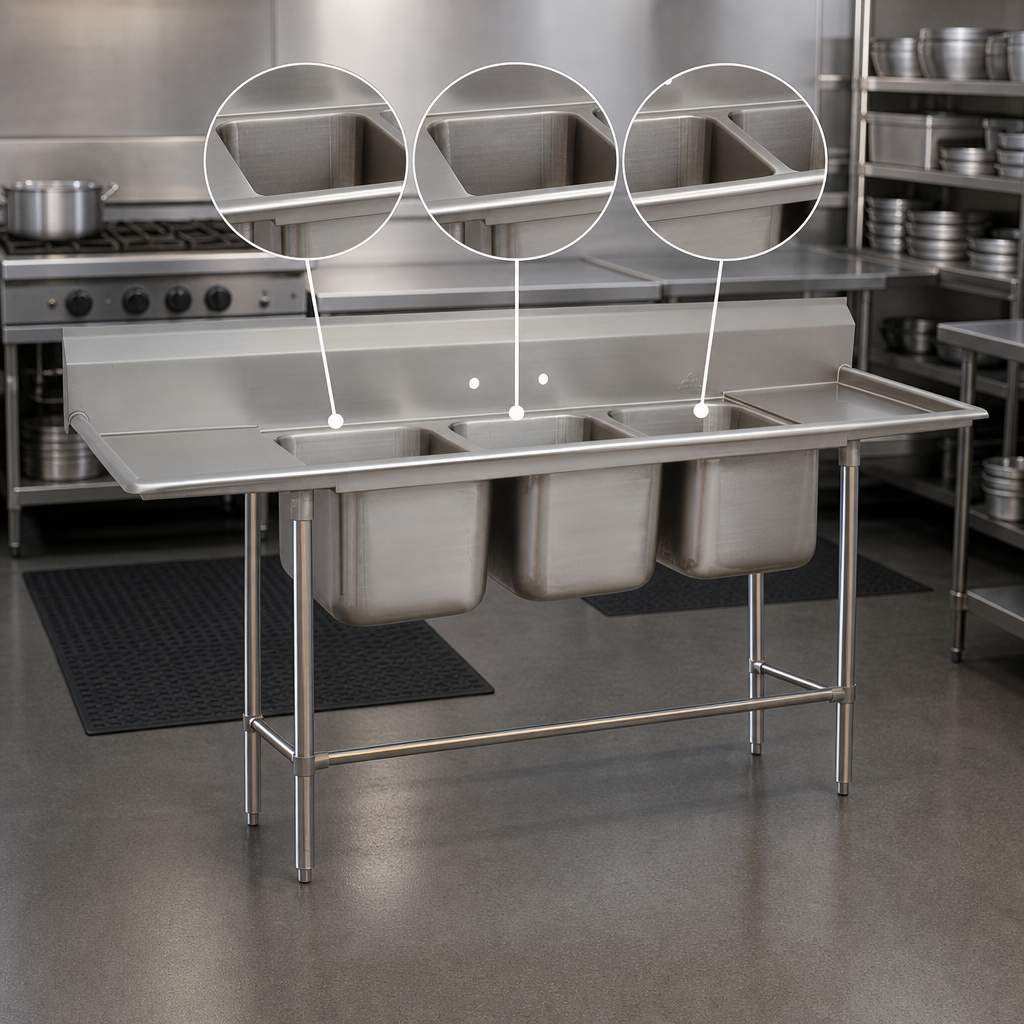

  • Seamless deep-drawn bowls with generous 3" radius corners speed up clean-down and meet the most rigorous sanitation standards.
  • Integrated 11" backsplash with tile edge contains splashes and simplifies wall installation.
  • Dual 18" drainboards feature pitched surfaces and raised backsplash to keep water flowing back to the sink, not your floors.
  • Rock-solid base: 1 5/8" O.D. tubular stainless legs, stainless gussets and adjustable front & side cross rails for unmatched rigidity.
  • 1" adjustable bullet feet level the unit quickly on uneven floors.
  • NSF certified and fully TIG-welded with satin-finished seams for a professional, food-safe appearance.

At-a-Glance Specs

Manufacturer / Series Advance Tabco Regaline – Spec-Line (94 Series)
Model # 94-3-54-18RL
Compartments 3
Bowl Size (each) 16" W × 20" F/B × 14" D
Drainboards 18" L, left & right
Overall Dimensions 91" L × 28" F/B × 44" H (33" working height + 11" backsplash)
Material & Finish 14 ga type 304 stainless steel, satin finish
Legs / Bracing 1 5/8" tubular S/S legs, stainless gussets, adjustable front & side cross rails
Feet 1" adjustable stainless bullet feet
Drain Assemblies (3) 1 1/2" IPS basket-type drains (included)
Faucet Holes (1) set of 8"-O.C. holes per bowl (3 total) – faucets sold separately
Certifications NSF
Shipping Weight Approx. 230 lb

Supply connections: 1/2" IPS hot & cold • Waste line: 1 1/2" IPS • Check the spec sheet in the image carousel for recommended rough-in locations.

Heads-up: Faucets, cutting boards and sink covers are not included. Add them from our Compatible Accessories section to complete your install.

Features & Specs

Manufacturer

Advance Tabco

Brand_name

Regaline

Certifications

NSF

Height

45.0in

Width

91.0in

Depth

28.0in

Shipping Weight

230.0lbs

Top Stainless Series

300 series

Overall Length

85" - 96"

Top Gauge

14 gauge

Base Type

legs with boxed crossrails

Drainboards

with left & right-hand drainboards

Sink Depth (rim - drain)

14"

Base Construction

stainless steel

Compartment (front - back)

20"

Compartment Width (side - side)

16"

Splash Height

11"

Specifications

Regaline Sink, 3-compartment, with left & right-hand drainboards, 20" front-to-back x 16"W sink compartments, 14" deep, with 11"H backsplash, stainless steel legs with adjustable left-to-right and front cross rails, 18" drainboards, 1" adjustable bullet feet, 14 gauge 304 stainless steel, overall 28" F/B x 91" L/R, NSF
