Advance Tabco  |  SKU: 94-24-80-24RL

Advance Tabco 94-24-80-24RL Compartment Sinks

$6,141.00
Delivered by , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Plumbing Installation manual
Related Searches
Compartment Sinks Sinks & Handwashing Stations

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

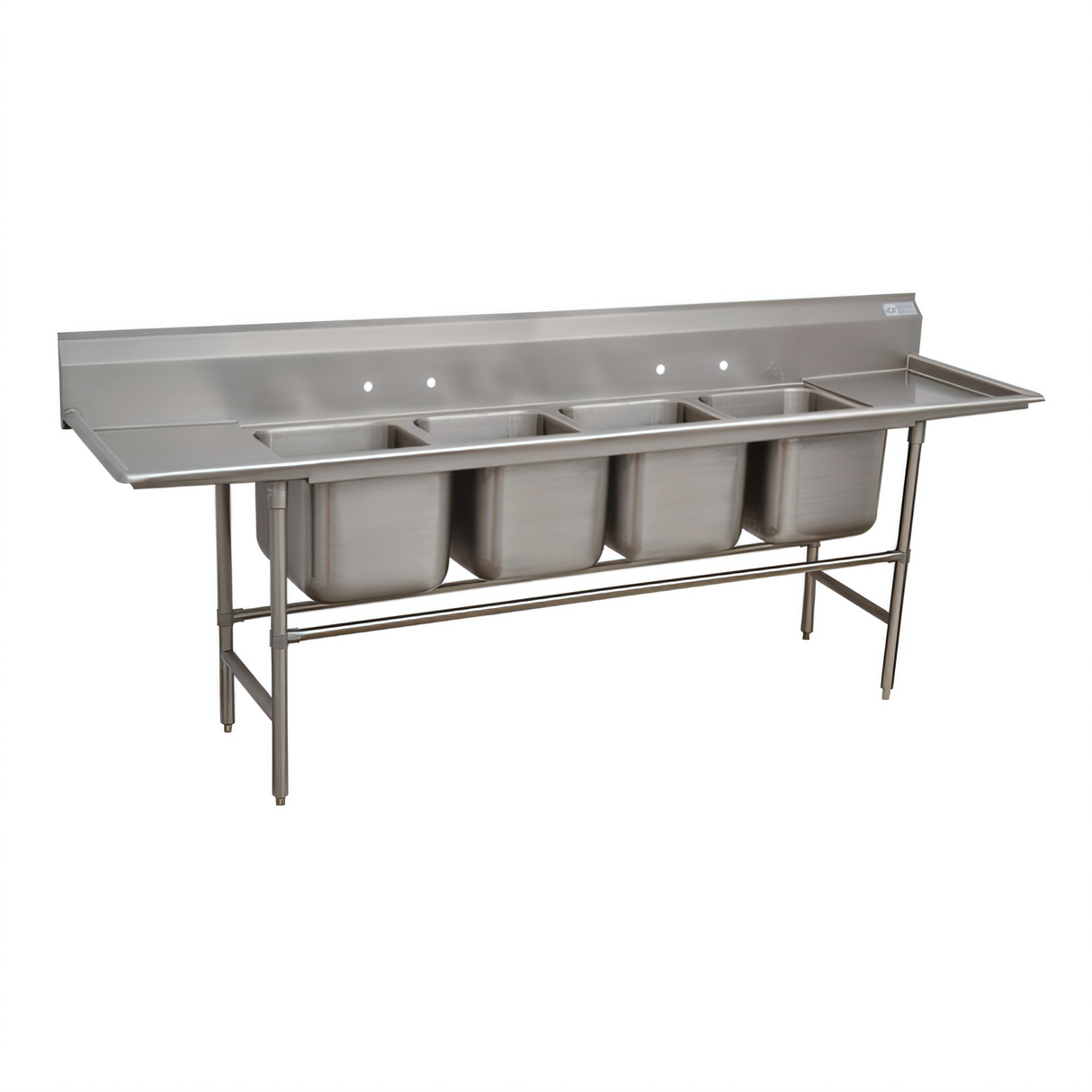

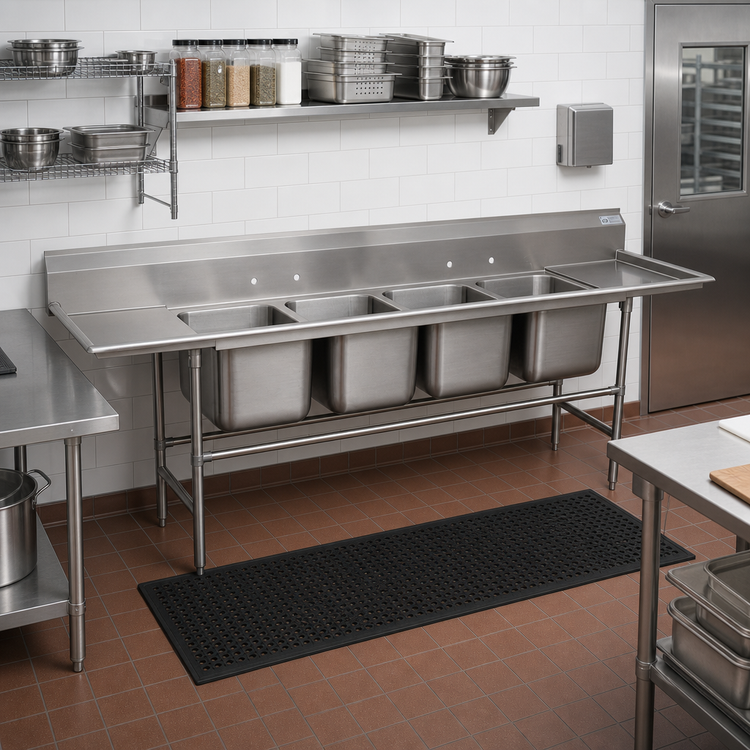

Advance Tabco 94-Series “Regaline” 4-Compartment Sink • Dual 24″ Drainboards

Model 94-24-80-24RL | 138″ L x 27″ F/B | NSF Listed

Built for the daily grind of high-volume kitchens, this heavy-duty Regaline sink combines four roomy 20″ x 20″ x 14″ bowls with full-size drainboards on both ends. Premium 14 gauge 304 stainless steel, all-TIG-welded construction and rock-solid cross-bracing deliver a lifetime of worry-free service.

Key Features

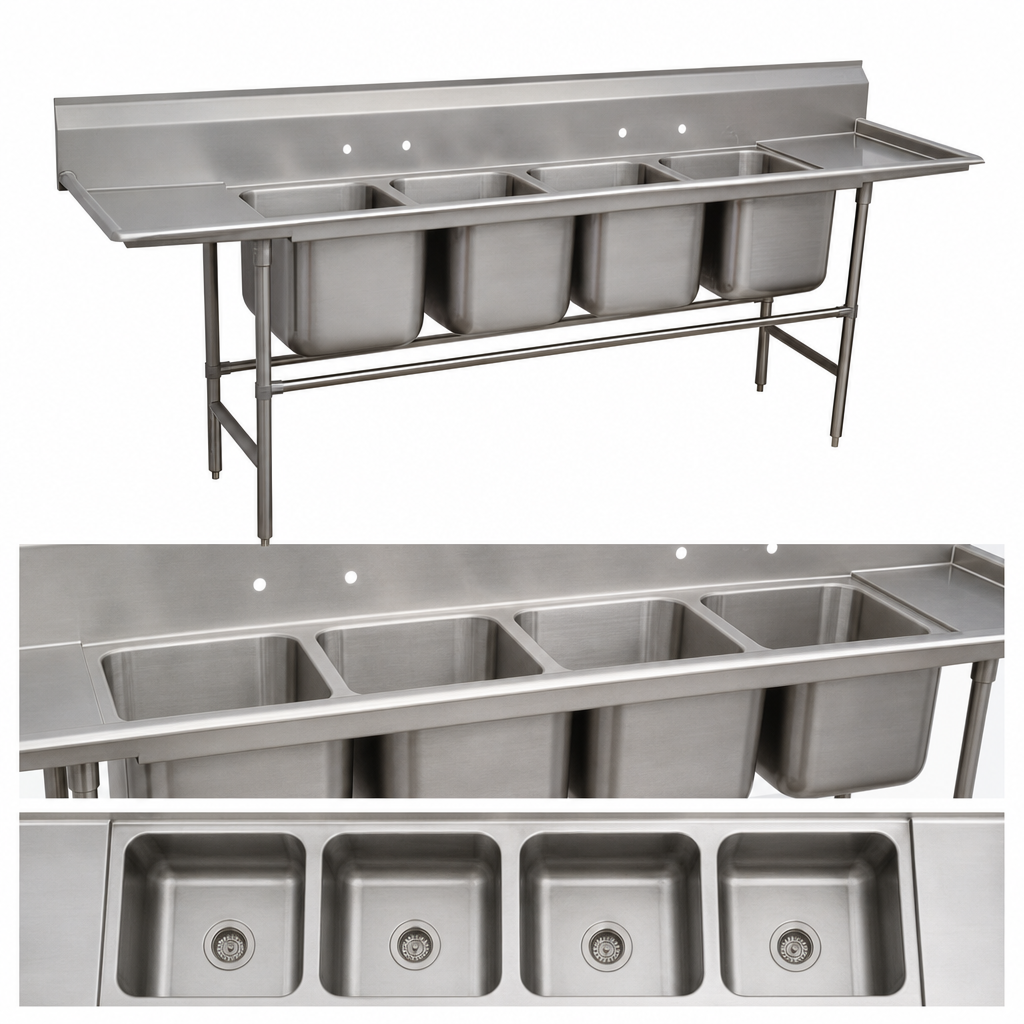

  • Four 20″ F/B x 20″ W x 14″ D bowls—deep enough for pots, sheet pans & bulk ware.
  • Dual 24″ drainboards (left & right) with integrated splash for efficient rinse-and-rest workflow.
  • 14 ga. type 304 stainless steel top and bowls—our thickest, most durable gauge.
  • One-piece deep-drawn bowls with 11″ coved backsplash and sanitary 3″ radius corners.
  • 1 ⅝″ Ø tubular S/S legs with welded front-to-rear braces & adjustable side cross-rails.
  • 1″ adjustable stainless bullet feet for quick leveling.
  • Pre-punched 8″ O.C. faucet holes; ships with (4) 1 ½″ IPS basket drains.
  • NSF certified for food-service sanitation.

Specifications

Series / Gauge Regaline 94 Series  | 14 ga. 304 S/S
Compartments 4
Interior Bowl Size (each) 20″ L × 20″ W × 14″ D
Drainboards Two × 24″ (left & right)
Overall Dimensions 138″ L × 27″ F/B × ≈44″ H (to top of backsplash)
Backsplash Height 11″ with tile-edge top
Faucet Mount Deck, 8″ on-center (two faucets required, not included)
Drains 1 ½″ IPS S/S basket strainers (included)
Legs / Bracing 1 ⅝″ Ø S/S legs, welded front-to-rear braces, adjustable side braces
Feet 1″ adjustable stainless bullet feet
Shipping Weight Approx. 312 lb
Certifications NSF

Why Choose 14 Gauge?

  • 40 % thicker than 18 ga.—won’t flex, sag or “oil-can”.
  • Ideal for institutional kitchens, commissaries and heavy pot washing.
  • Lower noise & vibration when loading or spraying ware.
Heads-up: This sink requires two deck-mount faucets (8″ O.C.). Faucets and P-traps are sold separately.

Need custom modifications or pre-installed accessories? Ask us about Advance Tabco’s Smart Fabrication™ options.

Features & Specs

Manufacturer

Advance Tabco

Certifications

NSF

Height

45.0in

Width

138.0in

Depth

27.0in

Shipping Weight

276.0lbs

Sink Depth (rim - drain)

14"

Base Construction

stainless steel

Compartment Width (side - side)

20"

Compartment (front - back)

20"

Top Gauge

14 gauge

Drainboards

with left & right-hand drainboards

Overall Length

130" - 198"

Base Type

legs with front & side crossrails

Top Stainless Series

300 series

Splash Height

11"

Specifications

Regaline Sink, 4-compartment, with left & right-hand drainboards, 20" front-to-back x 20"W sink compartments, 14" deep, with 11"H backsplash, stainless steel legs with welded front-to-rear & adjustable left-to-right cross rails, 24" drainboards, 1" adjustable bullet feet, 14 gauge 304 stainless steel, overall 27" F/B x 138" L/R, NSF (requires 2 faucets)
