Advance Tabco  |  SKU: 94-24-80-24R  |  UPC: 747545110169

Advance Tabco 94-24-80-24R Compartment Sinks

$6,264.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Plumbing Installation manual
Related Searches
4-compartment Sinks Advance Tabco Commercial Plumbing Supplies Commercial Sinks Compartment Sinks Restaurant Equipment Sinks & Handwashing Stations

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

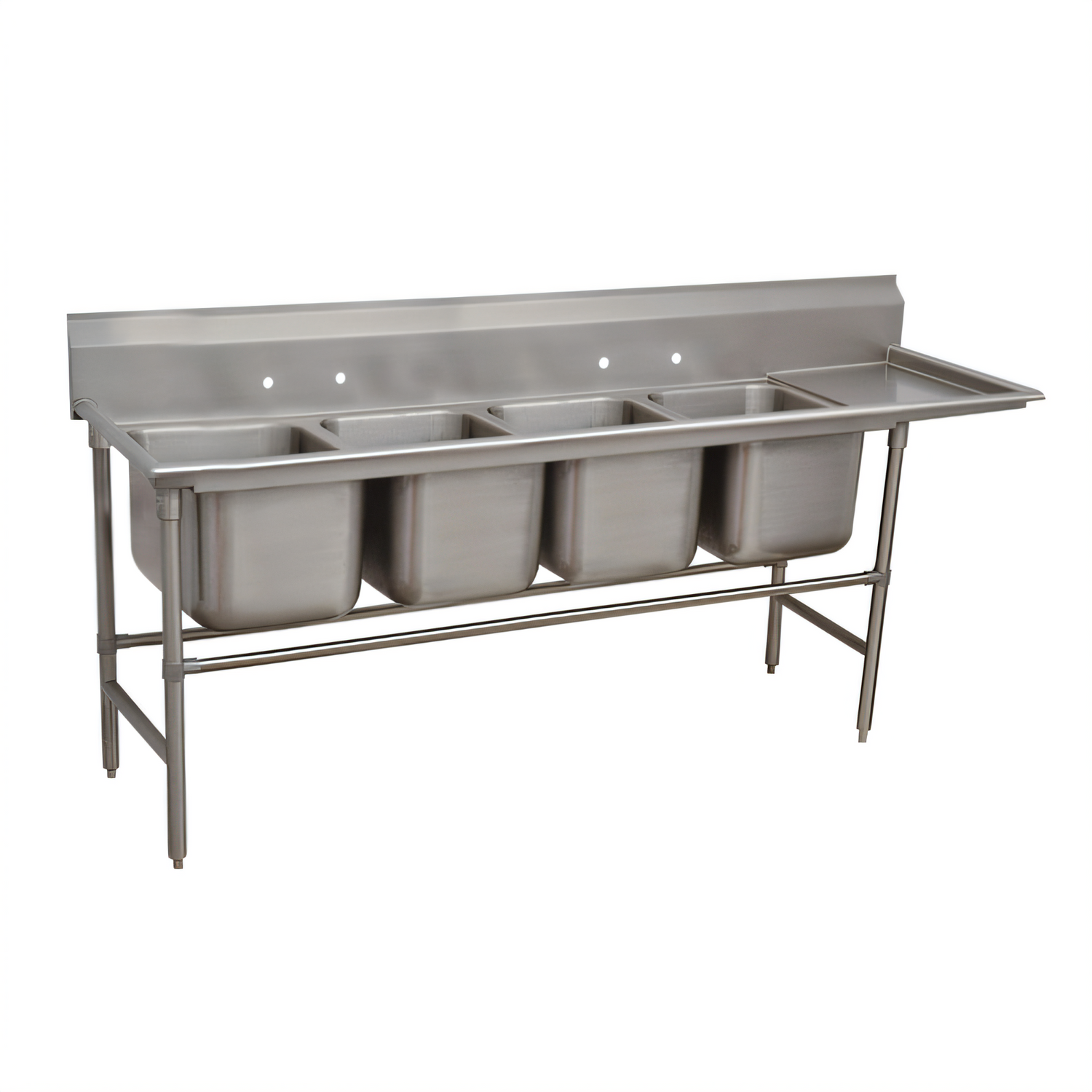

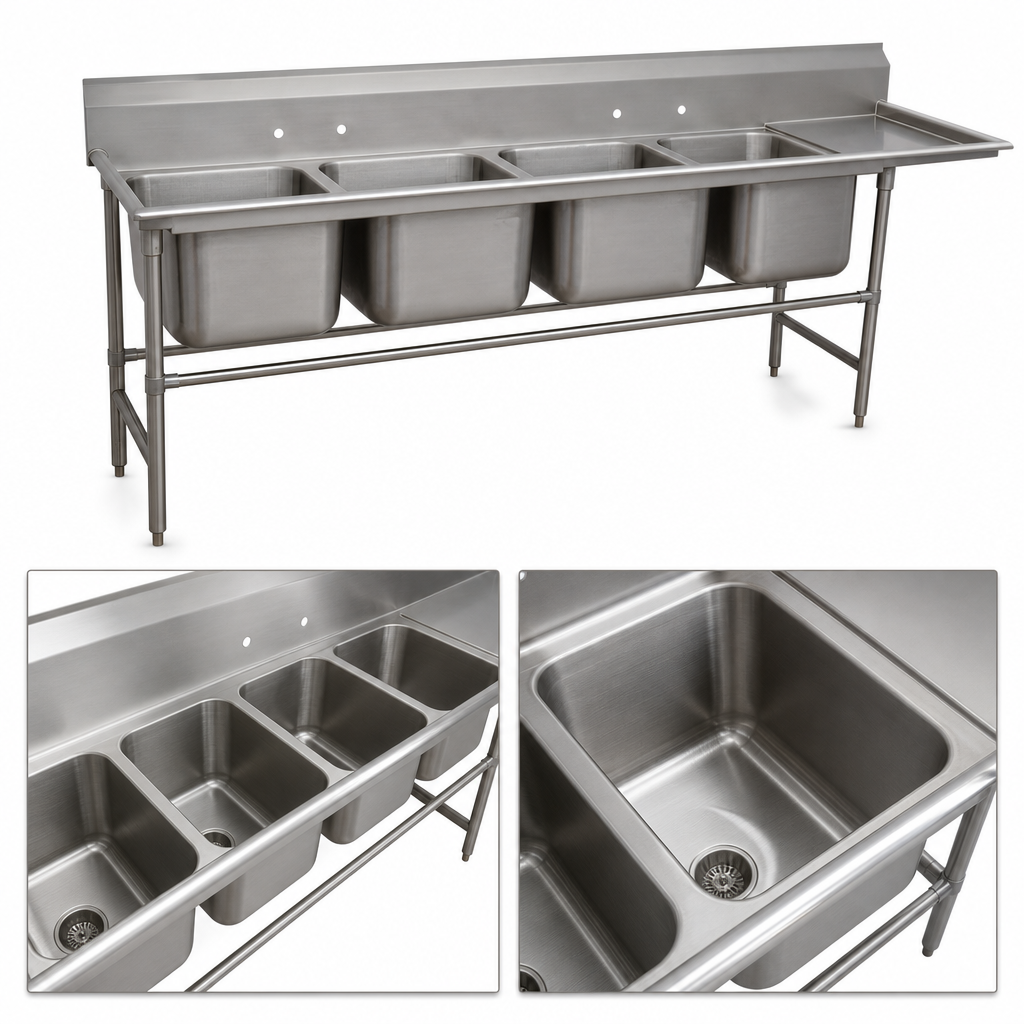

Advance Tabco Regaline 4-Compartment Sink w/ 24" Right Drainboard

Model 94-24-80-24R  |  14 ga Type 304 Stainless Steel  |  NSF Listed

Built to thrive in high-volume food-service environments, this Spec-Line Regaline sink delivers the muscle, capacity, and sanitary performance you need for efficient wash–rinse–sanitize workflows. Heavy-duty 14-gauge stainless steel construction, seamless TIG welds, and an extra-large drainboard make it a long-lasting cornerstone for any commercial kitchen or dishroom.

Key Features

  • Spec-Line 94 Series: rugged 14 ga, 304 stainless steel—stronger and more corrosion-resistant than 16 ga or 18 ga alternatives.
  • Four spacious bowls (20" x 20" x 14" D) with sanitary 3" radiused corners for quick, thorough cleaning.
  • Integral 24" right-hand drainboard with positive pitch and splash guard keeps workflow organized.
  • 11" high backsplash with tile edge provides a snug, watertight wall seal.
  • 1 ⅝" Ø stainless legs with welded front-to-rear & adjustable left-to-right cross rails for superior rigidity.
  • 1" adjustable stainless bullet feet level the unit on uneven floors.
  • Recessed bowl surface accommodates optional Poly-Vance cutting boards & sink covers (sold separately).
  • TIG-welded seams polished to a satin finish for a sleek, professional look.
  • NSF certified for open-kitchen installation.

Specifications

Compartments 4
Bowl Interior (each) 20" F/B × 20" W × 14" D
Drainboard 24" right-hand, integral splash & pitch
Backsplash Height 11"
Overall Dimensions 27" F/B × 118" L/R × ≈44" H (to top of backsplash)
Material & Finish 14 ga Type 304 stainless steel, satin finish
Legs / Bracing 1 ⅝" Ø S/S legs, welded front-to-rear & adjustable side rails
Feet 1" height-adjustable stainless bullet feet
Drain Openings 1 ½" IPS, basket strainers included (4 total)
Faucet Holes (2) sets on 8" centers — faucets required, not included
Approx. Shipping Weight 320 lb.
Certifications NSF
Heads up! Two wall-mount or deck-mount faucets with 8" centers are required and sold separately.

Advance Tabco continuously improves its products; specifications are subject to change without notice.

Features & Specs

Manufacturer

Advance Tabco

Certifications

NSF

Height

45.0in

Width

118.0in

Depth

27.0in

Shipping Weight

320.0lbs

Overall Length

114" - 129"

Base Construction

stainless steel

Top Gauge

14 gauge

Compartment (front - back)

20"

Compartment Width (side - side)

20"

Splash Height

11"

Sink Depth (rim - drain)

14"

Base Type

legs with front & side crossrails

Drainboards

with right-hand drainboard

Top Stainless Series

300 series

Specifications

Regaline Sink, 4-compartment, with right-hand drainboard, 20" front-to-back x 20"W sink compartments, 14" deep, with 11"H backsplash, stainless steel legs with welded front-to-rear & adjustable left-to-right cross rails, 24" drainboard, 1" adjustable bullet feet, 14 gauge 304 stainless steel, overall 27" F/B x 118" L/R, NSF (requires 2 faucets)
