Advance Tabco  |  SKU: 94-24-80-24L

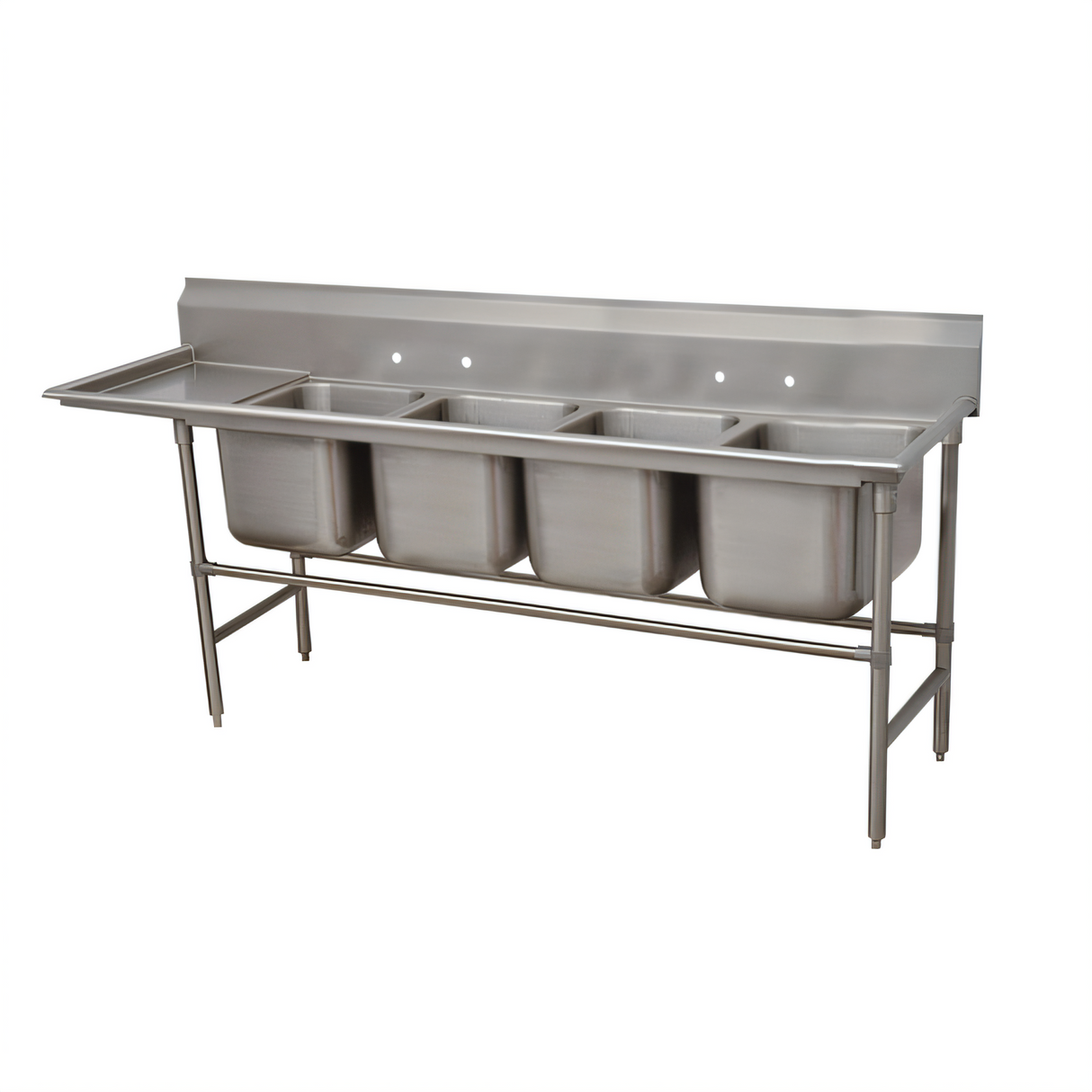

Advance Tabco 94-24-80-24L Compartment Sinks

$6,264.00
Delivered by , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options

Documents

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

Advance Tabco Regaline 4-Compartment Sink w/ 24" Left Drainboard – 14 Ga 304 SS

Model 94-24-80-24L | NSF Listed | 118" L/R x 27" F/B

Built for the busiest kitchens, this heavy-duty Regaline sink from Advance Tabco combines four generous 20" x 20" x 14" deep compartments with a spacious 24" left-hand drainboard and an 11" high backsplash. All-welded 14-gauge 304 stainless steel construction, oversized 1 5/8" tubular legs, and full cross-bracing deliver rock-solid stability shift after shift.

Key Benefits

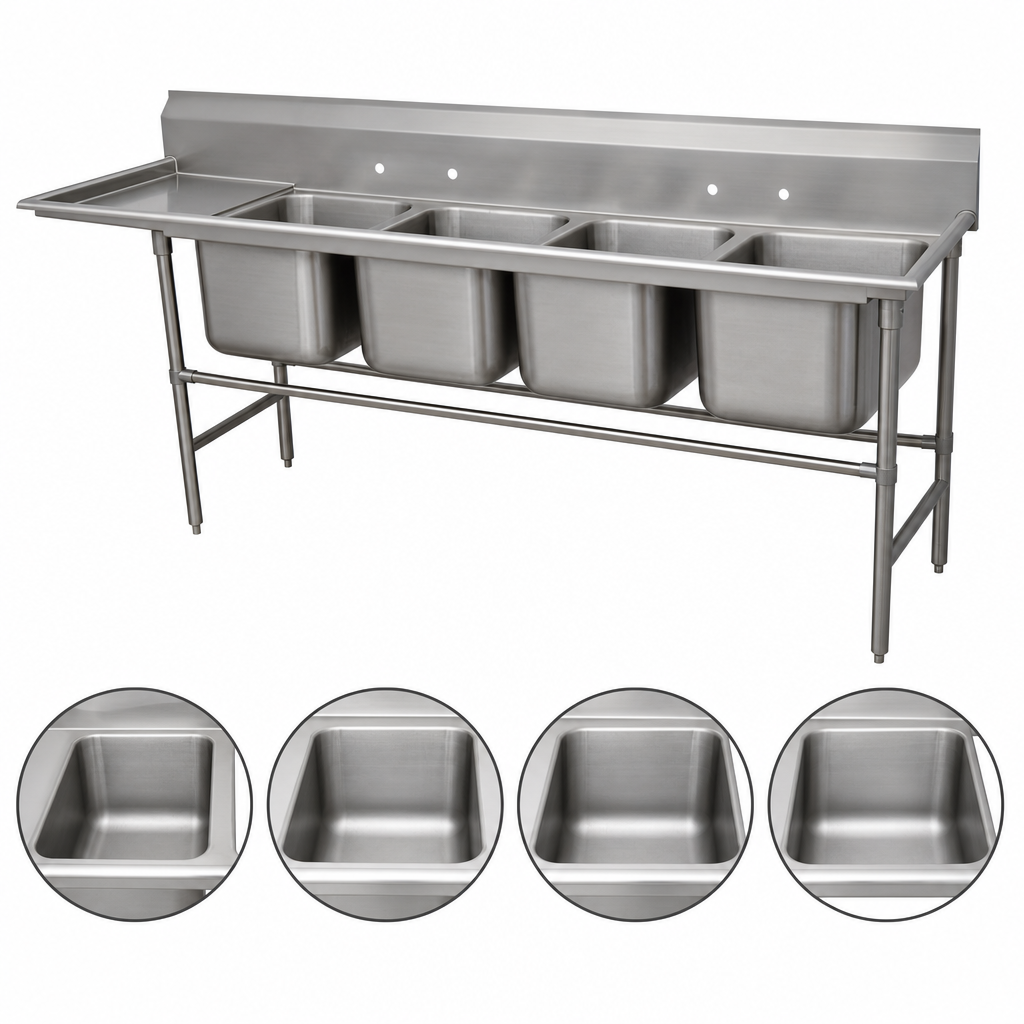

  • Four 14" deep, seamless deep-drawn bowls with large 3" radius corners for effortless cleaning.
  • Expansive 24" left drainboard speeds up dish and pot staging while keeping work areas uncluttered.
  • 11" high backsplash with tile edge simplifies wall sealing and protects against splashes.
  • 14-gauge type 304 stainless steel – our heaviest Regaline spec – stands up to constant abuse and harsh cleaners.
  • TIG-welded joints are blended to a uniform satin finish for a sleek, sanitary appearance.
  • Stainless steel legs with welded front-to-rear & adjustable left-to-right cross rails eliminate wobble.
  • 1" adjustable stainless bullet feet level the unit on uneven floors in seconds.
  • NSF listed for open-kitchen compliance.

At-a-Glance Specs

Bowls (qty / size) 4 / 20" L x 20" W x 14" D
Drainboard 24" L – left-hand
Overall Dimensions 118" L x 27" F/B x 45" H (to top of backsplash)
Backsplash Height 11"
Material / Gauge 14 ga 304 stainless steel (all welded)
Legs 1 5/8" Ø tubular stainless steel w/ gussets & full cross-bracing
Feet 1" adjustable stainless bullet feet
Basket Drains (4) 1 1/2" IPS stainless basket drains included
Required Faucets Two faucets, 8" centers (sold separately)
Approx. Weight 320 lb
Certifications NSF

Ideal Applications

  • High-volume pot & pan washing
  • Commissaries and production kitchens
  • Hotels, resorts, and banquet facilities
  • Universities & healthcare foodservice
Important: Unit ships without faucets. Order two wall- or deck-mount faucets with 8" centers to complete installation. Plumbing rough-in must accommodate dual 1/2" IPS supplies and 1 1/2" IPS waste lines.

Need custom modifications or accessories? Ask about Advance Tabco Smart Fabrication™ for lead-time and pricing.

Features & Specs

Manufacturer

Advance Tabco

Certifications

NSF

Height

45.0in

Width

118.0in

Depth

27.0in

Shipping Weight

320.0lbs

Overall Length

114" - 129"

Base Construction

stainless steel

Sink Depth (rim - drain)

14"

Compartment (front - back)

20"

Compartment Width (side - side)

20"

Top Stainless Series

300 series

Top Gauge

14 gauge

Base Type

legs with front & side crossrails

Drainboards

with left-hand drainboard

Splash Height

11"

Specifications

Regaline Sink, 4-compartment, with left-hand drainboard, 20" front-to-back x 20"W sink compartments, 14" deep, with 11"H backsplash, stainless steel legs with welded front-to-rear & adjustable left-to-right cross rails, 24" drainboard, 1" adjustable bullet feet, 14 gauge 304 stainless steel, overall 27" F/B x 118" L/R, NSF (requires 2 faucets)
