Advance Tabco  |  SKU: 94-24-80-18RL  |  UPC: 747545110114

Advance Tabco 94-24-80-18RL Compartment Sinks

$6,384.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Plumbing Installation manual
Related Searches
4-compartment Sinks Advance Tabco Commercial Plumbing Supplies Commercial Sinks Compartment Sinks Restaurant Equipment Sinks & Handwashing Stations

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

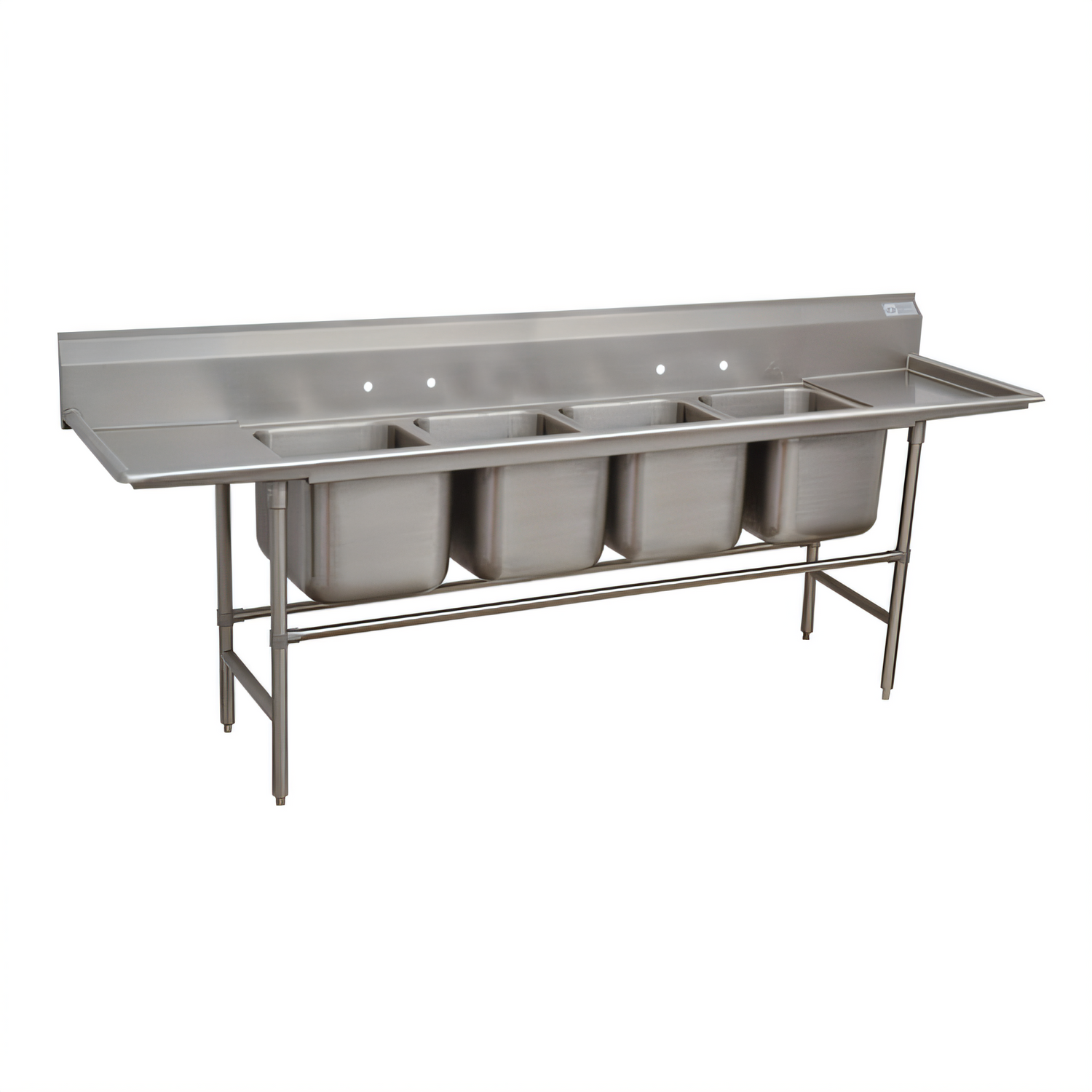

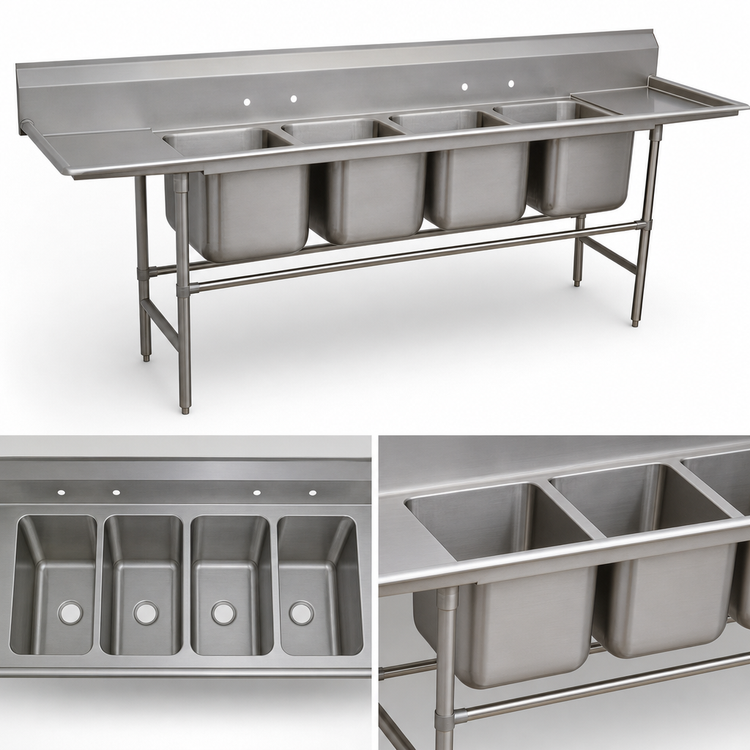

Advance Tabco Regaline 4-Compartment Sink
Model 94-24-80-18RL

Spec-Line 94 Series • 14 ga 304 Stainless Steel • NSF

Built for high-volume kitchens that refuse to compromise on durability, this Advance Tabco Regaline sink combines four spacious 20" × 20" compartments with dual 18" drainboards and rock-solid stainless-steel construction. From food prep to ware-washing, it’s the rugged, NSF-listed workstation you can count on shift after shift.

Key Features

  • Spec-Line 94 Series – extra-heavy 14 gauge, type 304 stainless steel top for maximum strength.
  • Seamless deep-drawn bowls with large 3" interior radius for fast, sanitary clean-up.

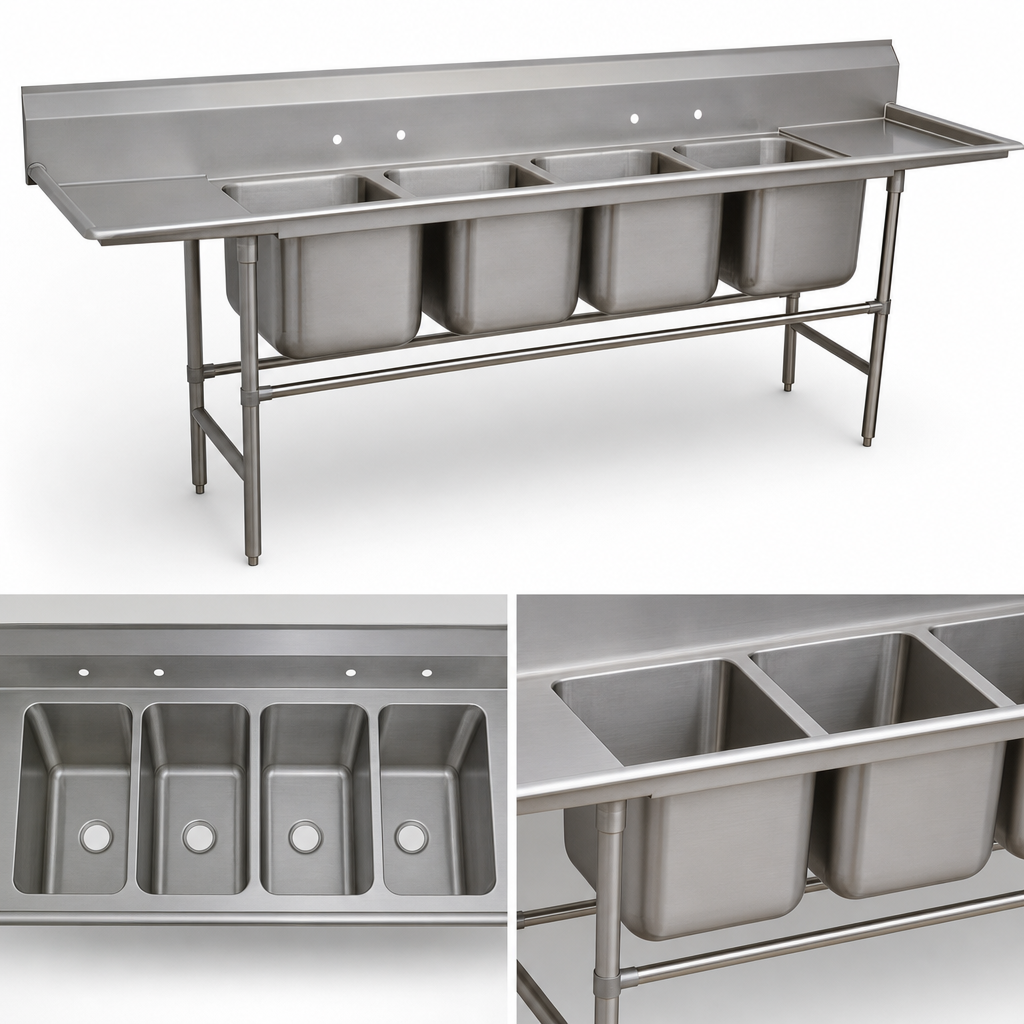

  • Four 20" front-to-back × 20" wide × 14" deep compartments handle full-size ware and large cookware.
  • Integral 11" high backsplash with tile-edge for a watertight, code-compliant installation.
  • 18" left- and right-hand drainboards with splash keep your workflow efficient and your counters dry.
  • 1 ⅝" Ø tubular stainless steel legs with welded front-to-rear & adjustable side cross-bracing.
  • 1" adjustable stainless steel bullet feet level the sink on uneven floors.
  • TIG-welded throughout; welds are blended to a smooth satin finish.
  • Center-mounted 1 ½" IPS stainless steel basket drains included (one per bowl).
  • 8" on-center faucet holes punched – two faucets required, sold separately.

Specifications

Overall Dimensions 126" L × 27" F/B × 45" H (to top of backsplash)
Compartment Size (4) 20" L × 20" W × 14" D
Drainboard Length 18" (left & right)
Backsplash Height 11"
Material / Finish 14 ga type 304 stainless steel, satin finish
Legs / Bracing 1 ⅝" Ø stainless steel legs, welded front-to-rear brace, adjustable side braces, 1" S/S bullet feet
Drain Connection 1 ½" IPS basket-type drains (included)
Faucet Mounting (2) sets of 8" O.C. holes – faucets not included
Approx. Shipping Weight 293 lb
Certifications NSF

Note: Recessed bowl surface accommodates compatible cutting boards and sink covers (sold separately).

Important: This sink ships without faucets. Two wall- or deck-mount faucets with 8" centers are required for proper installation.

Features & Specs

Manufacturer

Advance Tabco

Certifications

NSF

Height

45.0in

Width

126.0in

Depth

27.0in

Shipping Weight

276.0lbs

Overall Length

114" - 129"

Base Construction

stainless steel

Top Gauge

14 gauge

Compartment (front - back)

20"

Compartment Width (side - side)

20"

Splash Height

11"

Sink Depth (rim - drain)

14"

Base Type

legs with front & side crossrails

Top Stainless Series

300 series

Drainboards

with left & right-hand drainboards

Specifications

Regaline Sink, 4-compartment, with left & right-hand drainboards, 20" front-to-back x 20"W sink compartments, 14" deep, with 11"H backsplash, stainless steel legs with welded front-to-rear & adjustable left-to-right cross rails, 18" drainboards, 1" adjustable bullet feet, 14 gauge 304 stainless steel, overall 27" F/B x 126" L/R, NSF (requires 2 faucets)
