Advance Tabco Regaline 4-Compartment Stainless Steel Sink with Right-Hand 18-Inch Drainboard, 20 x 20-Inch Bowls, 14-Inch Deep

SKU: 94-24-80-18R
GTIN: 747545110107
$5,780.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

4-compartment Sinks Advance Tabco Best Sellers Commercial Plumbing Supplies Commercial Sinks Compartment Sinks New Arrivals Restaurant Equipment Sinks & Handwashing Stations

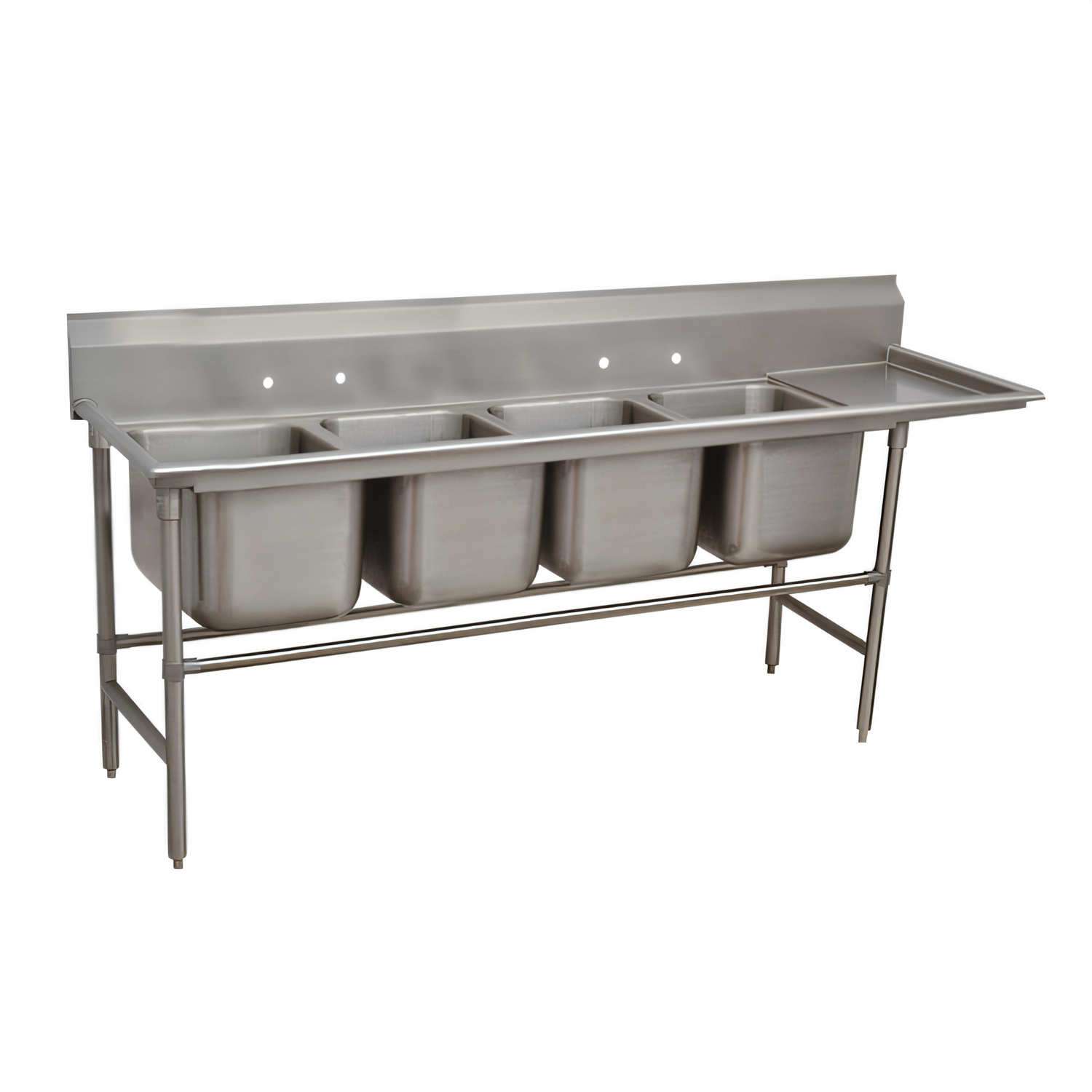

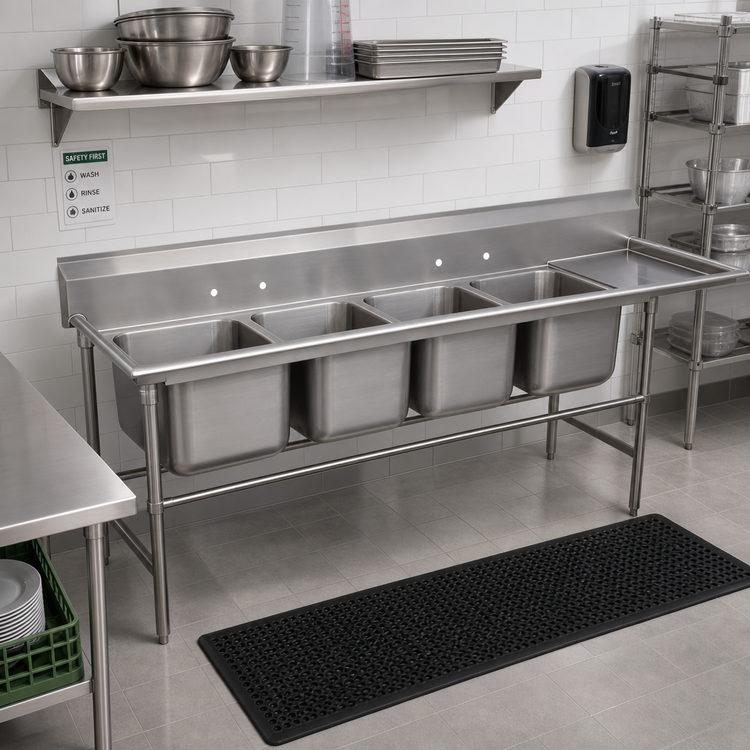

Advance Tabco Regaline 4-Compartment Stainless Steel Sink with Right-Hand 18-Inch Drainboard, 20 x 20-Inch Bowls, 14-Inch Deep

14-Gauge 304 Stainless Steel, 11-Inch Backsplash, Floor Model

Built for high-volume dishwashing, this 4-compartment sink combines heavy-duty 304 stainless steel construction with a right-hand drainboard and oversized 20 x 20-inch bowls.

  • 4-compartment floor sink with an 18-inch right-hand drainboard.
  • Each compartment measures 20 inches front-to-back by 20 inches wide and 14 inches deep.
  • 14-gauge type 304 stainless steel construction with an 11-inch high backsplash.
  • Stainless steel legs with adjustable front and side cross rails for stability.
  • TIG-welded construction with blended seams and a satin finish.
  • Includes basket-type waste drains; faucets are not included and two faucets are required.

Overall Dimensions:

112.0"W x 27.0"D x 45.0"H

Product Weight:

299.0 lb
Note: Conforms to NSF 61/9 lead free requirements. Notice for use or sale in California: Proposition 65 this faucet may expose you to chemicals, including lead, that are known to the State of California to cause cancer, or birth defects or other reproductive harm. For more information visit www.p65warnings.ca.gov.

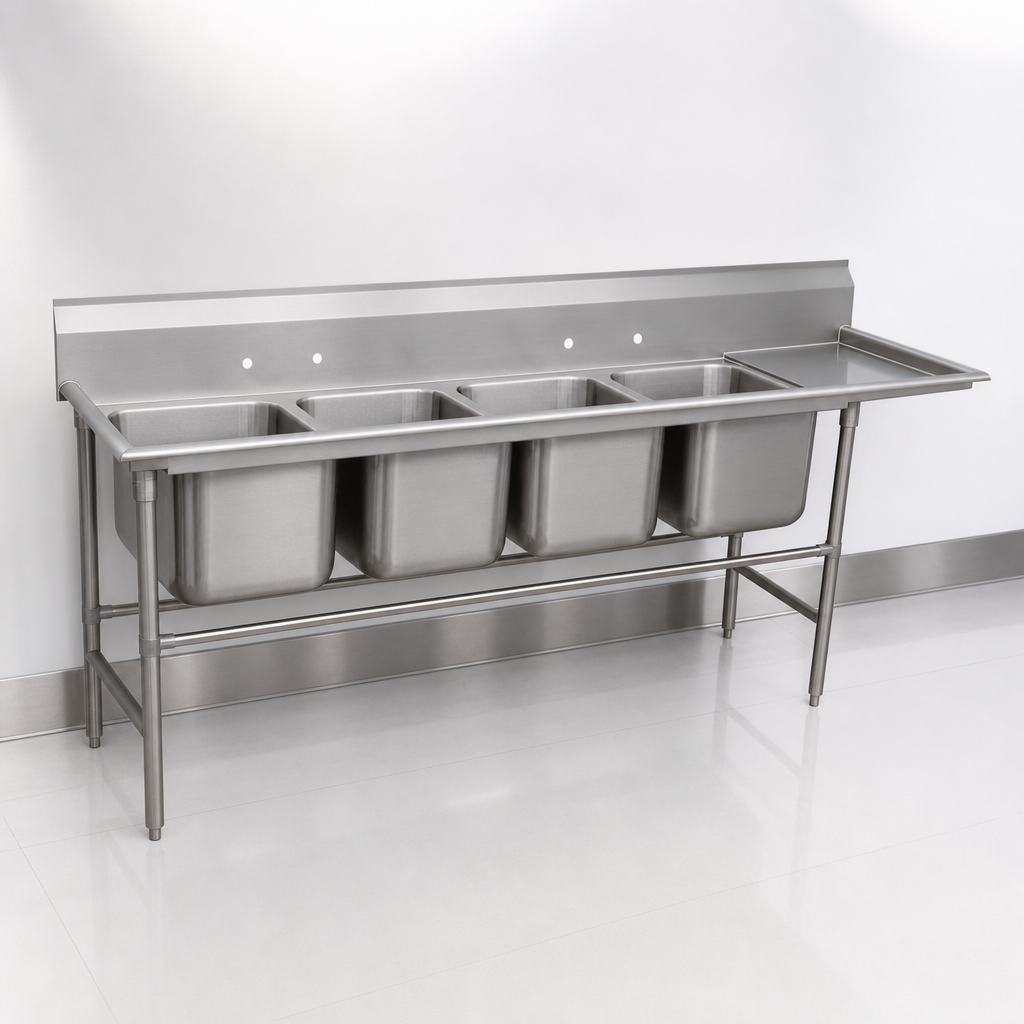

Four-Compartment Layout

Provides four separate sink compartments for washing, rinsing, sorting, and prep tasks.

Right-Hand Drainboard

Features an 18-inch drainboard on the right-hand side for staging and drying.

20 x 20-Inch Bowls

Each compartment measures 20 inches side-to-side by 20 inches front-to-back with a 14-inch sink depth.

14-Gauge 304 Stainless Steel

Heavy-duty Spec-Line construction with an 11-inch high backsplash for durability and splash control.

Adjustable Cross Bracing

Stainless steel legs use welded front-to-rear and adjustable left-to-right cross rails with leg clamps.

TIG-Welded Construction

Welded areas are blended to match adjacent surfaces and finished to a satin sheen.

Leveling Feet

1-inch stainless steel adjustable bullet feet help level the sink on uneven floors.

Plumbing Ready

Supply is 1/2-inch IPS hot and cold; waste drains are 1 1/2-inch IPS basket-type drains located in the center of each bowl and are included.

Recessed Bowl Surface

Designed to accommodate Poly-Vance cutting boards and sink covers.

Type Sink
Style Regaline
Installation Type Floor Model
Compartments 4
Material 304 Stainless Steel
Interior Finish Stainless Steel
Gauge 14 Gauge
Splash Height 11 Inches
Sink Depth 14 Inches
Compartment Width 20 Inches
Compartment Depth 20 Inches
Drainboard Length 18 Inches
Base Type Legs with Front and Side Cross Rails
Selling Unit Each
Units Per Case 1
Shipping Width 111 Inches
Shipping Depth 27 Inches
Shipping Height 45 Inches
Shipping Weight 299 Pounds

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Documents

PDF Cutsheet PDF Download PDF Plumbing PDF Download PDF Installation manual PDF Download

Frequently Asked Questions

No. Faucets are not included, and the sink requires two faucets.
Each compartment measures 20 inches front-to-back by 20 inches wide and 14 inches deep.
This model has a right-hand drainboard.
It is made from 14-gauge type 304 stainless steel.
It requires 1/2-inch IPS hot and cold supply connections, and the included waste drains are 1 1/2-inch IPS basket type.
Yes. It includes stainless steel legs with adjustable bullet feet and adjustable cross rails.
