Advance Tabco 94-24-80-18L Compartment Sinks
Description

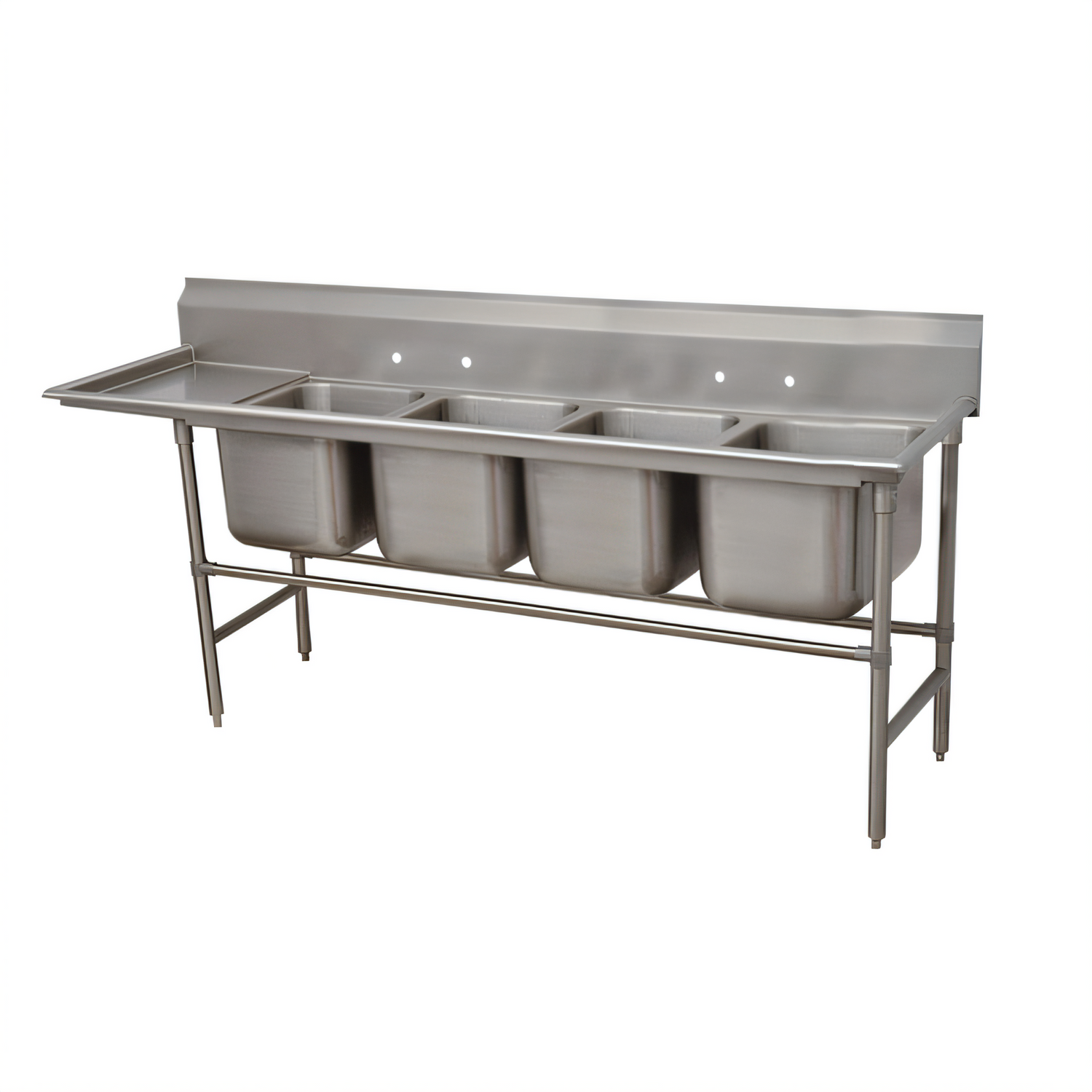

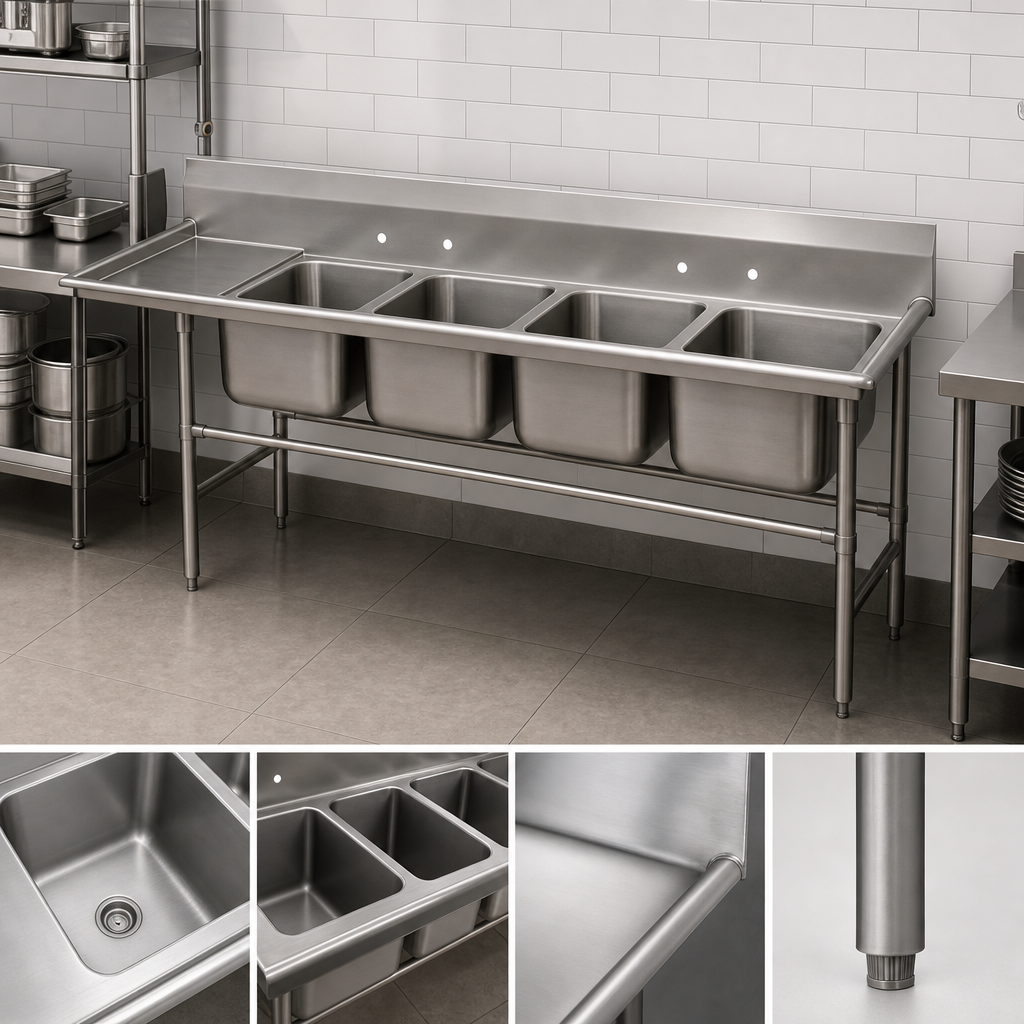

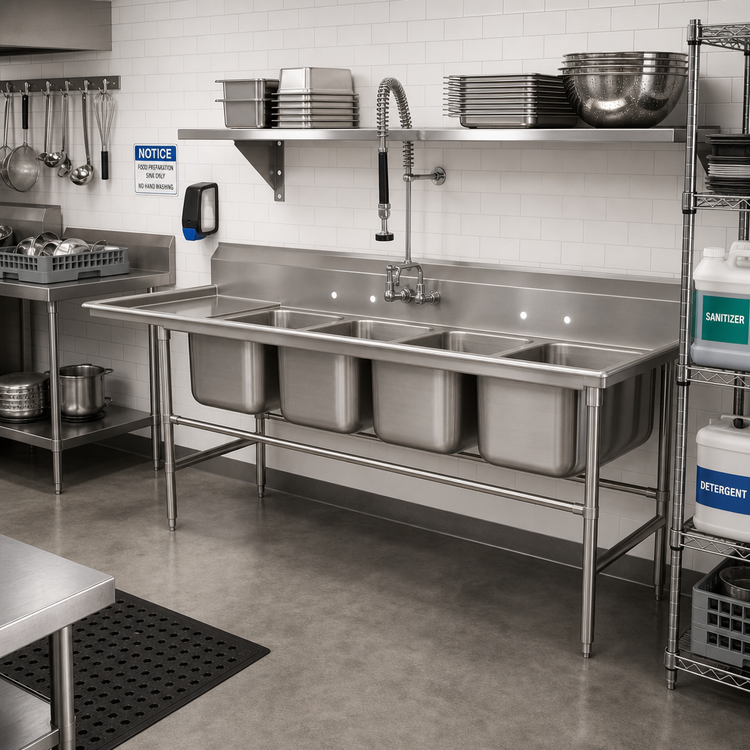

Advance Tabco 94-24-80-18L Regaline 4-Compartment Sink – Left 18" Drainboard
112" W x 27" D overall | 20" x 20" x 14" bowls | 14 ga 304 stainless steel | NSFEngineered for the heaviest commercial use, this Spec-Line Regaline sink delivers uncompromising strength, effortless sanitation and the workflow efficiency that busy prep and pot-washing stations demand.
Key advantages
- Four deep-drawn bowls (20" F/B × 20" W × 14" D) handle high-volume ware-washing, thawing and prepping.
- One-piece 14 gauge type 304 stainless steel top resists corrosion, dents and harsh cleaning chemicals.
- Integral 18" left-hand drainboard with splash & pitched die-stamped drain lines speeds drying and staging.
- 11" high backsplash with tile edge protects walls and allows quick, sanitary installation.
- Large 3" radius coved corners and satin-blended TIG welds wipe clean in seconds.
- 1 ⅝" Ø tubular stainless steel legs with welded front-to-rear braces and adjustable side (left-to-right) cross rails for rock-solid stability.
- Stainless steel 1" bullet feet level the unit on uneven floors.
- Recessed bowl profile accepts optional Poly-Vance® cutting boards and sink covers.
- Includes (4) 1 ½" IPS stainless steel basket drains.
- NSF listed for food-service sanitation.
At-a-glance specs
| Model # | 94-24-80-18L |
|---|---|
| Compartments | 4 |
| Bowl size (each) | 20" front-to-back × 20" wide × 14" deep |
| Drainboard | 18" left-hand, integral with 11" backsplash |
| Overall dimensions | 112" left-to-right × 27" front-to-back × 44" H (to top of backsplash) |
| Material | 14 ga type 304 stainless steel (top & bowls) |
| Legs / bracing | 1 ⅝" Ø S/S legs, welded front-to-rear brace, adjustable side cross-bracing |
| Feet | 1" adjustable S/S bullet feet |
| Drain size | 1 ½" IPS, basket type (included) |
| Faucet holes | (2) sets on 8" centers — requires two faucets |
| Certifications | NSF |
Ideal applications
- High-volume dish & pot washing lines
- Commissaries and central kitchens
- Seafood, produce and protein prep areas
- Institutional, hotel and catering operations
Need custom modifications? Ask about Advance Tabco Smart Fab™ for shelves, pre-rinses, scrap baskets and more.
