Advance Tabco 94-23-60 Regaline Compartment Sinks
$4,683.00
Unit price
/
Unavailable
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Advance Tabco 94-23-60 Regaline Compartment Sinks is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Advance Tabco 94-23-60 Regaline Compartment Sinks
$4,683.00
Unit price
/
Unavailable
Description

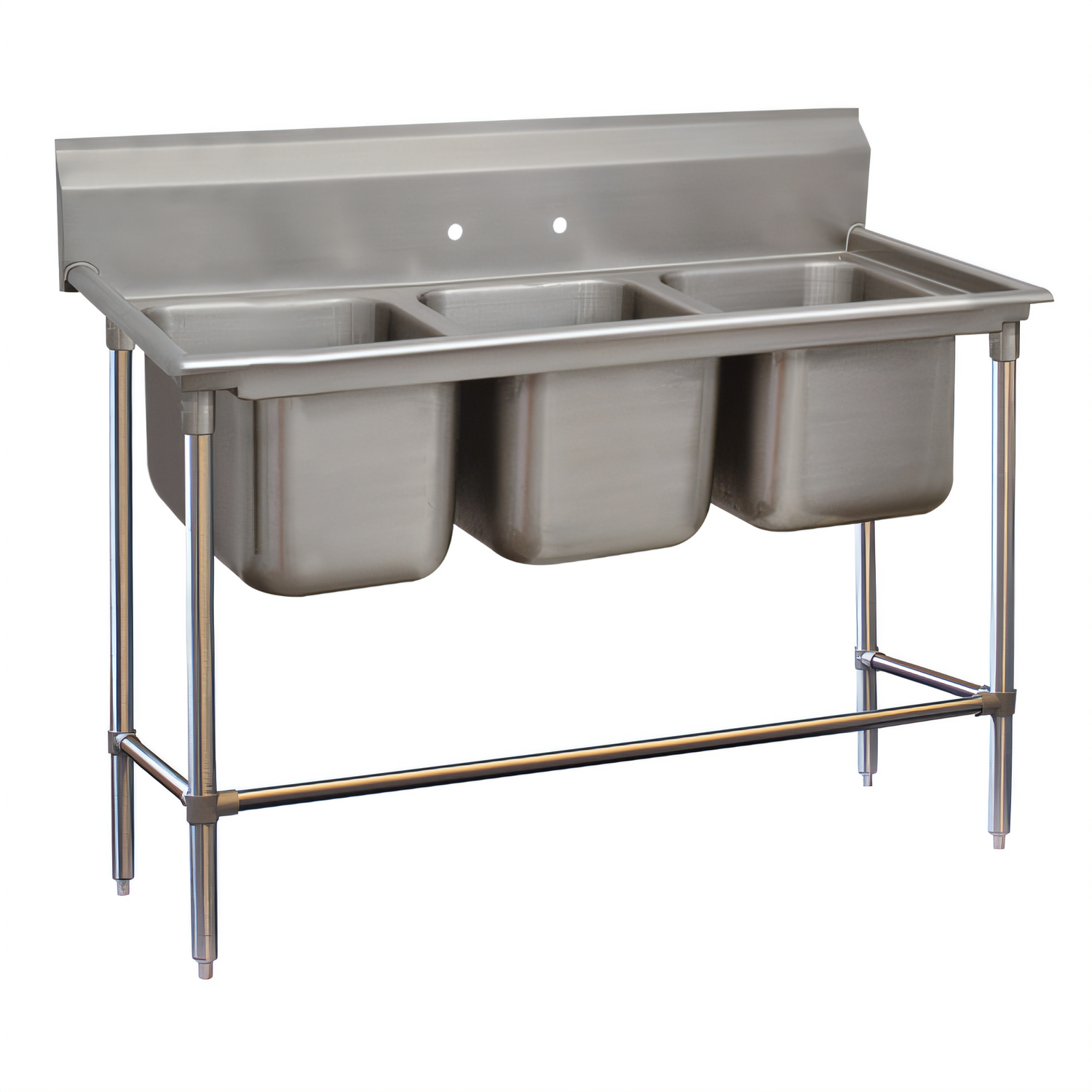

Advance Tabco Regaline 94-23-60 3-Compartment Sink
Heavy-Duty Spec-Line 94 Series • 14 ga Type 304 Stainless Steel • NSF ListedBuilt to thrive in the toughest dishrooms, the Regaline 94-23-60 combines rugged 14-gauge stainless construction with generous 20" x 20" x 14" bowls—perfect for a classic wash / rinse / sanitize setup.
Key Features
- Three deep-drawn 20" × 20" × 14" bowls with large 3" radius corners for effortless cleaning.
- 11" high backsplash with tile edge speeds installation and protects surrounding walls.
- All-TIG-welded seams are blended to a uniform satin finish—no crevices to trap debris.
- 1-5/8" Ø stainless tubular legs with adjustable front & side cross-bracing for rock-solid stability.
- 1" adjustable stainless bullet feet level the sink on uneven floors.
- (3) 1-1/2" IPS basket drains included; faucet holes punched on 8" centers (faucets sold separately).
- Recessed bowl surface accepts optional Poly-Vance cutting boards and sink covers.
- NSF certified for open food-contact use.
Specifications
| Manufacturer | Advance Tabco |
|---|---|
| Series / Model | Regaline 94-23-60 |
| Compartments | 3 |
| Bowl size (L × W × D) | 20" × 20" × 14" |
| Overall dimensions (L × F/B) | 76" × 28" |
| Backsplash height | 11" |
| Material / gauge | 14-ga Type 304 stainless steel |
| Legs & bracing | 1-5/8" Ø S/S legs with adjustable front & side cross-braces |
| Feet | 1" adjustable stainless bullet feet |
| Drain size | (3) 1-1/2" IPS basket drains (centered) |
| Faucet holes | 8" centers • faucets not included |
| Shipping weight | ≈ 232 lb |
| Certifications | NSF |
Need faucets, cutting boards or custom modifications? Contact our Smart Fabrication™ team for a fast quote.
Important: Faucet sets, pre-rinse sprays and other accessories are shown for illustration only and are not included unless added to your order.
Features & Specs
Features & Specs
Manufacturer
Advance Tabco
Brand_name
Regaline
Certifications
NSF
Height
45.0in
Width
76.0in
Depth
28.0in
Shipping Weight
232.0lbs
Top Gauge
14 gauge
Sink Depth (rim - drain)
14"
Overall Length
73" - 84"
Base Type
legs with boxed crossrails
Base Construction
stainless steel
Splash Height
11"
Compartment Width (side - side)
20"
Compartment (front - back)
20"
Top Stainless Series
300 series
Drainboards
without drainboards
Specifications
Regaline Sink, 3-compartment, 20" front-to-back x 20" wide sink compartments, 14" deep, with 11" high splash, stainless steel legs with adjustable left-to-right and front cross rails, 1" adjustable bullet feet, 14 gauge 304 stainless steel, overall 28" F/B x 76" L/R, NSF
