Advance Tabco 94-23-60-36R Regaline Compartment Sinks
Description

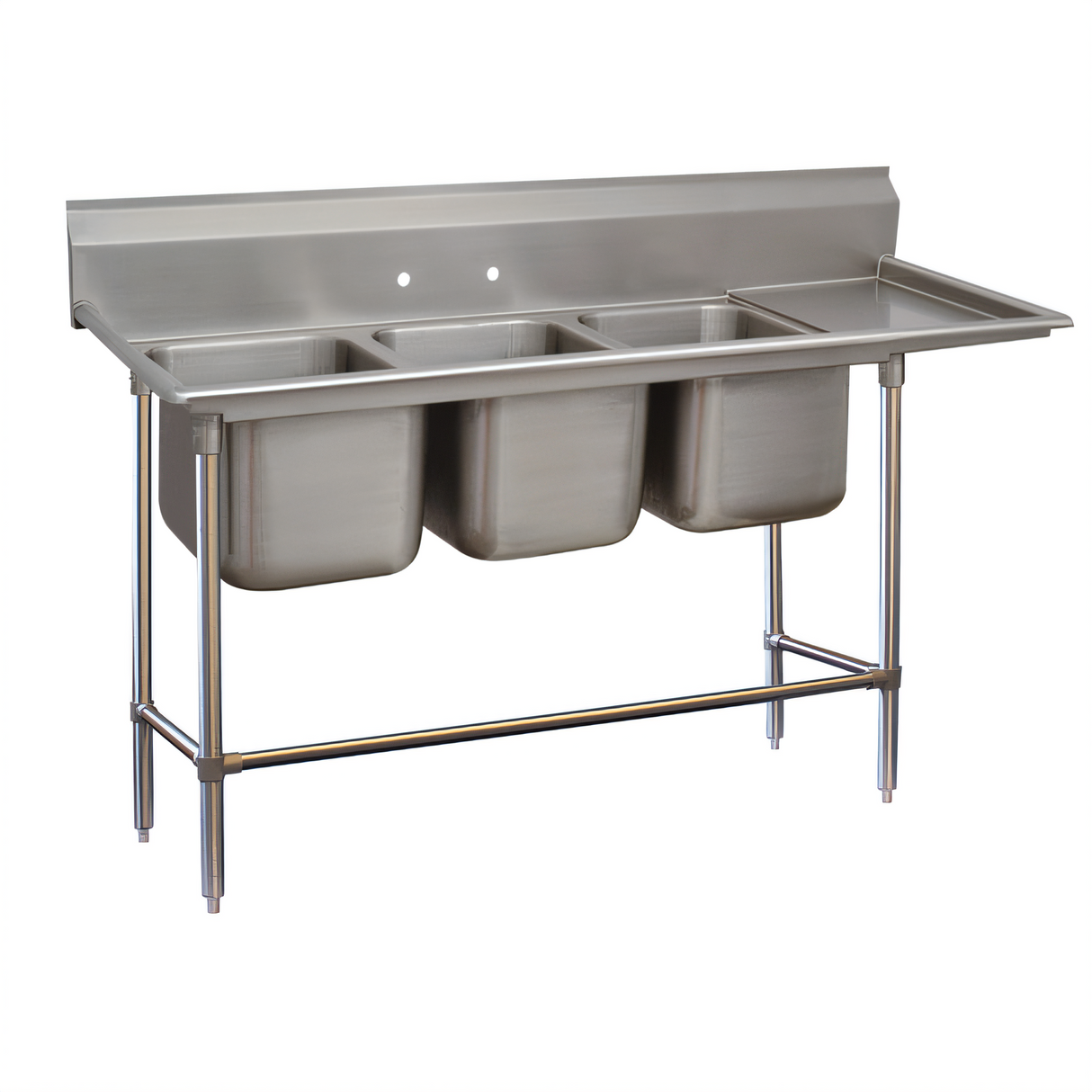

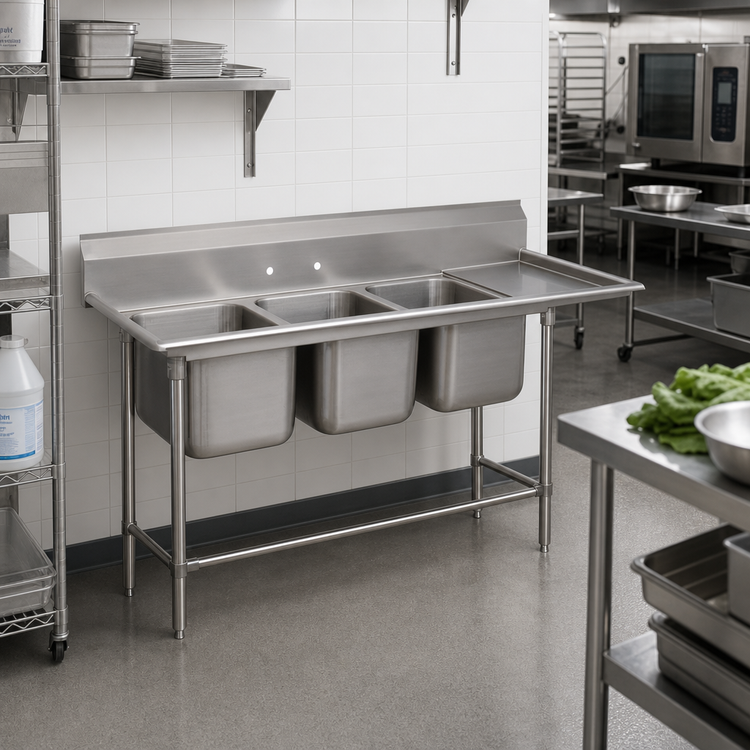

Advance Tabco “Regaline” 3-Compartment Sink with 36" Right Drainboard
Model 94-23-60-36R • 14 ga 304 Stainless Steel • NSF CertifiedBuilt for demanding food-service environments, the Spec-Line Regaline sink combines extra-heavy 14-gauge steel, deep-drawn bowls and a full-size drainboard to give your ware-washing station the rugged capacity it needs—shift after shift.
Key Performance Features

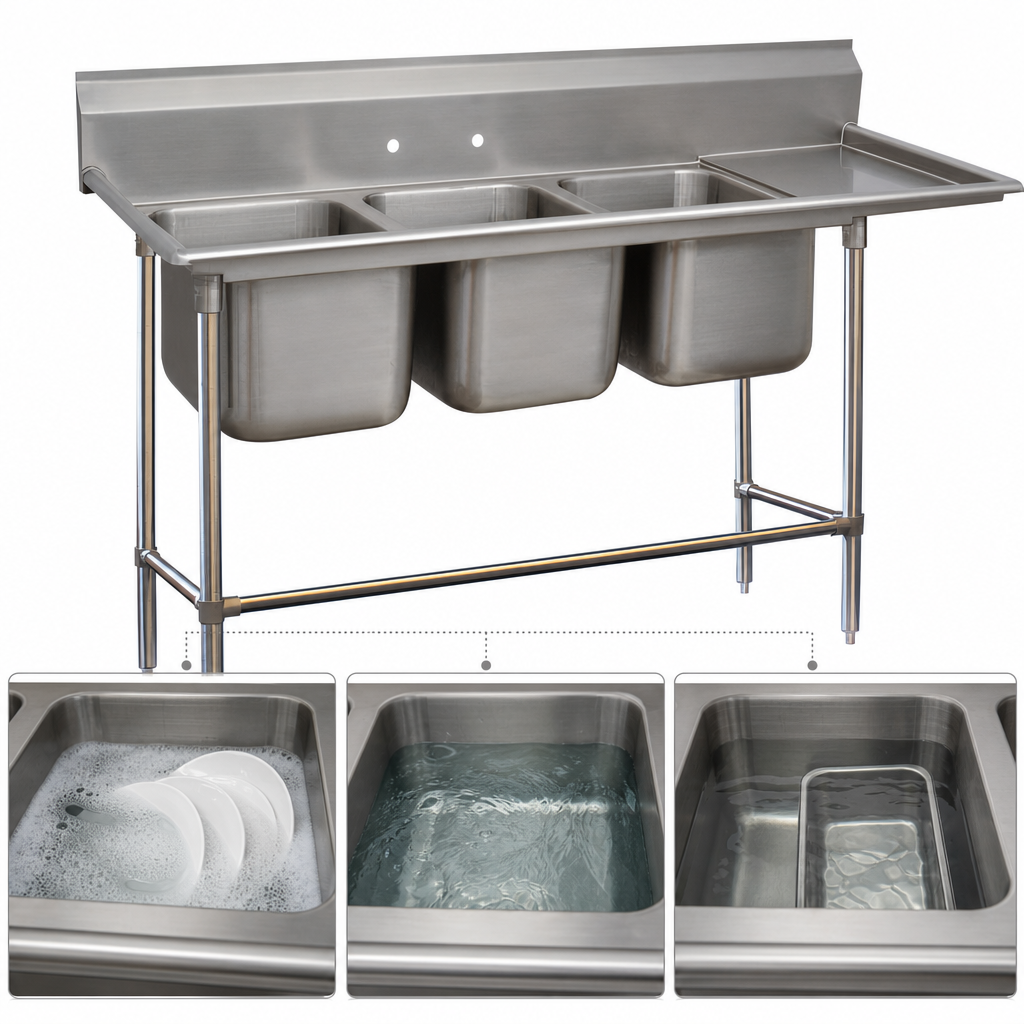

- Three 20" F/B × 20" W × 14" D bowls handle everything from flatware to stock pots.
- 36" right-hand drainboard with embossed drain lines speeds drying & staging.
- 11" high backsplash with two sets of 8"-on-center faucet holes for quick installation (faucets sold separately).
- All TIG-welded 14 ga type 304 stainless steel—corrosion-resistant & virtually dent-proof.
- Large 3" corner radius and satin-blended welds simplify cleaning and sanitizing.
- 1 ⅝" OD tubular stainless legs with adjustable front & side cross-bracing for rock-solid stability.
- Two additional support legs under the drainboard prevent sagging under heavy loads.
- 1" stainless bullet feet level the unit on uneven floors.
- Includes three 1 ½" IPS stainless basket drains—no surprise add-ons.
- NSF listed for food-service compliance and peace of mind.
Technical Specifications
| Model No. | 94-23-60-36R |
|---|---|
| Compartments | 3 |
| Bowl Size (each) | 20" front-to-back × 20" wide × 14" deep |
| Drainboard | 36" right-hand, integral splash |
| Overall Dimensions | 108" L × 28" F/B × 45" H (to top of backsplash) |
| Backsplash Height | 11" |
| Material / Gauge | 14 ga type 304 stainless steel |
| Legs & Feet | 1 ⅝" OD stainless legs, adjustable side & front cross-rails, 1" bullet feet |
| Drain Size | 1 ½" IPS basket drains (included) |
| Approx. Weight | 252 lb |
| Certifications | NSF |
Faucets, pre-rinse units, and overflow assemblies are shown for reference only — they are sold separately. All dimensions are ± 0.5" and subject to change without notice.
