Advance Tabco 94-23-60-24RL Regaline Compartment Sinks
$5,299.00
Unit price
/
Unavailable
Description

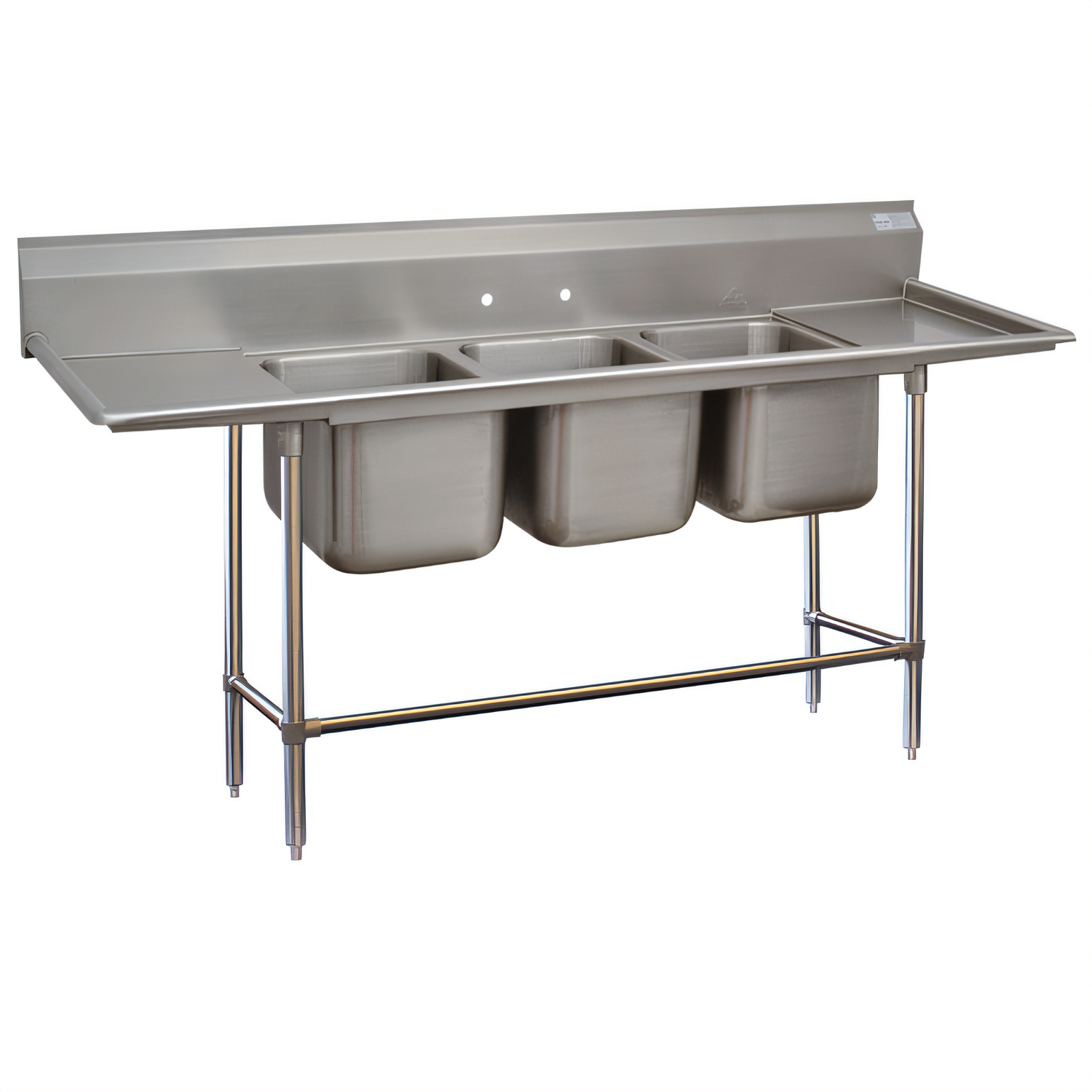

Advance Tabco “Regaline” 3-Compartment Sink with Left & Right 24" Drainboards
Spec-Line 94 Series • Model 94-23-60-24RL • NSF ListedBuilt for high-volume warewashing, the Advance Tabco Regaline combines rugged 14 gauge 304 stainless steel with seamless deep-drawn bowls and dual 24" drainboards— giving you a single, rock-solid workstation for washing, rinsing and sanitizing.
Why You’ll Love It
- Three 20" × 20" × 14" deep compartments handle bus pans, chef pots & sheet pans with ease.
- Dual 24" drainboards with raised rims speed drying and contain splashes.
- 11" high, one-piece backsplash with tile edge simplifies wall sealing.
- All TIG-welded construction; welds are blended to a sanitary satin finish.
- 1 ⅝" O.D. tubular stainless legs with adjustable front & side cross-bracing for rock-steady support.
- 1" stainless bullet feet level the sink on uneven floors.
- Large 3" bowl radii speed cleaning and meet health-code requirements.
- Includes three 1 ½" IPS stainless basket drains—ready for hook-up.
- Faucet holes pre-punched on 8" centers (faucet sold separately).
- NSF certified for open-kitchen and institutional use.
Dimensions & Specifications
| Overall size (L × F/B) | 117" × 28"* |
|---|---|
| Compartments | 3 |
| Bowl interior (W × F/B × Depth) | 20" × 20" × 14" |
| Drainboards | 24" left & 24" right, integrally welded with splash |
| Backsplash height | 11" |
| Material | 14 ga type 304 stainless steel |
| Legs / Bracing | 1 ⅝" S/S legs with adjustable front & side cross-rails |
| Feet | 1" adjustable stainless bullet feet |
| Drains (included) | 3 × 1 ½" IPS basket strainers |
| Faucet holes | (2) sets on 8" centers |
| Shipping weight | ≈ 276 lb |
| Certifications | NSF |
Installation Notes
- Supply connections: ½" IPS hot & cold.
- Waste outlet: 1 ½" IPS (three total), centered in each bowl.
- Faucets, traps and overflow plumbing are not included.
- Allow ½" tolerance on all overall dimensions.
*Overall length may vary slightly based on bullet-foot adjustment.
Features & Specs
Features & Specs
Manufacturer
Advance Tabco
Brand_name
Regaline
Certifications
NSF
Height
45.0in
Width
115.0in
Depth
28.0in
Shipping Weight
276.0lbs
Top Gauge
14 gauge
Base Type
legs with boxed crossrails
Compartment Width (side - side)
20"
Sink Depth (rim - drain)
14"
Base Construction
stainless steel
Compartment (front - back)
20"
Top Stainless Series
300 series
Splash Height
11"
Overall Length
109" - 170"
Drainboards
with left & right-hand drainboards
Specifications
Regaline Sink, 3-compartment, with left & right-hand drainboards, 20" front-to-back x 20"W sink compartments, 14" deep, with 11"H backsplash, stainless steel legs with adjustable left-to-right and front cross rails, 24" drainboards, 1" adjustable bullet feet, 14 gauge 304 stainless steel, overall 28" F/B x 117" L/R, NSF
