Advance Tabco  |  SKU: 94-23-60-24R

Advance Tabco 94-23-60-24R Regaline Compartment Sinks

$4,825.00
Delivered by , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Installation manual Plumbing
Related Searches
Compartment Sinks Sinks & Handwashing Stations

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

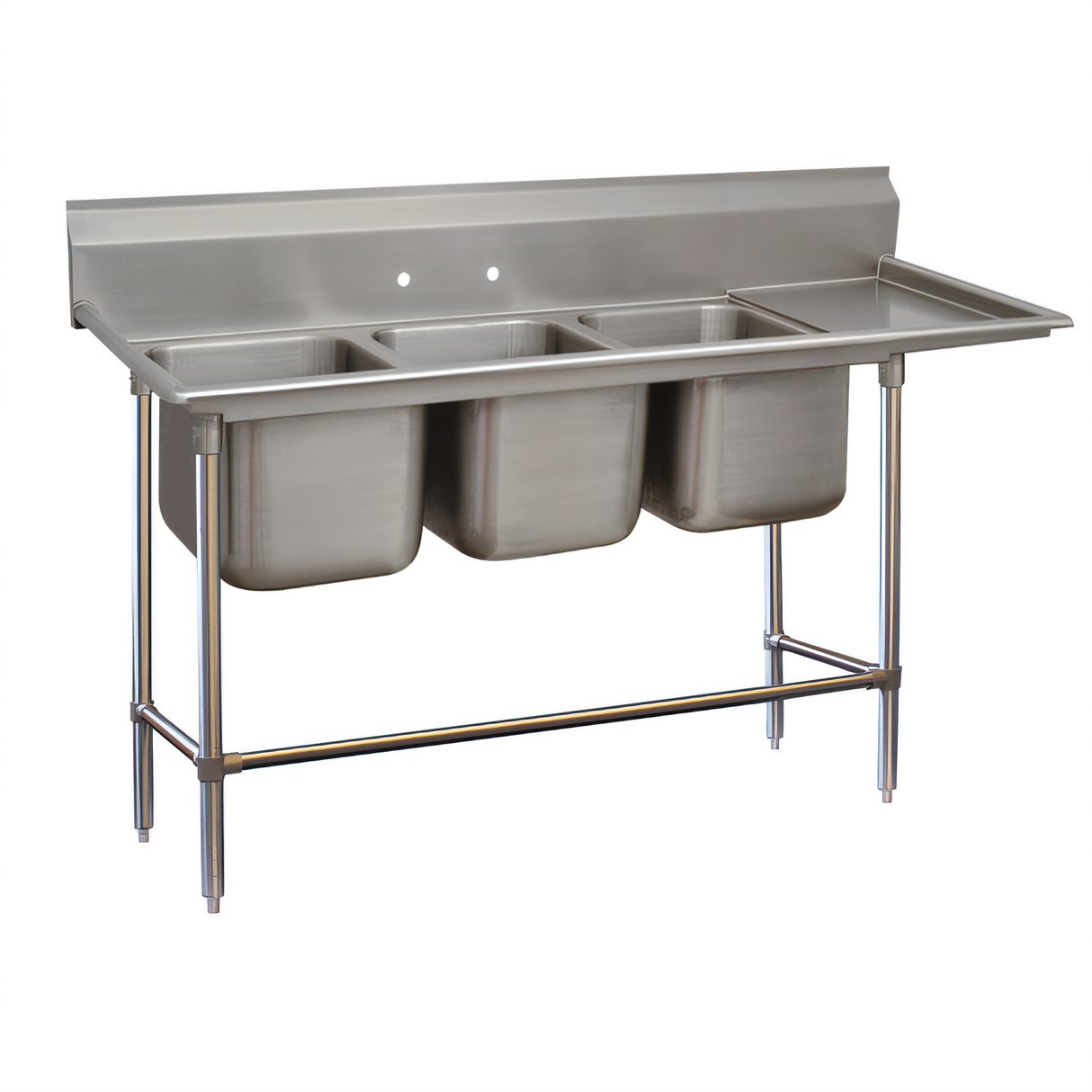

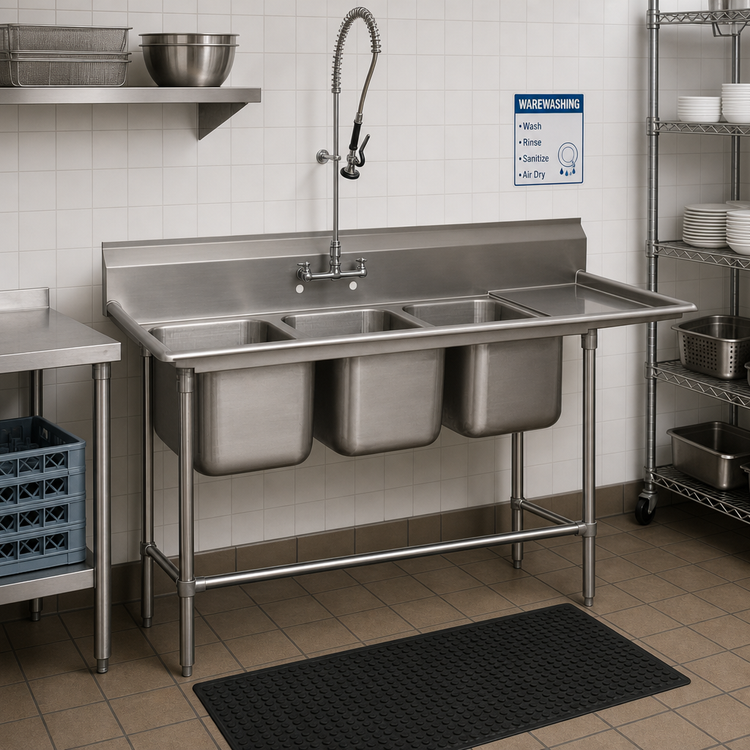

Advance Tabco “Regaline” 94-23-60-24R 3-Compartment Sink with 24" Right-Hand Drainboard

96" L/R x 28" F/B • 14 ga Type 304 Stainless Steel • NSF Listed

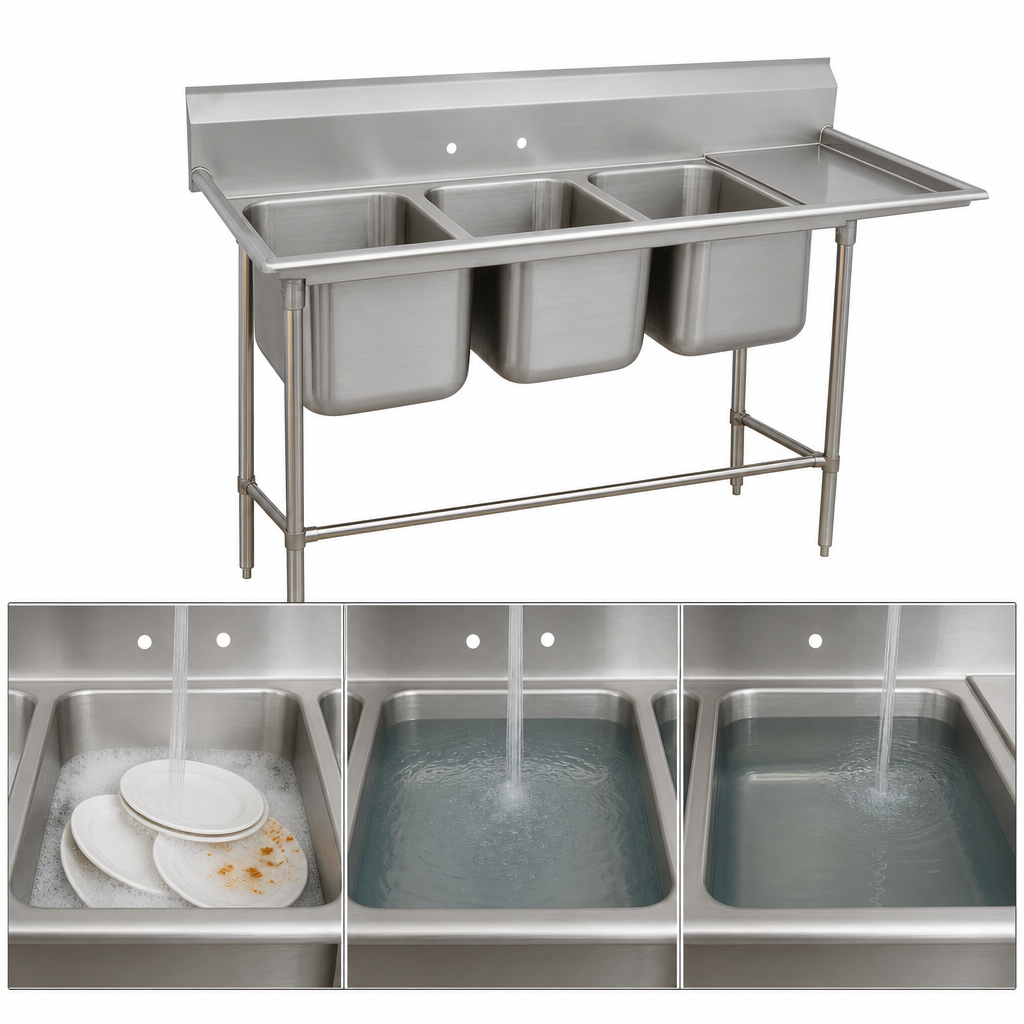

Built for the punishing pace of high-volume kitchens, this heavy-duty Regaline sink gives you three roomy 20" x 20" compartments, a full 24" drainboard, and rock-solid 14 gauge stainless-steel construction. From warewashing to food prep, it delivers the capacity, durability, and sanitation your operation demands.

Why Choose This Sink
  • True 14 ga Type 304 stainless steel for maximum corrosion resistance and dent-proof strength.
  • Deep-drawn bowls with generous 3" radius corners speed cleanup and reduce bacteria-harboring seams.
  • 11" integral backsplash with tile edge protects walls and makes installation straightforward.
  • 24" right-hand drainboard slopes to drain, keeping dishes and glassware above standing water.
  • Adjustable side & front cross-bracing (94 Series) stabilizes the sink while leaving open storage below.
  • 1 ⅝" Ø stainless legs & 1" bullet feet level easily on uneven floors.
  • TIG-welded construction; welds are blended to a smooth satin finish that matches adjacent surfaces.
  • NSF listed for food-service sanitation.
At-a-Glance Specs
Manufacturer / Series Advance Tabco Regaline 94 Series
Model # 94-23-60-24R (Right drainboard)
Overall Dimensions 96" L x 28" F/B x 44" H (to top of backsplash)
Compartment Qty & Size 3 bowls, each 20" F/B x 20" W x 14" D
Drainboard 24" L x 20" W, sloped, with 11" splash
Backsplash Height 11"
Material Thickness 14 ga (0.078")
Legs / Feet 1 ⅝" Ø stainless legs, adjustable side & front cross rails, 1" S/S bullet feet
Drains (included) 1 ½" IPS basket drains, centered in each bowl
Faucet Holes 8" centers (faucet sold separately)
Certifications NSF
Ship Weight ≈ 245 lb
Perfect For
  • High-volume dishrooms
  • Hotel, resort & banquet kitchens
  • Institutional cafeterias
  • Commissaries & ghost kitchens
Heads-up: Faucet(s), side splash kits, and other accessories are sold separately. Check our compatible accessories below or contact us for expert help.

Need a different drainboard length, bowl size, or pre-installed faucets? Ask about Advance Tabco Smart Fabrication™ for fast, factory-modified solutions.

Features & Specs

Manufacturer

Advance Tabco

Brand_name

Regaline

Certifications

NSF

Height

45.0in

Width

96.0in

Depth

28.0in

Shipping Weight

245.0lbs

Drainboards

with right-hand drainboard

Overall Length

85" - 96"

Top Gauge

14 gauge

Base Type

legs with boxed crossrails

Compartment Width (side - side)

20"

Sink Depth (rim - drain)

14"

Base Construction

stainless steel

Compartment (front - back)

20"

Top Stainless Series

300 series

Splash Height

11"

Specifications

Regaline Sink, 3-compartment, with right-hand drainboard, 20" front-to-back x 20"W sink compartments, 14" deep, with 11"H backsplash, stainless steel legs with adjustable left-to-right and front cross rails, 24" drainboard, 1" adjustable bullet feet, 14 gauge 304 stainless steel, overall 28" F/B x 96" L/R, NSF
