Advance Tabco  |  Regaline  |  SKU: 94-23-60-18RL  |  UPC: 747545109989

Advance Tabco 94-23-60-18RL Regaline Compartment Sinks

$5,148.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Plumbing Installation manual
Related Searches
Compartment Sinks Sinks & Handwashing Stations

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

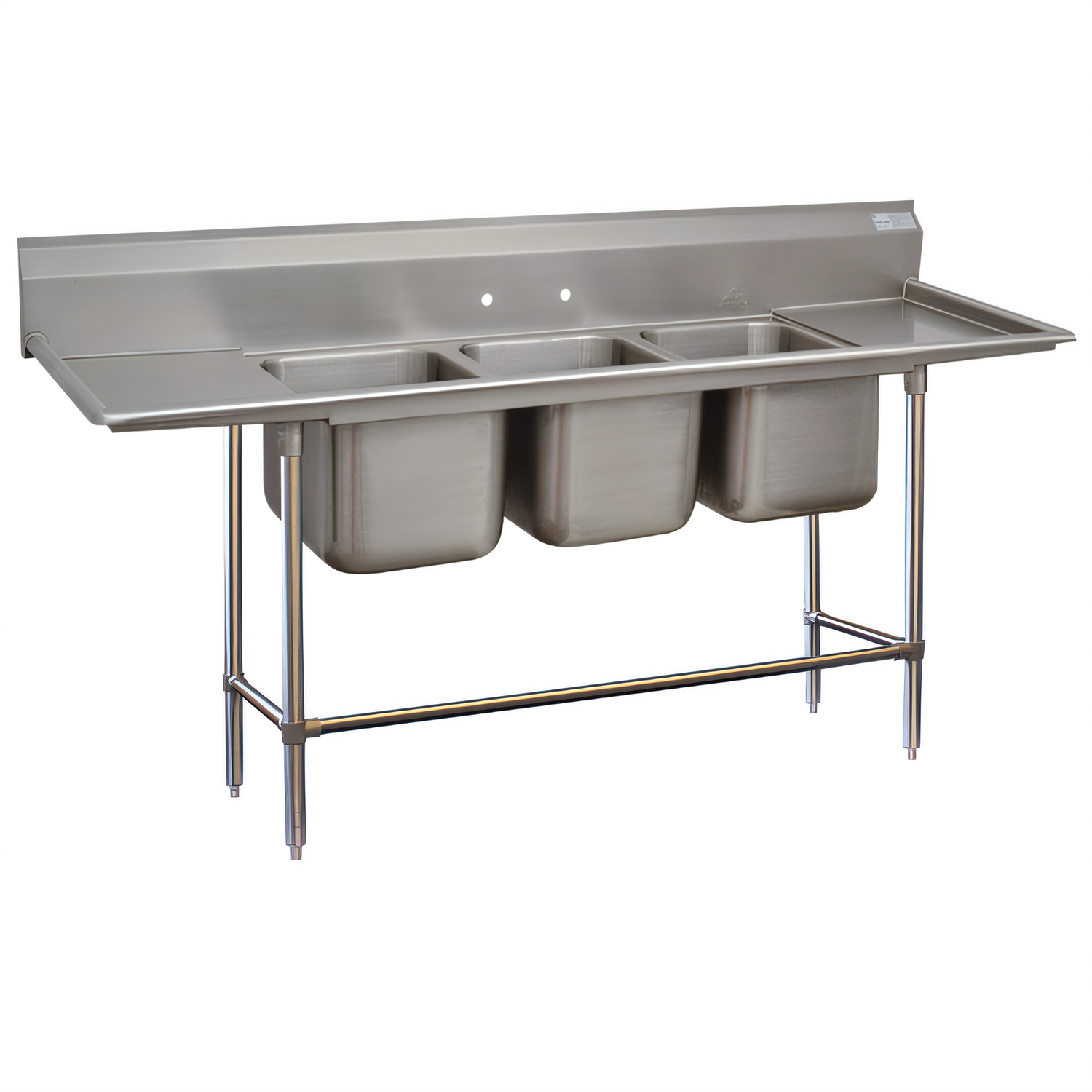

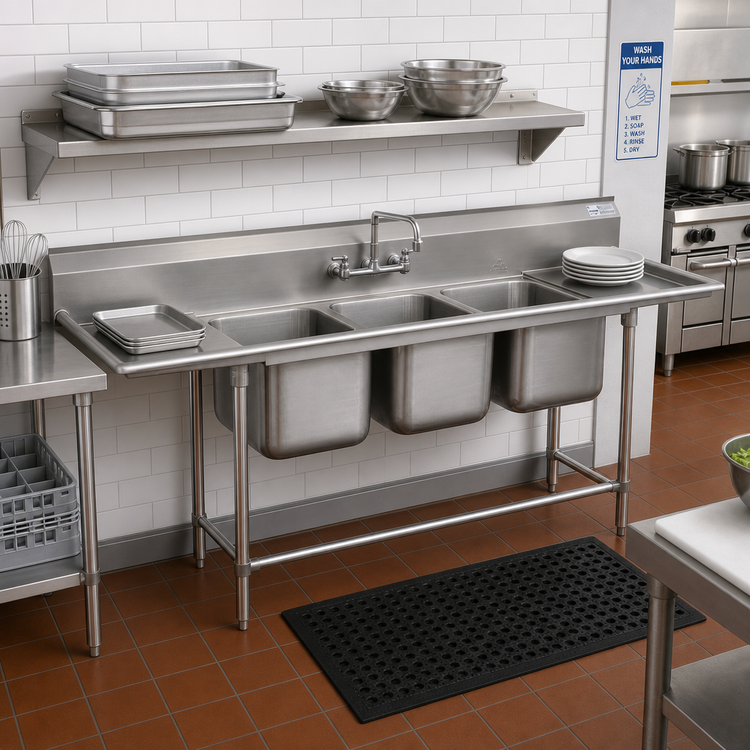

Advance Tabco Regaline 94-23-60-18RL – 3 Compartment Sink

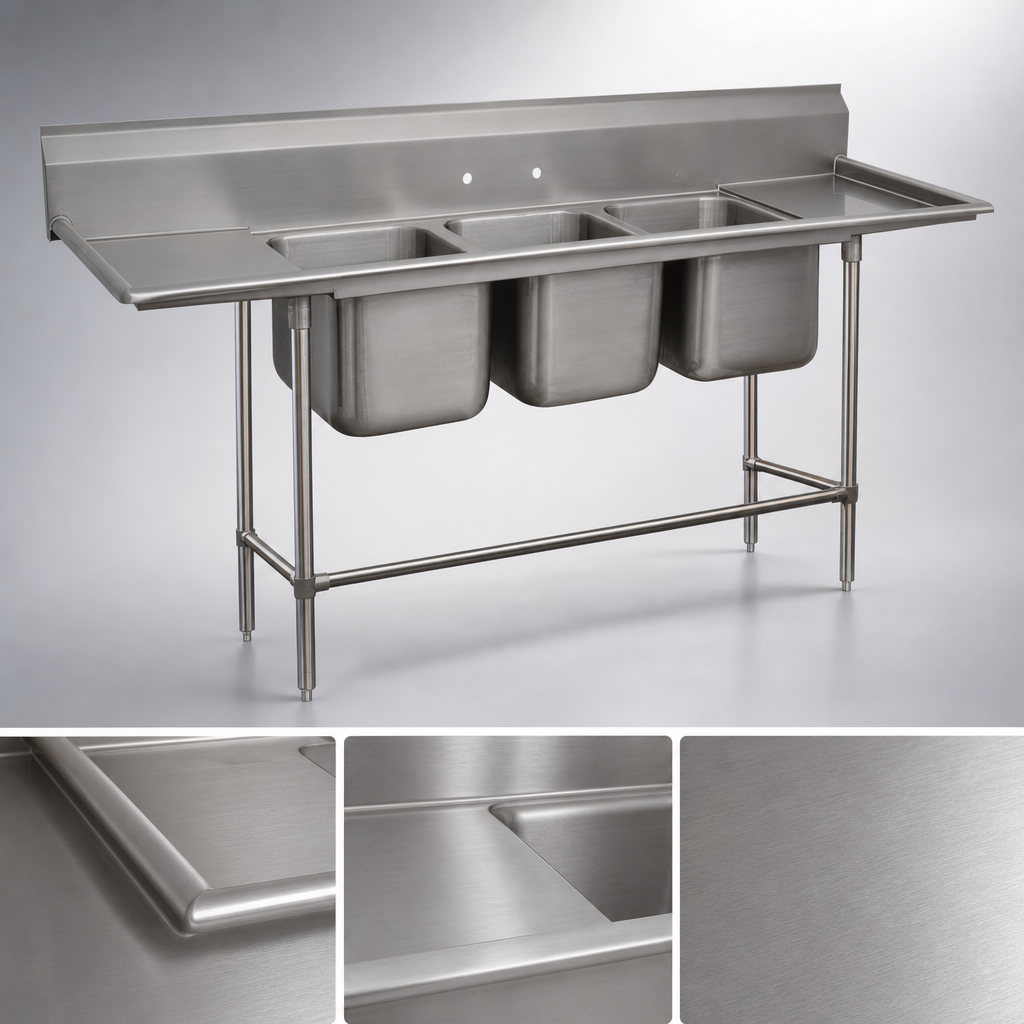

14-Gauge 304 Stainless Steel • Dual 18" Drainboards • NSF

The Regaline Spec-Line sink is engineered for the toughest dishroom, prep-room, and utility applications. Heavy-duty 14-gauge type 304 stainless steel, all TIG-welded seams, and generous 3" radius corners deliver a lifetime of sanitary, worry-free performance.

Key Features
  • Three 20" × 20" × 14" deep-drawn bowls – seamless and easy to clean.
  • Integral 11" backsplash with tile-edge for a watertight, no-gap installation.
  • Left & right 18" drainboards with splash for fast staging and drying.
  • All TIG-welded construction; welds ground & polished to a uniform satin finish.
  • Adjustable front & side cross-bracing (stainless steel) for rock-solid rigidity.
  • 1 ⅝" Ø stainless steel legs with gussets & 1" adjustable bullet feet.
  • (3) 1 ½" IPS stainless steel basket drains included (centered in each bowl).
  • Faucet ledge pre-punched on 8" centers – ready for your choice of faucet.
  • NSF listed and built in the USA for full code compliance.
Specifications
Model 94-23-60-18RL
Compartments 3
Bowl Dimensions (L × W × D) 20" × 20" × 14"
Drainboards (2) 18" – left & right
Overall Dimensions 103" L × 28" F/B
Backsplash Height 11"
Material / Gauge 14-ga type 304 stainless steel
Legs & Bracing 1 ⅝" Ø S/S legs with adjustable side & front cross-rails
Drain Size 1 ½" IPS with basket strainers
Faucet Holes (3) holes on 8" centers
Shipping Weight Approx. 248 lb
Ideal Applications
  • High-volume restaurant dishrooms
  • Hotel & resort banquet kitchens
  • Seafood, butcher, and produce prep areas
  • Catering commissaries & ghost kitchens
Heads-up: Faucets, P-traps, and other plumbing accessories are shown for illustration only and are sold separately.

Advance Tabco continuously improves its products; specifications are subject to change without notice.

Features & Specs

Manufacturer

Advance Tabco

Brand_name

Regaline

Certifications

NSF

Height

45.0in

Width

103.0in

Depth

28.0in

Shipping Weight

248.0lbs

Top Gauge

14 gauge

Overall Length

97" - 108"

Compartment Width (side - side)

20"

Base Type

legs with boxed crossrails

Base Construction

stainless steel

Sink Depth (rim - drain)

14"

Top Stainless Series

300 series

Compartment (front - back)

20"

Drainboards

with left & right-hand drainboards

Splash Height

11"

Specifications

Regaline Sink, 3-compartment, with left & right-hand drainboards, 20" front-to-back x 20"W sink compartments, 14" deep, with 11"H backsplash, stainless steel legs with adjustable left-to-right and front cross rails, 18" drainboards, 1" adjustable bullet feet, 14 gauge 304 stainless steel, overall 28" F/B x 103" L/R, NSF
